AirCoat 423 Cart Assembly

AirCoat 423 Cart Assembly
Titan 0533545 Handle Assembly
Titan 0533545 Handle Assembly

Item No: 1

Part #: 0533545

  OEM Titan Mobility Component Titan 0533545 Handle Assembly is an OEM ergonomic handle des...

Retail Price: $291.10
You save: $40.46 (13.90%)
Our Price: $250.64
QTY:
Titan 0533546 Handle Sleeve
Titan 0533546 Handle Sleeve

Item No: 2

Part #: 0533546

  OEM Titan Cart Component Titan 0533546 Handle Sleeve is an OEM ergonomic grip sleeve desi...

$12.30
QTY:
Titan 0533548 Knob
Titan 0533548 Knob

Item No: 4

Part #: 0533548

  OEM Titan Cart Component Titan 0533548 Knob is an OEM control component used to adjust or...

$6.30
QTY:
Titan 0533551 Wheel
Titan 0533551 Wheel

Item No: 7

Part #: 0533551

  OEM Titan Mobility Component Titan 0533551 Wheel is an OEM mobility component that provid...

Retail Price: $141.60
You save: $14.73 (10.40%)
Our Price: $126.87
QTY:
Titan 0533552 Wheel Spacer
Titan 0533552 Wheel Spacer

Item No: 8

Part #: 0533552

  OEM Titan Mobility Component Titan 0533552 Wheel Spacer is an OEM alignment component tha...

$2.60
QTY:
Titan 0533553 Wheel Spacer Plug
Titan 0533553 Wheel Spacer Plug

Item No: 9

Part #: 0533553

  OEM Titan Cart Component Titan 0533553 Wheel Spacer Plug is an OEM plug that inserts into...

$3.80
QTY:

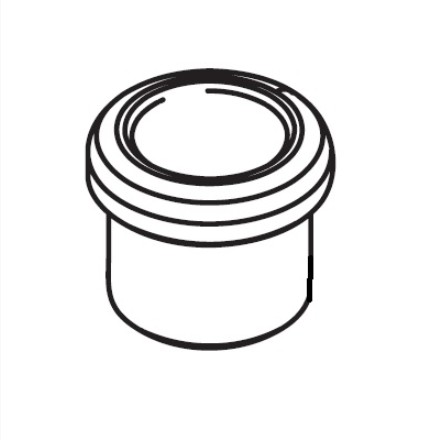

Titan 0533619 Handle Sleeve
Titan 0533619 Handle Sleeve

Item No: 10

Part #: 0533619

  OEM Titan Cart Component Titan 0533619 Sleeve is an OEM protective sleeve used to enhance...

$15.20
QTY:

Titan AirCoat 423 Parts · Cart Assembly

AirCoat 423 Cart Assembly Replacement Parts Breakdown

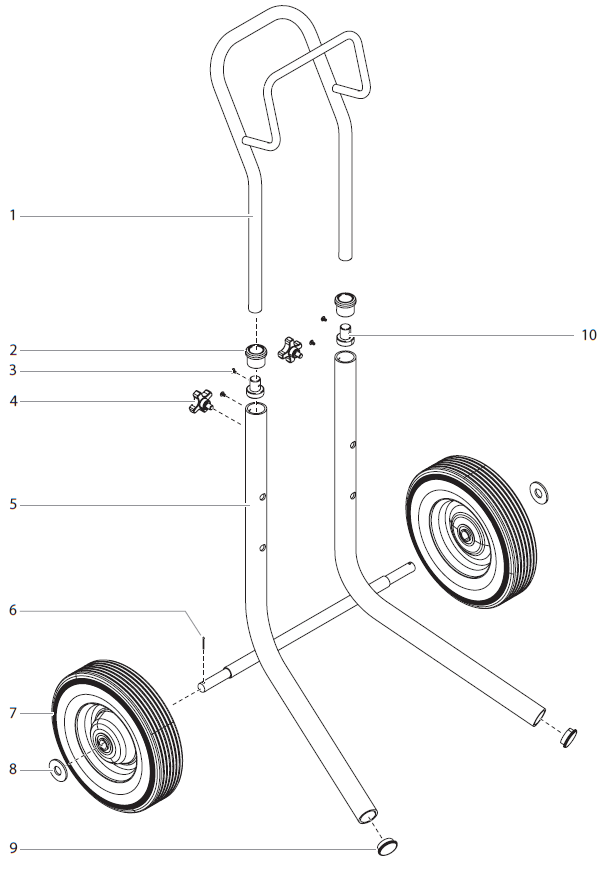

Use the Titan AirCoat 423 Cart Assembly exploded diagram to identify the handle assembly, handle sleeves, mounting screws, knobs, cart frame, axle pins, wheels, wheel spacers, frame plugs, and upper sleeves.

01
10 Verified Callouts
Identify every listed handle, frame, wheel, sleeve, spacer, pin, plug, knob, and screw.
02
Stable Equipment Support
The cart frame supports the mounted AirCoat 423 system during operation, storage, and transport.
03
Jobsite Mobility
Two wheels, axle pins, and spacers support smooth movement and correct wheel alignment.
04
Serviceable Handle System
The removable handle, sleeves, knobs, and screws simplify transport and component access.
Assembly Overview

How the AirCoat 423 Cart Supports Mobility and Stability

The AirCoat 423 cart assembly provides the structural base, rolling support, and removable handle used to move the sprayer between work areas. Correctly assembled cart components keep the air motor, fluid pump, filter, regulator, and connected hoses supported while reducing unwanted movement during transport.

Titan 0533545 handle assembly slides into Titan 0533546 handle sleeves and is retained with four Titan 0533504 screws and two Titan 0533548 knobs. This arrangement allows the operator to secure the handle while preserving service access around the cart-mounted equipment.

Titan 0533549 cart forms the primary frame. Two Titan 0533550 pins retain two Titan 0533551 wheels on the cart axle. Two Titan 0533552 wheel spacers maintain correct wheel position and help prevent rubbing, side play, uneven wear, or binding.

Two Titan 0533553 plugs close the open lower frame-tube ends, while two Titan 0533619 sleeves protect and finish the upper cart tubes. Missing plugs or sleeves can expose tubing edges to contamination, impact, and moisture.

The cart diagram applies to the AirCoat 423C configuration and shares the listed cart components with the AirCoat 620C. Always match the machine model, cart revision, item number, and exact Titan part number before ordering.

Main Functions

Functions Supported by the Cart Assembly

  • Supports the complete cart-mounted AirCoat 423 system.
  • Provides rolling mobility through two wheels and axle hardware.
  • Maintains wheel alignment with matched spacers and retaining pins.
  • Provides a removable handle for controlled movement.
  • Protects open frame tubes with fitted sleeves and plugs.
Service Applications

When Technicians Use This Diagram

  • Replacing a bent, cracked, or unstable cart frame.
  • Correcting wheel wobble, drag, misalignment, or uneven wear.
  • Replacing a damaged handle, sleeve, knob, pin, or plug.
  • Restoring missing wheel-retention or spacing hardware.
  • Rebuilding a cart after impact or transport damage.
Troubleshooting & Maintenance

AirCoat 423 Cart Assembly Troubleshooting

Inspect both sides of the cart before replacing a single wheel or spacer. Uneven wear often indicates a paired alignment, axle, or retention problem.

Operating symptom Areas to inspect Recommended action
Cart rolls unevenly 0533551 wheels, 0533552 spacers, 0533550 pins, axle alignment, and debris around the hubs Clean the axle area and replace worn, damaged, or missing wheel components.
Wheel rubs against the frame Wheel spacer position, bent axle, damaged wheel hub, side play, and retaining-pin placement Install the correct spacer and replace bent or worn components.
Handle feels loose 0533548 knobs, 0533504 screws, 0533546 sleeves, 0533619 sleeves, and handle-tube fit Tighten or replace the retaining hardware and inspect the sleeves for wear.
Handle will not slide into place Bent handle tubes, damaged sleeves, paint buildup, debris, frame alignment, and knob interference Clean the receiving tubes and replace distorted handle or sleeve components.
Cart rocks during operation Frame damage, uneven wheels, loose mounted equipment, worn spacers, and floor condition Correct the wheel or frame fault and tighten all machine-mounting hardware.
Frame-tube ends are exposed 0533553 plugs and 0533619 sleeves Replace missing protective plugs or sleeves to cover open tubing.
Major Replacement Components

High-Value AirCoat 423 Cart Parts

These verified product pages cover major handle, wheel, alignment, retention, and frame-protection components.

HANDLE ASSEMBLY

Titan 0533545 Handle Assembly

Complete removable handle used to maneuver the cart-mounted AirCoat system.

View Replacement Part →
HANDLE SLEEVE

Titan 0533546 Handle Sleeve

One of two lower sleeves that locate and support the removable handle.

View Replacement Part →
WHEEL ALIGNMENT

Titan 0533552 Wheel Spacer

One of two spacers that maintain correct wheel position on the axle.

View Replacement Part →
FRAME PROTECTION

Titan 0533553 Wheel Spacer Plug

One of two plugs used to close and protect the cart frame-tube ends.

View Replacement Part →
Parts Selection Guide

How to Select the Correct Cart Assembly Part

STEP 1

Identify the fault

Separate handle looseness, wheel drag, frame instability, and missing-hardware problems.

STEP 2

Match the callout

Use the exploded diagram to locate the exact frame, wheel, sleeve, pin, plug, or knob.

STEP 3

Inspect paired parts

Check both wheels, pins, spacers, sleeves, knobs, and screws for matching wear.

STEP 4

Confirm the cart model

Match AirCoat 423C, item number, and exact Titan part number before purchase.

Preventive Care

Maintenance Practices That Protect the Cart

  • Remove coating buildup from wheels, axle ends, and frame tubes.
  • Check both axle pins before transporting the sprayer.
  • Inspect wheel spacers for wear, loss, deformation, or side play.
  • Confirm the handle seats fully into both receiving sleeves.
  • Tighten the two knobs and inspect the four handle-sleeve screws.
  • Replace missing plugs and upper sleeves to protect open frame tubes.
Complete Repair Planning

Build a Complete AirCoat 423 Cart Repair Plan

For wheel and mobility problems, inspect both Titan 0533551 wheels, both 0533552 spacers, both 0533550 axle pins, the axle ends, and the 0533549 cart frame together. Replacing one worn wheel may not correct a bent axle or missing spacer.

For handle problems, inspect Titan 0533545 handle assembly, both 0533546 sleeves, four 0533504 screws, two 0533548 knobs, and both 0533619 upper sleeves before ordering.

Fast Parts Navigation

Continue Through the AirCoat 423 Parts Diagrams

Use these internal routes when the repair extends beyond the cart assembly.

Frequently Asked Questions

Titan AirCoat 423 Cart Assembly FAQs

Use these answers to confirm component identity, quantities, and service priorities.

What parts are included in the AirCoat 423 cart assembly?+
The diagram includes 10 callouts covering the handle assembly, two handle sleeves, four screws, two knobs, cart frame, two axle pins, two wheels, two wheel spacers, two plugs, and two upper sleeves.
Which part is the cart handle?+
Titan 0533545 is the complete handle assembly.
Which part is the main cart frame?+
Titan 0533549 is the primary cart frame.
Which wheels fit the AirCoat 423 cart?+
Titan 0533551 is the listed wheel, and the cart uses two.
Which parts retain and align each wheel?+
Titan 0533550 pins retain the wheels, while Titan 0533552 spacers maintain wheel position.
Which parts secure the removable handle?+
Four Titan 0533504 screws and two Titan 0533548 knobs work with two Titan 0533546 handle sleeves.
What are Titan 0533553 plugs used for?+
Two 0533553 plugs close and protect the lower frame-tube ends.
What are Titan 0533619 sleeves used for?+
Two 0533619 sleeves fit the upper cart tubes and protect the handle-receiving area.
Why does a cart wheel rub or wobble?+
A missing or worn spacer, damaged wheel hub, loose retaining pin, debris, or a bent axle can cause rubbing or wobble.
What should be checked before moving the sprayer?+
Verify both wheels rotate freely, both pins are secure, the handle is fully seated, and both knobs are tight.
Find the Correct Replacement Part

Match the Cart Assembly Callout Before Ordering

Identify whether the problem involves the handle, frame, wheel, axle retention, wheel spacing, or protective tube hardware.

Search using:
  • Titan part number
  • Cart assembly callout
  • Machine model and revision
  • Mobility or stability symptom
  • Component name
