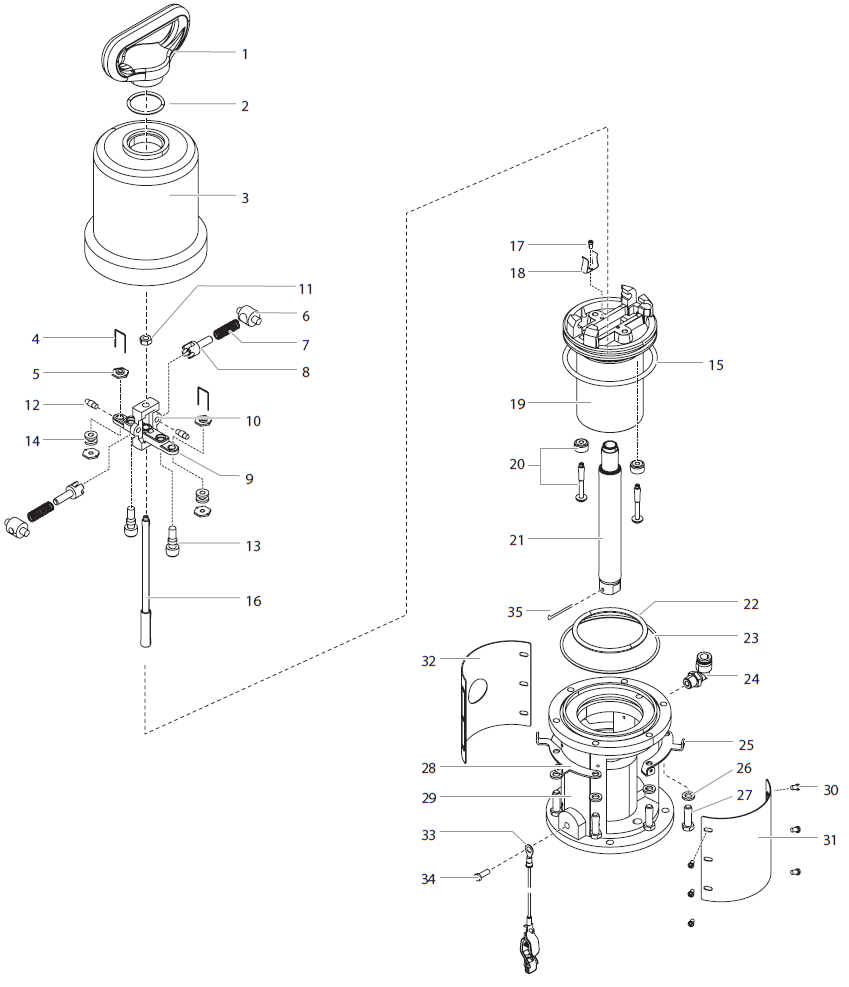

Use the Titan AirCoat 423 Air Motor Assembly exploded diagram to locate the cylinder, piston, piston rod, trip mechanism, toggle components, valve poppets, O-rings, seals, motor base, covers, grounding hardware, coupling pin, and 0533924 motor service kit.

35 Diagram Callouts

Identify internal drive, valve, sealing, housing, grounding, and coupling components.

Motor Service Kit

Use Titan 0533924 for the listed AirCoat 423 wear items and seals.

Cycle-Fault Diagnosis

Separate valve, trip, piston, cylinder, seal, air-supply, and coupling problems.

Complete Rebuild Planning

Inspect connected rods, brackets, fasteners, O-rings, poppets, lockwires, and grounding parts.

Assembly Overview

How the AirCoat 423 Air Motor Produces Pump Motion

The Titan AirCoat 423 Air Motor Assembly converts regulated compressed air into reciprocating mechanical movement that drives the fluid pump. Its cylinder, piston, piston rod, motor base, trip rod, valve actuator, toggle mechanism, valve stems, and poppets work together to reverse airflow automatically at the end of each stroke.

Compressed air acts on the piston inside Titan 0533366 air motor cylinder. The piston and Titan 0533385 piston rod travel through the motor base while the trip rod, yoke, actuator, toggle arms, rockers, springs, and pins shift the inlet and exhaust valves. This alternating valve action changes which side of the piston receives pressure and keeps the motor cycling.

The AirCoat 423 uses Titan 0533382 piston, 0533379 trip rod, 0533372 valve actuator, 0533373 trip rod yoke, 0533369 toggle rockers, 0533370 springs, 0533371 toggle arms, and 0533375 toggle pins. Precise condition and adjustment of these parts are critical to reliable stroke reversal.

Sealing components include Titan 0533365, 0533378, and 0533388 O-rings plus Titan 0533387 flat seal. Valve service components include lockwires, adjusting nuts, valve poppets, grommets, spring clips, and valve stem poppet assemblies. Worn seals can cause air leakage or power loss, while worn trip and valve parts can cause stalling, hesitation, or failure to reverse.

Titan 0533391 is the AirCoat 423 motor base, while 0533505 and 0533507 are the front and rear covers. Titan 0533509 grounding wire and 0533510 ground screw maintain the motor’s grounding connection. Titan 0533441 is the coupling pin connecting the air-motor piston rod to the fluid-pump displacement rod.

Additional verified AirCoat 423 air-motor service parts include Titan 0533367 lockwire, 0533368 adjusting nut, 0533376 valve poppet, 0533377 grommet, and 0533128 valve stem poppet/valve stem assembly.

Titan 0533924 is the AirCoat 423 motor service kit. It includes the listed lockwires, adjusting nuts, valve poppets, grommets, spring clips, valve-stem poppet assemblies, O-rings, flat seal, and coupling pin. Components outside the kit should be inspected individually and replaced when worn or damaged.

Main Functions

Functions Supported by the Air Motor

Converts compressed-air pressure into reciprocating piston movement.
Automatically reverses stroke direction through the trip and toggle system.
Controls inlet and exhaust airflow through poppets and valve stems.
Transfers motion to the fluid pump through the piston rod and coupling pin.
Maintains grounding and structural support through the base and covers.

Service Applications

When Technicians Use This Assembly Page

Diagnosing an air motor that stalls or fails to reverse.
Correcting weak, slow, or erratic cycling.
Repairing internal air leakage or worn motor seals.
Replacing trip, toggle, valve, piston, cylinder, or rod components.
Selecting the 0533924 motor service kit and related parts.

Troubleshooting & Maintenance

AirCoat 423 Air Motor Troubleshooting

Inspect the compressed-air supply and upper-shroud controls before disassembling the motor.

Operating symptom	Areas to inspect	Recommended action
Motor stalls at stroke end	Trip rod, yoke, actuator, toggle arms, rockers, springs, pins, and valve adjustment	Inspect the reversal mechanism and replace worn or damaged service-kit components.
Motor cycles slowly or lacks power	Air supply, regulator, lubricator, cylinder, piston O-ring, base seals, and exhaust path	Confirm adequate clean, regulated, lubricated air before rebuilding the motor.
Continuous internal air leakage	Valve poppets, valve stems, grommets, O-rings, flat seal, piston, and cylinder wall	Use the 0533924 service kit for included wear parts and replace damaged hard parts separately.
Motor knocks or vibrates	Piston rod, coupling pin, motor base, cylinder screws, brackets, spring washers, and pump alignment	Correct loose mounting and inspect the rod and pin before continued operation.
Motor moves but pump does not	0533441 coupling pin, piston rod, displacement rod, and rod-thread connection	Relieve pressure and restore the correct motor-to-pump connection.
Irregular reversal after rebuild	Valve-stem gap, lockwire installation, toggle assembly, lubrication, and trip-rod condition	Recheck assembly sequence and valve adjustment; do not reuse old lockwires.

Major Replacement Components

High-Value AirCoat 423 Air Motor Parts

Use the diagram and service-kit contents to distinguish soft wear parts from reusable hard components.

SERVICE KIT

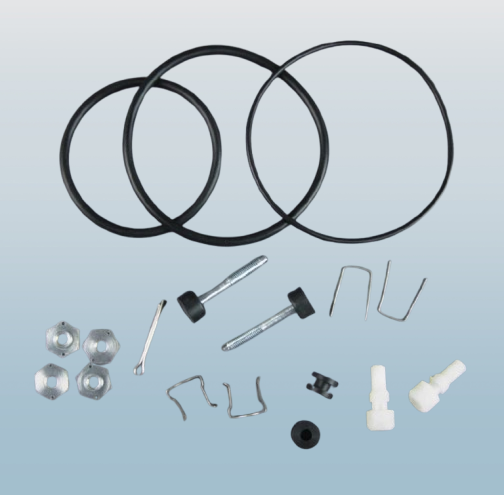

Titan 0533924 Motor Service Kit

Includes the listed lockwires, adjusting nuts, poppets, grommets, spring clips, valve stems, O-rings, flat seal, and coupling pin.

View Replacement Part →

MOTOR CYLINDER

Titan 0533366 Air Motor Cylinder

Cylinder containing the reciprocating piston and defining the motor's working air chambers.

View Replacement Part →

PISTON

Titan 0533382 Piston

Air-motor piston that converts pressure differential into reciprocating movement.

View Replacement Part →

PISTON ROD

Titan 0533385 Piston Rod

Rod that transfers piston movement to the fluid-pump displacement rod.

View Replacement Part →

MOTOR BASE

Titan 0533391 Motor Base

Lower air-motor housing and support base for the cylinder, piston rod, and connected pump.

View Replacement Part →

LIFTING HARDWARE

Titan 0533392 Lift Ring

Specified lift ring mounted at the top of the AirCoat 423 air motor assembly.

View Replacement Part →

Parts Selection Guide

How to Find the Correct Air Motor Part

Follow this sequence before ordering or opening the motor.

STEP 1

Verify air supply

Confirm adequate clean, regulated, lubricated compressed air reaches the motor.

STEP 2

Identify the symptom

Separate stalling, leakage, weak power, knocking, and coupling faults.

STEP 3

Match the callout

Record the exact diagram item, Titan number, and required quantity.

STEP 4

Check kit coverage

Confirm whether 0533924 includes the failed part or whether it must be ordered separately.

Preventive Care

Maintenance Practices That Protect the Air Motor

Maintain clean, dry, correctly regulated, and properly lubricated compressed air.
Relieve all air and fluid pressure before accessing the motor.
Inspect the coupling pin and rod connection during pump service.
Check cylinder walls, piston, piston rod, and seals for scoring or wear.
Replace lockwires rather than reusing previously bent pieces.
Keep the grounding wire and ground screw secure.

Complete Repair Planning

Build a Complete AirCoat 423 Air Motor Repair Plan

For reversal problems, inspect the trip rod, yoke, actuator, toggle pins, arms, rockers, springs, valve stems, poppets, adjusting nuts, grommets, spring clips, and lockwires as one system.

For leakage or weak power, inspect the piston O-ring, motor-base O-rings, flat seal, piston, cylinder wall, piston rod, air preparation, exhaust path, and mounting alignment. Replace all required service-kit wear parts during a complete rebuild.

Fast Parts Navigation

Continue Through the AirCoat 423 Parts Diagrams

Use these verified internal links when the fault belongs to another assembly.

Airless Sprayer Parts Main Assembly Motor/Pump Assembly Upper Shroud Assembly Fluid Pump Assembly Filter-Lubricator-Regulator High-Pressure Filter High-Pressure Fluid Regulator Cart Assembly

Frequently Asked Questions

Titan AirCoat 423 Air Motor Assembly FAQs

Use these answers to identify parts, kit coverage, and service requirements.

What does the AirCoat 423 Air Motor Assembly include?+

It includes the lift ring, cylinder, piston, piston rod, trip and toggle mechanism, valve components, seals, base, covers, grounding hardware, brackets, fasteners, and coupling pin.

Which motor service kit fits the AirCoat 423?+

Titan 0533924 is the AirCoat 423 motor service kit.

What parts are included in Titan 0533924?+

It includes items 4-5, 13-15, 18, 20, 22-23, and 35 from the air-motor parts list.

Which part is the air motor cylinder?+

Titan 0533366 is the AirCoat 423 air motor cylinder.

Which part is the piston?+

Titan 0533382 is the AirCoat 423 piston.

Which part is the piston rod?+

Titan 0533385 is the piston rod.

What causes the motor to reverse direction?+

The trip rod, yoke, actuator, toggle parts, valve stems, and poppets shift airflow at each stroke end.

Which part connects the motor to the fluid pump?+

Titan 0533441 is the coupling pin.

Can old lockwires be reused?+

No. Titan's service instructions state that old lockwires should not be reused.

What safety steps are required?+

Relieve air and fluid pressure, disconnect the air supply, secure the machine, and follow the service procedure before disassembly.
