Use the Titan AirCoat 423 Motor/Pump Assembly exploded diagram to locate the air motor, fluid pump, mounting brackets, stanchions, coupling pin, high-pressure filter, pulsation dampener, fittings, hose connections, and outlet hardware used on cart, wall-mount, and spider configurations.

Drive-System Identification

Separate air-motor, fluid-pump, coupling, mounting, filtration, and pressure-control components.

Configuration-Specific Hardware

Confirm whether the machine is a 423C, 423W, or 423S before selecting brackets and fasteners.

Pressure-Path Diagnosis

Trace coating from the pump through the filter, dampener, fittings, and spray-hose outlet.

Complete Repair Planning

Inspect pins, brackets, stanchions, washers, nuts, fittings, hoses, filters, and regulators together.

Assembly Overview

How the AirCoat 423 Motor/Pump Assembly Works

The Titan AirCoat 423 Motor/Pump Assembly combines the pneumatic drive, fluid-pressure generation, structural connection, filtration, pulsation control, and spray-hose outlet components that move coating through the sprayer. It sits between the upper shroud and the main machine structure and serves as the mechanical and hydraulic center of the AirCoat 423.

Titan 0533249 is the AirCoat 423 air motor assembly and Titan 0533243 is the AirCoat 423 pump assembly. The air motor converts regulated compressed air into reciprocating movement. A coupling pin connects the air-motor piston rod to the fluid-pump displacement rod so each motor stroke drives a corresponding intake or discharge stroke inside the pump.

The motor and pump are aligned by brackets, stanchions, washers, lock washers, nuts, and screws. Correct alignment is critical because loose hardware or an incorrectly installed pin can cause vibration, uneven loading, accelerated packing wear, rod damage, or interrupted pump movement.

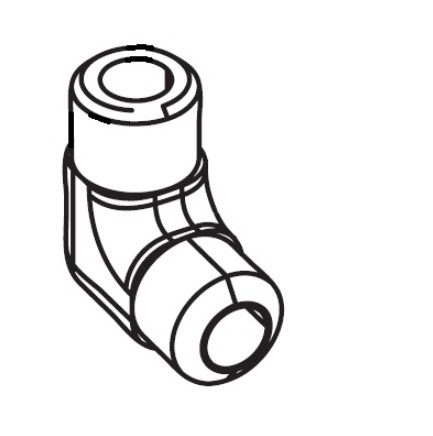

On cart and wall-mount models, the pump discharge connects through the 0533627 elbow, 0533458 fitting, 0533457 nipple, 0533251 high-pressure filter assembly, 0533252-1 pulsation dampener, and 0533459 spray-hose outlet fitting. Spider models use a different connection arrangement that includes 0533461 fitting, 0533462 hose, 0533641 elbow, the same filter and dampener assemblies, and 0533460 outlet fitting.

The high-pressure filter removes debris from the pressurized coating, while the pulsation dampener reduces pressure fluctuations created by the reciprocating pump. Together with the outlet fittings and hoses, these components help maintain stable coating delivery to the spray gun.

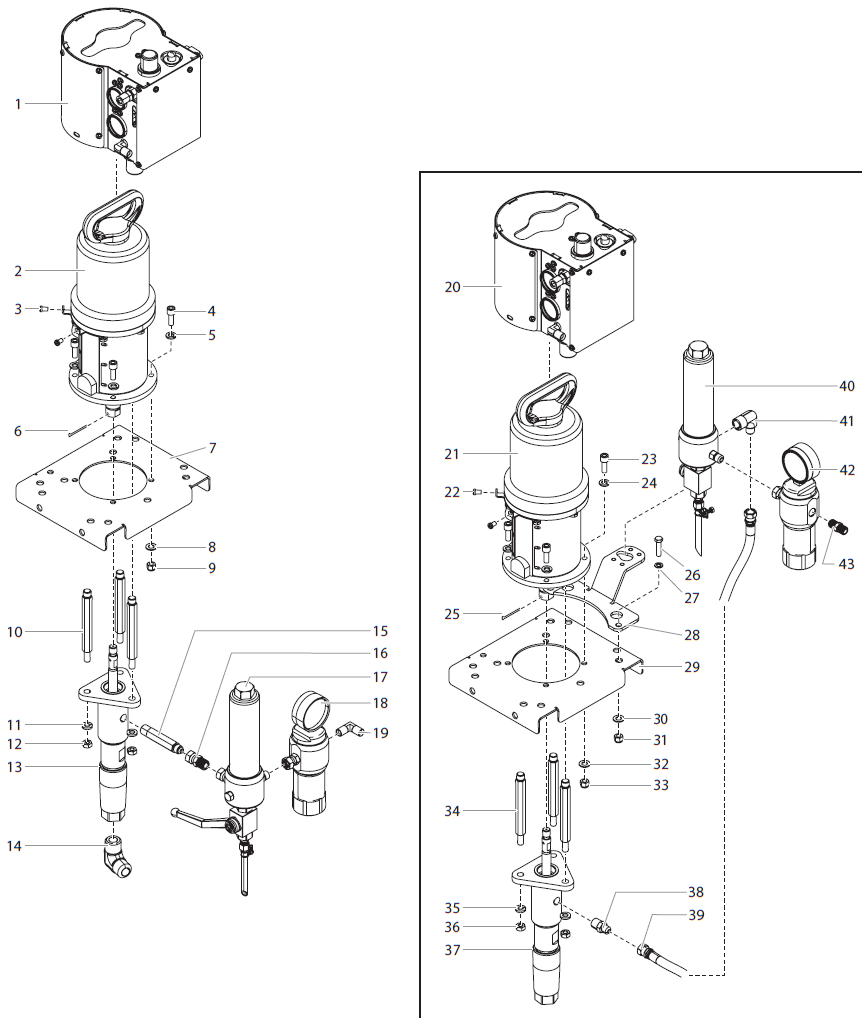

The exploded parts diagram identifies separate cart/wall and spider configurations. Parts marked with an asterisk—including the upper shroud, air motor, pump, filter, and pulsation dampener—have their own service listings. Use those dedicated pages when the required repair involves internal components rather than external motor/pump mounting or connection hardware.

Main Functions

Functions Supported by the Motor/Pump Assembly

Converts compressed-air energy into reciprocating pump movement.
Connects the air-motor piston rod to the fluid-pump displacement rod.
Aligns the motor and pump through brackets, stanchions, washers, and nuts.
Filters pressurized coating before it reaches the downstream hose system.
Reduces pressure pulsation and provides the spray-hose outlet connection.

Service Applications

When Technicians Use This Assembly Page

Diagnosing a motor that cycles without stable fluid pressure.
Correcting loose, damaged, or misaligned motor-to-pump mounting hardware.
Replacing the coupling pin, brackets, stanchions, washers, or nuts.
Servicing filter, dampener, fitting, hose, elbow, nipple, or outlet connections.
Separating external assembly faults from internal air-motor or fluid-pump wear.

Troubleshooting & Maintenance

AirCoat 423 Motor/Pump Assembly Troubleshooting

Use the symptom to isolate the external assembly, air motor, fluid pump, filtration, or pressure-control system before ordering parts.

Operating symptom	Areas to inspect	Recommended action
Air motor cycles but pump does not move correctly	0533441 coupling pin, piston-rod connection, displacement rod, stanchions, and mounting hardware	Relieve pressure and verify the rod connection, pin condition, and motor/pump alignment.
Fluid pressure is weak or unstable	0533243 pump, 0533251 filter, 0533252-1 dampener, fittings, hoses, and outlet connection	Check pump sealing and valve action, then inspect the downstream filter and connection path for restriction or leakage.
Excessive vibration or knocking	Brackets, stanchions, screws, washers, lock washers, nuts, coupling pin, and pump mounting	Tighten or replace damaged hardware and confirm the motor and pump remain aligned.
Pressure pulses at the spray hose	0533252-1 pulsation dampener, high-pressure filter, pump performance, and outlet fittings	Inspect the dampener and verify that pump strokes are even and the filter is not restricted.
Fluid leaks near filter or outlet	Elbows, nipples, fittings, hose, filter body, dampener connections, and outlet fitting	Identify the exact leaking joint and replace the diagram-matched fitting or seal after pressure relief.
Pump strokes faster in one direction	Fluid-pump packings, piston and foot valves, displacement rod, cylinder, and intake supply	Use the Fluid Pump Assembly page and inspect the complete valve and packing system.

Major Replacement Components

High-Value AirCoat 423 Motor/Pump Components

Use the dedicated assembly pages for parts marked as separate listings in the Motor/Pump diagram.

PNEUMATIC DRIVE

Titan 0533249 Air Motor Assembly

Air-powered drive assembly that converts compressed air into reciprocating motion.

View Assembly Parts →

FLUID PRESSURE

Titan 0533243 Fluid Pump Assembly

Working pump assembly responsible for material intake, displacement, pressure generation, and discharge.

View Assembly Parts →

FLUID FILTRATION

Titan 0533251 High-Pressure Filter Assembly

High-pressure filter assembly used in both cart/wall and spider motor-pump configurations.

View Assembly Parts →

PULSATION CONTROL

Titan 0533252-1 Pulsation Dampener

Dampener installed downstream of the filter to reduce pressure fluctuations in the fluid path.

View Assembly Parts →

COUPLING HARDWARE

Titan 0533441 Connecting Pin

Pin that connects the air-motor piston rod to the fluid-pump displacement rod.

View Assembly Parts →

UPPER HOUSING

AirCoat 423 Upper Shroud Assembly

Protective shroud and air-control assembly mounted above the motor/pump system.

View Assembly Parts →

Parts Selection Guide

How to Find the Correct Motor/Pump Assembly Part

Follow this sequence to distinguish external connection hardware from separately serviced motor, pump, filter, and dampener components.

STEP 1

Confirm the configuration

Identify the 423C cart, 423W wall, or 423S spider arrangement.

STEP 2

Locate the failed function

Separate drive, pump, mounting, filtration, pulsation, hose, fitting, and outlet faults.

STEP 3

Match the callout

Record the exact callout, Titan part number, and listed quantity.

STEP 4

Inspect connected parts

Check pins, brackets, stanchions, washers, nuts, hoses, fittings, filter, and dampener together.

Preventive Care

Maintenance Practices That Protect the Motor/Pump Assembly

Relieve air and fluid pressure before loosening fittings, hoses, filters, or mounting hardware.
Inspect the coupling pin and rod connection whenever motor and pump movement becomes irregular.
Check brackets, stanchions, washers, lock washers, and nuts for looseness or fatigue.
Clean the high-pressure filter regularly and inspect its housing and connections for leakage.
Inspect the pulsation dampener, elbows, nipples, hoses, and outlet fittings for damage.
Use the correct lubricant and service intervals for the air motor and fluid pump.

Complete Repair Planning

Build a Complete AirCoat 423 Motor/Pump Repair Plan

For drive repairs, inspect the air motor, coupling pin, piston-rod connection, displacement rod, brackets, stanchions, washers, and nuts together. A damaged pin or loose support can imitate internal motor or pump failure.

For pressure-delivery repairs, inspect the fluid pump, high-pressure filter, pulsation dampener, elbows, nipples, fittings, hoses, outlet connection, and downstream fluid regulator. Planning across connected assemblies reduces repeat disassembly and missed leakage points.

Fast Parts Navigation

Continue Through the AirCoat 423 Parts Diagrams

Use these verified internal links when the required component is shown in a separately illustrated assembly.

Airless Sprayer Parts Main Assembly Upper Shroud Assembly Air Motor Assembly Fluid Pump Assembly Filter-Lubricator-Regulator High-Pressure Filter High-Pressure Fluid Regulator Cart Assembly

Frequently Asked Questions

Titan AirCoat 423 Motor/Pump Assembly FAQs

Use these answers to identify major components and choose the correct related assembly page.

What does the AirCoat 423 Motor/Pump Assembly include?+

It combines the upper-shroud connection, 0533249 air motor, 0533243 fluid pump, coupling pin, brackets, stanchions, mounting hardware, 0533251 filter, 0533252-1 pulsation dampener, fittings, hose, and outlet components.

Which air motor is used on the AirCoat 423?+

Titan 0533249 is the air motor assembly identified for the AirCoat 423.

Which pump assembly is used on the AirCoat 423?+

Titan 0533243 is the fluid pump assembly identified for the AirCoat 423.

What connects the air motor to the fluid pump?+

Titan 0533441 is the pin used at the piston-rod and displacement-rod connection.

Which high-pressure filter is shown in the Motor/Pump Assembly?+

Titan 0533251 is the separately listed high-pressure filter assembly used in both illustrated configurations.

What is the purpose of Titan 0533252-1?+

Titan 0533252-1 is the pulsation dampener used to reduce pressure fluctuations in the pressurized fluid path.

Are the cart/wall and spider connection arrangements identical?+

No. They use different brackets, some different mounting hardware, and different fittings, hose routing, and spray-hose outlet fittings.

Why can loose stanchions or brackets cause problems?+

Loose support hardware can disturb motor-to-pump alignment, create vibration, load the rods unevenly, and accelerate wear.

Which page should be used for internal pump packings and valve parts?+

Use the AirCoat 423 Fluid Pump Assembly page for internal packing, valve, cylinder, rod, ball, seat, and seal components.

What safety steps are required before service?+

Relieve all air and fluid pressure, disconnect the air supply, lock the gun, secure the machine, and follow the applicable Titan service procedure.

Find the Correct Replacement Part

Match the Motor/Pump Configuration Before Ordering

Choose the cart/wall or spider diagram, locate the numbered callout, and confirm the exact Titan part number, quantity, and connection arrangement.

Search using:

Titan part number
Motor/Pump callout
423C, 423W, or 423S
Operating symptom
Component name or location
