Identify AirCoat 423 Main Assembly Parts by Configuration and Diagram Callout
Use the Titan AirCoat 423 Main Assembly exploded-parts page to identify structural, mounting, material-intake, muffler, cart, wall-mount, and spider-support components. Confirm the machine configuration first, then match the numbered diagram callout to the exact Titan part number before ordering.
01
Three Machine Configurations
Distinguish cart, wall-mount, and spider-model components before selecting replacement parts.
02
Diagram-Based Identification
Match each numbered callout to the listed Titan part number and required quantity.
03
Material-Intake Service
Locate five-gallon and optional 55-gallon siphon assemblies with their inlet filter screens.
How the AirCoat 423 Main Assembly Supports the Sprayer
The Titan AirCoat 423 Main Assembly forms the structural and material-supply foundation of the pneumatic air-assisted airless sprayer. It supports the separately serviced motor/pump assembly, positions the machine for stable operation, and connects the equipment to the coating container through the appropriate siphon system.
AirCoat 423 units were configured as cart, wall-mount, and spider models. Cart models use the 0533245 cart assembly and mounting hardware. Wall models use the 0533246 wall mount weldment with the corresponding hook, plugs, muffler, screws, washers, lock washers, and nuts. Spider models use paired stands, feet, a hook, mounting hardware, and a model-specific siphon arrangement.
The main assembly also manages coating pickup. Titan 0533247 is the five-gallon siphon tube assembly and includes the 0533443 filter screen. Titan 0533248 is the optional 55-gallon siphon assembly and also includes the listed inlet screen. Spider models use Titan 0533445 siphon tube with Titan 0533591 filter screen.
Bent stands, damaged feet, loose cart hardware, worn hooks, missing lock washers, or a compromised wall weldment can allow vibration, misalignment, or movement during operation. Restricted or damaged siphon components can cause poor material pickup even when the fluid pump remains serviceable.

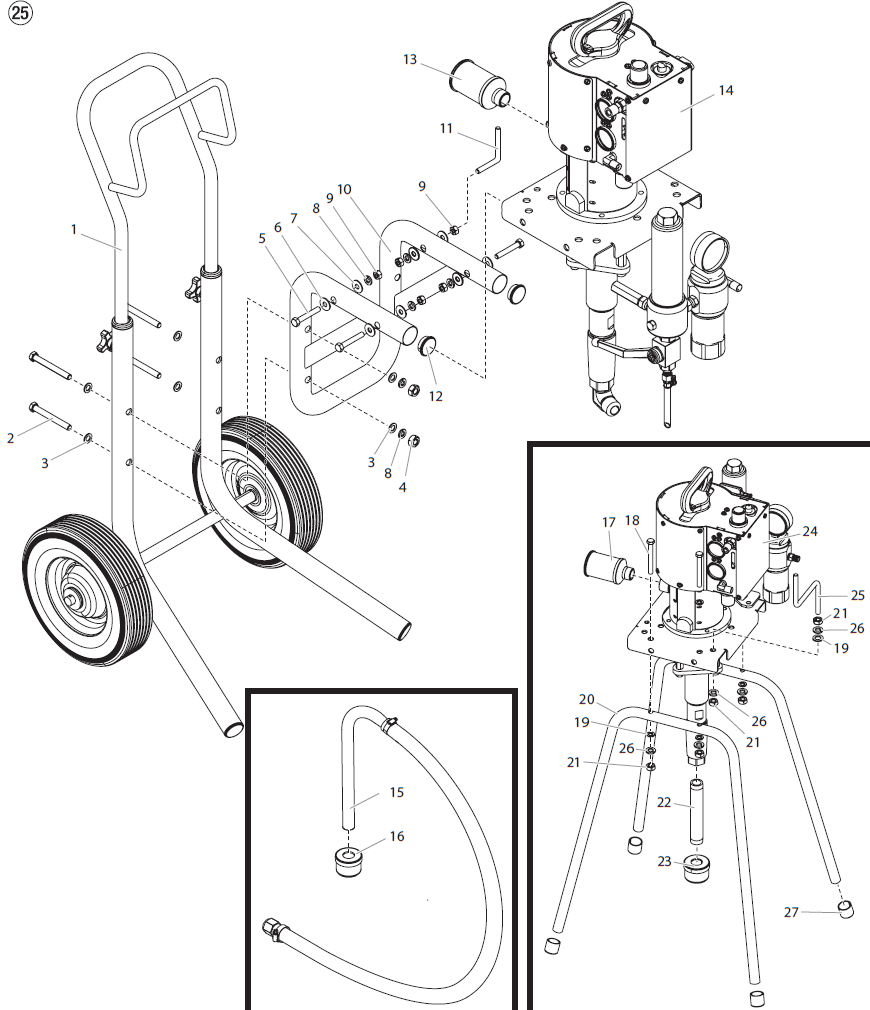

The exploded diagram separates the cart and wall-mount arrangement from the spider arrangement and assigns each service component a numbered callout. The accompanying parts list identifies the exact Titan number and quantity so technicians can distinguish configuration-specific hardware from separately illustrated motor and pump components.
Main Functions
Functions Supported by the Main Assembly
Supports the motor/pump assembly on cart, wall, or spider configurations.
Provides structural mounting through frames, weldments, stands, feet, hooks, and fasteners.
Draws coating from five-gallon, optional 55-gallon, or spider-model material supplies.
Filters incoming material through the siphon-mounted inlet screen.
Maintains alignment and stability through secure mounting and support hardware.
Service Applications
When Technicians Use This Assembly Page
Repairing cart, wall-mount, or spider structural components.
Correcting loose mounting, vibration, instability, or alignment problems.
Replacing damaged five-gallon or 55-gallon siphon assemblies.
Servicing restricted or damaged material-intake filter screens.
Identifying hooks, plugs, mufflers, stands, feet, screws, washers, and nuts.
Troubleshooting & Maintenance
AirCoat 423 Main Assembly Troubleshooting
Use the symptom to determine whether the fault belongs to the main assembly or a separately serviced motor, pump, filter, or regulator assembly.
Replace damaged supports and confirm all feet contact the work surface evenly.
Major Replacement Components
High-Value AirCoat 423 Main Assembly Parts
These components are identified in the AirCoat 423 main assembly parts list. Confirm availability and exact fitment from the destination page before ordering.
MACHINE SUPPORT
Titan 0533245 Cart Assembly
Complete cart assembly used on AirCoat 423 cart models to support and transport the sprayer.
Verify that the motor/pump assembly remains aligned after structural repairs.
Complete Repair Planning
Build a Complete AirCoat 423 Main Assembly Repair Plan
For material-intake repairs, inspect the siphon assembly, filter screen, connections, coating container, and fluid-pump inlet together. Replacing a blocked screen without correcting a damaged tube or leaking connection may not restore dependable priming.
For structural repairs, inspect the complete cart, wall-mount, or spider support system, including screws, washers, lock washers, nuts, hooks, stands, feet, and motor/pump mounting points. Planning across connected components reduces repeat teardown and helps restore correct alignment and stability.
Fast Parts Navigation
Continue Through the AirCoat 423 Parts Diagrams
Use these verified internal links when the required component belongs to a separately illustrated AirCoat 423 assembly.
Use these answers to distinguish configurations, identify major components, and plan a safer repair.
What does the AirCoat 423 Main Assembly include?+
It covers cart, wall-mount, and spider support configurations together with mounting hardware, hooks, plugs, mufflers, siphon components, filter screens, stands, feet, and the separately listed motor/pump assembly.
Which part is the complete cart assembly?+
Titan 0533245 is the cart assembly identified for AirCoat 423 cart models.
Which part is used for the wall-mount configuration?+
Titan 0533246 is the wall mount weldment used as the structural platform on the AirCoat 423 wall model.
What siphon assembly is used for a five-gallon container?+
Titan 0533247 is the five-gallon siphon tube assembly and includes the 0533443 inlet filter screen.
Is a 55-gallon siphon assembly available?+
Yes. Titan 0533248 is the optional 55-gallon siphon assembly and includes the listed inlet filter screen.
Which filter screen is used with the main assembly siphon system?+
Titan 0533443 is listed with the five-gallon and optional 55-gallon siphon assemblies.
Which parts support the spider configuration?+
The spider configuration uses two 0533444 stands, 0533624 feet, the model-specific siphon tube and screen, a hook, and related hardware.
Why should mounting hardware be inspected?+
Loose or damaged screws, washers, lock washers, nuts, hooks, stands, feet, and structural parts can affect alignment, stability, and safe handling.
Does the diagram include internal motor and pump parts?+
The motor/pump assembly appears as a separately listed unit. Use the dedicated diagrams for internal pneumatic and fluid components.
What safety steps are required before service?+
Relieve fluid and air pressure, disconnect the air supply, secure the sprayer, prevent spills, and follow applicable Titan service procedures.
Find the Correct Replacement Part
Match the AirCoat 423 Configuration Before Ordering
Choose the cart, wall-mount, or spider section of the exploded diagram, match the numbered callout, and confirm the exact Titan part number and quantity.
