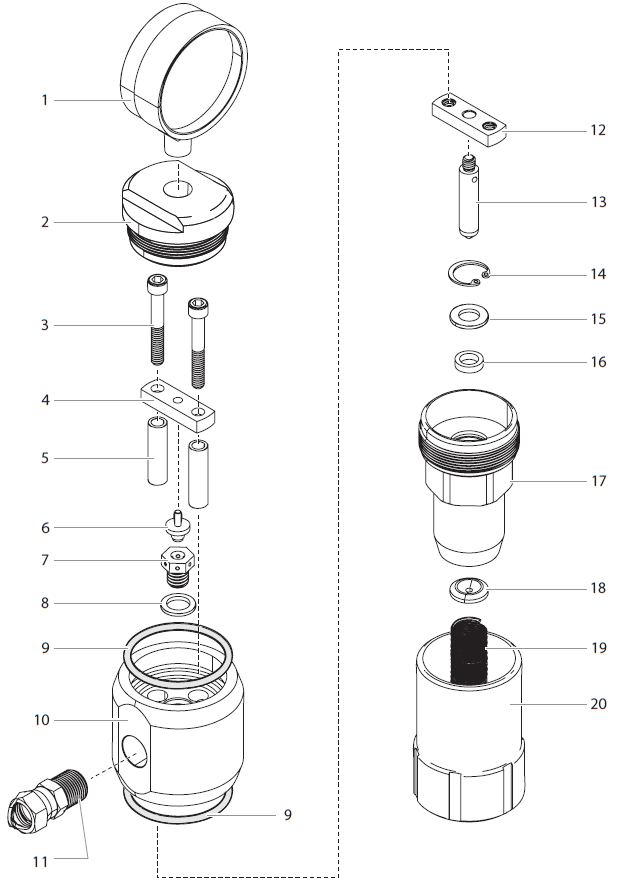

Use the Titan AirCoat 423 High-Pressure Fluid Regulator exploded diagram to identify the pressure gauge, cap, screws, bars, sleeves, ball valve, seat, gasket, O-rings, housing, fitting, piston, packing, cylinder, spring, and adjustment knob.

20 Verified Callouts

Identify every listed pressure-control, sealing, spring, piston, gauge, and housing component.

Precise Fluid Control

The regulator fine-tunes outgoing material pressure for stable atomization and finish quality.

Serviceable Internal Stack

Clean and inspect the piston, ball valve, seat, O-rings, packing, washer, and spring system.

Complete Repair Planning

Inspect the gauge, adjustment stack, regulator housing, outlet fitting, and connected filter together.

Assembly Overview

How the AirCoat 423 Fluid Regulator Stabilizes Spray Pressure

The AirCoat 423 high-pressure fluid regulator mounts downstream of the high-pressure filter and provides fine control of material pressure before coating reaches the spray hose and gun. Adjusting the regulator changes fluid delivery independently of atomizing-air adjustment, helping technicians balance flow, atomization, transfer efficiency, and finish quality.

Titan 0533526 pressure gauge displays regulated material pressure. Titan 0533527 cap, two Titan 0533528 screws, Titan 0533529 bar, and two Titan 0533530 sleeves form the upper clamping and guide structure around the regulator housing.

Titan 0533531 ball valve works against Titan 0533532 seat to meter coating through the regulator. Titan 0533618 gasket and two Titan 0533533 O-rings seal the internal fluid path inside Titan 0533534 regulator housing. Titan 0533535 fitting provides the external fluid connection.

The lower control stack includes Titan 0533536 bar, Titan 0533537 piston, Titan 0533538 retaining ring, Titan 0533539 washer, Titan 0533540 packing, Titan 0533541 cylinder, Titan 0533542 spring locator, Titan 0533543 spring, and Titan 0533544 adjustment knob.

Turning the adjustment knob changes spring load on the piston and ball-valve system. A clean, correctly lubricated piston and sealing stack allows smooth adjustment and stable pressure. Wear, dried coating, damaged O-rings, or a weakened spring can cause drift, leakage, restricted flow, or erratic response.

Titan calls for regular inspection and lubrication of the regulator. During service, clean the cylinder, housing, cap, washer, packing, bar-and-piston assembly, ball valve, and seat with a compatible solvent, then lubricate the O-rings with lithium grease before reassembly.

Main Functions

Functions Supported by the Regulator

Fine-tunes material pressure after the high-pressure filter.
Stabilizes fluid flow before coating enters the hose and gun.
Displays regulated pressure through the fluid gauge.
Uses a spring-loaded piston and ball-valve system for adjustment.
Supports consistent atomization and spray-pattern control.

Service Applications

When Technicians Use This Diagram

Correcting pressure drift or unstable material delivery.
Repairing leakage around the housing, piston, or fitting.
Replacing a damaged pressure gauge or adjustment knob.
Servicing a worn ball valve, seat, packing, piston, or spring.
Restoring smooth regulator adjustment after coating contamination.

Troubleshooting & Maintenance

AirCoat 423 Fluid Regulator Troubleshooting

Check pump pressure, high-pressure filter condition, hose restriction, gun filter, tip size, and coating viscosity before attributing every flow problem to the regulator.

Operating symptom	Areas to inspect	Recommended action
Fluid pressure drifts after adjustment	0533543 spring, 0533542 locator, 0533537 piston, 0533540 packing, 0533533 O-rings, and adjustment knob	Clean and inspect the complete control stack; replace worn sealing or spring components.
Regulator will not increase pressure	0533544 knob, 0533543 spring, 0533542 locator, 0533537 piston, 0533536 bar, ball valve, and seat	Verify that the adjustment stack moves freely and that the ball valve is not stuck or damaged.
Regulator will not reduce pressure	Trapped downstream pressure, blocked fluid path, sticking piston, contaminated ball valve, and seat	Relieve system pressure, clean the internal passages, and inspect the piston and valve components.
Fluid leaks from the regulator body	0533618 gasket, 0533533 O-rings, 0533540 packing, 0533535 fitting, housing, and cap	Replace damaged seals and inspect mating surfaces and threads before reassembly.
Gauge reading is erratic or absent	0533526 gauge, regulator passage, coating contamination, pulsation, and damaged gauge connection	Clean the pressure passage and replace the gauge when it remains inaccurate or damaged.
Adjustment feels rough or seized	Cylinder, piston, O-rings, packing, spring locator, dried coating, and insufficient lubrication	Disassemble after pressure relief, clean thoroughly, and lubricate the O-rings with lithium grease.

Major Replacement Components

High-Value AirCoat 423 Regulator Parts

These verified product pages cover major pressure-monitoring, valve, piston, sealing, cylinder, and spring components.

PRESSURE MONITORING

Titan 0533526 Pressure Gauge

Displays regulated material pressure for adjustment and spray-system monitoring.

View Replacement Part →

FLUID CONTROL

Titan 0533531 Ball Valve

Meters high-pressure coating against the regulator seat.

View Replacement Part →

PISTON CONTROL

Titan 0533537 Piston

Transfers adjustment force through the regulator control stack.

View Replacement Part →

FLUID SEALING

Titan 0533540 Packing

Seals the moving regulator components inside the cylinder.

View Replacement Part →

REGULATOR CYLINDER

Titan 0533541 Cylinder

Precision regulator cylinder containing the packing and spring-control components.

View Replacement Part →

PRESSURE SPRING

Titan 0533543 Spring

Provides the regulating force controlled by the adjustment knob.

View Replacement Part →

Parts Selection Guide

How to Select the Correct Fluid Regulator Part

STEP 1

Identify the symptom

Separate gauge, adjustment, leakage, restriction, and pressure-drift faults.

STEP 2

Match the callout

Use the exploded diagram to locate the exact internal or external component.

STEP 3

Inspect the control stack

Check the knob, spring, locator, cylinder, packing, washer, piston, and bar together.

STEP 4

Check connected systems

Inspect the high-pressure filter, hose, gun filter, spray tip, and coating viscosity.

Preventive Care

Maintenance Practices That Protect the Regulator

Complete the full pressure-relief procedure before removal.
Turn the adjustment knob fully counterclockwise before disassembly.
Clean the cylinder, housing, cap, washer, packing, piston, valve, and seat.
Inspect the spring locator, packing, ball valve, seat, piston, and O-rings.
Lubricate replacement or reusable O-rings with lithium grease.
Reassemble the bar-and-piston system carefully so the ball valve is not lost.

Complete Repair Planning

Build a Complete AirCoat 423 Regulator Repair Plan

For unstable regulation, inspect the adjustment knob, spring, spring locator, cylinder, packing, washer, retaining ring, piston, lower bar, ball valve, seat, and housing O-rings as one operating system.

For external leakage or inaccurate readings, inspect the pressure gauge, cap, screws, upper bar, sleeves, housing, copper gasket, O-rings, fitting, threads, and the connection to the high-pressure filter before repressurizing.

Fast Parts Navigation

Continue Through the AirCoat 423 Parts Diagrams

Use these internal routes when the operating fault belongs to another AirCoat 423 assembly.

Airless Sprayer Parts Main Assembly Motor/Pump Assembly Upper Shroud Assembly Air Motor Assembly Fluid Pump Assembly Automatic Filter, Lubricator, Regulator Assembly High-Pressure Filter Cart Assembly

Frequently Asked Questions

Titan AirCoat 423 Fluid Regulator FAQs

Use these answers to confirm component identity, service priorities, and regulator function.

What does the AirCoat 423 high-pressure fluid regulator include?+

It includes 20 callouts covering the gauge, cap, screws, bars, sleeves, ball valve, seat, gasket, O-rings, housing, fitting, piston, packing, cylinder, spring components, and adjustment knob.

Which part is the pressure gauge?+

Titan 0533526 is the regulator pressure gauge.

Which parts meter fluid pressure?+

Titan 0533531 ball valve works with Titan 0533532 seat inside the regulator housing.

Which part is the regulator housing?+

Titan 0533534 is the high-pressure fluid regulator housing.

Which parts seal the regulator?+

Titan 0533618 gasket, two Titan 0533533 O-rings, and Titan 0533540 packing provide the principal listed sealing functions.

Which part is the regulator piston?+

Titan 0533537 is the regulator piston.

Which parts form the spring-adjustment stack?+

Titan 0533542 spring locator, 0533543 spring, and 0533544 adjustment knob form the main adjustment stack.

How should the O-rings be serviced?+

Inspect both housing O-rings for wear or damage and lubricate them with lithium grease during reassembly.

Why can the regulator become difficult to adjust?+

Dried coating, worn packing, damaged O-rings, piston wear, spring damage, or insufficient lubrication can make adjustment rough or unstable.

What safety step is required before service?+

Complete the full pressure-relief procedure. Turning off the compressor alone does not release trapped fluid pressure.
