Titan 840ix Digital Airless Sprayer Parts and Assemblies
Keep your Titan 840ix Digital Airless Sprayer ready for demanding painting projects with genuine Titan OEM replacement parts. Shop the digital drive assembly, Xact Digital Control components, fluid section, filter assembly, Prime/Spray valve, siphon system, High Rider and Low Rider cart parts, and maintenance accessories. Use the illustrated parts diagrams to identify the correct replacement and order with confidence.
Model Parts Overview
Shop Genuine Titan 840ix Digital Airless Sprayer Replacement Parts

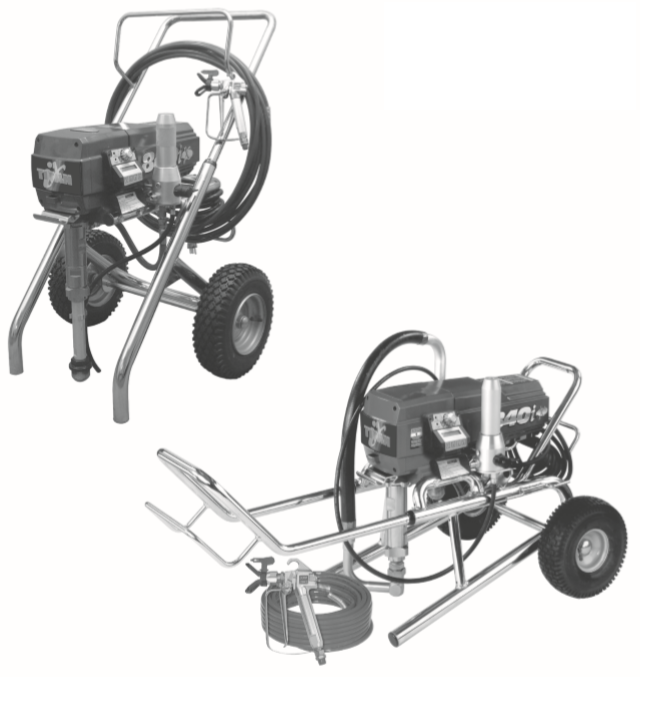

The Titan 840ix Digital is an electric airless sprayer with a digitally controlled drive system and serviceable fluid-handling assemblies. Its replaceable components are organized into separate illustrated categories so contractors, maintenance technicians and equipment owners can identify parts by assembly, diagram position and OEM part number.
At AllTitanParts, you can browse nine dedicated sections covering the main sprayer assembly, digital drive, fluid section, High Rider cart, filter assembly, Low Rider siphon system, Low Rider cart, Prime/Spray valve and accessories. The digital drive assembly includes control-related components such as the pressure control knob and Xact Digital Control Assembly.
Whether you need to repair a worn piston component, restore priming, replace a filter component or service a damaged digital control part, start with the relevant assembly drawing. This helps prevent ordering parts from a different Titan 840ix configuration.
Shop by Assembly
Explore All 9 Titan 840ix Digital Parts Sections
Choose the section that matches the component you need. Each link leads to a dedicated category with the corresponding parts diagram and available OEM replacement listings.

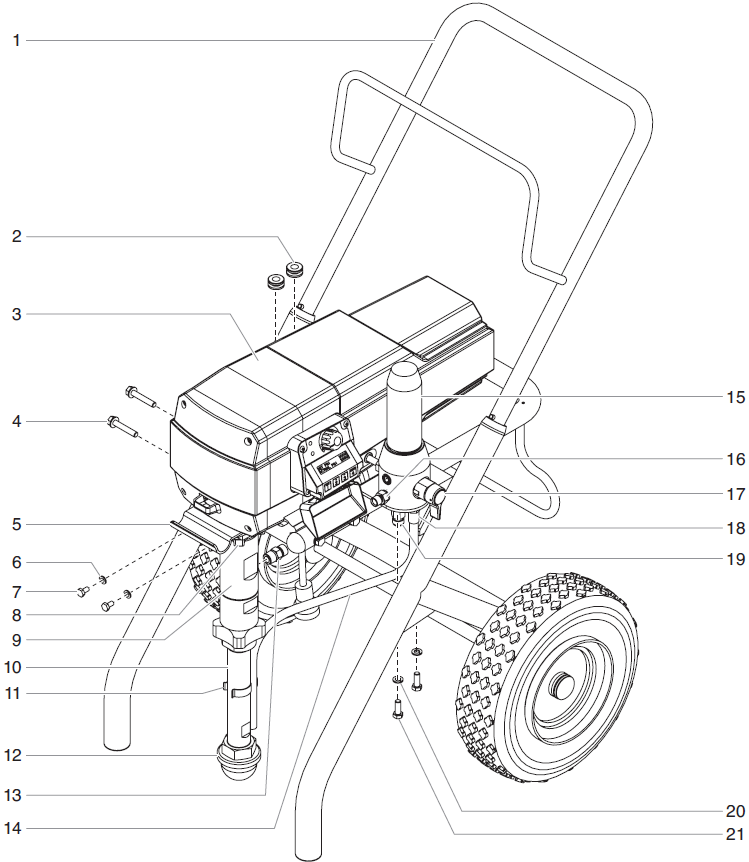

840ix Digital Main Assembly Parts
Find the main sprayer components, mounting hardware, fluid connections and related parts shown in the model's primary assembly diagram.
Shop Main Assembly Parts840ix Digital Drive Assembly Parts
Browse drive gears, control knobs, electrical components, the Xact Digital Control Assembly, covers, switches and associated hardware.

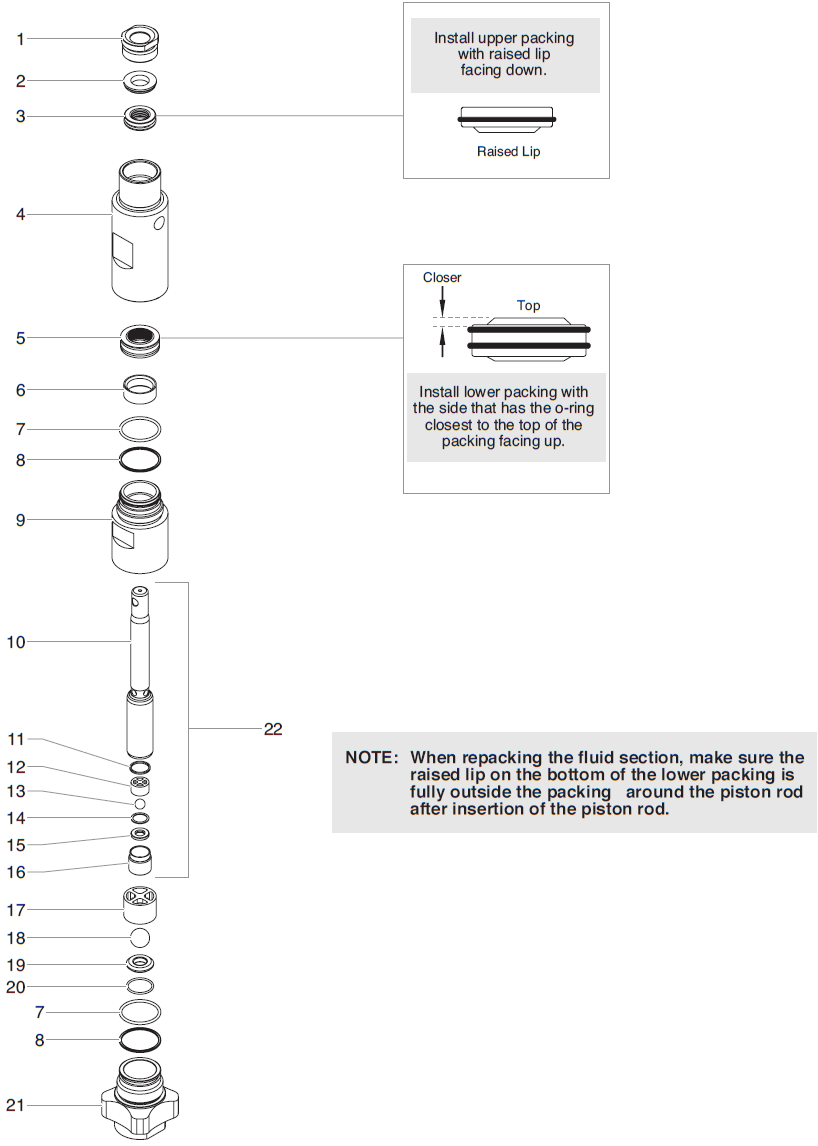

Shop Digital Drive Parts840ix Digital Fluid Section Parts
Locate piston and pump components, valve parts, seals and other service items in the fluid section illustrated as assembly P/N 800-300.

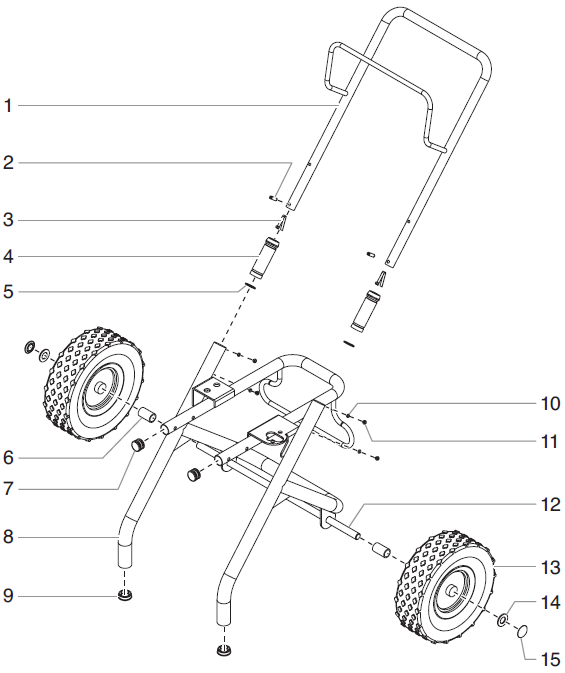

Shop Fluid Section Parts840ix Digital High Rider Cart Parts
Find handles, wheels, mounting hardware and other cart components for the illustrated High Rider configuration, P/N 800-600A.

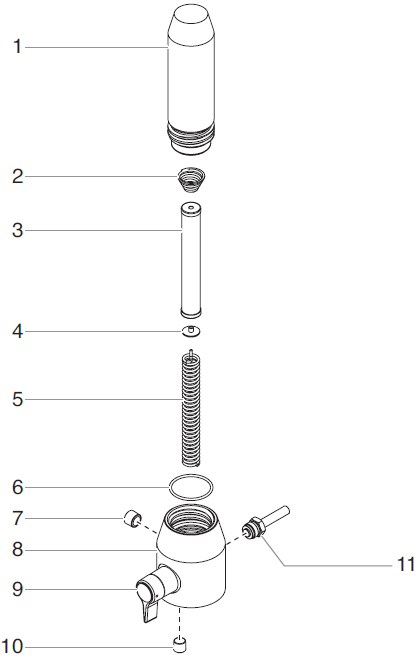

Shop High Rider Cart Parts840ix Digital Filter Assembly Parts
Browse the filter body, filter spring, sealing components and other parts in the digital model's filter assembly, P/N 800-900A.

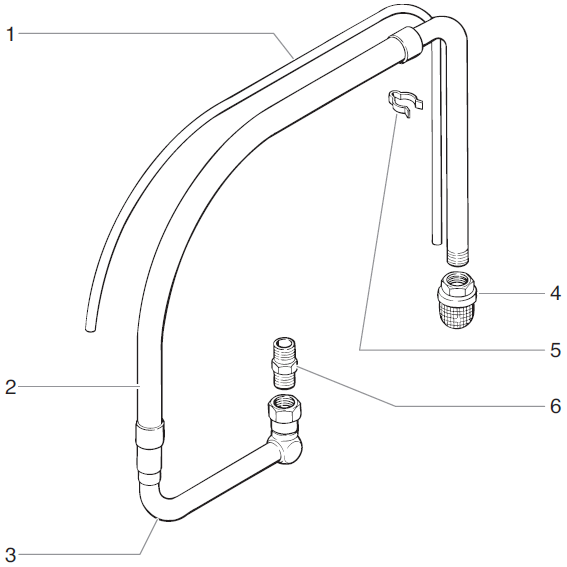

Shop Filter Assembly Parts840ix Digital Low Rider Siphon Parts
Find the siphon tube, inlet screen, return-flow components and related fittings used in the illustrated Low Rider intake configuration.

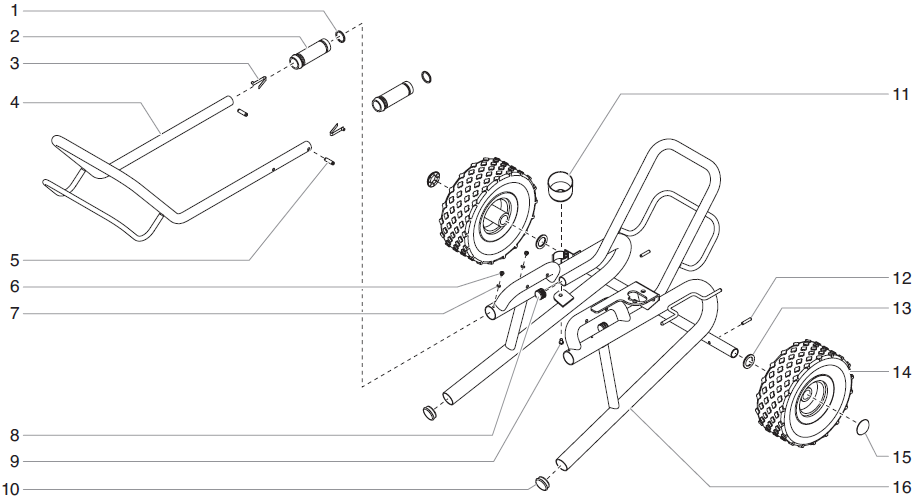

Shop Siphon Assembly Parts840ix Digital Low Rider Cart Parts
Replace damaged cart hardware, drip cup components, pins and other parts associated with the Low Rider cart assembly, P/N 800-590A.

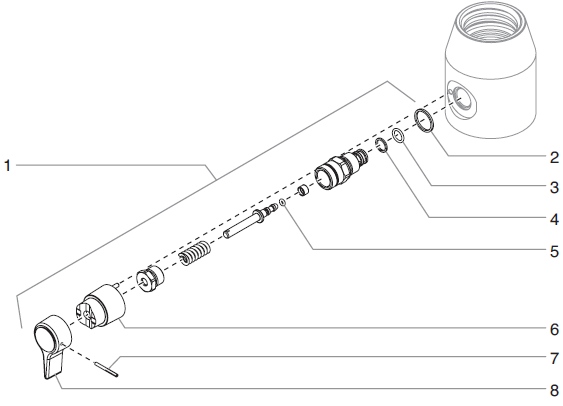

Shop Low Rider Cart Parts840ix Digital Prime/Spray Valve Parts
Find bypass valve components, gaskets and the Prime/Spray valve assembly for fluid routing and priming service, P/N 800-915.
Shop Prime/Spray Valve Parts840ix Digital Sprayer Accessories
Browse compatible maintenance and service accessories listed for the Titan 840ix Digital model.
Shop Digital Sprayer AccessoriesDigital Drive System

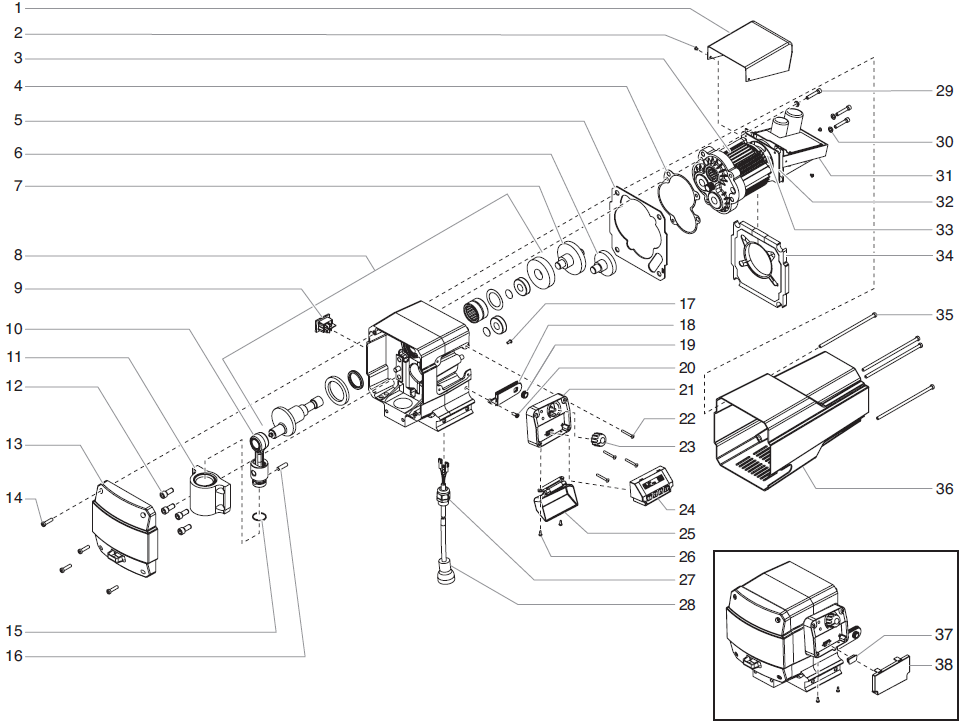

Titan 840ix Digital Drive and Xact Digital Control Parts
The digital drive assembly distinguishes this model's control-related parts from those of other Titan sprayer configurations. The illustrated drive parts catalog includes the Xact Digital Control Assembly, control-system cover, pressure control knob, power switch, drive gears and related electrical and mechanical components.
Xact Digital Control Assembly
Titan 704-469 is listed as the Xact Digital Control Assembly. Verify the exact part and wiring configuration before service.
Pressure Control Knob
Titan 805-354 is listed as the control knob replacing Titan 704-488A. Match the replacement to the digital drive diagram.
Drive Gears and Mechanical Parts
The assembly includes drive components such as Titan 800-261 and 800-262 gears, along with related fastening and housing parts.
Switches and Electrical Components
Find the specified power switch, covers, wiring-related parts and associated hardware for the illustrated assembly.
Parts Identification
How to Find the Correct Titan 840ix Digital Replacement Part
Confirm the Digital Model
Check the model identification and serial information before selecting a parts diagram.
Select the Assembly
Choose the digital drive, fluid section, filter, cart, siphon or valve category.
Match the Diagram Callout
Compare the illustrated part position with the OEM number and description.
Verify Before Checkout
Confirm the replacement part number, assembly revision and required quantity.
Troubleshooting Guide
Common Titan 840ix Digital Sprayer Problems and Parts to Inspect
The following symptoms can help identify an assembly to investigate. They are not definitive diagnoses, and several systems may produce similar operating problems.
| Symptom | Assembly to Inspect | Recommended Check |
|---|---|---|
| Digital controls not responding | Digital Drive Assembly | Check power supply, switch and control-related components using the service manual. |
| Low or inconsistent fluid pressure | Fluid Section, Filter and Controls | Inspect filter condition, fluid valves, seals and pressure-control operation. |
| Sprayer fails to prime | Siphon and Prime/Spray Valve | Check inlet screen, suction connections, valve position and possible intake leaks. |
| Paint flow restricted | Filter Assembly and Fluid Section | Inspect the correct filter and fluid passages for blockage or damage. |
| Damaged wheels or handle | High Rider or Low Rider Cart | Identify the actual cart configuration before selecting hardware. |
Compatibility and Fitment
Titan 840ix Digital vs. Standard 840ix Parts
Do not assume every standard Titan 840ix part fits the 840ix Digital. Some mechanical components may share part numbers, but the digital drive and electronic control system require careful identification. Match the exact model, assembly diagram, OEM number and applicable revision.
Cart configuration also matters. The Digital High Rider cart is illustrated as P/N 800-600A, while the Digital Low Rider cart is shown as P/N 800-590A. Likewise, the Digital Filter Assembly is identified as P/N 800-900A. Do not automatically substitute non-digital assembly versions solely because their numbers are similar.
Maintenance Recommendations
Maintain Your Titan 840ix Digital Airless Sprayer
Inspect the Filter
Clean or replace the specified filter as directed to help maintain unobstructed fluid flow.
Monitor Fluid Section Wear
Inspect packings, piston components and fluid valves when performance indicates service may be needed.
Protect Digital Components
Keep the control area protected from coating contamination and follow the manufacturer's electrical-service instructions.
Prepare for Storage
Flush and preserve the fluid system using the appropriate cleaning and storage procedure.
Genuine Titan Replacement Parts
Order Titan 840ix Digital Airless Sprayer Parts Online
Browse nine illustrated assembly categories, locate the exact OEM part number and purchase replacement components for your Titan 840ix Digital sprayer.
Shop Titan 840ix Digital PartsFrequently Asked Questions
Titan 840ix Digital Airless Sprayer Parts FAQ
Where can I buy Titan 840ix Digital replacement parts?
Shop genuine Titan 840ix Digital OEM replacement parts at AllTitanParts. Select the relevant assembly and match the part number with its illustrated diagram position.
How many Titan 840ix Digital parts categories are available?
The model category currently contains nine sections: Main Assembly, Digital Drive, Fluid Section, High Rider Cart, Filter Assembly, Low Rider Siphon, Low Rider Cart, Prime/Spray Valve and Accessories.
What is the Titan 840ix Xact Digital Control Assembly part number?
Titan 704-469 is listed as the Xact Digital Control Assembly in the digital drive category. Confirm the part number and applicable model revision before ordering.
Does Titan 805-354 replace Titan 704-488A?
The Digital Drive Assembly listing identifies Titan 805-354 Control Knob as replacing Titan 704-488A. Verify this replacement for your sprayer configuration.
What is the Titan 840ix Digital fluid section assembly number?
The Digital Fluid Section Assembly is identified as P/N 800-300. Individual replacement parts are available in its dedicated illustrated category.
Are Titan 840ix and Titan 840ix Digital parts interchangeable?
Some components may share OEM part numbers, but compatibility cannot be assumed. Compare the exact model, diagram, part number and assembly revision, especially for digital controls and cart components.
What is the Titan 840ix Digital filter assembly number?
The Digital Filter Assembly is listed as P/N 800-900A. Check the exploded diagram to identify the correct filter-related component.
Which cart assembly fits the Titan 840ix Digital?
The parts catalog includes High Rider Cart P/N 800-600A and Low Rider Cart P/N 800-590A. Select the diagram corresponding to your sprayer's actual cart configuration.
How can I identify the correct Titan 840ix Digital part?
Verify the sprayer model and serial information, open the relevant assembly drawing, locate the numbered part callout and confirm the OEM number and quantity before checkout.
Service Safety
Follow Pressure-Relief and Electrical Safety Procedures
Shut down and disconnect the sprayer, then follow Titan's complete pressure-relief procedure before servicing fluid-system components. High-pressure fluid injection can cause serious injury. Electrical and digital control repairs should follow the applicable manufacturer service instructions and be performed by qualified personnel where required.
