Titan Epic 660EX | Filter Block Assembly
Shop Titan Epic 660EX Filter Block Replacement Parts
Find replacement components for the Titan Epic 660EX Filter Block at AllTitanParts. Browse the applicable filter block parts diagram to identify manufacturer-specified filter elements, filter housings, seals, O-rings, fittings, pressure-related components, and mounting hardware where listed. Whether you are addressing restricted coating flow, recurring spray tip clogs, fluid leakage, or damaged filtration components, use the manufacturer's parts references to locate the correct Epic 660EX filter block parts for your electric airless paint sprayer.
Filter Block Overview
Buy Titan Epic 660EX Filter Block Parts Online
The Epic 660EX Filter Block category helps contractors, professional painters, maintenance teams, and equipment repair technicians locate filtration-related replacement components for the Titan Epic 660EX electric airless paint sprayer.
The filter block forms part of the sprayer's designated fluid delivery system. Its primary role is to provide a housing and connection arrangement for filtration and associated fluid-control components specified by the manufacturer.
During spraying, coating material travels through the fluid system toward the spray hose and gun. Where a filter element is fitted, it helps capture particles and debris that could otherwise contribute to spray tip clogging, irregular material flow, or contamination of downstream components.
Filter block components can experience wear from repeated pressure cycles, abrasive coating materials, cleaning procedures, and normal equipment handling. Damaged seals, blocked filters, worn fittings, or compromised housings may affect sprayer operation.
At AllTitanParts, browse the Titan Epic 660EX Filter Block category to identify listed replacement parts. Use the manufacturer's parts diagram to confirm the correct filter configuration, part numbers, sealing components, and pressure-rated fittings before ordering.
Filtration System Operation
How the Titan Epic 660EX Filter Block Works
The filter block is positioned within the designated fluid pathway and works with the pump, filtration components, and downstream spraying accessories.
Pressurized Fluid Entry
Coating material enters the designated filter block fluid passage from the pump delivery system.
Material Filtration
The specified filter element, where fitted, captures particles according to its design and mesh rating.
Sealed Fluid Passage
Manufacturer-specified seals and fittings help maintain fluid containment at designated connections.
Filtered Fluid Delivery
Coating material continues toward the approved hose, spray gun, and spray tip arrangement.
Filter Block Replacement Components
Titan Epic 660EX Filter Block Assembly Parts Guide
The following sections describe common filtration and filter block service areas. They are not a verified inventory of every component in the Epic 660EX Filter Block assembly. Check the applicable manufacturer parts diagram to confirm exact parts, individual serviceability, and availability.
Filter Block Housing
The filter block housing supports designated fluid passages and associated components.
Inspect for cracks, damaged threads, corrosion, and compromised connection surfaces. Use the correct manufacturer-listed housing if replacement is required.
Filter Elements and Screens
Where specified, filter elements help capture debris from coating material before it reaches downstream components.
Choose the manufacturer-approved filter size and mesh rating for the equipment and coating application.
Filter Caps and Covers
Designated caps or covers provide access to the filter element and help close the filter housing.
Inspect threads, sealing surfaces, and structural condition before reuse.
Filter Block O-Rings
O-rings provide sealing at specified filter block interfaces.
Replace damaged, flattened, swollen, or hardened O-rings using the correct manufacturer part number and material specification.
Filter Housing Seals
Seals help maintain fluid containment at designated housing connections.
Inspect for cuts, deformation, wear, and chemical deterioration. Match the original sealing arrangement.
Fluid Inlet Fittings
Inlet fittings connect the filter block to the manufacturer's designated upstream fluid pathway.
Confirm thread dimensions, sealing design, material compatibility, and pressure rating.
Fluid Outlet Fittings
Outlet fittings connect the filter block to downstream fluid delivery components.
Inspect for damaged threads, leakage, and improper connections. Use manufacturer-approved pressure-rated parts.
Pressure-Related Components
Depending on the assembly design, pressure-related fittings or components may be associated with the filter block.
Confirm the exact parts breakdown before selecting pressure-control or pressure-sensing components.
Prime and Relief Connections
Where included, designated fluid connections may interface with the sprayer's priming or pressure-relief arrangement.
Inspect for leakage and damaged fittings. Verify the manufacturer's exact configuration.
Filter Support Components
Where specified, support components help position the filter element within the housing.
Check for deformation, wear, and improper filter seating.
Filter Block Mounting Hardware
Specified bolts, screws, washers, and brackets secure the filter block to the equipment.
Replace missing or damaged fasteners with the correct manufacturer-listed hardware.
Complete Filter Block Assembly
Where available, a complete replacement assembly may be appropriate when the housing or multiple associated components are damaged.
Confirm the assembly part number, included components, and exact Epic 660EX compatibility.
Filter Selection
Choosing the Correct Titan Epic 660EX Filter Element
Filter elements differ in dimensions, mesh ratings, and material compatibility. The correct selection depends on the manufacturer's approved filtration arrangement and the coating material being sprayed.
Filter dimensions: The element must fit the designated filter housing and support arrangement.
Mesh rating: A finer mesh captures smaller particles but may restrict flow more readily with heavier materials. Use the rating recommended for the equipment and coating.
Coating compatibility: Select filter materials suitable for the coating and cleaning solvents.
Sealing condition: Inspect the designated filter seals whenever the housing is serviced.
Do not assume that a filter from another Titan sprayer model will fit the Epic 660EX. Verify the manufacturer part number and specifications before ordering.
Filter Block Troubleshooting
Common Titan Epic 660EX Filter Block Problems
Filtration problems may affect coating flow and spray quality. The following guide identifies possible inspection areas but does not replace the manufacturer's diagnostic procedures.
| Observed Problem | Possible Inspection Areas | Recommended Action |
|---|---|---|
| Reduced material flow | Blocked filter, restricted passages, downstream components | Relieve pressure and inspect the designated filtration system. |
| Repeated spray tip clogging | Filter condition, coating contamination, gun filter, spray tip | Inspect filtration and coating preparation before replacing components. |
| Fluid leakage around filter housing | O-rings, seals, cap threads, housing damage | Stop operation, relieve pressure, and inspect the sealing surfaces. |
| Filter element is damaged | Filter mesh, support arrangement, incorrect installation | Replace the damaged filter with the correct manufacturer-approved element. |
| Filter cap will not seal | Damaged threads, incorrect seal, debris, housing damage | Inspect the cap and housing. Do not force damaged threads. |
| Pressure fluctuates during spraying | Filter restriction, pump valves, fluid section, pressure control | Diagnose the complete fluid system before replacing the filter block. |
| Leakage at hose connection | Outlet fitting, damaged threads, incorrect sealing arrangement | Verify the correct pressure-rated fitting and connection requirements. |
| Filter block mounting is loose | Mounting bolts, brackets, damaged attachment points | Inspect and replace damaged mounting components. |
Filter Block Repair Planning
Repair or Replace the Titan Epic 660EX Filter Block?
The appropriate repair depends on the confirmed fault, condition of the filter housing, and availability of manufacturer-listed service parts.
Filter Element Replacement
Replace a damaged or non-serviceable filter element using the specified part number and mesh rating.
Seal and O-Ring Replacement
Replace worn sealing components when the housing and mating surfaces remain serviceable.
Fitting and Hardware Repair
Replace damaged pressure-rated fittings or mounting components where separately listed.
Complete Filter Block Replacement
A complete replacement may be appropriate when the housing is cracked, threads are compromised, or several components are damaged.
Parts Identification
How to Find the Correct Titan Epic 660EX Filter Block Parts
Confirm the Model
Verify Titan Epic 660EX identification and the installed filter block configuration.

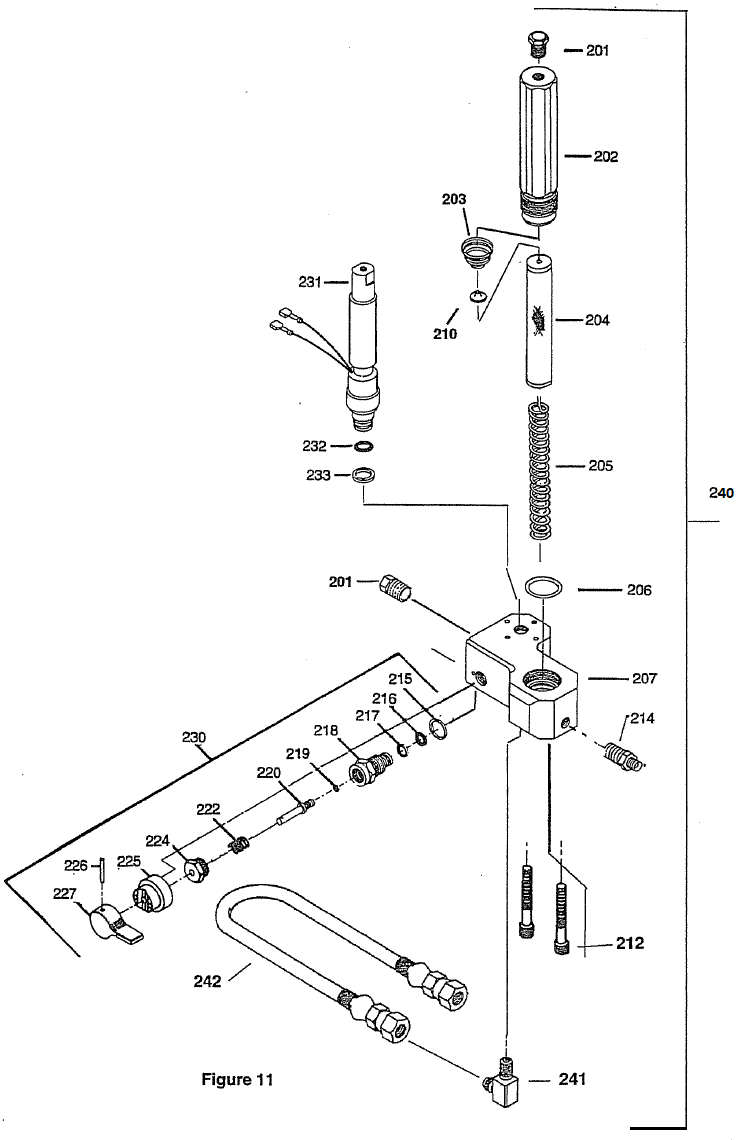

Review the Diagram
Locate the required filter, housing, seal, fitting, cap, or mounting component.
Match the Part Number
Compare the manufacturer reference with the corresponding replacement product listing.
Verify Specifications
Confirm mesh rating, sealing design, pressure rating, thread dimensions, and equipment revision.
Compatibility and Ordering
Important Epic 660EX Filter Block Compatibility Checks
Filter block components must match the designated fluid system configuration. Incorrect filters, seals, or fittings may cause leakage, restrictions, or unsafe pressure containment.
- Sprayer model: Confirm Titan Epic 660EX.
- Filter block identification: Verify the installed assembly.
- Manufacturer part number: Match the original or documented replacement.
- Filter element dimensions: Confirm the correct size and support arrangement.
- Mesh rating: Use the manufacturer-approved filter specification.
- Seal compatibility: Verify O-ring and gasket dimensions and materials.
- Thread dimensions: Match the designated inlet and outlet connections.
- Pressure rating: Use fittings and components approved for the sprayer's operating pressure.
- Assembly configuration: Confirm the correct filter block layout.
- Included components: Review the contents of complete assemblies or repair kits.
Do not assume that Titan Epic 660EX Filter Block components are interchangeable with Epic 660HPX, Epic 447EX, Epic 447HPX, or other Titan models without manufacturer confirmation.
Preventive Maintenance
Titan Epic 660EX Filter Block Maintenance Tips
Inspect Filter Elements
Check designated filter elements for contamination, damage, and restrictions according to manufacturer guidance.
Clean Approved Components
Clean reusable filtration components only with manufacturer-approved methods and compatible cleaning materials.
Inspect Seals and O-Rings
Check sealing components for wear, deformation, swelling, or cuts during approved service.
Check Housing Threads
Inspect filter caps, fittings, and housing threads for damage before reassembly.
Monitor Fluid Leakage
Stop operation and investigate any leakage around the filter block or fluid connections.
Follow Pressure-Relief Procedures
Always complete the manufacturer's pressure-relief procedure before opening the filter housing or servicing fluid fittings.
Related Titan Epic Parts
Shop Titan Epic 660EX Filter Block and Related Assemblies
Titan Epic 660EX Filter Block
Browse the filter block category and its listed filtration-related replacement components.
Epic 660EX Gear Box
Explore the mechanical drive assembly and related gearbox service parts.
Epic 660EX UNITEC Motor Complete
Review motor-related components for the Titan Epic 660EX electric airless sprayer.
Titan Epic 660EX Parts
Browse the complete model category for additional Epic 660EX replacement assemblies.
Titan Epic 660EX Filter Block Repair Safety
High-pressure airless spraying equipment can cause serious fluid injection injuries. Before opening the filter housing, removing fittings, or servicing the filter block, switch off the sprayer, disconnect electrical power, and complete the manufacturer's pressure-relief procedure.
Never loosen a pressurized filter cap or fluid connection. Do not use hands to locate leaks, and do not operate the sprayer with cracked housings, damaged threads, missing seals, or incorrectly rated fittings.
Use manufacturer-specified replacement components and follow the applicable Titan service manual. Suspected high-pressure fluid injection injuries require immediate emergency medical treatment.
Titan Epic 660EX Filter Block Parts
Order Titan Epic 660EX Filter Block Replacement Parts
Browse the Titan Epic 660EX Filter Block category at AllTitanParts. Use the applicable parts diagram to identify the correct filter elements, seals, housings, fittings, and other listed replacement components.
Shop Epic 660EX Filter Block PartsFrequently Asked Questions
Titan Epic 660EX Filter Block FAQ
What is the Titan Epic 660EX Filter Block?
It is the designated filter block assembly associated with the Titan Epic 660EX fluid delivery system.
Where can I buy Titan Epic 660EX Filter Block parts?
Visit the Titan Epic 660EX Filter Block category at AllTitanParts to review listed replacement components.
What does the Epic 660EX filter block do?
The filter block provides the designated housing and fluid connection arrangement for filtration and related components specified by the manufacturer.
Why is my Epic 660EX filter clogging?
Possible causes include contaminated coating material, excessive debris, an unsuitable filter mesh rating, or inadequate cleaning.
Can I replace the Epic 660EX filter element separately?
Separate replacement may be possible if the manufacturer lists the filter element as an individual service part.
How do I choose the correct filter mesh?
Use the manufacturer's recommended filter rating for the equipment and coating material, and verify the correct filter dimensions.
Why is the Epic 660EX filter block leaking?
Possible causes include worn O-rings, damaged seals, compromised housing threads, cracked components, or incorrect fittings.
Can I replace the filter block O-rings?
O-ring replacement may be possible when the manufacturer lists the correct sealing components for the assembly.
Can a clogged filter cause low spray pressure?
A restricted filter can reduce material flow and contribute to spray performance problems. Other fluid system faults can cause similar symptoms.
Are Epic 660EX and Epic 660HPX filter block parts interchangeable?
Do not assume interchangeability. Verify manufacturer part numbers and documented compatibility.
When should I replace the complete filter block?
Complete replacement may be appropriate when the housing is cracked, threads are damaged, or several components are no longer serviceable.
How do I identify the correct Epic 660EX Filter Block part?
Locate the required component in the applicable Titan Epic 660EX Filter Block parts diagram and match its manufacturer reference with the product listing.
How often should I clean the Epic 660EX filter?
Follow the manufacturer's cleaning and inspection instructions, taking into account coating type and operating conditions.
How can I get help finding Titan Epic 660EX Filter Block parts?
Contact AllTitanParts at 713-931-0006 with the sprayer model information and the required filter block part number or diagram reference.
