Titan Epic 660EX | Syphon Assembly
Shop Titan Epic 660EX Syphon Assembly Replacement Parts
Find replacement components for the Titan Epic 660EX Syphon Assembly at AllTitanParts. Browse the applicable parts diagram to identify manufacturer-specified suction tubes, syphon hoses, inlet strainers, suction fittings, clamps, seals, and related fluid intake components where listed. Whether you are troubleshooting difficult priming, restricted paint intake, air entering the suction line, or damaged material pickup components, use the manufacturer's parts references to locate the correct Epic 660EX syphon assembly parts for your electric airless paint sprayer.
Syphon Assembly Overview
Buy Titan Epic 660EX Syphon Assembly Parts Online
The Epic 660EX Syphon Assembly category helps professional painters, contractors, maintenance personnel, and equipment repair technicians identify material intake replacement components for the Titan Epic 660EX electric airless paint sprayer.
The syphon assembly forms part of the sprayer's fluid intake system. Its purpose is to provide the designated pathway through which coating material is drawn from a supply container toward the pump inlet.
During normal operation, the pumping mechanism creates the conditions needed to draw material through the suction arrangement. Where an inlet strainer is fitted, it helps prevent larger debris from entering the pump and contributing to valve contamination or fluid restrictions.
The syphon assembly must maintain a suitable fluid pathway and properly sealed connections. Damaged suction hoses, loose fittings, worn seals, clogged strainers, or improperly positioned intake components can contribute to priming difficulties, inconsistent material pickup, and interruptions in spraying.
At AllTitanParts, browse the Titan Epic 660EX Syphon Assembly category to locate listed replacement components. Confirm the manufacturer's part number, suction configuration, fitting dimensions, and any applicable equipment revisions before ordering.
Material Intake Operation
How the Titan Epic 660EX Syphon Assembly Works
The syphon assembly connects the coating material supply to the sprayer's designated fluid intake pathway. Its operation depends on the condition of the suction components and the pump inlet system.
Material Pickup
The designated intake tube or hose is positioned to draw coating material from the supply container.
Inlet Screening
Where fitted, the suction strainer captures larger particles before material enters the pump.
Fluid Transfer
Material travels through the suction pathway toward the pump inlet as the pump operates.
Pump Supply
The fluid section receives material for pressurization and delivery through the spraying system.
Syphon Replacement Components
Titan Epic 660EX Syphon Assembly Parts Guide
The following sections describe common syphon and suction-system service areas. They are not a verified inventory of every component in the Epic 660EX Syphon Assembly. Check the applicable Titan parts diagram to confirm exact components, individual serviceability, and availability.
Syphon Tube Assembly
The syphon tube provides a designated pathway for coating material to travel from the supply container toward the pump.
Inspect for cracks, deformation, blockages, and damaged connection surfaces. Match the manufacturer's tube dimensions and configuration.
Suction Hose
Where specified, a flexible suction hose connects designated intake components to the sprayer.
Inspect for cracks, kinks, collapse, chemical deterioration, and damaged fittings that may allow air to enter the intake pathway.
Inlet Strainer
Where fitted, the inlet strainer helps capture larger particles before material enters the pumping mechanism.
Inspect for clogging, torn screening material, corrosion, and damaged attachment points.
Syphon Inlet Fittings
Inlet fittings connect the suction assembly to the designated pump intake location.
Verify thread dimensions, sealing design, and manufacturer part numbers before replacement.
Suction Hose Clamps
Where included, clamps secure designated hose-to-fitting connections.
Inspect for corrosion, deformation, looseness, and damage. Use the manufacturer-specified clamp type and size.
Syphon Assembly O-Rings
O-rings provide sealing at designated suction connections where specified.
Replace worn, flattened, cut, or swollen O-rings with the correct material and dimensions.
Suction Connection Seals
Seals help prevent unwanted air entry at specified fluid intake connections.
Inspect for deterioration, incorrect seating, and damaged mating surfaces.
Suction Tube Connectors
Where listed, connectors join designated sections of the syphon assembly.
Check for cracks, damaged threads, looseness, and compatibility with the installed tubing.
Strainer Retaining Components
Retaining components secure the suction strainer to its designated intake connection.
Inspect for damaged threads, missing hardware, and improper seating.
Syphon Support Brackets
Where fitted, support brackets help position or secure the suction assembly.
Inspect for bending, cracks, corrosion, and loose mounting points.
Syphon Mounting Hardware
Specified bolts, screws, washers, and other fasteners secure designated intake components.
Use the correct manufacturer-listed hardware and installation procedure.
Complete Syphon Assembly
Where available, a complete syphon assembly may be appropriate when several intake components are damaged.
Verify the assembly part number, included fittings, strainer configuration, and exact Epic 660EX compatibility.
Fluid System Identification
Epic 660EX Syphon Assembly vs. Return Line vs. Fluid Section
These components perform different functions within the airless sprayer's fluid system. Understanding their roles helps identify the correct repair area.
| Component | Primary Function | Possible Service Indicators |
|---|---|---|
| Syphon Assembly | Provides the designated coating material intake pathway. | Air entering the suction line, damaged tubing, blocked inlet strainer, or loose intake fittings. |
| Return Line | Directs material through the manufacturer's designated return or priming pathway. | Damaged return tubing, loose connections, or improper return flow. |
| Fluid Section | Pumps and pressurizes coating material. | Worn packings, inlet valve problems, outlet valve problems, or internal fluid leakage. |
A sprayer that will not prime does not necessarily need a replacement syphon assembly. Inspect the complete material intake and pumping system using the manufacturer's troubleshooting instructions.
Syphon Troubleshooting
Common Titan Epic 660EX Syphon Assembly Problems
Material intake problems can interrupt priming and spraying. The following guide identifies possible causes and inspection areas without assuming a specific component has failed.
| Observed Problem | Possible Inspection Areas | Recommended Action |
|---|---|---|
| Sprayer will not prime | Suction connections, inlet strainer, inlet valve, fluid section | Inspect the complete intake system and follow the manufacturer's priming procedure. |
| Air enters the suction line | Damaged hose, loose fittings, worn seals, cracked connectors | Inspect the suction pathway and replace damaged sealing components. |
| Reduced material pickup | Clogged strainer, restricted tubing, coating viscosity, pump inlet | Check for restrictions and verify the approved coating and intake arrangement. |
| Suction hose collapses | Restricted strainer, blocked intake, deteriorated hose | Stop operation and inspect the hose and material intake path. |
| Material pickup is intermittent | Low material level, intake positioning, air leaks, inlet valve | Verify proper intake positioning and inspect the suction connections. |
| Visible leakage around suction fittings | Loose connectors, damaged seals, cracked fittings | Follow shutdown and pressure-relief procedures before servicing connections. |
| Frequent inlet strainer clogging | Coating contamination, unsuitable screening, debris buildup | Inspect coating preparation and clean or replace the approved strainer. |
| Suction assembly is physically damaged | Bent tubing, cracked connectors, damaged supports | Replace damaged components using the applicable Titan parts diagram. |
Syphon Repair Planning
Repair or Replace the Titan Epic 660EX Syphon Assembly?
The appropriate repair depends on the condition of the suction pathway, the confirmed fault, and the manufacturer's available service components.
Inlet Strainer Replacement
Replace a damaged or non-serviceable strainer with the manufacturer-specified component.
Suction Hose Replacement
Replace cracked, collapsed, or chemically deteriorated suction tubing when separately serviceable.
Fitting and Seal Replacement
Replace damaged fittings, clamps, and seals using the correct manufacturer references.
Complete Syphon Assembly Replacement
A complete replacement may be appropriate when multiple intake components are damaged or supplied as one assembly.
Parts Identification
How to Find the Correct Titan Epic 660EX Syphon Assembly Parts
Confirm the Model
Verify Titan Epic 660EX identification and the installed syphon configuration.

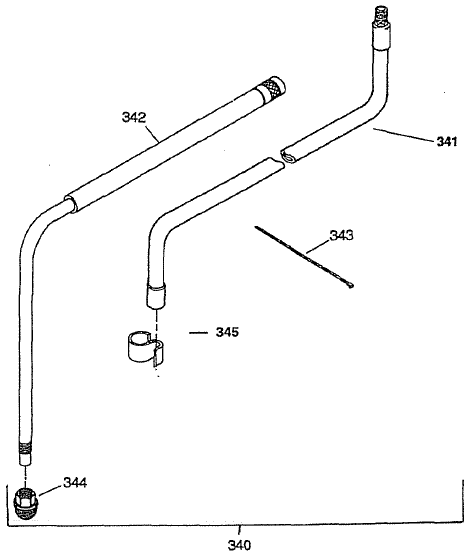

Review the Syphon Diagram
Identify the required suction tube, strainer, fitting, hose, seal, or related component.
Match the Part Number
Compare the manufacturer part number with the replacement product listing.
Verify Fitment
Confirm tubing dimensions, connection type, material compatibility, and equipment revision.
Compatibility and Ordering
Important Epic 660EX Syphon Assembly Compatibility Checks
Suction assembly components must match the designated fluid intake arrangement. Incorrect tubing, fittings, or seals can introduce air, restrict material flow, or prevent proper priming.
- Sprayer model: Confirm Titan Epic 660EX.
- Syphon configuration: Verify the installed suction arrangement.
- Manufacturer part number: Match the original or documented replacement.
- Suction tube dimensions: Confirm the correct length and diameter.
- Hose specifications: Verify material compatibility and suction suitability.
- Inlet strainer: Confirm the approved size and attachment type.
- Connection threads: Match the designated pump inlet fittings.
- Seal specifications: Verify dimensions and material compatibility.
- Clamps and retainers: Use the specified connection hardware.
- Assembly contents: Confirm which components are included in the replacement.
Do not assume that Titan Epic 660EX Syphon Assembly components are interchangeable with Epic 660HPX, Epic 447EX, Epic 447HPX, or other Titan models without manufacturer confirmation.
Preventive Maintenance
Titan Epic 660EX Syphon Assembly Maintenance Tips
Inspect the Inlet Strainer
Check the designated strainer for debris, damage, and restrictions before spraying.
Check Suction Tubing
Inspect accessible tubing for cracks, kinks, collapse, and material deterioration.
Inspect Connections
Check fittings, clamps, and seals for damage or looseness using approved service procedures.
Keep the Intake Submerged
Maintain proper material pickup positioning according to the manufacturer's operating instructions.
Clean After Spraying
Flush and clean the intake system using manufacturer-approved procedures and coating-compatible cleaning materials.
Replace Damaged Parts Promptly
Replace cracked hoses, damaged strainers, and deteriorated sealing components before further use.
Related Titan Epic Parts
Shop Titan Epic 660EX Syphon and Related Assemblies
Titan Epic 660EX Syphon Assembly
Browse the syphon assembly category and its listed material intake replacement components.
Epic 660EX Filter Block
Explore filtration-related components for the designated fluid delivery system.
Epic 660EX Gear Box
Review mechanical drive components associated with the sprayer's pumping system.
Titan Epic 660EX Parts
Browse the complete Epic 660EX model category for additional replacement assemblies.
Titan Epic 660EX Syphon Assembly Repair Safety
Before servicing the syphon assembly, switch off the sprayer, disconnect electrical power, and complete the manufacturer's pressure-relief procedure. Never disconnect fluid components while the system is pressurized.
Use appropriate protective equipment and cleaning materials compatible with the coating being handled. Do not operate the sprayer with cracked suction components, loose fittings, or damaged seals.
Follow the applicable Titan service manual when replacing intake components. High-pressure fluid injection injuries require immediate emergency medical treatment.
Titan Epic 660EX Syphon Assembly Parts
Order Titan Epic 660EX Syphon Assembly Parts
Browse the Titan Epic 660EX Syphon Assembly category at AllTitanParts. Use the applicable parts diagram to identify the correct suction tubes, strainers, fittings, seals, and other listed intake components.
Shop Epic 660EX Syphon PartsFrequently Asked Questions
Titan Epic 660EX Syphon Assembly FAQ
What is the Titan Epic 660EX Syphon Assembly?
It is the designated material intake assembly that provides a pathway for coating material to enter the Titan Epic 660EX pumping system.
Where can I buy Titan Epic 660EX Syphon Assembly parts?
Visit the Titan Epic 660EX Syphon Assembly category at AllTitanParts to review listed replacement components.
What does the Epic 660EX syphon assembly do?
It provides the designated pathway through which coating material is drawn from the supply container toward the pump inlet.
Why will my Titan Epic 660EX not prime?
Possible causes include air entering the suction line, a blocked strainer, restricted tubing, damaged seals, or pump inlet valve problems.
Can I replace the Epic 660EX suction hose separately?
Separate hose replacement may be possible if the manufacturer lists it as an individual service part.
How do I know if the suction strainer is clogged?
Visible debris buildup and reduced material intake may indicate a restriction. Inspect the strainer after completing the manufacturer's shutdown procedure.
Why is air entering my Epic 660EX suction line?
Possible causes include cracked tubing, loose fittings, deteriorated seals, or improperly seated connectors.
Can a damaged syphon assembly cause low spray pressure?
A restricted or leaking suction pathway can interrupt material supply and contribute to poor spraying performance. Other pump and pressure-control faults can produce similar symptoms.
Are Epic 660EX and Epic 660HPX syphon parts interchangeable?
Do not assume interchangeability. Verify the manufacturer part numbers and documented compatibility.
Can I replace only the suction strainer?
Individual strainer replacement may be possible where the manufacturer lists the correct strainer as a separate service part.
When should I replace the complete syphon assembly?
Complete replacement may be appropriate when several intake components are damaged or when the required parts are supplied together.
How do I find the correct Epic 660EX syphon part?
Use the applicable Titan Epic 660EX Syphon Assembly parts diagram and match the manufacturer's part number with the replacement listing.
How often should I clean the syphon assembly?
Follow the manufacturer's flushing and cleaning instructions, particularly when changing coating materials or preparing the sprayer for storage.
How can I get help finding Titan Epic 660EX Syphon Assembly parts?
Contact AllTitanParts at 713-931-0006 with the sprayer model information and the required syphon part number or diagram reference.
