Fluid Section Overview
Buy Titan Epic 660EX Fluid Section 2 Parts Online
The Epic 660EX Fluid Section 2 category helps professional painters, contractors, equipment owners, and repair technicians identify replacement parts for the pumping mechanism of the Titan Epic 660EX electric airless paint sprayer.
The fluid section is responsible for drawing coating material into the pump, moving it through the designated pumping chamber, and delivering pressurized material toward the filtration and spraying system.
During normal operation, the electric motor and mechanical drive supply motion to the pumping mechanism. The fluid section uses that motion together with its designated valves, sealing components, and fluid passages to move coating material through the sprayer.
Repeated pressure cycles, abrasive coatings, material contamination, and normal wear can affect internal pump components. Worn packings, damaged piston surfaces, contaminated valve seats, or deteriorated seals may contribute to fluid leakage, reduced pumping efficiency, inconsistent spray pressure, and priming problems.
The designation Fluid Section 2 should be matched to the applicable Titan Epic 660EX parts diagram. Do not assume that components from another fluid section configuration or model are interchangeable.
At AllTitanParts, browse the Titan Epic 660EX Fluid Section 2 category to review listed pump replacement components. Confirm manufacturer part numbers, assembly revisions, and individual component compatibility before purchasing.
Piston Pump Operation
How the Titan Epic 660EX Fluid Section 2 Works
The fluid section works with the motor, gearbox, suction system, and downstream fluid delivery components to pump coating material. The following overview describes the general operation of a reciprocating airless piston pump.
Material Intake
Coating material enters the pump through the designated suction pathway and inlet valve arrangement.
Piston Movement
The mechanical drive moves the pump's reciprocating components according to the manufacturer's design.
Valve Operation
The designated inlet and outlet valves regulate material movement through the pumping chamber.
Pressurized Delivery
The pump delivers material toward the approved filtration, hose, spray gun, and spray tip arrangement.
Fluid Section Replacement Components

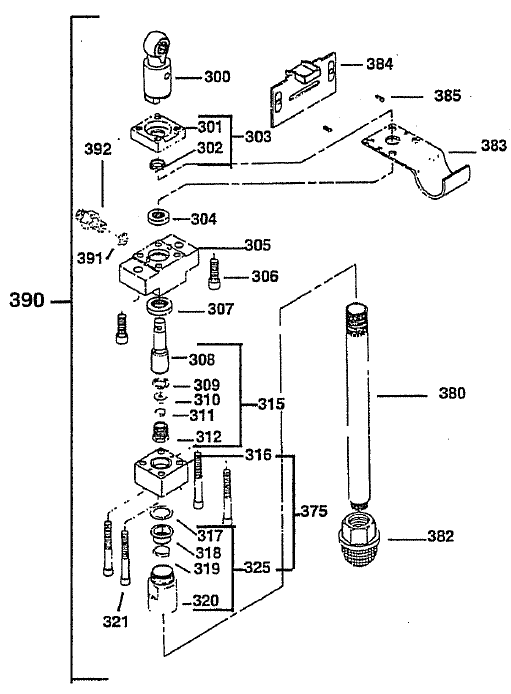

Titan Epic 660EX Fluid Section 2 Assembly Parts Guide
The following sections describe common piston pump service areas. They are not a verified inventory of every component in the Epic 660EX Fluid Section 2 assembly. Check the applicable manufacturer parts diagram to confirm exact parts, individual serviceability, and availability.
Fluid Section Housing
The fluid section housing supports designated internal pumping components and fluid passages.
Inspect for cracks, damaged threads, worn sealing surfaces, and compromised mounting locations. Verify the correct manufacturer-listed housing before replacement.
Pump Piston Assembly
The piston assembly provides reciprocating movement within the pumping mechanism.
Inspect designated piston surfaces for scoring, wear, deformation, and damage that may affect sealing performance.
Piston Rod
Where specified, the piston rod transfers mechanical movement through the pump assembly.
Inspect for scratches, scoring, corrosion, and dimensional wear. Damaged rod surfaces can accelerate packing deterioration.
Upper Pump Packings
Upper packings provide sealing at designated locations around reciprocating pump components.
Worn or damaged packings may contribute to fluid leakage and reduced pump efficiency.
Lower Pump Packings
Lower packings help maintain the designated fluid seal within the pumping mechanism.
Inspect for wear, deformation, chemical deterioration, and damage caused by abrasive materials.
Pump Packing Repair Kits
Where listed, packing kits may include manufacturer-specified sealing components for pump servicing.
Confirm the exact kit contents and compatibility with the Epic 660EX Fluid Section 2 configuration.
Inlet Valve Assembly
The inlet valve regulates coating material entry into the designated pumping chamber.
Debris, worn valve surfaces, or damaged components may contribute to difficult priming or reduced pumping performance.
Outlet Valve Assembly
The outlet valve regulates material movement from the pumping chamber toward the downstream fluid system.
Inspect for contamination, wear, and damaged sealing surfaces using approved service procedures.
Inlet and Outlet Valve Balls
Where ball-type valves are specified, valve balls work with their matching seats to regulate fluid flow.
Inspect for pitting, wear, deformation, and contamination. Use the correct manufacturer-specified ball dimensions and material.
Valve Seats
Valve seats provide designated sealing surfaces for the pump's inlet or outlet valve components.
Damaged or worn seats can affect valve sealing and pumping efficiency. Match the correct seat specification before replacement.
Valve Springs and Retainers
Where included, springs and retainers support the designated valve operating arrangement.
Inspect for deformation, fatigue, corrosion, and damaged retaining surfaces.
Pump Cylinder and Sleeve
Where specified, the cylinder or sleeve provides the working surface for the reciprocating pumping components.
Inspect for scoring, excessive wear, and damage that may affect piston sealing.
Pump O-Rings and Seals
O-rings and seals help maintain fluid containment at designated pump connections and internal interfaces.
Replace damaged components using the correct dimensions and manufacturer-approved materials.
Packing Washers and Spacers
Where specified, washers and spacers support the correct positioning of pump sealing components.
Verify the correct installation order and dimensions from the manufacturer parts diagram.
Fluid Section Mounting Hardware
Manufacturer-specified bolts, screws, retaining components, and connectors secure the fluid section to the designated drive arrangement.
Inspect for damage, looseness, and incorrect installation.
Complete Fluid Section Assembly
Where available, a complete fluid section replacement may be appropriate when several internal pumping components are damaged.
Confirm the complete assembly part number, included components, and compatibility with the designated Epic 660EX configuration.
Pump System Identification
Epic 660EX Fluid Section 2 vs. Gear Box, Syphon, and Filter Block
Several Titan Epic 660EX assemblies contribute to fluid delivery. Identifying their separate functions helps narrow the correct repair area.
| Assembly | Primary Function | Possible Service Indicators |
|---|---|---|
| Fluid Section 2 | Pumps and pressurizes coating material. | Worn packings, valve problems, piston damage, or internal fluid leakage. |
| Gear Box | Transfers mechanical motion from the motor toward the pump. | Damaged gears, worn bearings, unusual drive noise, or lost mechanical transmission. |
| Syphon Assembly | Supplies coating material to the pump inlet. | Blocked strainers, air leaks, damaged suction tubing, or restricted intake. |
| Filter Block | Supports designated filtration and fluid delivery connections. | Clogged filters, leaking seals, damaged fittings, or restricted fluid flow. |
Low spray pressure or failure to prime does not automatically indicate a defective fluid section. Diagnose the complete intake, pumping, pressure-control, and drive systems before purchasing replacement parts.
Fluid Section Troubleshooting
Common Titan Epic 660EX Fluid Section 2 Problems
The following table identifies common piston pump symptoms and possible service areas. It is intended for preliminary parts identification rather than definitive diagnosis.
| Observed Problem | Possible Inspection Areas | Recommended Action |
|---|---|---|
| Sprayer will not prime | Inlet valve, suction assembly, strainer, air leaks | Inspect the material intake pathway and inlet valve using manufacturer instructions. |
| Low or inconsistent spray pressure | Packings, inlet and outlet valves, filters, pressure control | Diagnose the complete fluid system before replacing pump components. |
| Fluid leakage near pump rod | Upper packings, piston rod condition, sealing components | Inspect the packing arrangement and rod surfaces after relieving pressure. |
| Pump operates but delivers little material | Valve sealing, worn packings, restricted intake, damaged piston | Check the inlet, outlet, and pumping components. |
| Pump cycles when spraying is stopped | Internal fluid leakage, valve seats, packings, external leaks | Investigate pressure loss and inspect the designated sealing components. |
| Frequent valve contamination | Coating debris, suction strainer, valve balls, valve seats | Inspect coating preparation, filtration, and valve condition. |
| Abnormal pump noise | Drive system, piston movement, mechanical connections, fluid section | Stop operation and investigate mechanical components before restarting. |
| Visible piston or cylinder scoring | Piston surface, cylinder or sleeve, packing condition | Evaluate replacement of worn components according to manufacturer service limits. |
| Fluid leaks at pump connections | Seals, O-rings, fittings, housing threads | Relieve pressure and inspect the specified connection and sealing components. |
Pump Repair Planning
Repair or Replace the Titan Epic 660EX Fluid Section 2?
The correct repair depends on the confirmed fault, condition of the pumping surfaces, manufacturer serviceability, and availability of replacement components.
Packing Kit Replacement
A manufacturer-specified packing kit may address worn sealing components when the piston and cylinder remain serviceable.
Inlet or Outlet Valve Repair
Replace damaged valve balls, seats, or other serviceable valve components where separately listed.
Piston and Cylinder Replacement
Replace scored or worn pumping surfaces when the manufacturer provides suitable service components.
Complete Fluid Section Replacement
A complete assembly may be appropriate when multiple internal components are damaged or individual repair is not practical.
Parts Identification
How to Find the Correct Titan Epic 660EX Fluid Section 2 Parts
Confirm the Sprayer Model
Verify Titan Epic 660EX identification and the installed fluid section configuration.
Review Fluid Section 2
Locate the required component in the applicable Fluid Section 2 parts diagram.
Match the Part Number
Compare the manufacturer reference with the replacement product listing or repair kit.
Verify Pump Compatibility
Confirm component dimensions, seal materials, valve configuration, assembly revision, and included parts.
Compatibility and Ordering
Important Epic 660EX Fluid Section 2 Compatibility Checks
Pump replacement components must match the manufacturer's specified fluid section configuration. Incorrect valve parts, packings, or piston components may affect sealing, material delivery, and pressure containment.
- Sprayer model: Confirm Titan Epic 660EX.
- Fluid section designation: Verify the applicable Fluid Section 2 assembly.
- Manufacturer part number: Match the original or documented replacement.
- Piston specifications: Confirm dimensions and mating surfaces.
- Packing arrangement: Verify upper and lower packing types and installation order.
- Valve configuration: Match inlet and outlet valve components.
- Valve ball and seat dimensions: Use the manufacturer's specified sizes and materials.
- Seal compatibility: Confirm materials suitable for the coating and cleaning agents.
- Drive connection: Verify the correct fluid section mounting and mechanical interface.
- Repair kit contents: Confirm which components are included before ordering.
Do not assume that Titan Epic 660EX Fluid Section 2 parts are interchangeable with Epic 660HPX, Epic 447EX, Epic 447HPX, or other Titan fluid section configurations without manufacturer documentation.
Preventive Maintenance
Titan Epic 660EX Fluid Section 2 Maintenance Tips
Flush After Spraying
Clean the fluid system using manufacturer-approved procedures and coating-compatible flushing materials.
Inspect Pump Packings
Check for leakage and other signs of packing wear according to the applicable service instructions.
Monitor Valve Performance
Investigate difficult priming, pressure loss, and irregular pumping that may indicate valve contamination or wear.
Maintain Clean Intake Material
Use the manufacturer's recommended straining and material preparation procedures to reduce debris entering the pump.
Follow Packing Lubrication Guidance
Use only manufacturer-approved packing lubrication products and procedures where specified for the installed pump.
Inspect Seals and Connections
Check designated pump seals, fittings, and mounting connections for wear or leakage after safe shutdown.
Related Titan Epic Parts
Shop Titan Epic 660EX Fluid Section 2 and Related Assemblies
Epic 660EX Fluid Section 2
Browse the designated fluid section category and its listed pump repair components.
Epic 660EX Syphon Assembly
Review the material intake components that supply coating material to the pump.
Epic 660EX Filter Block
Explore filtration and fluid delivery components associated with the sprayer.
Epic 660EX Gear Box
Browse the mechanical drive assembly that transfers motor motion toward the pump.
Epic 660EX UNITEC Motor Complete
Review motor-related replacement components for the Epic 660EX electric airless sprayer.
Titan Epic 660EX Parts
Browse the complete model category for additional Titan Epic 660EX repair assemblies.
Titan Epic 660EX Fluid Section 2 Repair Safety
Airless paint sprayers operate with high-pressure fluid that can cause serious injection injuries. Before removing pump components, opening valve assemblies, or disconnecting fluid fittings, switch off the sprayer, disconnect electrical power, and complete the manufacturer's pressure-relief procedure.
Never attempt to stop a pressurized fluid leak with your hands. Do not operate the sprayer with cracked pump housings, damaged fluid fittings, incorrectly installed packings, or compromised pressure-containing components.
Use manufacturer-specified replacement parts and follow the applicable Titan service documentation for disassembly, inspection, reassembly, and testing. Suspected high-pressure fluid injection injuries require immediate emergency medical treatment.
Titan Epic 660EX Fluid Section 2 Parts
Order Titan Epic 660EX Fluid Section 2 Replacement Parts
Browse the Titan Epic 660EX Fluid Section 2 category at AllTitanParts. Use the applicable parts diagram to identify the correct piston components, packing kits, inlet and outlet valves, seals, and other listed pump repair parts.
Shop Epic 660EX Fluid Section 2 PartsFrequently Asked Questions
Titan Epic 660EX Fluid Section 2 FAQ
What is the Titan Epic 660EX Fluid Section 2?
It is the designated fluid section category for pumping components associated with the Titan Epic 660EX electric airless paint sprayer.
Where can I buy Titan Epic 660EX Fluid Section 2 parts?
Visit the Titan Epic 660EX Fluid Section 2 category at AllTitanParts to browse listed replacement components.
What does the Epic 660EX fluid section do?
The fluid section draws coating material into the pumping mechanism and delivers it under pressure toward the spraying system.
Why is my Titan Epic 660EX losing spray pressure?
Possible causes include worn pump packings, contaminated valve seats, damaged valve components, restricted filters, or pressure-control problems.
Can I replace the Epic 660EX pump packings?
Packing replacement may be possible if the manufacturer lists the appropriate packing components or repair kit for the installed fluid section.
Why will my Epic 660EX fluid section not prime?
Possible causes include suction air leaks, a clogged inlet strainer, contaminated inlet valve components, or internal pump wear.
What causes fluid leakage near the piston rod?
Worn upper packings, damaged piston rod surfaces, or improperly installed sealing components may contribute to leakage.
Can I replace inlet and outlet valve components separately?
Separate replacement may be possible where the manufacturer lists valve balls, seats, or other components individually.
Why does my Epic 660EX pump cycle when spraying stops?
Internal leakage through worn packings or valve components, external fluid leaks, or other pressure-control issues may contribute to continued cycling.
Can I replace the complete Titan Epic 660EX fluid section?
A complete replacement may be possible if the manufacturer lists a compatible fluid section assembly for the equipment.
Are Epic 660EX and Epic 660HPX fluid section parts interchangeable?
Do not assume interchangeability. Confirm the manufacturer part number and documented compatibility for the exact fluid section.
What is included in an Epic 660EX fluid section packing kit?
Kit contents depend on the manufacturer part number. Review the product listing and applicable parts diagram to confirm included packings, seals, and other components.
How do I find the correct Epic 660EX Fluid Section 2 part?
Use the applicable Titan Epic 660EX Fluid Section 2 parts diagram and match the manufacturer part number with the replacement product listing.
How can I get help finding Titan Epic 660EX Fluid Section 2 parts?
Contact AllTitanParts at 713-931-0006 with the sprayer model information, fluid section diagram reference, and required manufacturer part number.
