Titan Epic 660EX | Low Rider Frame Assembly
Shop Titan Epic 660EX Low Rider Frame Assembly Parts
Find replacement components for the Titan Epic 660EX Low Rider Frame Assembly at AllTitanParts. Explore the applicable assembly diagram to identify low-profile frame components, support brackets, mounting hardware, transport wheels, axle-related parts, handles, and support feet where specified. Whether you are repairing a damaged frame, replacing worn transportation components, or restoring secure sprayer mounting, use the manufacturer's parts references to select the correct components for your Epic 660EX electric airless paint sprayer.
Low Rider Frame Overview
Buy Titan Epic 660EX Low Rider Frame Replacement Parts
The Epic 660EX Low Rider Frame Assembly category helps contractors, professional painters, equipment owners, and repair technicians locate components associated with the low rider support configuration of the Titan Epic 660EX electric airless sprayer.
The low rider frame provides a compact structural foundation for the sprayer's designated components. Its mounting arrangement helps position supported equipment assemblies while providing the frame geometry and ground-contact points specified by the manufacturer.
Depending on the original equipment configuration, the assembly may include frame supports, brackets, transport hardware, handles, feet, mounting fasteners, or other structural components. Exact contents must be confirmed using the applicable Titan Epic 660EX Low Rider Frame Assembly parts diagram.
Transportation, repeated handling, vibration, impacts, and environmental exposure can contribute to loose mounting connections, worn support components, damaged wheels, or structural deformation. Inspecting these areas can help identify problems before further equipment damage occurs.
At AllTitanParts, browse the Epic 660EX Low Rider Frame Assembly category to locate listed replacement parts. Confirm the manufacturer part number, frame configuration, and any documented equipment revisions before ordering.
Frame Operation
How the Titan Epic 660EX Low Rider Frame Assembly Works
The low rider frame is a structural support assembly rather than a fluid-pressure component. Its functions include equipment support, mounting alignment, stable positioning, and approved handling where applicable.
Low-Profile Support
The frame supports designated sprayer assemblies within the manufacturer's low rider configuration.
Secure Equipment Mounting
Specified brackets, mounting surfaces, and fasteners secure supported sprayer components.
Stable Positioning
The frame and designated contact points help support the sprayer on an appropriate work surface.
Equipment Handling
Where fitted, wheels, axles, and handles support approved equipment movement and positioning.
Frame Replacement Components
Titan Epic 660EX Low Rider Frame Assembly Parts Guide
The following sections describe common low rider frame service areas. They are not a verified list of every component included in the Epic 660EX assembly. Check the manufacturer parts diagram and individual listings to confirm the exact parts and availability.
Low Rider Frame Structure
The main frame forms the structural foundation for the designated sprayer mounting arrangement.
Inspect for cracks, bent supports, damaged welds, corrosion, and distorted mounting points. Match the correct frame configuration before ordering.
Frame Support Rails
Where specified, frame rails provide structural support and attachment locations for equipment components.
Inspect for deformation, damaged attachment holes, and loose mounting connections.
Transport Wheels
Where fitted, wheels allow the sprayer to be moved using the manufacturer's approved handling method.
Check for damaged hubs, excessive wear, cracking, and restricted rotation. Confirm wheel dimensions and axle compatibility.
Axle Components
Axle components support the designated wheel arrangement where included.
Inspect for bending, corrosion, worn bearing surfaces, and damaged retaining points.
Wheel Retaining Hardware
Retaining clips, washers, nuts, or similar hardware secure wheel components where specified.
Replace missing or damaged hardware with manufacturer-approved components before transporting equipment.
Frame Mounting Brackets
Mounting brackets help secure designated motor, gearbox, pump, or other equipment assemblies to the frame.
Check for cracks, deformation, damaged holes, and loose attachment hardware.
Rubber Feet and Support Pads
Where fitted, support feet provide designated ground-contact points.
Inspect for deterioration, missing components, and uneven contact with the supporting surface.
Low Rider Handle Components
Where included, handles provide designated gripping locations for approved movement.
Inspect for cracks, looseness, damaged grips, and compromised mounting points.
Mounting Bolts and Screws
Specified bolts and screws secure structural and mounted components.
Match the manufacturer requirements for thread dimensions, length, strength, and installation.
Washers, Spacers, and Lock Nuts
These components maintain designated spacing, positioning, and hardware retention.
Verify the correct size, material, and installation location before replacing.
Equipment Mounting Plates
Where specified, mounting plates provide attachment surfaces for designated sprayer assemblies.
Inspect for cracks, distorted holes, and damaged mounting surfaces.
Complete Low Rider Frame Assembly
Where available, a complete frame assembly may be appropriate when multiple structural components are damaged.
Verify the assembly part number, included hardware, and exact equipment configuration.
Frame Configuration
Identifying the Titan Epic 660EX Low Rider Frame Configuration
The Epic 660EX Low Rider Frame Assembly category is intended for the manufacturer's designated low rider support configuration. Before selecting replacement components, compare the installed frame with the applicable Titan parts diagram.
Frame geometry: Confirm the shape, height, and position of the main support members.
Mounting locations: Compare the designated attachment points for supported equipment assemblies.
Transport hardware: Where fitted, identify the wheel, axle, and handle arrangement.
Ground-contact points: Confirm the position and type of frame feet or supports.
Do not assume that low rider frame components are interchangeable with high rider, skid frame, or other Titan Epic model configurations. Match manufacturer part numbers and documented specifications.
Troubleshooting Guide
Common Titan Epic 660EX Low Rider Frame Problems
Frame damage and worn mounting components can affect equipment stability and handling. Inspect the relevant structural areas before ordering replacement parts.
| Observed Problem | Possible Inspection Areas | Recommended Action |
|---|---|---|
| Sprayer sits unevenly | Frame supports, rubber feet, structural alignment | Inspect ground-contact points and replace damaged components. |
| Wheel does not rotate smoothly | Wheel hub, axle, debris, retaining hardware | Where wheels are fitted, inspect the complete wheel mounting arrangement. |
| Excessive vibration or rattling | Loose brackets, mounting bolts, worn supports | Inspect frame connections and follow manufacturer tightening procedures. |
| Visible frame bending | Main frame, rails, support brackets | Stop using compromised structural components and arrange appropriate replacement. |
| Loose handle | Handle mounting points, fasteners, handle structure | Inspect and repair the designated handling components before moving equipment. |
| Wheel moves along axle | Missing retainer, damaged washer, worn wheel hub | Do not transport the sprayer until the wheel is properly secured. |
| Mounted equipment feels loose | Mounting plates, brackets, bolts, damaged holes | Inspect the full mounting connection and replace damaged components. |
Repair and Replacement Planning
Repair or Replace the Epic 660EX Low Rider Frame Assembly?
The appropriate repair depends on the damaged component, the condition of the frame structure, and the manufacturer's available service parts.
Wheel Replacement
Replace worn or damaged wheels individually where they are fitted and available as manufacturer service parts.
Mounting Hardware Replacement
Replace missing or damaged bolts, washers, brackets, and retaining components with specified hardware.
Handle or Support Repair
Replace damaged handles, feet, or support components when separately serviceable.
Complete Frame Replacement
A complete replacement may be required when the main frame is cracked, severely bent, or structurally compromised.
Parts Identification
How to Find the Correct Titan Epic 660EX Low Rider Frame Parts
Confirm the Model
Verify Titan Epic 660EX identification and confirm the installed low rider frame configuration.

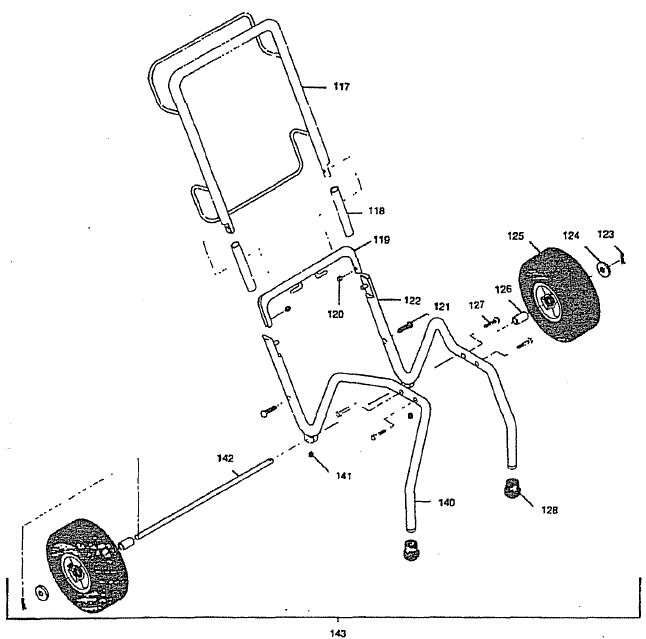

Review the Parts Diagram
Locate the required frame, bracket, wheel, axle, handle, support, or mounting component.
Match the Part Number
Compare the manufacturer reference with the corresponding replacement product listing.
Verify Specifications
Confirm dimensions, mounting positions, frame configuration, and any documented equipment revisions.
Compatibility and Ordering
Important Epic 660EX Low Rider Frame Compatibility Checks
Frame components must match the equipment's designated structural arrangement. Similar-looking parts may have different mounting dimensions or hardware requirements.
- Sprayer model: Confirm Titan Epic 660EX.
- Frame type: Verify the low rider configuration.
- Manufacturer part number: Match the original part or documented replacement.
- Mounting geometry: Check attachment positions and hole spacing.
- Frame dimensions: Confirm the required structural configuration.
- Wheel specifications: Where fitted, verify wheel dimensions and hub compatibility.
- Axle dimensions: Confirm length, diameter, and retaining arrangement.
- Handle compatibility: Match designated mounting points and attachment hardware.
- Fastener requirements: Verify thread size, length, and strength specifications.
- Assembly contents: Check which components are included in the listed replacement.
Do not assume that Titan Epic 660EX Low Rider Frame Assembly components are interchangeable with the Epic 660HPX, Epic 447EX, Epic 447HPX, or other Titan frame configurations without manufacturer confirmation.
Preventive Maintenance
Titan Epic 660EX Low Rider Frame Maintenance Tips
Inspect the Frame
Check accessible structural members for cracks, bending, corrosion, and damaged mounting points.
Check Transport Components
Where fitted, inspect wheels, axles, hubs, and retaining hardware before moving the sprayer.
Inspect Mounting Fasteners
Check specified bolts, screws, washers, and locking components for damage or looseness.
Examine Support Feet
Replace damaged or missing ground-contact components where listed as service parts.
Remove Paint Buildup
Clean the frame using manufacturer-approved methods and compatible cleaning materials.
Handle Equipment Carefully
Avoid impacts and do not lift the sprayer using damaged or unauthorized handling points.
Related Titan Epic Parts
Shop Titan Epic 660EX and Related Frame Parts
Epic 660EX Low Rider Frame Assembly
Browse the low rider frame category and its listed structural replacement components.
Titan Epic 660EX Parts
Explore the complete Epic 660EX model category for additional replacement assemblies.
Epic 447HPX Low Rider Frame Parts
Review the separately identified Epic 447HPX low rider frame configuration.
AllTitanParts Home
Search additional Titan paint sprayer parts and repair categories.
Titan Epic 660EX Low Rider Frame Repair Safety
Before servicing the low rider frame, switch off the sprayer, disconnect electrical power, and complete the manufacturer's pressure-relief procedure. Securely support equipment components before removing structural fasteners.
Do not operate or transport the sprayer with a cracked frame, damaged handle, loose wheel, missing axle retainer, or compromised mounting connection. Use manufacturer-specified parts and follow the applicable service instructions.
Titan Epic 660EX Low Rider Frame Parts
Order Titan Epic 660EX Low Rider Frame Assembly Parts
Browse the Titan Epic 660EX Low Rider Frame Assembly category at AllTitanParts. Use the applicable diagram to identify the correct frame components, mounting hardware, and other listed replacement parts for your equipment.
Shop Epic 660EX Low Rider Frame PartsFrequently Asked Questions
Titan Epic 660EX Low Rider Frame Assembly FAQ
What is the Titan Epic 660EX Low Rider Frame Assembly?
It is the designated low-profile structural support assembly for the Titan Epic 660EX sprayer configuration.
Where can I buy Titan Epic 660EX Low Rider Frame Assembly parts?
Visit the Epic 660EX Low Rider Frame Assembly category at AllTitanParts to review listed replacement components.
Does the Epic 660EX low rider frame have wheels?
The exact transport components depend on the manufacturer's frame configuration. Review the applicable parts diagram to confirm whether wheels are included.
Can I replace damaged Epic 660EX frame wheels?
Individual wheel replacement may be possible where wheels are fitted and separately listed as service parts.
How do I identify the correct low rider frame part?
Match the manufacturer part number in the applicable Titan Epic 660EX Low Rider Frame Assembly diagram with the replacement product listing.
Why does my Titan Epic 660EX sit unevenly?
Possible causes include damaged support feet, bent frame members, loose mounting components, or an unsuitable supporting surface.
Can I replace the low rider frame axle separately?
Separate axle replacement may be possible if the manufacturer lists the axle as an individual service component.
What causes excessive vibration in the frame?
Possible causes include loose mounting fasteners, damaged brackets, worn support components, or structural problems.
Are Epic 660EX and Epic 660HPX low rider frame parts interchangeable?
Do not assume interchangeability. Verify manufacturer part numbers and documented compatibility.
Can I use Epic 447HPX low rider frame parts on an Epic 660EX?
Compatibility must be verified using the manufacturer's parts documentation. Similar frame designs do not guarantee interchangeable components.
When should I replace the complete low rider frame?
A complete replacement may be appropriate when the main frame is cracked, significantly bent, or structurally compromised.
What should I verify before ordering low rider frame parts?
Confirm the Epic 660EX model, low rider configuration, manufacturer part number, mounting dimensions, and assembly contents.
How do I maintain the Epic 660EX low rider frame?
Inspect structural components, mounting hardware, support feet, and any fitted transport components according to manufacturer guidance.
How can I get help finding Titan Epic 660EX Low Rider Frame Assembly parts?
Contact AllTitanParts at 713-931-0006 with your sprayer model information and the required part number or diagram reference.
AllTitanParts Customer Support
Need Help Finding Titan Epic 660EX Low Rider Frame Parts?
Have your Titan Epic 660EX model information, low rider frame diagram reference, and manufacturer part number ready when requesting assistance.
713-931-0006
