Titan Epic 660EX | Gear Box Assembly
Shop Titan Epic 660EX Gear Box Replacement Parts
Find replacement components for the Titan Epic 660EX Gear Box at AllTitanParts. Browse the applicable gearbox parts diagram to identify manufacturer-specified gears, bearings, shafts, drive components, housings, seals, fasteners, and complete gearbox replacement options where listed. Whether you are investigating abnormal drive noise, worn mechanical components, damaged gear teeth, or a loss of motion between the motor and fluid pump, use the manufacturer's parts references to select the correct Epic 660EX gearbox components for your electric airless paint sprayer.
Gearbox Assembly Overview
Buy Titan Epic 660EX Gear Box Parts Online
The Epic 660EX Gear Box category helps professional painters, contractors, maintenance personnel, and equipment repair technicians identify mechanical drive replacement components for the Titan Epic 660EX electric airless paint sprayer.
The gearbox forms part of the mechanical connection between the electric motor and the pumping mechanism. Its purpose is to transmit motor-generated motion through the manufacturer's designated drive arrangement so the fluid section can operate.
During normal spraying operations, gearbox components experience repeated mechanical loading. Wear, contamination, insufficient lubrication where applicable, damaged bearings, loose mounting hardware, or deteriorated gears can affect the transfer of mechanical motion.
Problems in the drive system may produce unusual mechanical noise, vibration, reduced pumping action, or complete loss of motion. However, these symptoms can also originate from the motor, connecting components, or fluid section, making proper diagnosis essential.
At AllTitanParts, browse the Titan Epic 660EX Gear Box category to review listed replacement components. Confirm the correct manufacturer part number, assembly configuration, and any applicable equipment revisions before purchasing.
Mechanical Drive Operation
How the Titan Epic 660EX Gear Box Works
The gearbox operates as part of the sprayer's motor-driven pumping system. Its components support mechanical power transfer and alignment between the motor and the pump drive.
Motor Power Input
The electric motor supplies rotational motion to the designated mechanical drive interface.
Gear Transmission
The gearbox transmits motion through its specified gear and shaft arrangement.
Mechanical Drive Output
The designated output components transfer mechanical motion toward the pumping mechanism.
Pump Actuation
The fluid section uses the transmitted motion to move and pressurize coating material.
Gearbox Replacement Components
Titan Epic 660EX Gear Box Assembly Parts Guide
The following sections describe common gearbox service areas. They are not a verified inventory of every Epic 660EX gearbox component. Some internal parts may be supplied only within larger assemblies. Check the applicable Titan parts diagram to confirm individual serviceability and availability.
Gearbox Housing
The gearbox housing supports and encloses designated drive components.
Inspect for cracks, damaged mounting surfaces, distorted bearing locations, and other structural damage. Confirm whether the housing is separately listed.
Drive Gears
Gears transfer rotational motion within the manufacturer's mechanical drive arrangement.
Inspect for worn or chipped teeth, abnormal contact patterns, and visible damage where disassembly is permitted.
Pinion Gear Components
Where specified, a pinion gear forms part of the motor-to-gearbox drive interface.
Verify the gear design, tooth configuration, and manufacturer part number before replacement.
Intermediate Gears
Where fitted, intermediate gears transfer motion between designated drive stages.
Inspect for wear, tooth damage, and shaft alignment problems. Confirm the applicable gearbox design.
Gearbox Bearings
Bearings support rotating shafts and other specified drive components.
Rough rotation, excessive movement, or abnormal noise may indicate bearing-related problems.
Drive Shafts
Drive shafts transmit mechanical motion between designated gearbox components.
Inspect for bending, scoring, wear, and damaged connection surfaces.
Eccentric Drive Components
Where included, eccentric components help convert rotational motion into the movement required by the pump drive.
Verify the exact drive configuration before ordering eccentric-related components.
Connecting Rod Components
Where specified, connecting components transfer mechanical movement from the drive system to the pumping mechanism.
Inspect for wear, deformation, and damaged attachment points.
Gearbox Seals and Gaskets
Specified seals and gaskets help protect designated gearbox interfaces.
Use the correct manufacturer-listed components and verify material compatibility.
Gearbox Cover Components
Where fitted, covers protect internal drive components and provide designated service access.
Inspect for cracks, damaged attachment points, and improper sealing.
Gearbox Mounting Hardware
Specified bolts, screws, washers, and other fasteners secure the gearbox and associated drive components.
Match the correct thread size, length, strength requirements, and installation procedure.
Complete Gear Box Assembly
Where available, a complete gearbox assembly may be appropriate when multiple internal components are damaged.
Confirm the exact assembly part number, included components, and motor-to-pump compatibility.
Drive System Identification
Titan Epic 660EX Motor, Gear Box, and Fluid Section Differences
These assemblies work together but perform separate functions. Identifying the correct service area can help prevent unnecessary replacement purchases.
| Assembly | Primary Function | Possible Service Indicators |
|---|---|---|
| UNITEC Motor | Produces mechanical rotation from electrical power. | Confirmed electrical faults or internal motor damage. |
| Gear Box | Transfers motor motion through the mechanical drive system. | Damaged gears, worn bearings, drive noise, or loss of mechanical transmission. |
| Fluid Section | Moves and pressurizes coating material. | Fluid leaks, worn packings, valve contamination, or pumping problems. |
Gearbox Troubleshooting
Common Titan Epic 660EX Gear Box Problems
Gearbox symptoms can overlap with motor and pump problems. Use the manufacturer's diagnostic procedures to confirm the source before replacing components.
| Observed Problem | Possible Inspection Areas | Recommended Action |
|---|---|---|
| Grinding or rattling noise | Gears, bearings, drive connections, mounting hardware | Stop operation and inspect the mechanical drive for wear or damage. |
| Motor runs but pump does not move | Drive interface, gearbox components, connecting mechanism | Inspect the mechanical transmission between motor and pump. |
| Excessive vibration | Mounting bolts, shaft alignment, bearings, worn gears | Check structural mounting and mechanical components. |
| Intermittent mechanical operation | Damaged gear teeth, loose drive connections, motor or control issues | Diagnose both the drive and electrical systems. |
| Visible gearbox housing damage | Housing cracks, mounting damage, impact deformation | Remove damaged structural components from service and evaluate replacement. |
| Excessive shaft movement | Bearings, shaft surfaces, retaining components | Inspect using the manufacturer-approved service procedure. |
| Pump pressure drops during operation | Fluid section, valves, pressure control, drive system | Confirm the actual cause before replacing gearbox parts. |
| Unusual heat around drive housing | Mechanical resistance, bearing wear, lubrication condition where applicable | Stop operation and investigate the drive system before restarting. |
Gearbox Repair Planning
Repair or Replace the Titan Epic 660EX Gear Box?
The correct approach depends on the confirmed fault, component serviceability, and overall condition of the gearbox assembly.
Individual Gear Replacement
Replace a damaged gear individually when the manufacturer supplies it as a separate service component.
Bearing and Shaft Service
Repair worn bearings or shafts only when the gearbox design supports individual servicing.
Housing and Hardware Repair
Replace damaged mounting hardware or serviceable housing components using specified parts.
Complete Gearbox Replacement
A complete gearbox replacement may be appropriate when several internal components are damaged or separate repairs are not supported.
Gearbox Parts Identification
How to Find the Correct Titan Epic 660EX Gear Box Parts
Confirm the Sprayer Model
Verify Titan Epic 660EX identification and the installed gearbox configuration.

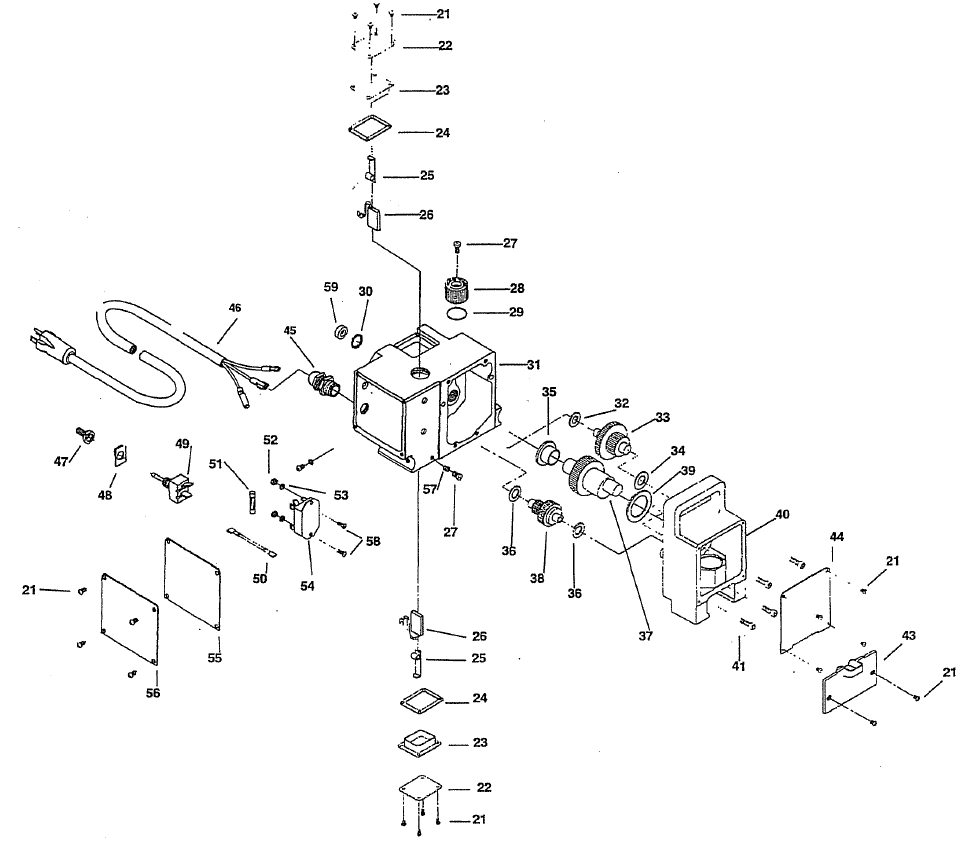

Locate the Gearbox Diagram
Review the applicable parts breakdown and identify the required gear, shaft, bearing, housing, or hardware component.
Match the Part Number
Compare the manufacturer part number with the replacement product listing.
Verify Mechanical Fitment
Confirm drive compatibility, mounting dimensions, assembly revision, and included components.
Compatibility and Ordering
Important Titan Epic 660EX Gear Box Compatibility Checks
Gearbox replacement parts must match the installed mechanical drive arrangement. Similar-looking components may have different dimensions, gear profiles, or mounting specifications.
- Sprayer model: Confirm Titan Epic 660EX.
- Gearbox identification: Verify the installed drive assembly.
- Manufacturer part number: Match the specified replacement reference.
- Gear specifications: Confirm the correct gear profile, dimensions, and tooth arrangement.
- Shaft compatibility: Verify diameter, length, and connection features.
- Bearing dimensions: Match the manufacturer's specified bearing type.
- Motor interface: Confirm compatibility with the installed UNITEC motor.
- Pump drive connection: Verify the designated connection to the pumping mechanism.
- Mounting hardware: Use specified fasteners and attachment components.
- Assembly revisions: Check for applicable production changes and documented replacements.
Do not assume that Titan Epic 660EX Gear Box components are interchangeable with Epic 660HPX, Epic 447EX, Epic 447HPX, or other Titan models without documented manufacturer confirmation.
Preventive Maintenance
Titan Epic 660EX Gear Box Maintenance Tips
Monitor Gearbox Noise
Investigate unusual grinding, knocking, or rattling before continued operation.
Inspect Mounting Hardware
Check accessible gearbox mounting components for looseness or visible damage.
Check for Housing Damage
Inspect the exterior housing for cracks, impact damage, and compromised attachment points.
Follow Lubrication Specifications
Use only the manufacturer-specified lubricant and service procedure where lubrication is required. Do not add lubricant to a sealed assembly unless instructed.
Inspect Drive Alignment
Have qualified personnel investigate abnormal shaft movement, drive misalignment, or mechanical resistance.
Maintain the Complete Sprayer
Service the motor and fluid section according to manufacturer recommendations to avoid unnecessary mechanical stress.
Related Titan Epic Parts
Shop Titan Epic 660EX Gear Box and Related Assemblies
Titan Epic 660EX Gear Box
Browse the designated gearbox category and its listed mechanical drive replacement components.
Epic 660EX UNITEC Motor Complete
Explore the motor assembly that provides mechanical power to the designated drive system.
Epic 660EX Low Rider Frame Assembly
Review structural support and mounting components for the low rider configuration.
Titan Epic 660EX Parts
Browse the complete model category for additional Titan Epic 660EX replacement assemblies.
Titan Epic 660EX Gear Box Repair Safety
Before inspecting or servicing the gearbox, switch off the sprayer, disconnect electrical power, and complete the manufacturer's pressure-relief procedure. Allow moving and heated components to stop and cool before handling.
Do not operate the sprayer with exposed moving parts, damaged gearbox housing, loose drive connections, or missing protective components. Securely support connected assemblies before removing structural fasteners.
Use manufacturer-specified parts, fasteners, and lubrication procedures. Internal gearbox repairs should be performed by qualified personnel using the applicable Titan service documentation.
Titan Epic 660EX Gearbox Replacement Parts
Order Titan Epic 660EX Gear Box Parts Online
Browse the Titan Epic 660EX Gear Box category at AllTitanParts. Review the applicable parts diagram to identify manufacturer-specified gears, bearings, shafts, mounting hardware, and other listed gearbox replacement components.
Shop Epic 660EX Gear Box PartsFrequently Asked Questions
Titan Epic 660EX Gear Box FAQ
What is the Titan Epic 660EX Gear Box?
It is the designated mechanical drive assembly that transfers motor-generated motion toward the Titan Epic 660EX pumping mechanism.
Where can I buy Titan Epic 660EX Gear Box parts?
Visit the Titan Epic 660EX Gear Box category at AllTitanParts to review listed replacement components.
What does the Epic 660EX gearbox do?
The gearbox transfers mechanical motion from the motor through the designated drive arrangement to operate the pump.
Why is my Titan Epic 660EX gearbox making noise?
Possible causes include worn gears, damaged bearings, loose mounting components, or mechanical misalignment.
Can I replace individual Epic 660EX gearbox gears?
Individual gear replacement may be possible where the manufacturer lists the required gear as a separate service part.
Are Epic 660EX gearbox bearings replaceable?
Bearing serviceability depends on the gearbox design and the manufacturer's parts breakdown.
Why does the motor run but the pump does not move?
A damaged drive connection, gearbox component, or pump-actuation mechanism may prevent motor motion from reaching the pump.
Does the Titan Epic 660EX gearbox require lubrication?
Follow the manufacturer's lubrication specifications. Some gearbox designs may be sealed or require a specific lubricant and service procedure.
Can I replace the complete Epic 660EX gearbox?
A complete replacement may be possible if the manufacturer lists the gearbox as a service assembly.
Are Epic 660EX and Epic 660HPX gearbox parts interchangeable?
Do not assume interchangeability. Verify the manufacturer part number and documented model compatibility.
How do I identify the correct Epic 660EX gearbox component?
Locate the component in the applicable Titan Epic 660EX Gear Box parts diagram and match the manufacturer reference with the product listing.
When should I replace the entire gearbox?
Complete replacement may be appropriate when multiple internal components are damaged or separate repairs are not supported.
What should I verify before ordering Epic 660EX Gear Box parts?
Confirm the sprayer model, gearbox configuration, manufacturer part number, gear specifications, and mechanical fitment.
How can I get help finding Titan Epic 660EX gearbox parts?
Contact AllTitanParts at 713-931-0006 with your Titan Epic 660EX model information and the gearbox part number or diagram reference.
AllTitanParts Customer Support
Need Help Finding Titan Epic 660EX Gear Box Parts?
Have your Titan Epic 660EX model information, gearbox diagram reference, and manufacturer part number ready when requesting assistance.
713-931-0006
