UNITEC Motor Assembly Overview
Buy Titan Epic 660EX UNITEC Motor Complete Replacement Parts
The Epic 660EX UNITEC Motor Complete category is intended for contractors, professional painters, equipment owners, and repair technicians seeking motor-related replacement components for the Titan Epic 660EX electric airless paint sprayer.
The UNITEC motor provides mechanical power to the sprayer's drive system. During operation, electrical energy is converted into rotational motion, which is transferred through the designated drive components to operate the pumping mechanism.
The motor is an important part of the sprayer's overall performance, but problems such as low fluid pressure, intermittent pumping, or failure to start are not always caused by the motor itself. Electrical supply issues, control components, mechanical drive problems, or pump restrictions can produce similar symptoms.

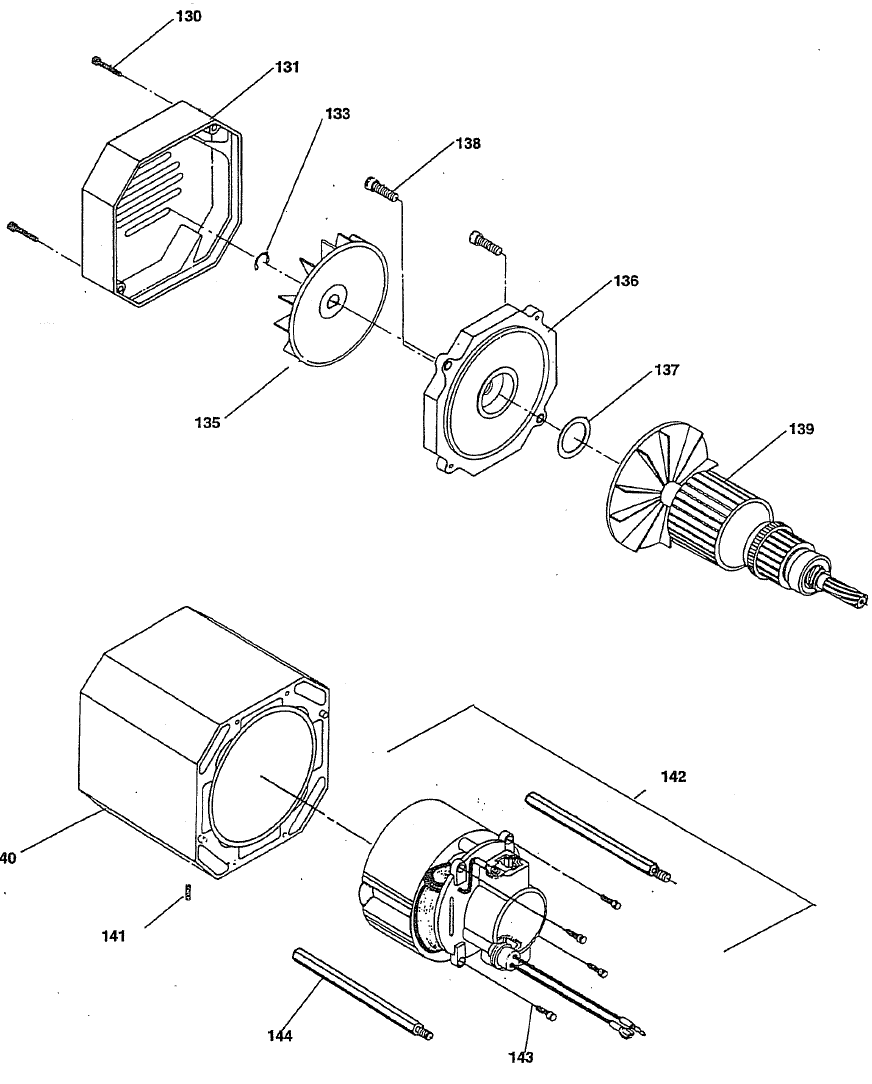

The Titan Epic 660EX UNITEC Motor Complete assembly may be represented in the manufacturer parts breakdown as a complete replacement unit with designated mounting or connection components. The exact serviceable items and included parts must be confirmed using the applicable diagram and product listings.
At AllTitanParts, review the Epic 660EX UNITEC Motor Complete category to identify listed components. Confirm motor identification, electrical specifications, manufacturer part numbers, and equipment revisions before purchasing.
Motor Operation
How the Titan Epic 660EX UNITEC Motor Works
The motor operates as part of the complete electric airless sprayer system. Its performance depends on the electrical supply, control arrangement, mechanical drive, and pump condition.
Electrical Power
The motor receives electrical power through the manufacturer's designated wiring and control system.
Rotational Motion
The motor converts electrical energy into mechanical rotation for the sprayer drive system.
Drive Transmission
The designated mechanical drive transfers motor motion to the pumping mechanism.
Pumping Operation
The fluid section uses the transmitted mechanical motion to pump coating material according to the sprayer's operating design.
Motor Replacement Components
Titan Epic 660EX UNITEC Motor Complete Assembly Parts Guide
The following sections describe common electric motor service areas. They are not a verified inventory of separately available Epic 660EX UNITEC motor components. Some internal motor parts may be non-serviceable or supplied only as part of a complete assembly.
Complete UNITEC Motor Assembly
The complete motor assembly provides the mechanical drive power required by the sprayer.
A complete replacement may be appropriate when the installed motor has confirmed internal damage or when the manufacturer does not provide separate service components.
Motor Housing
The housing encloses and supports designated internal motor components.
Inspect for physical damage, deformation, corrosion, or compromised mounting surfaces. Confirm whether the housing is separately serviceable.
Motor Shaft
The output shaft transfers rotational motion to the designated drive interface.
Check for visible damage, abnormal play, or wear where inspection is permitted by the manufacturer.
Motor Bearings
Bearings support rotating components within the motor.
Unusual noise, excessive shaft play, or rough rotation may indicate bearing or related mechanical problems. Verify serviceability before ordering.
Motor Electrical Connections
Designated wiring and connectors supply power to the motor.
Inspect for damaged insulation, loose connections, overheating evidence, or corrosion. Electrical inspection should be performed by qualified personnel.
Motor Mounting Brackets
Where specified, mounting brackets secure the motor to the designated sprayer structure.
Check for cracks, misalignment, damaged mounting holes, and loose fasteners.
Motor Mounting Bolts and Screws
Manufacturer-specified fasteners secure the motor and associated mounting components.
Use the correct thread size, length, strength specification, and installation procedure.
Drive Coupling Components
Where included, designated drive-interface components connect the motor output to the mechanical drive system.
Inspect for wear, damage, and alignment problems. Match manufacturer references before replacement.
Motor Cooling Components
Where fitted, cooling components support the motor's intended operating temperature.
Inspect accessible cooling openings and designated ventilation components for obstruction or damage.
Motor Brushes
Some electric motor designs use brushes to transfer current to rotating components.
Brush replacement is relevant only if the installed UNITEC motor uses serviceable brushes. Confirm the exact motor design before ordering.
Motor Insulation and Internal Windings
Internal electrical components are essential to motor operation.
Damage to windings or insulation may require professional diagnosis or complete motor replacement. These components may not be separately serviceable.
Motor-Related Service Hardware
Where listed, washers, spacers, retaining components, and other hardware support the manufacturer's motor installation arrangement.
Verify the exact dimensions, part numbers, and installation locations.
Motor and Drive System Identification
UNITEC Motor vs. Gearbox vs. Fluid Section
The Titan Epic 660EX motor, gearbox, and fluid section perform different functions. Identifying the correct system can help avoid ordering unnecessary parts.
| Assembly | Primary Function | Possible Service Indicators |
|---|---|---|
| UNITEC Motor | Converts electrical power into rotational motion. | Confirmed motor electrical or internal mechanical faults. |
| Gearbox or Drive | Transfers motor motion to the pump mechanism. | Abnormal mechanical noise, worn drive components, or damaged transmission parts. |
| Fluid Section | Pumps and pressurizes coating material. | Fluid leakage, worn packings, valve contamination, or reduced pumping performance. |
A sprayer that does not build pressure does not necessarily have a defective motor. Diagnose the electrical, mechanical, and fluid systems according to the manufacturer's service instructions.
Motor Troubleshooting
Common Titan Epic 660EX UNITEC Motor Problems
The following table identifies possible causes of motor-related symptoms. These are general diagnostic considerations and should not be treated as confirmation that the motor requires replacement.
| Observed Problem | Possible Inspection Areas | Recommended Action |
|---|---|---|
| Motor does not start | Power supply, switch, circuit protection, controls, motor | Follow the manufacturer electrical diagnostic procedure. |
| Motor starts intermittently | Electrical connections, control system, motor components | Inspect the approved electrical system using qualified personnel. |
| Motor produces unusual noise | Bearings, drive connection, gearbox, mounting hardware | Stop operation and inspect the motor and mechanical drive. |
| Motor overheats | Ventilation, excessive load, electrical supply, motor condition | Allow safe shutdown and investigate the cause before restarting. |
| Motor operates but pump does not move | Drive coupling, gearbox, mechanical transmission | Inspect the drive system rather than assuming motor failure. |
| Excessive vibration | Motor mounts, drive alignment, mechanical wear | Inspect mounting and drive components for damage. |
| Burning smell or visible smoke | Electrical overheating or internal motor damage | Switch off, disconnect power when safe, and arrange qualified inspection before further use. |
| Motor runs but spray pressure is low | Fluid section, valves, filters, pressure control, drive system | Diagnose the complete sprayer system before replacing the motor. |
Motor Repair Planning
Repair or Replace the Titan Epic 660EX UNITEC Motor?
The appropriate repair depends on the confirmed fault, manufacturer serviceability, and condition of the motor assembly.
Electrical Connection Repair
Damaged external wiring or connections may be repairable using manufacturer-approved components and qualified service procedures.
Mounting Hardware Replacement
Replace damaged mounting brackets or fasteners where separately listed and approved.
Internal Motor Servicing
Internal repairs should be considered only when the manufacturer supports them and qualified technicians can perform the work.
Complete UNITEC Motor Replacement
A complete replacement may be appropriate when the motor has confirmed internal damage or is not separately serviceable.
Motor Identification
How to Find the Correct Titan Epic 660EX UNITEC Motor Parts
Confirm Your Sprayer
Verify that the equipment is a Titan Epic 660EX and identify the installed motor configuration.
Check Motor Identification
Record the available UNITEC motor markings and relevant electrical specifications.
Review the Parts Diagram
Match the required component or complete motor assembly to the manufacturer's reference.
Verify Compatibility
Confirm electrical ratings, mounting dimensions, drive interface, part number, and equipment revision.
Compatibility and Ordering
Important Epic 660EX UNITEC Motor Compatibility Checks
Electric motor replacements must match the manufacturer's specified configuration. Similar-looking motors may differ in electrical characteristics, mounting arrangements, or drive connections.
- Sprayer model: Confirm Titan Epic 660EX.
- Motor identification: Verify the installed UNITEC motor configuration.
- Manufacturer part number: Match the original motor or documented replacement.
- Voltage requirements: Confirm the correct electrical supply specification.
- Motor electrical ratings: Verify the manufacturer's applicable specifications.
- Mounting dimensions: Check bolt locations and mounting geometry.
- Drive interface: Confirm shaft and coupling compatibility.
- Wiring connections: Match the approved electrical connection arrangement.
- Equipment revisions: Review any applicable model or production changes.
- Assembly contents: Confirm which mounting and connection components are included.
Do not assume that Titan Epic 660EX UNITEC Motor Complete components are interchangeable with Epic 660HPX, Epic 447EX, Epic 447HPX, or other Titan sprayer motors without manufacturer documentation.
Preventive Maintenance
Titan Epic 660EX UNITEC Motor Maintenance Tips
Keep Ventilation Clear
Keep designated motor ventilation openings free from excessive paint buildup and debris.
Inspect Power Connections
Check accessible power cords and connections for visible damage. Use qualified personnel for electrical repairs.
Monitor Operating Noise
Investigate unusual grinding, rattling, or vibration before continued operation.
Inspect Motor Mounts
Check designated mounting hardware for damage, looseness, or misalignment.
Avoid Unnecessary Overload
Operate the sprayer within the manufacturer's specified limits and investigate excessive mechanical resistance.
Follow Service Instructions
Use the applicable Titan service documentation for inspection intervals, troubleshooting, and motor replacement procedures.
Related Titan Epic Parts
Shop Titan Epic 660EX Motor and Related Sprayer Parts
Epic 660EX UNITEC Motor Complete
Browse the designated UNITEC motor assembly category and its listed replacement components.
Titan Epic 660EX Parts
Explore the Epic 660EX model category for additional repair assemblies and replacement parts.
Epic 660EX Low Rider Frame Assembly
Review the low rider frame category for structural mounting and support components.
AllTitanParts Home
Browse additional Titan electric airless paint sprayer replacement parts.
Titan Epic 660EX UNITEC Motor Repair Safety
Before inspecting or servicing the UNITEC motor, switch off the sprayer, disconnect electrical power, and follow the manufacturer's pressure-relief procedure. Allow hot components to cool before handling.
Do not operate the sprayer with damaged electrical insulation, exposed conductors, compromised grounding, or loose motor mounting hardware. Never bypass protective electrical components or attempt unauthorized motor modifications.
Motor diagnosis and electrical repairs should be performed by qualified personnel using the applicable Titan service documentation. Use manufacturer-specified replacement components and verify electrical compatibility before installation.
Titan Epic 660EX UNITEC Motor Parts
Order Titan Epic 660EX UNITEC Motor Complete Parts
Browse the Titan Epic 660EX UNITEC Motor Complete category at AllTitanParts. Use the applicable parts diagram to identify the correct motor assembly and any listed mounting or service components.
Shop Epic 660EX UNITEC Motor PartsFrequently Asked Questions
Titan Epic 660EX UNITEC Motor Complete FAQ
What is the Titan Epic 660EX UNITEC Motor Complete?
It is the designated UNITEC motor assembly associated with the Titan Epic 660EX electric airless paint sprayer.
Where can I buy Titan Epic 660EX UNITEC Motor Complete parts?
Visit the Titan Epic 660EX UNITEC Motor Complete category at AllTitanParts to review listed replacement components.
What does the UNITEC motor do?
The motor converts electrical energy into rotational motion, which the drive system uses to operate the sprayer's pumping mechanism.
Why will my Epic 660EX motor not start?
Possible causes include electrical supply problems, switch or control faults, damaged connections, or internal motor problems. Follow manufacturer diagnostic instructions.
Can I replace the UNITEC motor separately from the gearbox?
Separate replacement may be possible if the manufacturer lists the motor as an independent assembly. Confirm the motor and drive interface specifications.
Are Epic 660EX UNITEC motor bearings replaceable?
Bearing replacement depends on the motor design and manufacturer service documentation. Some motors are serviced only as complete assemblies.
Does the Titan Epic 660EX UNITEC motor use brushes?
The brush arrangement must be confirmed from the exact installed motor specification. Do not order brushes without verifying the motor design.
What causes a UNITEC motor to overheat?
Possible causes include restricted ventilation, excessive mechanical load, electrical supply problems, or internal motor damage.
Why does the motor run but the pump does not move?
A mechanical drive or gearbox problem may prevent motor motion from reaching the pumping mechanism.
Can I use an Epic 660HPX motor in an Epic 660EX?
Do not assume interchangeability. Verify the manufacturer part number, electrical specifications, mounting dimensions, and drive compatibility.
How do I identify the correct UNITEC motor replacement?
Match the installed motor identification and manufacturer part number with the applicable Titan Epic 660EX motor parts diagram.
When should I replace the complete UNITEC motor?
Complete replacement may be appropriate when qualified diagnosis confirms internal motor damage or when the manufacturer does not support separate servicing.
What should I check before ordering Epic 660EX UNITEC motor parts?
Verify the sprayer model, motor identification, electrical ratings, manufacturer part number, mounting arrangement, and drive interface.
How can I get help finding Titan Epic 660EX UNITEC motor parts?
Contact AllTitanParts at 713-931-0006 with the Titan Epic 660EX model information and the motor or manufacturer part number reference.
