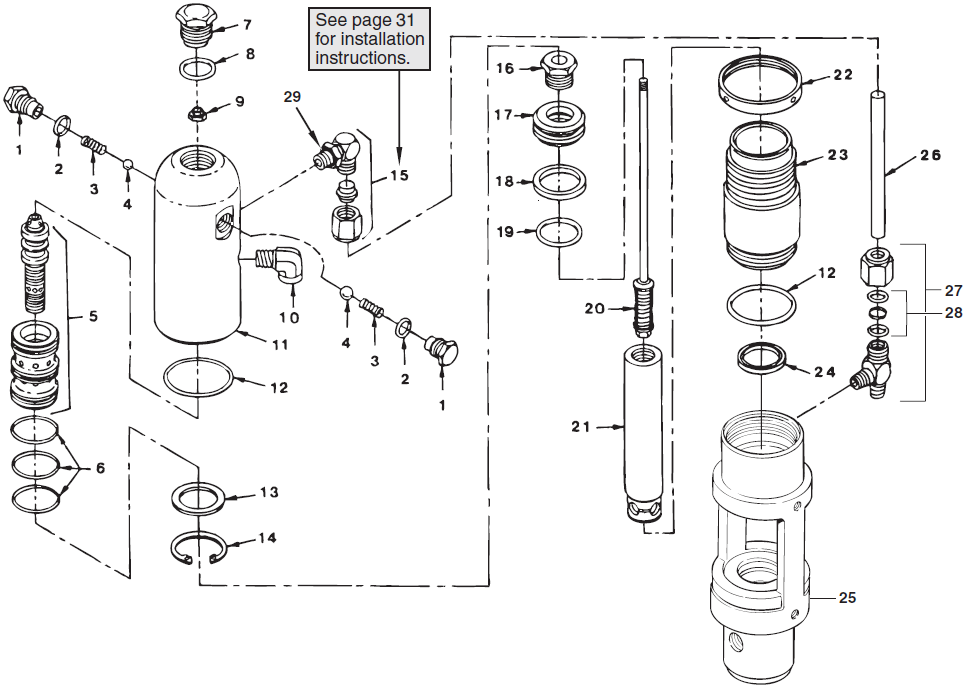

PowrTwin 4900GH Hydraulic Motor

PowrTwin 4900GH Hydraulic Motor
Titan 235-018 Trip Retainer
Titan 235-018 Trip Retainer

Item No: 1

Part #: 235-018

  Titan part 235-018 is a trip retainer designed to secure or position a mechanical trip...

Retail Price: $38.00
You save: $2.09 (5.50%)
Our Price: $35.91
QTY:
Titan 141-007 O-Ring Synthetic Rubber
Titan 141-007 O-Ring Synthetic Rubber

Item No: 2

Part #: 141-007

  Titan part 141-007 is a synthetic rubber O‑ring used as a fluid seal in sprayer pump...

$2.10
QTY:
Titan 325-005 Trip Spring
Titan 325-005 Trip Spring

Item No: 3

Part #: 325-005

PowrTwin part 325-005 is a Trip Spring used to provide return force or actuation tension within a me...

$6.60
QTY:
Titan 569-016 Ball
Titan 569-016 Ball

Item No: 4

Part #: 569-016

  Hydra / PowrLiner / PowrTex / PowrTwin part 569-016 is a ball designed to function as ...

$6.50
QTY:
Titan 441-908 Spool Valve with Sleeve
Titan 441-908 Spool Valve with Sleeve

Item No: 5

Part #: 441-908

Titan 441-908 Spool Valve with Sleeve is designed for use on various Titan paint sprayers. It is rep...

Retail Price: $839.60
You save: $134.34 (16.00%)
Our Price: $705.26
QTY:
Titan 441-152 Synthetic Rubber O-Ring
Titan 441-152 Synthetic Rubber O-Ring

Item No: 6

Part #: 441-152

PowrTwin part 441-152 is a Synthetic Rubber O-Ring used to create fluid-tight seals between mating c...

$6.70
QTY:
Titan 235-030 Cylinder Head Plug
Titan 235-030 Cylinder Head Plug

Item No: 7

Part #: 235-030

  Titan part 235-030 is a cylinder head plug designed to seal access ports or threaded opening...

Retail Price: $81.80
You save: $6.79 (8.30%)
Our Price: $75.01
QTY:
Titan 441-217 Synthetic Rubber O-Ring
Titan 441-217 Synthetic Rubber O-Ring

Item No: 8

Part #: 441-217

PowrTwin part 441-217 is a Synthetic rubber O-Ring used to create fluid-tight seals between mating c...

$3.70
QTY:
Titan 858-811 Flex Lock Nut
Titan 858-811 Flex Lock Nut

Item No: 9

Part #: 858-811

PowrTwin part 858-811 is a Flex Lock Nut used to secure threaded fasteners while resisting loosening...

$4.80
QTY:
Titan 451-121 Elbow
Titan 451-121 Elbow

Item No: 10

Part #: 451-121

PowrTwin part 451-121 is an Elbow used to redirect fluid flow at critical junctions within the pump ...

$24.10
QTY:
Titan 235-112 Cylinder Head (Red)
Titan 235-112 Cylinder Head (Red)

Item No: 11

Part #: 235-112

  Titan part 235-112 is a cylinder head (red) designed to cap the fluid cylinder and house the...

Retail Price: $612.60
You save: $98.02 (16.00%)
Our Price: $514.58
QTY:
Titan 431-032 O-Ring
Titan 431-032 O-Ring

Item No: 12

Part #: 431-032

  Titan part 431-032 is a replacement O‑ring used in fluid pump sections, valve assemb...

$7.30
QTY:
Titan 431-053 Sleeve Retainer
Titan 431-053 Sleeve Retainer

Item No: 13

Part #: 431-053

  Titan part 431-053 is a sleeve retainer designed to secure a sleeve, bushing, or bearing wit...

$28.30
QTY:
Titan 431-054 Retainer Ring or Snap Ring
Titan 431-054 Retainer Ring or Snap Ring

Item No: 14

Part #: 431-054

  PowrBeast / PowrTwin / PowrLiner / PowrTex part 431-054 is a retainer ring or snap rin...

$6.70
QTY:
Titan 192-000 Hydraulic Elbow
Titan 192-000 Hydraulic Elbow

Item No: 15

Part #: 192-000

  PowrLiner / PowrTwin / PowrTex part 192-000 is a hydraulic elbow designed to change th...

Retail Price: $35.40
You save: $0.71 (2.01%)
Our Price: $34.69
QTY:
Titan 235-022 Piston Retainer Screw
Titan 235-022 Piston Retainer Screw

Item No: 16

Part #: 235-022

  Titan part 235-022 is a piston retainer screw used to secure the piston assembly withi...

Retail Price: $52.00
You save: $4.32 (8.31%)
Our Price: $47.68
QTY:
Titan 235-014 Piston
Titan 235-014 Piston

Item No: 17

Part #: 235-014

  Titan part 235-014 is a piston used in the fluid section of compatible PowrLiner, Powr...

Retail Price: $110.40
You save: $11.48 (10.40%)
Our Price: $98.92
QTY:
Titan 235-027 Piston Seal or Seal, Piston
Titan 235-027 Piston Seal or Seal, Piston

Item No: 18

Part #: 235-027

  Titan part 235-027 is a piston seal designed to provide a dynamic seal between the pis...

$29.10
QTY:
Titan 235-026 O-Ring
Titan 235-026 O-Ring

Item No: 19

Part #: 235-026

  Titan part 235-026 is a replacement O‑ring designed for fluid or air sealing applica...

$5.70
QTY:
Titan 235-021A Valve Rod Assembly
Titan 235-021A Valve Rod Assembly

Item No: 20

Part #: 235-021A

Part 235-021A is a replacement valve rod assembly used in hydraulic systems on compatible PowrLi...

Retail Price: $110.20
You save: $11.46 (10.40%)
Our Price: $98.74
QTY:
Titan 235-948 Piston Rod
Titan 235-948 Piston Rod

Item No: 21

Part #: 235-948

Part 235-948 is a replacement piston rod used in hydraulic systems on compatible PowrTwin, PowrT...

Retail Price: $309.30
You save: $45.16 (14.60%)
Our Price: $264.14
QTY:
Titan 235-001 Lock Ring
Titan 235-001 Lock Ring

Item No: 22

Part #: 235-001

  Titan part 235-001 is a lock ring used to secure components such as packings, seals, o...

Retail Price: $60.70
You save: $5.04 (8.30%)
Our Price: $55.66
QTY:
Titan 235-007 Hydraulic Cylinder
Titan 235-007 Hydraulic Cylinder

Item No: 23

Part #: 235-007

Part 235-007 is a replacement hydraulic cylinder used in the drive system of compatible PowrLine...

Retail Price: $371.50
You save: $54.24 (14.60%)
Our Price: $317.26
QTY:
Titan 235-028 Rod Seal
Titan 235-028 Rod Seal

Item No: 24

Part #: 235-028

  Titan part 235-028 is a rod seal designed to provide a dynamic seal around a reciproca...

Retail Price: $34.70
You save: $1.91 (5.50%)
Our Price: $32.79
QTY:
Titan 235-029 Motor Tube
Titan 235-029 Motor Tube

Item No: 26

Part #: 235-029

Part 235-029 is a replacement motor tube used in hydraulic systems on compatible PowrLiner, Powr...

Retail Price: $54.80
You save: $4.55 (8.30%)
Our Price: $50.25
QTY:
Titan 197-031 Tee
Titan 197-031 Tee

Item No: 27

Part #: 197-031

PowrTwin part 197-031 is a Tee used to split or combine fluid flow at branch connections within the ...

Retail Price: $170.70
You save: $21.34 (12.50%)
Our Price: $149.36
QTY:
Titan 431-019A O-Ring/Backup Ring Set
Titan 431-019A O-Ring/Backup Ring Set

Item No: 28

Part #: 431-019A

  Titan 431-019A O-Ring/Backup Ring Set is a reliable and easy to fit O-ring, it replaces Titan...

$10.50
QTY:
Titan/Speeflo 700-499 O-ring
Titan/Speeflo 700-499 O-ring

Item No: 29

Part #: 700-499

Part number 700-499 is an O-ring used to create a leak-proof seal between components in compatib...

$3.20
QTY:

Order PowrTwin 4900GH Hydraulic Motor Parts

The PowrTwin 4900GH Hydraulic Motor Parts are designed to convert hydraulic energy into mechanical motion, powering the pump system with smooth, consistent force. This assembly is a critical part of the sprayer's drive system, ensuring stable cycling, reliable pressure generation, and efficient performance during continuous heavy-duty spraying operations. A properly functioning hydraulic motor helps maintain uniform spray output and reduces pulsation across the system.

This assembly typically includes key components such as the spool valve, piston assembly, cylinder head, valve rod assembly, piston rod, seals, O-rings, trip retainer, motor tube kit, internal springs, and hydraulic fittings. Each part works together to control hydraulic flow direction, maintain internal sealing, and convert fluid pressure into controlled mechanical movement.

Regular inspection of PowrTwin 4900GH Hydraulic Motor Parts helps prevent issues such as slow cycling, pressure loss, internal leakage, and overheating. Replacing worn seals, damaged valve components, or fatigued piston assemblies ensures long-term reliability, stable operation, and consistent performance under demanding job site conditions.

FAQs

This is often caused by worn spool valves, internal seal leakage, or reduced hydraulic pressure affecting proper motor cycling and force output.

Noise can result from worn piston components, loose retainer rings, or insufficient lubrication causing internal metal contact during operation.

Overheating may occur due to contaminated hydraulic fluid, restricted flow through fittings, or excessive internal friction from worn parts.

Irregular cycling is commonly caused by damaged valve rods, worn O-rings, or pressure imbalance within the hydraulic circuit.

This issue is typically linked to a failed hydraulic motor component such as a stuck spool valve or worn piston assembly that prevents motion transfer.
