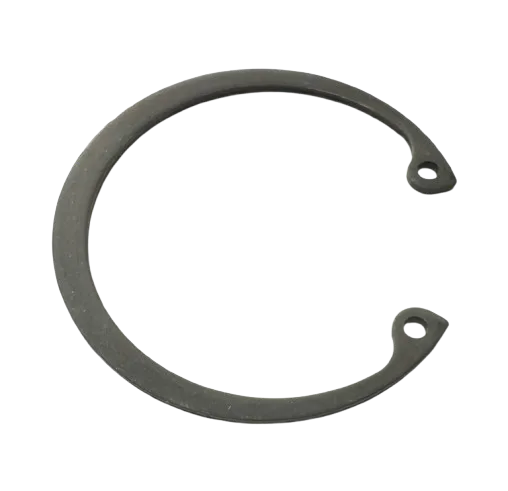

Titan 431-054 Retainer Ring or Snap Ring
OEM Titan Hydraulic Motor Component
Titan 431-054 Retainer Ring (Snap Ring) is an OEM retaining ring that locks the valve sleeve and sleeve retainer in place within the cylinder head of the hydraulic motor assembly on compatible PowrTwin, PowrLiner, PowrTex, PowrBeast, and ProMark sprayer models.
Compatibility Overview
The snap ring seats in a groove within the cylinder head to prevent the sleeve retainer and valve sleeve from moving axially. Replacing a fatigued, corroded, or missing snap ring restores secure retention and prevents internal hydraulic misalignment.
Titan Hydraulic Motor Replacement Part
Titan 431-054 Retainer Ring / Snap Ring for Hydraulic Motor Service
Titan 431-054 is an OEM retainer ring, commonly referred to as a snap ring, used in the hydraulic motor assembly of compatible PowrTwin, PowrLiner, PowrTex, PowrBeast, and ProMark sprayer models. Documented in official Titan service manuals for PowrLiner 9900XLT, PowrTwin 5500, PowrTwin 3500, PowrTwin 4900/6900/8900/12000 Plus, PowrBeast 4700/4700T/7700/9700, and ProMark 98:2, this snap ring works in conjunction with the sleeve retainer (431-053) to lock the valve sleeve securely within the cylinder head. When the original snap ring loses tension, corrodes, or is damaged during service, the valve sleeve and retainer can shift, causing internal misalignment, increased friction, and premature wear on adjacent hydraulic components. This replacement restores secure retention and reliable hydraulic motor operation.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | OEM Titan retainer ring (snap ring) used in hydraulic motor assemblies to lock the valve sleeve and sleeve retainer within the cylinder head. |
| Function | Seats in a machined groove within the cylinder head to prevent axial movement of the sleeve retainer and valve sleeve, maintaining internal alignment and preventing metal-to-metal contact. |
| System Location | Hydraulic motor section, cylinder head assembly. Listed in official Titan parts breakdowns for PowrTwin, PowrLiner, PowrTex, PowrBeast, and ProMark models. |
| Industrial Applications | Hydraulic motor repair, cylinder head service, preventive maintenance on high-pressure airless sprayers, and fleet equipment restoration. |
| Documented Compatible Models | PowrLiner 9900XLT; PowrTwin 12000 Plus/12000GH/12000GHD/12000XLT/12000XLTDI, 8900 Plus, 6900GH/6900XLT, 5500, 4900 Plus/4900GH/4900XLT, 4500, 3500/3500 50th Anniversary/3500-DC; PowrLiner 8955, 8950, 8900/XLT SP, 6955, 6950, 6900 XLT/XLT SP, 6000, 5000, 4955, 4950, 4900 XLT, 4000; PowrTex 6900SF, 12000SV, 1200SF, 1200SV; PowrBeast 4700/4700T/7700/9700; ProMark 98:2. Verify your exact model and revision against the service manual before ordering. |
| OEM Part Number | 431-054 Retainer Ring (Snap Ring). |
| Common Problems Solved | Loss of retention of valve sleeve and sleeve retainer, axial movement causing internal misalignment, increased friction and wear, and potential disassembly of internal hydraulic components during operation. |
| Replacement Indicators | Snap ring loses tension or appears stretched, visible corrosion or pitting, cracks or fractures, or the ring is missing from a previous service. Always replace the snap ring if it is removed during service. |
| Related Parts Commonly Serviced Together | Sleeve retainer (431-053), valve spool/sleeve set, cylinder head, and O-rings/seals within the hydraulic motor assembly. Inspect the groove in the cylinder head for wear or damage before installing a new snap ring. |
| Installation Notes | Install the sleeve retainer (431-053) first, followed by the snap ring (431-054) in the cylinder head to hold the valve sleeve in place. Use a proper snap ring tool to avoid distorting or over-expanding the ring during installation. Verify the ring is fully seated in its groove before reassembly. |
The 431-054 Retainer Ring (Snap Ring) is a critical retention component in the hydraulic motor assembly. Always replace the snap ring if it is removed during service, as reusing a fatigued ring compromises retention and risks internal component damage. Inspect the cylinder head groove for wear before installation. Verify model compatibility against your Titan service manual, as hydraulic configurations vary across sprayer platforms.
