Titan PowrTwin 4900GH Manifold Assemblies Parts

The PowrTwin 4900GH Manifold Assemblies Parts are designed to regulate and distribute high-pressure fluid flow from the pump to the spray hose system. This assembly plays a key role in maintaining consistent spray output, balanced pressure, and controlled material delivery during demanding commercial and industrial coating applications. It helps ensure smooth operation by managing fluid direction and stabilizing system pressure across multiple connection points.

This category typically includes essential components such as the manifold block, outlet fittings, nipple fittings, secondary nipple fittings, ball valves, connector fittings, and pipe plugs. Each part works together to control fluid passage, prevent backflow, and maintain a secure high-pressure seal within the system. These components are engineered for durability to withstand continuous use in heavy-duty spraying environments.

Regular inspection of PowrTwin 4900GH Manifold Assemblies Parts helps prevent common issues such as pressure drops, uneven spray output, leakage at connection points, and valve sticking. Cleaning or replacing worn seals, damaged fittings, or clogged valve components ensures stable performance, improved efficiency, and longer service life of the sprayer system.

FAQs

This is usually caused by partially blocked outlet passages, a worn ball valve, or inconsistent pressure distribution across manifold block ports. Inspecting the outlet fitting for blockage and verifying each nipple fitting is fully open and free of coating buildup helps restore even output across all spray lines.

Pressure loss can result from internal leakage through a worn ball valve, loose connector fittings, or worn sealing components that fail to maintain a proper high-pressure seal. Tightening the pipe plugs and checking the nipple fitting threads for damage also helps identify the source of pressure loss.

Valve stiffness is commonly caused by dried coating buildup inside the ball valve body, corrosion, or lack of regular cleaning and lubrication. Thoroughly flushing the manifold block and all valve passages with compatible solvent after each use helps prevent hardened material from restricting valve movement.

Leakage is often due to damaged O-rings inside the ball valve, loose nipple fittings or connector fittings, or worn sealing surfaces between manifold block components. Ensuring the outlet fitting and all threaded connections are tightened to specification helps prevent leaks at the manifold connection points.

This issue is typically caused by a closed or faulty individual ball valve, a blocked outlet port, or debris restricting a single flow channel in the manifold block. Removing and cleaning the affected nipple fitting and verifying the pipe plug on unused ports is sealed tight helps isolate and resolve single-line flow interruptions.

Call Diagrams Best Sellers Cart

Added to cart

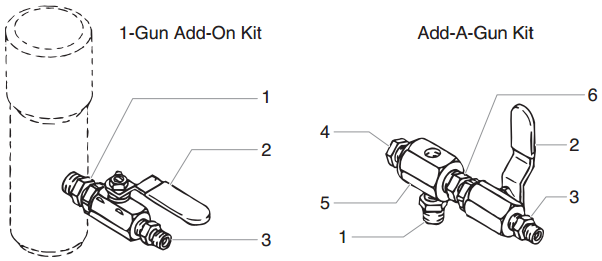

PowrTwin 4900GH Manifold Assemblies

Order PowrTwin 4900GH Manifold Assemblies Parts

FAQs

1. Why does the PowrTwin 4900GH manifold assembly cause uneven spray output?

2. What causes pressure loss in the PowrTwin 4900GH manifold assembly?

3. Why do valves in the manifold assembly become stiff or hard to operate?

4. What leads to leakage at manifold connection points?

5. Why does one spray line stop working while others continue in a multi-gun setup?
