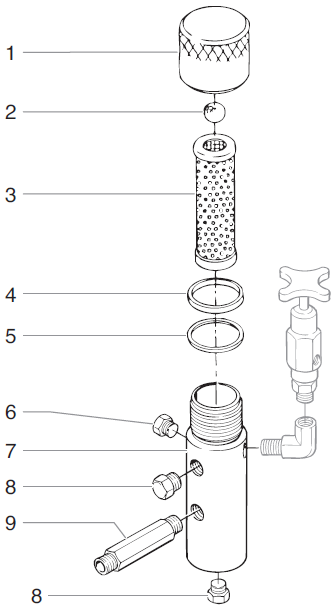

Titan PowrTwin 4900GH Filter Assembly Parts

The PowrTwin 4900GH Filter Assembly is designed to protect the fluid system of the Titan PowrTwin 4900GH by filtering debris, contaminants, and dried coating particles before they reach critical spray components. This assembly helps maintain consistent material flow, reduce spray tip blockages, and improve overall spraying performance during demanding commercial and industrial coating applications.

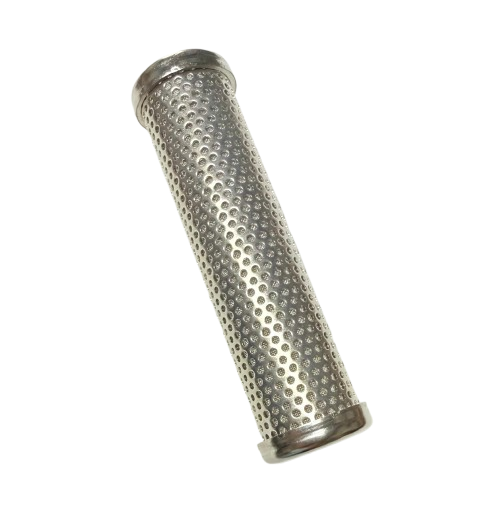

Key components commonly associated with the filter assembly include the Titan 920-004 Filter Element, 50 Mesh, Titan 920-910 End Cap, Titan 920-103 Stainless Ball, 13/16", Titan 930-020 Compression Spring, and Titan 920-006 Gasket. These parts work together to maintain proper filtration, support stable pressure delivery, and protect the pump, hose, and spray gun from contamination-related wear.

Built for high-output spraying environments, the filter assembly is commonly used with paints, primers, elastomerics, block fillers, and other heavy-duty coatings. Routine cleaning and replacement of filter components help improve spray quality, reduce equipment strain, and extend the service life of the entire sprayer system.

FAQs

A pressure drop is often caused by a heavily restricted manifold filter, excessive coating buildup inside the filter housing, or a filter mesh that is too fine for the material being sprayed.

Dried coating residue, trapped pressure inside the housing, or lack of routine cleaning can make the Titan 0290443A Filter Cap Assembly difficult to loosen during maintenance.

When the filter becomes clogged, the pump must generate additional pressure to maintain fluid flow, increasing strain on the hydraulic and fluid section components.

Yes. If the Titan 930-006 Manifold Filter is not seated properly, it can restrict flow, reduce filtration efficiency, and create inconsistent spray pressure throughout the system.

Leaks commonly occur when the Titan 920-006 Gasket becomes worn, damaged during installation, or is not positioned correctly when the filter housing is reassembled.

Call Diagrams Best Sellers Cart

Added to cart

PowrTwin 4900GH Filter Assembly

Buy Online PowrTwin 4900GH Filter Assembly

FAQs

1. Why is the filter assembly causing a noticeable drop in spray pressure?

2. What causes the filter cap to become difficult to remove after spraying?

3. Why does the sprayer seem to work harder when the filter assembly is dirty?

4. Can an incorrectly installed manifold filter affect spray performance?

5. Why is coating material leaking around the filter housing after maintenance?
