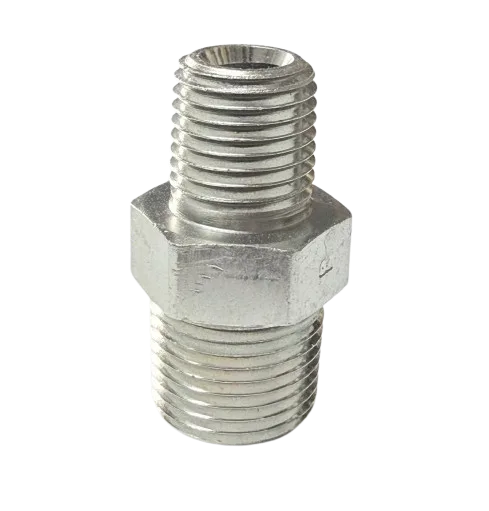

Titan 814-002 Nipple

Name: Titan 814-002 Nipple
Brand: Titan
SKU: 814-002
Price: 25.10 USD
Availability: InStock

Sourced From:

Titan Tools Inc.

OEM Titan Fluid System Component

Titan 814-002 Nipple is an OEM hex nipple that connects the manifold block to the ball valve in the gun manifold assembly on compatible Admiral, Commander, PowrTwin, PowrLiner, and PowrCoat spray systems.

Brand: Titan Part #: 814-002 Type: Hex Nipple Thread: 3/8" (M) x 1/4" (M)

Compatibility Table

Brand	Compatible Model	Part Number	Technical / Commercial Detail
Titan	Admiral Gun Manifold Assembly	814-002	Listed as Item 1 in Admiral gun manifold assembly.
Titan	PowrTwin 4900, 5500, 6900, 12000GHD	814-002	Used in multiple PowrTwin gun manifold assemblies.
Titan	PowrLiner 4000, 4955, 6000, 6900XLT; PowrCoat 730, 745, 940	814-002	Wide compatibility across Titan spray systems.

Precision hex nipple restores proper fluid connections, prevents leaks, and maintains system integrity.

$25.1

Description

Titan Fluid System Component Replacement

Titan 814-002 Nipple for Spray Systems

Titan 814-002 is an OEM 3/8" M x 1/4" M hex nipple designed to connect the manifold block to the ball valve in the gun manifold assembly on compatible Admiral, PowrTwin, PowrLiner, PowrCoat, and Hydra M spray systems. This precision component enables secure, leak-free connections in tight manifold spaces.

OEM: Titan Part #: 814-002 Type: Hex Nipple Thread: 3/8" (M) x 1/4" (M)

Detail	Technical / Commercial Information
Product Overview	OEM Titan reducing hex nipple that connects the manifold block to the ball valve in the gun manifold assembly.
Function	Provides a secure, leak-free connection between the manifold block and the ball valve in the gun manifold assembly. The 3/8" M to 1/4" M reducing design allows for adaptation between different thread sizes. The hexagonal shape provides a convenient surface for wrench tightening. Manufactured from corrosion-resistant materials with precision threads to ensure a positive seal under operating pressures.
Industrial Applications	Professional sprayer repair, manifold assembly maintenance, multi-gun operation setup, and rental fleet equipment servicing.
Compatible Titan Models	Admiral; Commander; PowrTwin 12000GHD, 12000GH, 12000 XLT, 12000 XLT DI, 12000 Plus DI, 8900GH, 8900XLT, 6900GH, 6900 XLT, 6900/12000 Plus DI, 4900GH, 4900XLT, 4500, 3500 50th Anniversary; PowrLiner 8900, 8900 XLT, 8900 XLT SP, 6950, 6900 XLT, 6900 XLT SP, 6000, 5000, 4950, 4900, 4900 XLT, 4000, 4955/6955/8955; PowrCoat 730, 745, 940; Hydra M and Hydra Pro 2000/4000; PowrTex.
Accurate Part Number	814-002 Hex Nipple.
Related Parts Commonly Serviced Together	Manifold block (970-100), ball valve (940-553 or 941-555), outlet fitting (227-006), pipe plug (227-033).
Common Problems Solved	Fluid leaks at manifold connections, difficulty connecting components with different thread sizes, stripped or cross-threaded ports, and loss of system pressure caused by thread damage or corrosion.
When Replacement Is Recommended	Replace if you notice fluid leaks at the nipple connection, stripped or damaged threads, visible corrosion, or if the nipple is missing after disassembly.
Service Guidance	Use the correct wrench size to prevent rounding the hex flats. Apply appropriate thread sealant compatible with the coating materials being sprayed during installation. Inspect threads for damage during routine maintenance.
OEM & Brand Information	Genuine Titan OEM component designed for correct fitment in compatible spray systems.
Commercial Benefits	Restores proper fluid connections, prevents leaks, maintains system integrity, and extends equipment service life.

The 814-002 Nipple is a practical replacement for contractors who need reliable manifold connections and leak-free system operation. This reducing nipple serves as the critical link between the manifold block and the ball valve. Over time, nipples can become damaged from overtightening, chemical exposure, or physical impact. A damaged or worn nipple can lead to fluid leaks, loss of pressure, and compromised system performance. If you observe fluid leaks at manifold connections, difficulty tightening, or visible damage, replace the nipple with this genuine part to restore proper connections and ensure reliable system operation.

FAQ Section

Quick contractor-focused answers for confirming fitment, function, and service value.

Common Questions
What is Titan 814-002 Nipple used for? It is a 3/8" M x 1/4" M reducing hex nipple that connects the manifold block to the ball valve in the gun manifold assembly on Admiral, Commander, PowrTwin, PowrLiner, and PowrCoat spray systems.
Which Titan assemblies use 814-002? Compatible assemblies include Admiral gun manifold assemblies; PowrTwin 12000GHD, 12000GH, 12000 XLT, 12000 Plus DI, 8900GH, 6900GH, 4900GH, 5500, 4500, 3500; PowrLiner 8900, 6000, 5000, 4900, 4000, 4955/6955/8955; PowrCoat 730, 745; and Commander.
When should the nipple be replaced? Replace if you notice fluid leaks at the nipple connection, stripped or damaged threads, visible corrosion, or if the nipple is missing after disassembly.
Why replace a damaged nipple? Replacement restores proper fluid connections, prevents leaks, maintains system integrity, and extends equipment service life.
