Verified Titan PowrCoat 630 Parts Hub

PowrCoat 630 Parts and Assembly Diagrams

This machine-model category organizes eight verified PowrCoat 630 assembly pages for cart model 0533630C and wall-mount model 0533630W. Titan documents a 30:1 pneumatic system with 3,480 PSI maximum operating pressure, 116 PSI maximum air input, and 61 cc fluid output per cycle.

Contractors, industrial coating teams, repair shops, maintenance technicians, and buyers can move from operating symptom to the correct diagram without assuming that cart, wall-mount, air-motor, pump, filter, AirCare, or intake components are interchangeable.

Eight Verified Parts Categories

Every destination is present on the live PowrCoat 630 page and opens as a current AllTitanParts category.

30:1 Pneumatic System

Titan specifies 3,480 PSI maximum operating pressure and 116 PSI maximum air input.

61 cc Per Cycle

Use the official displacement figure when evaluating output loss and pump performance.

Diagnosis Before Replacement

Inspect the complete air, suction, pump, filtration, outlet, and mounting path before ordering.

Assembly Overview

The PowrCoat 630 page is a machine-model category hub rather than one exploded assembly. Its verified child pages cover the external main assembly, motor-pump structure, upper shroud, pneumatic air motor, internal fluid pump, AirCare filter-regulator-lubricator system, high-pressure outlet filter, and cart mobility components.

Verified specification PowrCoat 630 data Service relevance
Configurations 0533630C cart / 0533630W wall Controls mounting, cart, and structural-part selection.
Pressure ratio 30:1 Supports correct air-to-fluid pressure diagnosis.
Maximum operating pressure 3,480 PSI Connected hoses, guns, and accessories must be appropriately rated.
Fluid output per cycle 61 cc Provides an official baseline for displacement diagnosis.

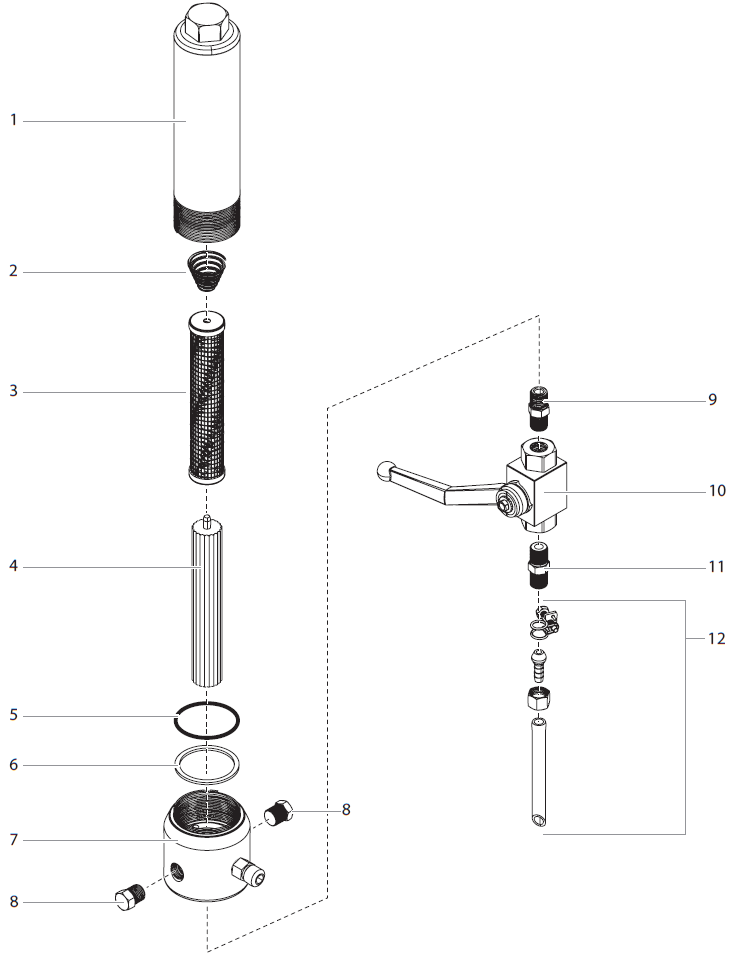

Outlet filter element 0533514, medium 60 mesh Inspect during pressure-loss and repeated tip-plugging diagnosis.

Functions Supported by the Assembly

Pneumatic Drive

The air motor converts regulated compressed air into reciprocating pump motion.

Fluid Pressurization

The fluid-pump assembly meters and pressurizes coating for airless delivery.

Air Preparation

The AirCare system filters, separates moisture, regulates pressure, and lubricates incoming air.

Material Filtration

The suction screen and high-pressure outlet filter reduce contamination before and after the pump.

Service Applications

Use this model hub for protective-coating equipment repair, corrosion-control work, structural-steel coating, fixed or mobile industrial setups, planned maintenance, service estimating, troubleshooting, and diagram-based parts procurement.

Troubleshooting

Operating symptom Inspect first Why and recommended action
Sprayer will not prime Main-assembly siphon tube, 0533443 suction filter, intake fittings, bleed path, and fluid-pump inlet components These components form the coating-entry path. Check material level, blockage, loose connections, suction leakage, and inlet-valve movement before replacing pump parts.
Air motor stalls or cycles irregularly Automatic filter-lubricator-regulator assembly, air tubing, motor valve, trip components, and fluid-pump binding The motor requires clean, regulated, lubricated air and an unrestricted pump. Rule out supply restriction, moisture, icing, air leakage, and pump seizure before rebuilding the motor.
Pressure surges or output drops Siphon path, pump packings and checks, 60-mesh high-pressure filter, hose, gun filter, and spray tip These systems control material supply, displacement, sealing, filtration, and downstream flow. Remove intake and filter restrictions before opening the fluid pump.
Fluid leaks around the outlet system High-pressure filter seals, bleed valve, 0533634 outlet fitting, 0533127 return tube, and connected hose Clean the assembly and identify the first wet point because adjacent fittings and seals can create similar leak patterns. Replace only the confirmed source.
Abnormal pneumatic exhaust noise 830-340 muffler, AirCare lubrication, air supply, icing, and internal air-motor condition A loose, damaged, contaminated, or restricted muffler can change exhaust noise. Inspect it and verify air quality before replacing internal motor parts.

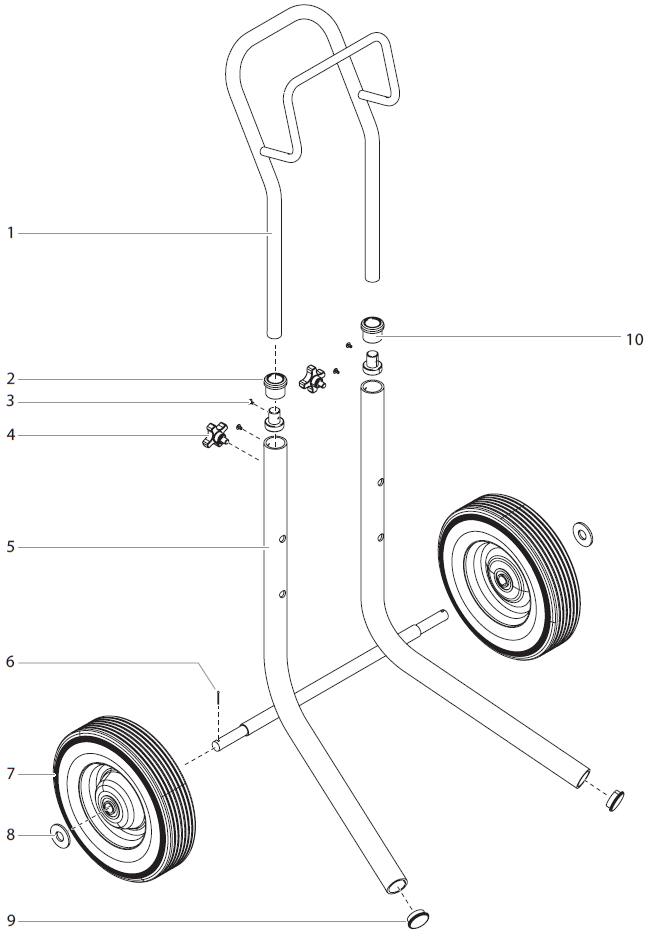

Cart or wall structure moves or vibrates Cart assembly, wall weldment, handle, wheels, spacers, plugs, screws, washers, nuts, and mounting points Loose or distorted structural parts can imitate motor or pump vibration. Stabilize and inspect the structure before replacing operating components.

High-Value Replacement Parts Routes

These six featured cards link only to verified PowrCoat 630 parts categories. Unrelated rotating products shown on the model page are excluded.

Verified live category

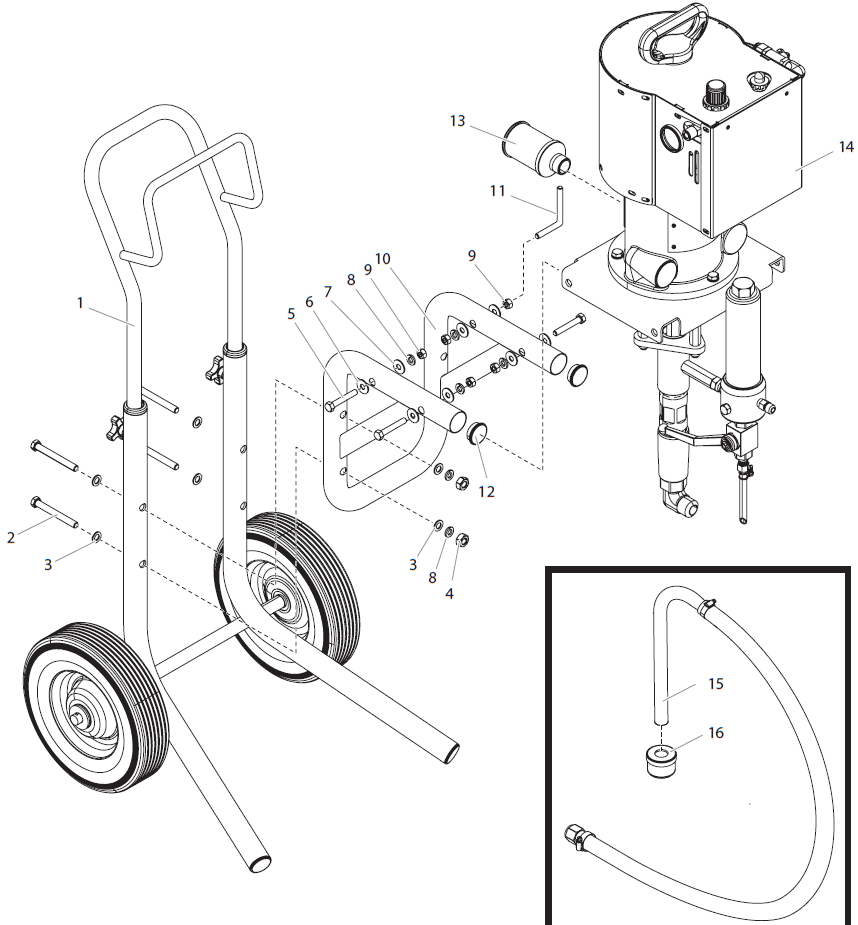

PowrCoat 630 Main Assembly Parts

Material-intake, mounting, muffler, wheel-support, and fastening components.

Open Parts Diagram
Verified live category

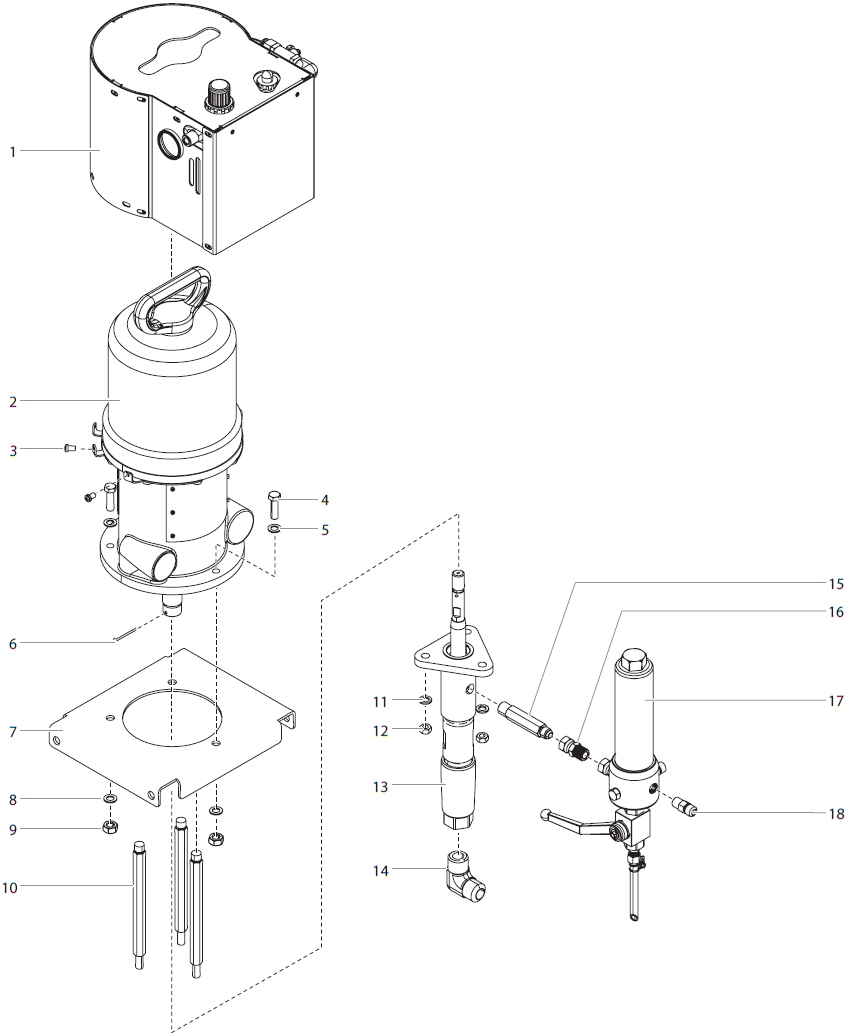

PowrCoat 630 Motor Pump Assembly Parts

Packaged fluid section, mounting supports, inlet fittings, outlet fittings, and retaining hardware.

Open Parts Diagram
Verified live category

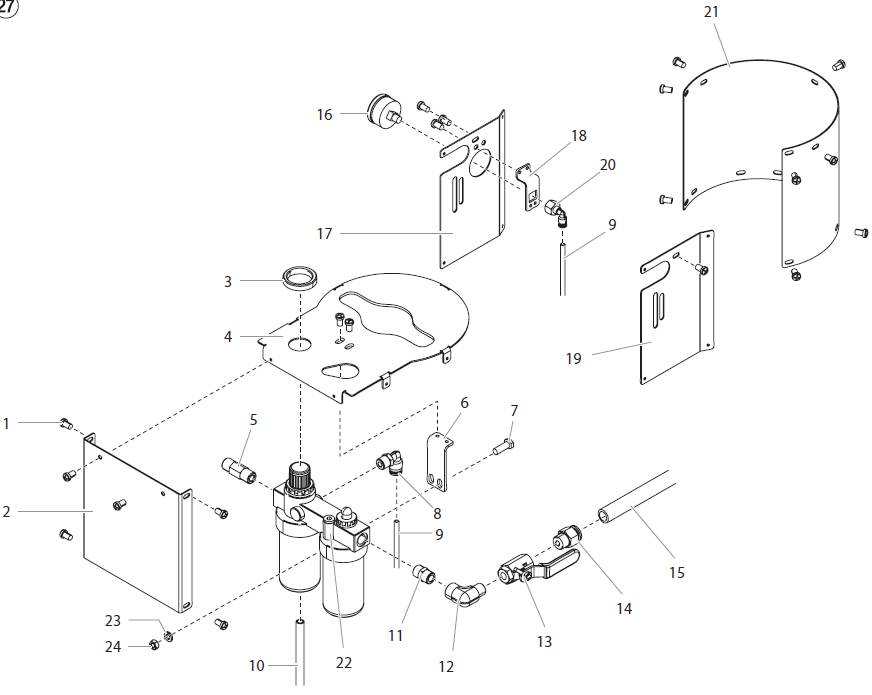

PowrCoat 630 Upper Shroud Assembly Parts

Upper-shroud protection and related fastening components for the pneumatic drive area.

Open Parts Diagram
Verified live category

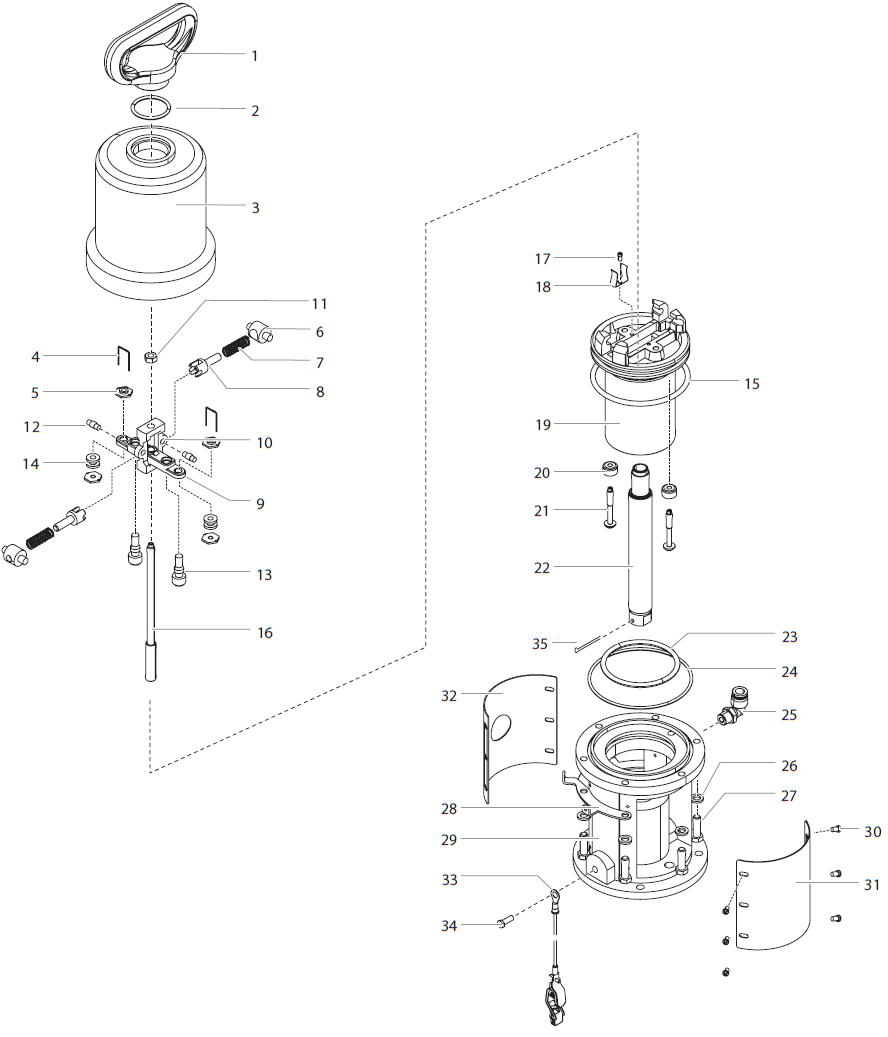

PowrCoat 630 Air Motor Assembly Parts

Air-motor valve, trip, seal, actuator, sleeve, manifold, and service components.

Open Parts Diagram
Verified live category

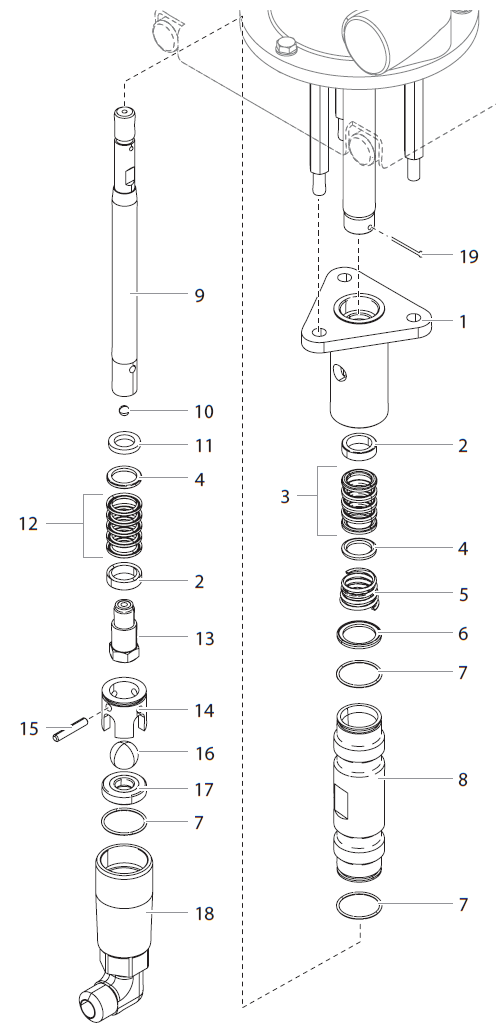

PowrCoat 630 Fluid Pump Assembly Parts

Pump block, glands, packings, cylinder, piston rod, ball-seat, and foot-valve components.

Open Parts Diagram
Verified live category

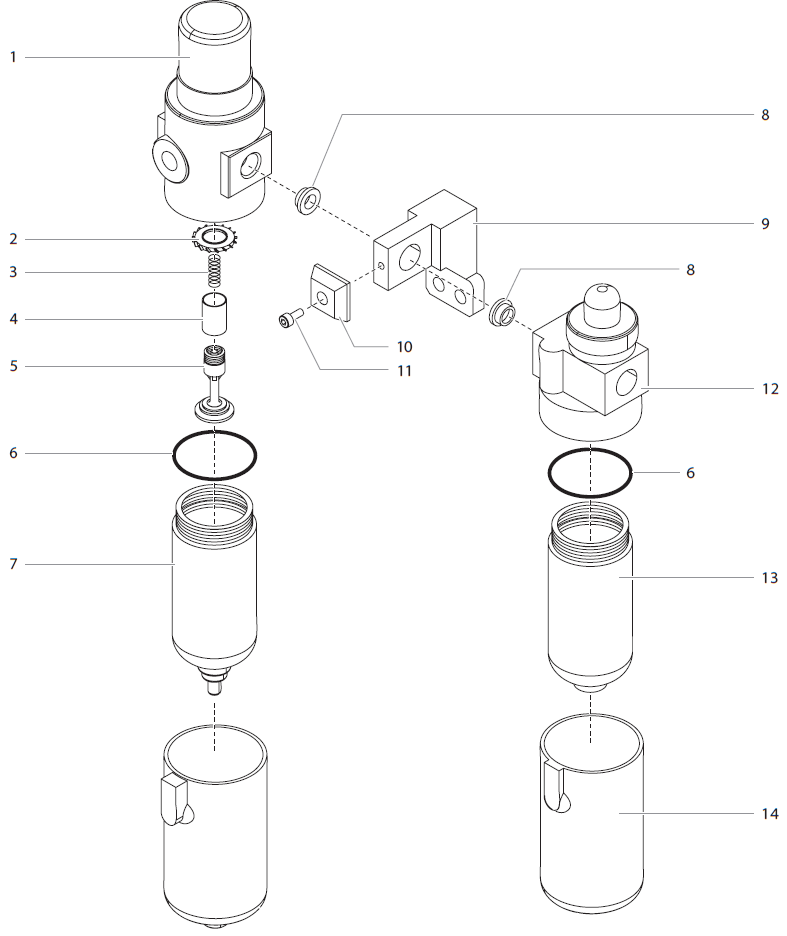

PowrCoat 630 Automatic Filter, Lubricator, Regulator Assembly Parts

AirCare filter, moisture-separation, regulation, lubrication, bowl, and service components.

Open Parts Diagram

Buying Guide

1. Confirm configuration

Identify cart model 0533630C or wall-mount model 0533630W.

2. Select the service system

Choose the main, motor-pump, shroud, air-motor, pump, AirCare, filter, or cart page.

3. Match the callout

Compare the numbered position with every digit of the Titan part number.

4. Inspect connected components

Check seals, fittings, fasteners, filters, valve surfaces, hoses, and mating parts.

Maintenance

Relieve fluid pressure, engage the trigger safety, shut off and vent compressed air, ground the equipment, and stabilize the machine before service. Maintain clean regulated air, inspect AirCare components, clean suction and outlet filters, check siphon connections, inspect hoses and fittings, and keep cart or wall hardware secure.

Repair Planning

Record the configuration, operating symptom, pressure setting, coating, affected assembly, diagram callout, and visible part number before disassembly. Photograph hose and air-line routing, then inspect related seals, fittings, fasteners, filters, valve surfaces, supports, and mating components so the repair addresses the root cause.

Fast Navigation

PowrCoat 630 Parts FAQs

What type of page is PowrCoat 630?

It is a machine-model category hub linking to eight verified PowrCoat 630 assembly and parts-diagram pages.

Which PowrCoat 630 configurations are documented?

Titan documents cart model 0533630C and wall-mount model 0533630W.

What is the verified pressure ratio?

The PowrCoat 630 uses a 30:1 pressure ratio.

What is the verified maximum operating pressure?

Titan specifies 3,480 PSI.

What is the maximum air-input pressure?

Titan specifies 116 PSI.

What is the verified fluid output per cycle?

Titan specifies 61 cubic centimeters per cycle.

Which filter element is confirmed for the outlet filter?

Titan documents the 0533514 medium 60-mesh filter element.

Which parts support material pickup?

The main-assembly page lists 0533247 and 0533248 siphon tube assemblies plus 0533443 suction set filter.

Which page should be checked for poor priming?

Start with Main Assembly Parts for the siphon and suction filter, then inspect Fluid Pump Assembly Parts if the external intake path is sound.

Which page should be checked for irregular air-motor cycling?

Inspect the Automatic Filter, Lubricator, Regulator Assembly and Air Motor Assembly pages before replacing internal motor components.

How should a repair shop order parts accurately?

Confirm cart or wall configuration, select the exact assembly page, match the numbered callout, and verify every digit of the Titan part number.

What safety steps are required before service?

Relieve fluid pressure, lock the gun trigger, shut off and vent compressed air, ground the equipment, and verify zero pressure before disassembly.

Move From Diagnosis to the Correct PowrCoat 630 Diagram

Select the verified service system, match the numbered callout, and confirm the complete Titan part number before adding a replacement component to the repair order.
