Titan PowrCoat 630 Cart Assembly Parts

Shop replacement components for the PowrCoat 630 Cart Assembly, including the handle assembly, handle sleeves, adjustment knob, wheel-retaining pin, wheel, wheel spacer, and wheel spacer plug. Use the exploded illustration, item number, exact Titan part number, and cart position before ordering.

Diagram-Based Ordering

Match every handle and wheel component to its exact numbered position.

Controlled Transport

Restore handle grip, adjustment, steering control, and equipment maneuverability.

Wheel Alignment

Identify the wheel, pin, spacer, and plug used in the mobility assembly.

Complete Cart Inspection

Diagnose grip, adjustment, wheel rotation, spacing, and retention before replacement.

Assembly Overview

What the PowrCoat 630 Cart Assembly Contains

This exploded category covers the principal user-contact and mobility parts of the PowrCoat 630 cart. Titan 0533545 forms the handle assembly, Titan 0533546 and Titan 0533619 are separate handle sleeves, and Titan 0533548 secures the adjustable handle position.

The wheel group consists of Titan 0533551 Wheel, Titan 0533550 Pin, Titan 0533552 Wheel Spacer, and Titan 0533553 Wheel Spacer Plug. These components work together to maintain rolling movement, spacing, retention, and predictable cart handling.

Main Functions

Functions Supported by the Cart Assembly

Provides a stable hand-control point for moving the sprayer.
Supports secure handle positioning with the adjustment knob.
Provides replaceable grip surfaces at the listed sleeve positions.
Allows rolling transport through the listed wheel component.
Maintains wheel spacing and retention with the pin, spacer, and plug.

Service Applications

When Contractors Use This Parts Diagram

Broken, bent, loose, or difficult-to-control handle assembly.
Cracked, hardened, missing, or slippery handle sleeves.
A knob that will not secure the adjustable handle position.
Wheel binding, wobble, flat spotting, cracking, or uneven rolling.
Missing or damaged pin, spacer, or wheel spacer plug.

Troubleshooting & Maintenance

Common PowrCoat 630 Cart Assembly Symptoms

Relieve system pressure, vent the air supply, and stabilize the equipment before cart service. Diagnose wheel spacing, retention, surface damage, and handle adjustment before replacing a component.

Operating symptom	Areas to inspect	Recommended action
Cart is difficult to steer	0533545 handle, both sleeves, 0533548 knob, wheel rotation, spacer position, and pin retention	Determine whether poor control comes from the handle or wheel group before replacing the Titan 0533545 Handle Assembly.
Handle will not remain secured	0533548 knob, handle position, mating threads, contamination, cracking, and stripped engagement	Clean and inspect the adjustment interface before replacing the Titan 0533548 Knob.
Wheel wobbles or shifts sideways	0533551 wheel, 0533552 spacer, 0533550 pin, 0533553 plug, and installation order	Inspect the complete retention stack and confirm the Titan 0533552 Wheel Spacer is present and undamaged.
Wheel drags or binds	0533551 wheel, dried coating, spacer alignment, pin condition, rubbing marks, and physical deformation	Clean the wheel area and verify spacing before replacing the Titan 0533551 Wheel.
Grip is uncomfortable or slippery	0533546 sleeve, 0533619 sleeve, cracking, hardening, chemical damage, looseness, and callout position	Identify which sleeve position is damaged before ordering the Titan 0533546 Handle Sleeve or 0533619 sleeve.
Wheel components separate during transport	0533550 pin, 0533553 plug, 0533552 spacer, wheel position, wear, and incomplete installation	Stop using the cart and inspect every listed retention component; replace only the confirmed missing, bent, cracked, or worn part.

Major Replacement Components

High-Value PowrCoat 630 Cart Assembly Parts

These genuine listed products cover the primary handle, adjustment, grip, mobility, spacing, and wheel-retention positions.

Primary Cart Handle

Titan 0533545 Handle Assembly

Provides the main hand-control structure used to steer, position, and transport the PowrCoat 630 cart.

View Titan 0533545

Upper Grip Sleeve

Titan 0533546 Handle Sleeve

Provides a replaceable grip surface on the cart handle and improves handling comfort during transport.

View Titan 0533546

Handle Adjustment

Titan 0533548 Knob

Secures the adjustable handle position and provides a tool-free gripping surface for cart setup.

View Titan 0533548

Mobility Component

Titan 0533551 Wheel

Restores rolling movement and stable jobsite transport when a cart wheel is damaged or worn.

View Titan 0533551

Wheel Alignment

Titan 0533552 Wheel Spacer

Maintains the specified wheel spacing so the wheel can rotate without rubbing or excessive side movement.

View Titan 0533552

Spacer Retention

Titan 0533553 Wheel Spacer Plug

Fits the wheel-spacing arrangement and helps complete the cart wheel installation.

View Titan 0533553

Parts Selection Guide

How to Order the Correct Cart Assembly Part

STEP 1

Locate the problem

Identify whether the issue involves grip, handle adjustment, wheel movement, spacing, or retention.

STEP 2

Confirm cart configuration

Make sure the machine is the PowrCoat 630 cart version rather than a wall configuration.

STEP 3

Match the callout

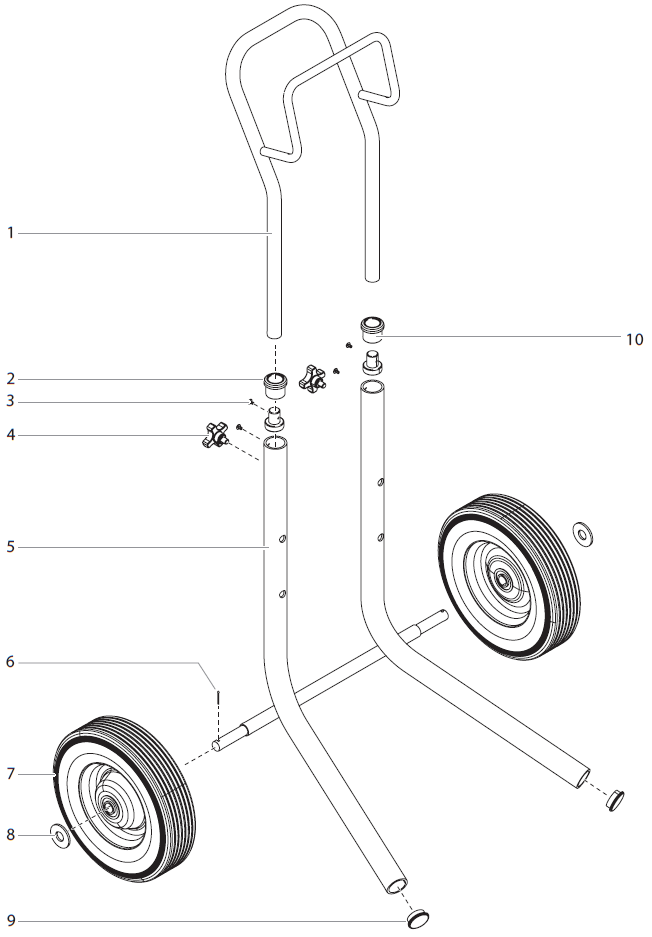

Use the exploded cart illustration to match the exact item number and Titan part number.

STEP 4

Inspect the full group

Check the wheel, pin, spacer, plug, handle sleeves, handle, and knob together.

Preventive Care

Maintenance Practices That Protect the Cart Assembly

Keep dried coating away from wheels, pins, spacers, and adjustment parts.
Inspect both handle sleeves for cuts, hardening, looseness, and chemical damage.
Check the adjustment knob before moving the equipment.
Confirm each wheel rotates freely without lateral movement or frame rubbing.
Inspect the pin, spacer, and plug whenever a wheel is removed.
Move the cart over suitable surfaces and avoid impact loading the handle or wheels.

Complete Repair Planning

Build a More Complete PowrCoat 630 Cart Repair

Handle repairs should include inspection of Titan 0533545, both listed sleeves, Titan 0533548, and every visible contact or adjustment surface. A new knob will not correct a bent handle, and a new sleeve will not correct an unstable adjustment point.

Wheel repairs should include Titan 0533551, Titan 0533550, Titan 0533552, and Titan 0533553. Confirm installation order, free rotation, side play, impact damage, and missing parts before selecting replacements.

Fast Parts Navigation

Shop Major PowrCoat 630 Cart Components

Open the product listing and confirm its diagram callout before ordering.

0533545 Handle Assembly · 0533545 0533546 Handle Sleeve · 0533546 0533548 Knob · 0533548 0533551 Wheel · 0533551 0533552 Wheel Spacer · 0533552 0533553 Wheel Spacer Plug · 0533553

FAQ Section

PowrCoat 630 Cart Assembly FAQs

Practical answers for identifying, diagnosing, and ordering cart mobility parts.

What type of page is the PowrCoat 630 cart assembly page?+

It is an exploded-parts-diagram category for the handle and wheel components used on the mobile PowrCoat 630 cart configuration.

Which parts are listed on the PowrCoat 630 cart page?+

The page lists Titan 0533545 Handle Assembly, 0533546 Handle Sleeve, 0533548 Knob, 0533550 Pin, 0533551 Wheel, 0533552 Wheel Spacer, 0533553 Wheel Spacer Plug, and 0533619 Handle Sleeve.

What does Titan 0533545 do?+

Titan 0533545 is the main handle assembly used to control and maneuver the cart during transport and positioning.

Why are two different handle sleeves listed?+

Titan 0533546 and Titan 0533619 occupy different sleeve positions in the cart illustration. Match the callout and part number rather than ordering by appearance.

What should be checked when a wheel wobbles?+

Inspect Titan 0533551 Wheel, Titan 0533552 Wheel Spacer, Titan 0533550 Pin, and Titan 0533553 Wheel Spacer Plug for wear, loss, incorrect installation, or damage before replacing parts.

Can a missing wheel spacer cause drag?+

Yes. Incorrect spacing can allow the wheel to rub, bind, shift laterally, or wear unevenly. Confirm the spacer and retaining parts are present before replacing the wheel.

When should the handle knob be replaced?+

Replace Titan 0533548 only after confirming that the knob is cracked, stripped, chemically damaged, or unable to secure the handle correctly.

Should both wheels be replaced together?+

Not automatically. Inspect both wheels for cracking, flat spots, binding, uneven wear, and free rotation, then replace only the components that fail inspection.

How should cart parts be selected?+

Confirm the PowrCoat 630 cart configuration, identify the affected position on the exploded illustration, and match the exact callout and Titan part number.

What safety steps are needed before cart service?+

Relieve spray-system pressure, close and vent the air supply, stabilize the machine on a level surface, and support the cart securely before removing a wheel, pin, spacer, plug, knob, or handle component.

Find the Correct Replacement Part

Restore PowrCoat 630 Cart Control and Mobility

Browse diagram-matched handles, sleeves, knobs, wheels, pins, spacers, and plugs for accurate cart service.

Search using:

Titan part number
Cart diagram callout
Handle or sleeve position
Wheel-retention component
Mobility symptom

PowrCoat 630 Cart Assembly Parts

Find Diagram-Matched PowrCoat 630 Cart Assembly Parts
