Titan Air-Powered Airless Sprayer Parts · PowrCoat 630
Find Diagram-Matched PowrCoat 630 High-Pressure Filter Parts
Shop replacement components for the PowrCoat 630 High-Pressure Filter Assembly, including the spring, 60-mesh filter element, filter support, O-ring, thin PTFE gasket, pipe plug, nipple, bleed valve assembly, spray-hose outlet fitting, and return tube assembly. Use the exploded illustration, machine configuration, item number, and exact Titan part number before ordering.
01
Diagram-Based Ordering
Match each filter, sealing, outlet, and return component to its exact callout.
02
60-Mesh Filtration
Capture coating debris before it reaches downstream hose, gun, and tip passages.
03
Pressure Relief
Identify bleed-valve and return components used during priming, flushing, and shutdown.
04
Complete Flow Diagnosis
Inspect coating condition, element, seals, valve, hose outlet, gun filter, and tip together.
Assembly Overview
How the PowrCoat 630 High-Pressure Filter Manages Coating Flow
This exploded-parts category covers the high-pressure coating-filter assembly used on PowrCoat 630 cart model 0533630C and wall model 0533630W. Titan 0533514 is the 60-mesh filter element, Titan 0533515 supports the element, and Titan 0533513 applies spring force within the filter arrangement. Titan 0533533 and Titan 0533523 seal adjoining filter components.

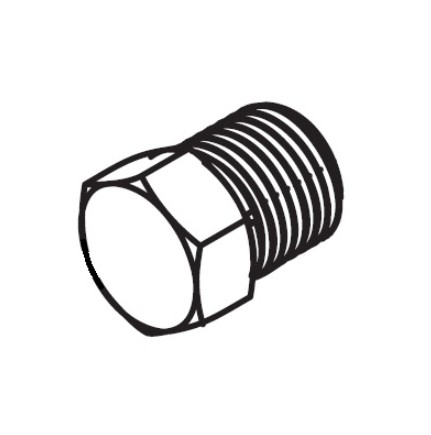

Filtered material leaves through the outlet connection toward the high-pressure spray hose. Titan 0533517 provides the bleed and pressure-relief path, while Titan 0533127 routes returning coating or cleaning fluid during priming and circulation. Pipe plugs and threaded nipples close or connect the specified filter-body ports.
Main Functions
Functions Supported by the High-Pressure Filter
Captures coating particles and debris with a 60-mesh filter element.
Supports stable downstream material flow toward the hose and spray gun.
Provides a controlled bleed path for priming, pressure relief, and flushing.
Seals the filter cap and internal filter-stack mating surfaces.
Connects outlet, bleed, return, nipple, and plugged filter-body ports.
Service Applications
When Contractors Use This Parts Diagram
Reduced material flow, weak output, or a repeatedly blocked spray tip.
A filter element clogged with dried coating, debris, or oversized particles.
Leaks at the filter sealing stack, threaded ports, bleed valve, or outlet fitting.
A bleed valve that will not circulate, relieve pressure, or seal during spraying.
Damaged return tubing or an obstructed pressure-relief return path.
Troubleshooting & Maintenance
Common PowrCoat 630 High-Pressure Filter Symptoms
Perform the full pressure-relief procedure before inspection. Diagnose coating viscosity, intake filtration, pump output, gun filter, hose, and spray tip before replacing filter parts.
Operating symptom
Areas to inspect
Recommended action
Low material flow or weak spray output
0533514 element, coating viscosity, pump output, gun filter, hose restriction, and spray tip
How to Order the Correct High-Pressure Filter Part
STEP 1
Locate the symptom
Identify restriction, cap leakage, threaded leakage, bleed-valve failure, outlet leakage, or return-tube damage.
STEP 2
Confirm the machine
Verify PowrCoat 630 cart model 0533630C or wall model 0533630W.
STEP 3
Match the diagram callout
Match the numbered position to the exact Titan part number and description.
STEP 4
Inspect adjoining components
Check seals, element support, spring, ports, nipples, hose swivel, valve, and return path together.
Preventive Care
Maintenance Practices That Protect the Filter Assembly
Strain and stir coating material before spraying to reduce filter loading.
Clean the high-pressure filter after each workday and whenever flow declines.
Inspect the 60-mesh element for hardened coating, tears, crushing, or deformation.
Clean cap threads and inspect the O-ring and PTFE gasket before reassembly.
Flush the bleed valve and return tube before coating residue hardens inside them.
Inspect the high-pressure hose and outlet connection before every use.
Complete Repair Planning
Build a More Complete PowrCoat 630 Filter Repair
Filter-stack service should include the spring, 60-mesh element, filter support, O-ring, thin PTFE gasket, cap threads, and filter-body sealing surfaces. A new element cannot correct a collapsed support, misplaced spring, damaged gasket, or contaminated cap thread.
Flow-control service should include the pipe plugs, nipple, bleed valve, spray-hose outlet fitting, high-pressure hose end, and return tube assembly. Determine whether the fault is blockage, leakage, thread damage, valve wear, incorrect routing, or external hose damage before ordering.
Fast Parts Navigation
Shop Major PowrCoat 630 Filter Components
Open the product listing and confirm its diagram callout before ordering.
Practical answers for filter identification, diagnosis, cleaning, and pressure-relief service.
What type of page is the PowrCoat 630 high-pressure filter page?+
It is an exploded-parts-diagram category for the coating-fluid filter, pressure-bleed, outlet, and return components used on the PowrCoat 630.
Which PowrCoat 630 models use this filter assembly?+
The assembly is identified for PowrCoat 630 cart model 0533630C and wall model 0533630W. Match the machine and diagram callout before ordering.
What mesh is Titan 0533514?+
Titan 0533514 is a 60-mesh high-pressure coating filter element.
What does the high-pressure filter protect?+
It captures debris in the coating stream before material reaches the spray hose, gun passages, and spray tip, helping reduce blockages and finish defects.
Can a clogged filter cause low material output?+
Yes. A restricted element can reduce coating flow and contribute to weak output or poor spray performance. Inspect the gun filter and spray tip at the same time.
What should be checked when the filter cap leaks?+
Relieve all pressure, then inspect the cap, threads, Titan 0533533 O-ring, Titan 0533523 PTFE gasket, sealing faces, filter support, and element seating before replacing parts.
What does the bleed valve assembly do?+
Titan 0533517 provides the controlled pressure-relief and recirculation path used during priming, flushing, shutdown, and service.
Why can coating leak from the return tube?+
Possible causes include a damaged return tube, loose connection, bleed-valve wear, blocked return path, incorrect routing, or a valve that is not fully seated.
Should the filter be removed when spraying every coating?+
No. Use the filter arrangement specified for the coating and machine. The manufacturer recommends filtering coating material generally, except where the applicable procedure specifically permits otherwise.
What safety steps are required before filter service?+
Lock the gun, shut off and vent the air supply, open the pressure-bleed valve as directed, trigger into a grounded container where required, and verify that pressure is fully relieved before loosening any filter component.
Find the Correct Replacement Part
Restore Clean Coating Flow and Reliable Pressure Relief
Browse diagram-matched filter elements, supports, seals, bleed-valve components, outlet fittings, threaded connections, and return parts for the PowrCoat 630.
Search using:
Titan part number
Filter diagram callout
60-mesh filter element
Leak or restriction location
Cart or wall model
