Shop replacement parts for the PowrCoat 630 Upper Shroud Assembly, including the top, left, right, and rear shrouds, FRL mounting bracket, air regulator assembly, air motor bracket, ball valve, push-in connectors, threaded connector, elbow, pneumatic tubing, ring, screws, lock washer, and nut. Match the exploded illustration, item number, and exact Titan part number before ordering.

Diagram-Based Selection

Match every protective, pneumatic, and fastening component to its numbered callout.

Protective Enclosure

Locate the shrouds and ring that enclose and finish the upper equipment housing.

Pneumatic Control

Identify the regulator, ball valve, connectors, elbow, tubes, and FRL support bracket.

Complete Repair Planning

Inspect tubing, fittings, brackets, hardware, and adjoining air-system components together.

Assembly Overview

What the PowrCoat 630 Upper Shroud Assembly Contains

This exploded assembly combines protective exterior covers with pneumatic-control and support components located around the upper section of the PowrCoat 630. The listed protective parts are Titan 0533468 Top Shroud, Titan 0533616 Left Shroud, Titan 0533495 Red Right Shroud, and Titan 0533501 Red Rear Shroud, together with Titan 0533466 Ring and shroud fastening hardware.

The pneumatic and structural group includes Titan 0533592 FRL Bracket, Titan 0533512 Air Regulator Assembly, Titan 0533594 Ball Valve, Titan 0533490 Air Motor Bracket, Titan 0533496 and 0533621 push-in connectors, Titan 0533482 threaded connector, Titan 0533491 elbow, and tubes 0533478, 0533479, and 0533595.

Main Functions

Functions Supported by the Upper Shroud Assembly

Encloses upper pneumatic and structural components against debris and incidental contact.
Supports correct placement of the filter-regulator-lubricator system.
Regulates and routes compressed air through valves, tubes, elbows, and connectors.
Maintains service access while preserving the machine’s finished exterior.
Secures covers and internal supports with diagram-specified screws, washer, nut, and ring.

Service Applications

When Contractors Use This Parts Diagram

Cracked, missing, warped, or loose upper shrouds.
Air pressure that cannot be adjusted or remains unstable.
Leaks from tubing, push-in fittings, threaded connectors, or the elbow.
A loose FRL assembly or damaged regulator and air-motor brackets.
Ball-valve faults, trapped tubing, or missing shroud hardware.

Troubleshooting & Maintenance

Common PowrCoat 630 Upper Shroud Assembly Symptoms

Vent the compressed-air supply and relieve fluid pressure before removing covers. Diagnose the complete connected pneumatic path before replacing a regulator, valve, tube, or fitting.

Operating symptom	Areas to inspect	Recommended action
Upper cover is loose or rattling	0533468, 0533616, 0533495, 0533501, ring, screws, mounting bosses, and trapped tubing	Remove the cover only after venting the system; inspect the affected shroud and Titan 0533463 or 0533475 screws before replacement.
Air pressure cannot be regulated	0533512 regulator, upstream air supply, FRL components, ball valve, tubes, connectors, and downstream demand	Verify supply pressure and eliminate leaks or restrictions before replacing the Titan 0533512 Air Regulator Assembly.
Air leaks at a tube connection	0533496 or 0533621 push-in connector, tube end, insertion depth, kinks, cuts, and alignment	Cut no material from the tube until the damaged location is confirmed; inspect both the connector collet and tube surface before ordering.
Leak at a threaded pneumatic joint	0533482 connector, 0533594 ball valve, 0533491 elbow, mating threads, contamination, and alignment	Identify the exact leaking component and inspect the Titan 0533482 Connector, valve, and elbow separately.
FRL unit moves or vibrates	0533592 bracket, mounting screws, nut, washer, adjoining frame, and FRL body	Stop operation and inspect the Titan 0533592 FRL Bracket for bending, cracking, or damaged mounting holes.
Shrouds will not align after service	Tube routing, bracket position, ring, mounting bosses, screw locations, warped covers, and pinched pneumatic lines	Do not force the covers together. Correct internal routing and bracket alignment, then replace only the shroud or hardware proven damaged.

Major Replacement Components

High-Value PowrCoat 630 Upper Shroud Assembly Parts

These genuine listed components cover the principal protective, pneumatic-control, and mounting positions.

Upper Protection

Titan 0533468 Top Shroud

Covers the top of the upper housing and helps protect enclosed pneumatic-control components from debris and incidental contact.

View Titan 0533468

Side Protection

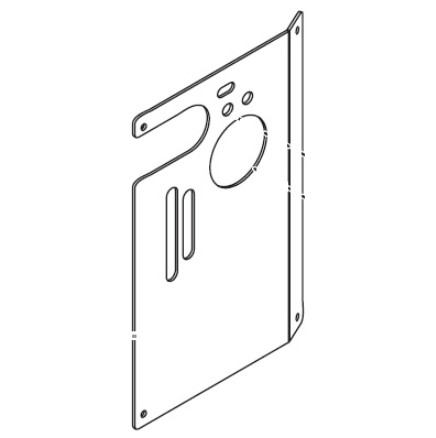

Titan 0533616 Left Shroud

Restores the left-side protective enclosure and the correct fit around adjoining upper-housing components.

View Titan 0533616

Side Protection

Titan 0533495 Red Right Shroud

Protects the right side of the upper housing while restoring the correct exterior fit and finished appearance.

View Titan 0533495

Rear Protection

Titan 0533501 Red Rear Shroud

Encloses the rear of the upper assembly and helps shield the regulator, tubing, fittings, and related components.

View Titan 0533501

Air Pressure Control

Titan 0533512 Air Regulator Assembly

Provides the regulated air-pressure control used within the PowrCoat 630 pneumatic system.

View Titan 0533512

FRL Mounting

Titan 0533592 FRL Bracket

Secures the filter-regulator-lubricator unit in the correct position beside the upper shroud assembly.

View Titan 0533592

Parts Selection Guide

How to Order the Correct Upper Shroud Assembly Part

STEP 1

Identify the affected system

Determine whether the concern is protective, pneumatic, structural, tubing-related, or fastening-related.

STEP 2

Verify the PowrCoat 630

Record the machine identification and any available revision or serial information.

STEP 3

Match the diagram callout

Use the exploded illustration to match the item number with its exact Titan part number.

STEP 4

Inspect connected parts

Check tubes, connector ends, threads, regulator ports, brackets, and mounting hardware together.

Preventive Care

Maintenance Practices That Protect the Upper Assembly

Vent compressed air and relieve fluid pressure before removing any shroud.
Keep tubes routed away from sharp edges, moving parts, heat, and pinch points.
Inspect push-in connectors for full tube engagement and clean sealing surfaces.
Check the regulator, ball valve, elbow, and threaded connector for leakage.
Inspect the FRL and air-motor brackets for vibration damage or misalignment.
Replace cracked covers and stripped mounting hardware rather than forcing alignment.

Complete Repair Planning

Build a More Complete PowrCoat 630 Upper Shroud Repair

Shroud replacement should include inspection of the ring, mounting screws, bosses, adjoining covers, brackets, tubing clearances, and labels or service markings. Replacing one cracked panel without correcting a bent bracket or trapped tube can cause poor fit and repeat damage.

Pneumatic repairs should include the regulator, ball valve, push-in connectors, threaded connector, elbow, tubes, FRL bracket, air-motor bracket, nut, and lock washer. Confirm whether the fault is leakage, restriction, mounting movement, or pressure-control failure before ordering.

Fast Parts Navigation

Shop Major Upper Shroud Assembly Components

Open the product listing and confirm its callout before ordering.

0533468 Top Shroud · 0533468 0533616 Left Shroud · 0533616 0533495 Red Right Shroud · 0533495 0533501 Red Rear Shroud · 0533501 0533512 Air Regulator Assembly · 0533512 0533592 FRL Bracket · 0533592

FAQ Section

PowrCoat 630 Upper Shroud Assembly FAQs

Practical answers for protective-cover and pneumatic-control service.

What type of page is the PowrCoat 630 upper shroud page?+

It is an exploded-parts-diagram category for the protective shrouds, pneumatic controls, tubing, fittings, mounting brackets, and fastening hardware positioned around the PowrCoat 630 upper assembly.

Which protective covers are listed on this assembly?+

The page lists Titan 0533468 Top Shroud, Titan 0533616 Left Shroud, Titan 0533495 Red Right Shroud, and Titan 0533501 Red Rear Shroud.

What does the Titan 0533512 Air Regulator Assembly do?+

It controls regulated air pressure within the pneumatic system. Diagnose air supply, tubing, fittings, valves, and the FRL assembly before replacing it.

What is the purpose of Titan 0533592?+

Titan 0533592 is the FRL mounting bracket. It supports and positions the filter-regulator-lubricator unit and should be inspected for bending, cracking, looseness, or damaged fastener points.

Can damaged tubing cause unstable air pressure?+

Yes. Cracked, kinked, loose, or incorrectly seated tubes can leak or restrict airflow, producing pressure loss, slow response, or unstable pneumatic operation.

What should be checked when a push-in connection leaks?+

Inspect the tube end, connector collet, insertion depth, tube condition, alignment, contamination, and the connector body before selecting a replacement.

Why would the upper shrouds fail to align?+

Possible causes include warped or cracked shrouds, trapped tubing, a bent bracket, incorrect screw placement, damaged mounting bosses, or misaligned internal components.

Should shroud screws be ordered by size alone?+

No. Match Titan 0533463 or 0533475 to the correct diagram callout because thread size, length, position, and retaining function differ.

What should be inspected with the ball valve?+

Inspect Titan 0533594 together with its threaded connector, tubing, elbow, push-in fittings, regulator, and adjoining pneumatic passages for leakage or restriction.

What safety steps are required before service?+

Close and vent the compressed-air supply, relieve fluid pressure, lock the spray gun, disconnect the air source, and follow the applicable Titan service procedure before removing covers or pneumatic components.

Find the Correct Replacement Part

Restore PowrCoat 630 Protection and Pneumatic Control

Browse diagram-matched shrouds, brackets, tubes, valves, connectors, regulator components, and exact fastening hardware for the upper assembly.
