Shop replacement components for the PowrCoat 630 Motor Pump Assembly, including the packaged fluid section, inlet elbow, fluid fitting, connection nipple, spray-hose outlet fitting, mounting bracket, stanchion, screws, washers, cotter pin, tee nuts, and related retaining hardware. Use the exploded illustration, callout number, machine identification, and exact Titan part number before ordering.

Callout-Based Ordering

Match the numbered motor-pump illustration to the exact Titan component listing.

Fluid Delivery Components

Locate the packaged fluid section and its inlet, connection, nipple, and outlet fittings.

Structural Support

Identify the mounting bracket, stanchion, retaining hardware, and associated fasteners.

Complete Diagnosis

Inspect connected threads, seals, supports, hoses, valves, and mounting points before replacement.

Assembly Overview

How the PowrCoat 630 Motor and Pump Components Are Grouped

This exploded-parts category groups the external components positioned around the PowrCoat 630 motor and pump arrangement. Listed items include Titan 0533463 and 0533448 screws, Titan 51357 and 0509292 lock washers, Titan 0533441 cotter pin, Titan 0533450 bracket, Titan 0533628 washer, Titan 0533625 stanchion, and Titan 9805466 screw-on tee nuts.

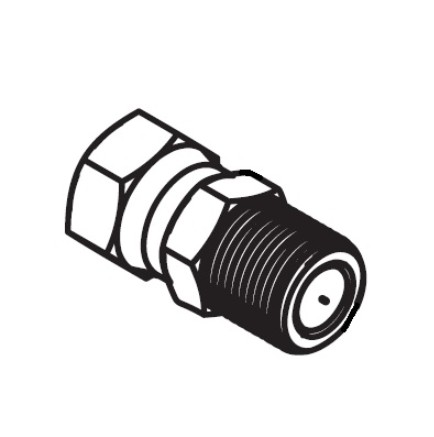

The pump-side components include Titan 0533254 packaged fluid section, Titan 0533631 90-degree inlet elbow, Titan 0533632 fitting, Titan 0533633 nipple, and Titan 0533634 spray-hose outlet fitting. Use the diagram to determine whether the repair requires the complete packaged fluid section, a structural component, a connection fitting, or only the associated fastening hardware.

Main Functions

Functions Supported by the Assembly

Moves coating through the packaged fluid section for high-pressure spray delivery.
Routes material into the pump through the inlet elbow and associated fitting.
Connects the pump outlet to the high-pressure spray hose.
Supports and positions the motor-pump arrangement with the bracket and stanchion.
Retains assembly components with the specified screws, washers, cotter pin, and tee nuts.

Service Applications

When Contractors Use This Diagram

Poor material flow, pressure loss, or inconsistent pump output.
Leaks at the inlet elbow, fitting, nipple, or outlet connection.
Damaged spray-hose outlet threads or a loose hose connection.
Bent, cracked, displaced, or loose structural supports.
Missing, stripped, corroded, or repeatedly loosening assembly hardware.

Troubleshooting & Maintenance

Common PowrCoat 630 Motor Pump Assembly Symptoms

Relieve fluid and air pressure before service. Clean the area, identify the exact leak or movement point, and diagnose connected systems before replacing a component.

Operating symptom	Areas to inspect	Recommended action
Pressure loss or weak output	0533254 fluid section, inlet connection, outlet fitting, suction path, filter, hose, and spray tip	Confirm that intake and outlet restrictions are absent before replacing the Titan 0533254 Fluid Section.
Leak at the pump inlet	0533631 elbow, 0533632 fitting, threads, mating surfaces, seals, and suction connection	Clean and depressurize the area, then inspect the Titan 0533631 Inlet Elbow and adjoining fitting separately.
Leak at a threaded connection	0533632 fitting, 0533633 nipple, damaged threads, sealing surfaces, alignment, and over-tightening	Identify the exact leaking joint before replacing either the Titan 0533632 Fitting or the connected nipple.
Hose connection leaks or will not tighten	0533634 outlet fitting, hose-end threads, swivel, sealing face, and pressure damage	Inspect the hose end and Titan 0533634 Spray Hose Outlet Fitting independently before replacement.
Assembly shifts or vibrates	0533450 bracket, 0533625 stanchion, screws, washers, cotter pin, tee nuts, and mounting surfaces	Stop operation and inspect the Titan 0533450 Bracket, stanchion, and all attachment points for cracking or deformation.
Fasteners repeatedly loosen	0533463 and 0533448 screws, 51357 and 0509292 lock washers, 0533628 washer, 9805466 tee nuts, and mating threads	Match each fastener to its exact callout and correct vibration, stripped threads, or misalignment before fitting replacement hardware.

Major Replacement Components

High-Value PowrCoat 630 Motor Pump Assembly Parts

These genuine listed components cover the principal pump, structural, inlet, connection, and outlet service positions.

Packaged Pump Assembly

Titan 0533254 Fluid Section

The principal packaged fluid-section component shown at callout 13 for restoring coating movement and pump-side delivery.

View Titan 0533254

Structural Bracket

Titan 0533450 Bracket

A mounting bracket positioned within the motor-pump arrangement to support alignment and secure associated components.

View Titan 0533450

Vertical Support

Titan 0533625 Stanchion

A structural support used to position and stabilize associated motor-pump and equipment-support components.

View Titan 0533625

Inlet Connection

Titan 0533631 90° Inlet Elbow

The illustrated ninety-degree inlet elbow that routes coating into the fluid section at the identified connection point.

View Titan 0533631

Fluid Connection

Titan 0533632 Fitting

A threaded fluid-system fitting shown at callout 15 between related motor-pump connection components.

View Titan 0533632

Hose Outlet

Titan 0533634 Spray Hose Outlet Fitting

The high-pressure outlet connection used to attach the spray hose to the pump-side fluid path.

View Titan 0533634

Parts Selection Guide

How to Order the Correct Motor Pump Assembly Part

STEP 1

Locate the affected area

Determine whether the issue involves the packaged fluid section, structural support, inlet, threaded connection, outlet, or fastening hardware.

STEP 2

Confirm the machine

Verify that the equipment is a Titan PowrCoat 630 and record available serial, configuration, or revision information.

STEP 3

Match the callout

Match the illustrated item number to the complete part number and component description.

STEP 4

Inspect adjoining parts

Check mating threads, hose ends, sealing faces, washers, retaining hardware, and mounting points before ordering.

Preventive Care

Maintenance Practices That Protect the Assembly

Relieve fluid pressure and close and vent the compressed-air supply before service.
Clean coating residue from inlet and outlet connections before it hardens.
Inspect threaded fittings and hose connections for leakage, galling, or damaged sealing faces.
Watch for pressure loss, erratic output, or fluid leakage from the packaged fluid section.
Inspect the bracket and stanchion for cracking, bending, corrosion, and loose mounting points.
Replace stripped, distorted, missing, or corroded fasteners with the exact diagram-specified hardware.

Complete Repair Planning

Build a More Complete PowrCoat 630 Motor Pump Repair

Fluid-section repairs should include the inlet elbow, fitting, nipple, outlet fitting, hose end, suction path, filter system, and any sealing surfaces disturbed during service. A new packaged fluid section will not correct an external restriction, damaged hose connection, or leaking threaded joint.

Structural repairs should include the bracket, stanchion, screws, lock washers, flat washer, cotter pin, tee nuts, mating threads, and mounting surfaces. Correct distortion, stripped threads, or alignment problems before tightening replacement hardware.

Fast Parts Navigation

Shop Major Motor Pump Assembly Components

Open the required product page, then confirm its callout and part number against the PowrCoat 630 diagram.

Fluid Section · 0533254 Bracket · 0533450 Stanchion · 0533625 Inlet Elbow · 0533631 Fitting · 0533632 Hose Outlet · 0533634

FAQ Section

PowrCoat 630 Motor Pump Assembly FAQs

Contractor-focused answers for identifying and servicing the listed components.

What type of page is this?+

It is an exploded-parts-diagram category for the external PowrCoat 630 motor-pump assembly components, including supports, fastening hardware, a packaged fluid section, and inlet and outlet connection parts.

Which parts form the fluid path on this page?+

Titan 0533254 is the packaged fluid section. Titan 0533631 is the inlet elbow, 0533632 is a fitting, 0533633 is a nipple, and 0533634 is the spray-hose outlet fitting.

Is Titan 0533254 an individual internal wear part?+

No. It is listed as a packaged fluid-section assembly. Use the separate fluid-pump diagram when selecting individual internal valves, packings, rods, balls, seats, or seals.

What should be inspected with the bracket and stanchion?+

Inspect screws, washers, cotter pin, tee nuts, mating surfaces, welds, alignment, corrosion, and any adjoining support or mounting point.

Can a leaking inlet elbow cause priming problems?+

Yes. A damaged elbow, loose fitting, defective sealing surface, or suction-side air leak can reduce material pickup and cause slow or unstable priming.

Why can a hose outlet leak after tightening?+

Possible causes include damaged threads, a worn hose-end swivel, a distorted sealing face, contamination, misalignment, or damage to Titan 0533634 itself.

Should hardware be ordered by dimensions alone?+

No. Match the item number and exact Titan part number because thread, length, washer type, retaining function, and installed position may differ.

What should be checked before replacing the complete fluid section?+

Inspect the suction supply, filters, inlet connection, outlet fitting, hose, spray tip, coating viscosity, air supply, and observable leak points before condemning the packaged assembly.

How is PowrCoat 630 compatibility confirmed?+

Use the machine identification and PowrCoat 630 motor-pump exploded illustration, then match the numbered callout to the exact product part number.

What safety steps are required before service?+

Relieve fluid pressure, lock the spray gun, close and vent the compressed-air supply, ground the equipment, and follow the applicable Titan service procedure before disassembly.

Find the Correct Replacement Part

Service Your PowrCoat 630 With Diagram-Matched Motor Pump Parts

Browse the packaged fluid section, supports, inlet and outlet fittings, threaded connections, and exact retaining hardware shown in the assembly.

Search using:

Titan part number
Motor-pump callout
Component name
Leak location
Operating symptom
