Nine Verified Model Families
Navigate directly to PowrCoat 630 through PowrCoat 1072 model-specific parts categories.
30:1 to 75:1 Ratios
The documented family spans several pressure ratios and must be serviced by exact model.
Diagnosis Before Ordering
Inspect the installed component, connected hardware, and operating symptom before replacement.
Four Active Product Listings
Only the four current products displayed on the supplied family page are linked below.
Assembly Overview
The supplied page is a machine-family category page whose primary purpose is to route users into model-specific replacement-parts structures. Titan documents Severe Service fluid sections, high-capacity outlet filters, AirCare filter-regulator-lubricator equipment, and cart or wall-mount configurations across this series, while pressure ratio, pump construction, and configuration numbers vary by model.
| Model page | Ratio | Maximum operating pressure | Cart configuration | Wall-mount configuration |
|---|---|---|---|---|

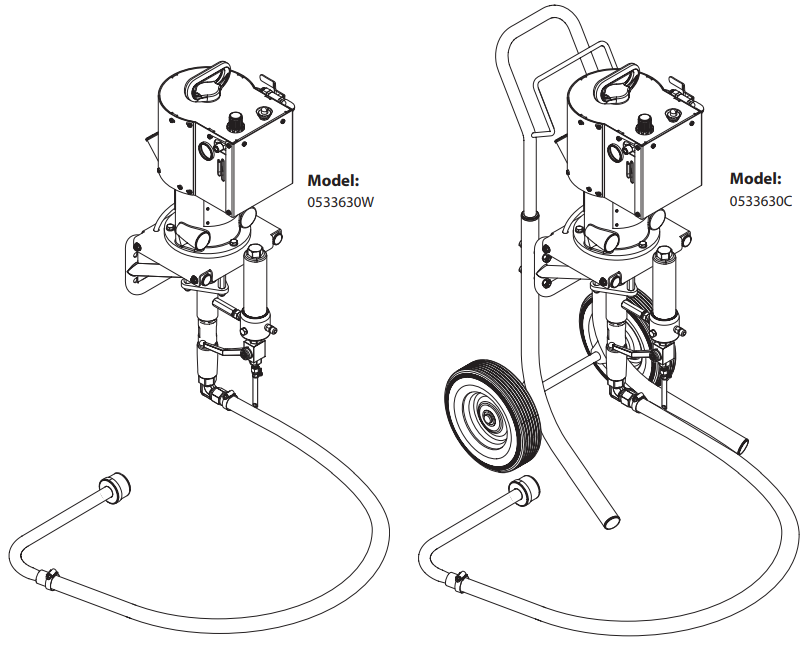

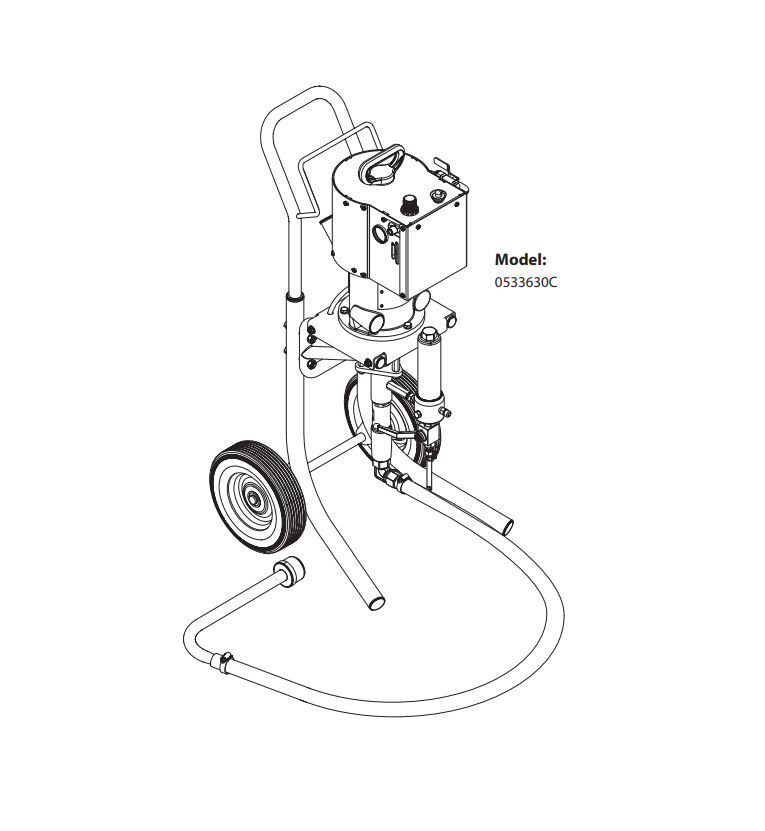

| PowrCoat 630 | 30:1 | 3,480 PSI | 0533630C | 0533630W |

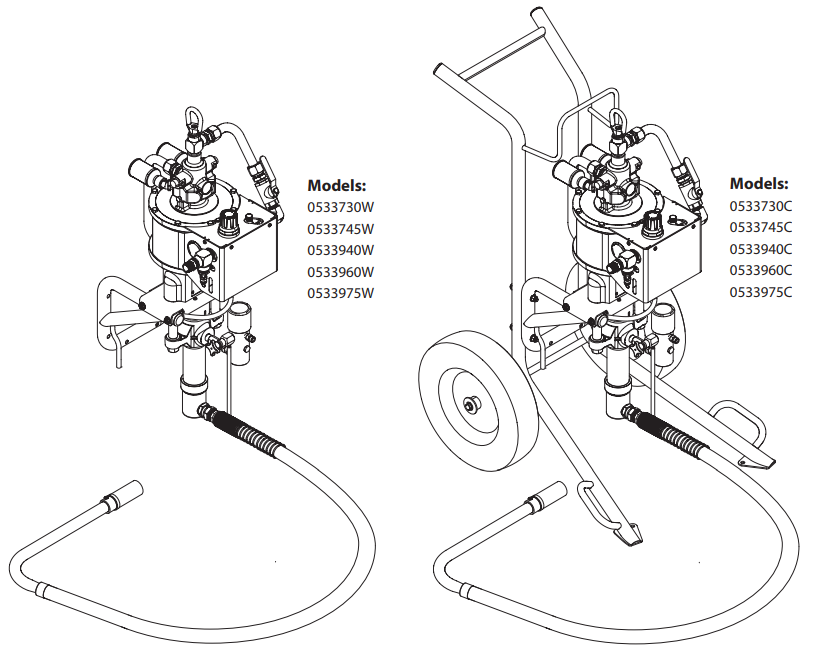

| PowrCoat 730 | 30:1 | 3,000 PSI | 0533730C | 0533730W |

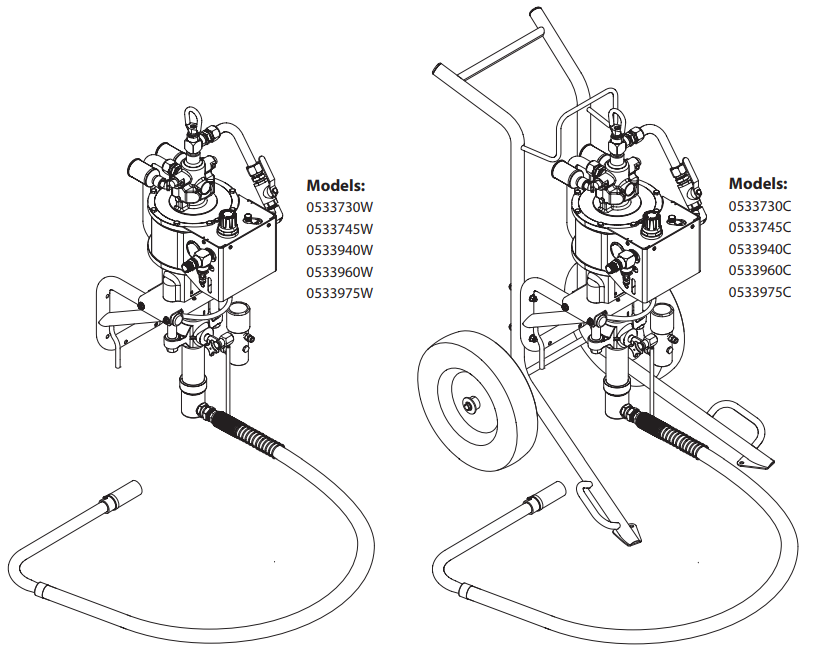

| PowrCoat 745 | 45:1 | 4,500 PSI | 0533745C | 0533745W |

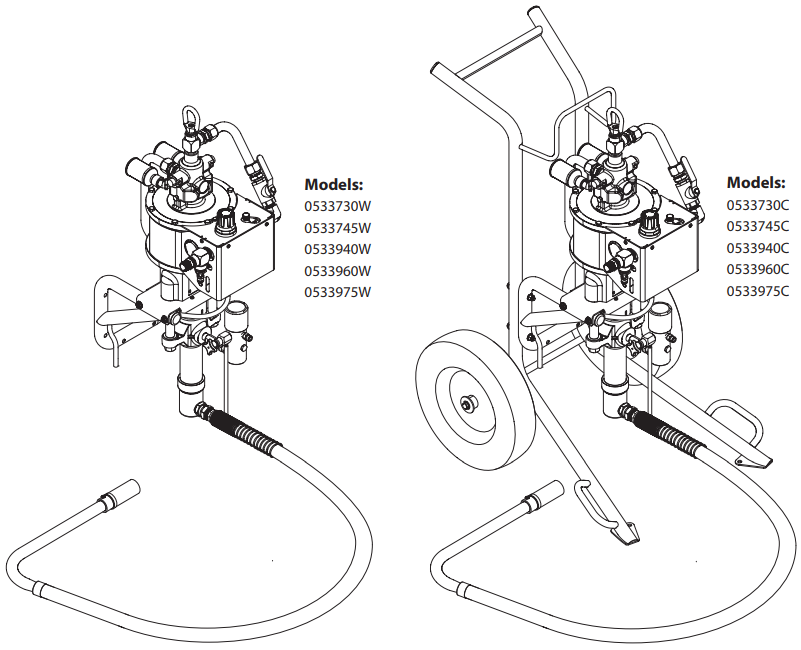

| PowrCoat 940 | 40:1 | 4,000 PSI | 0533940C | 0533940W |

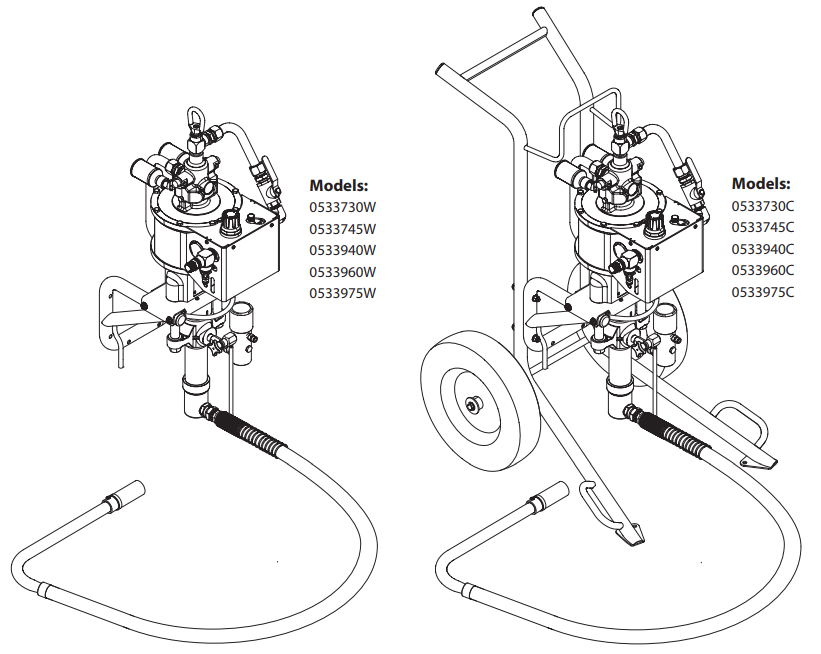

| PowrCoat 960 | 60:1 | 6,000 PSI | 0533960C | 0533960W |

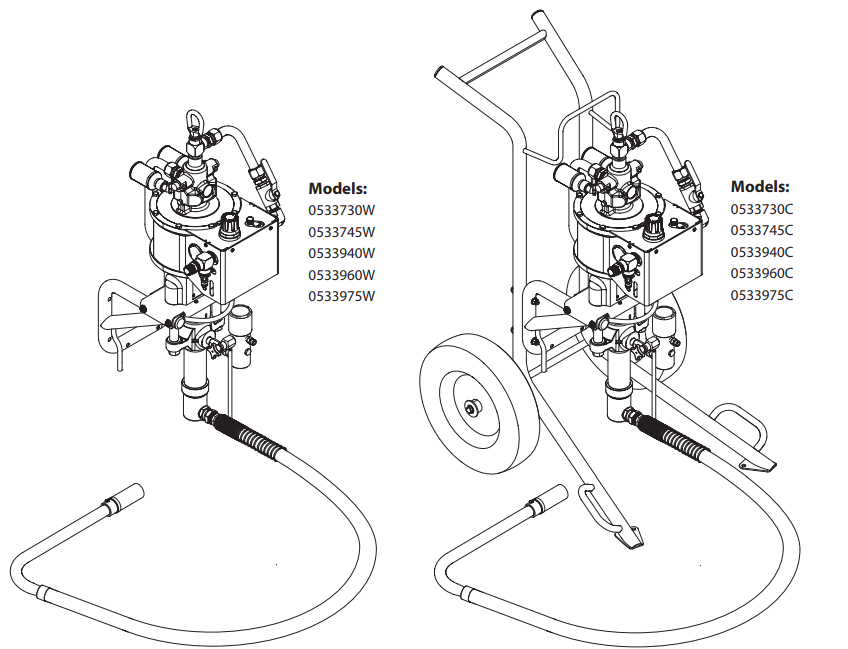

| PowrCoat 975 | 75:1 | 7,500 PSI | 0533975C | 0533975W |

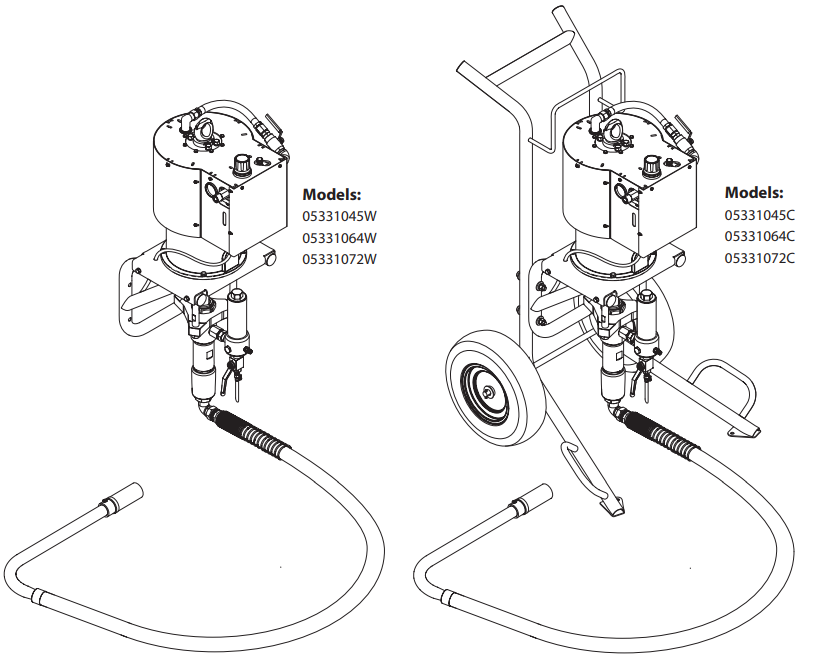

| PowrCoat 1045 | 45:1 | 4,500 PSI | 05331045C | 05331045W |

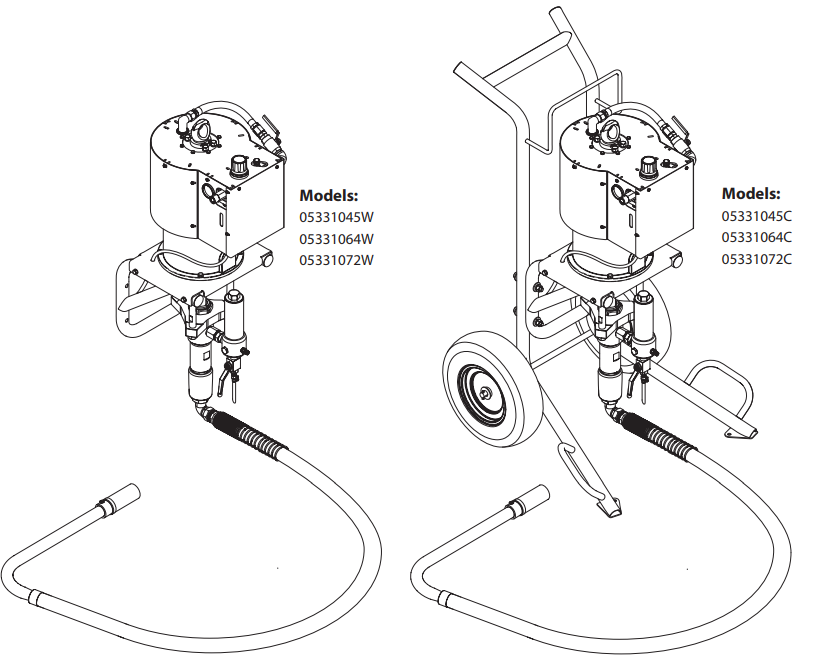

| PowrCoat 1064 | 64:1 | 6,400 PSI | 05331064C | 05331064W |

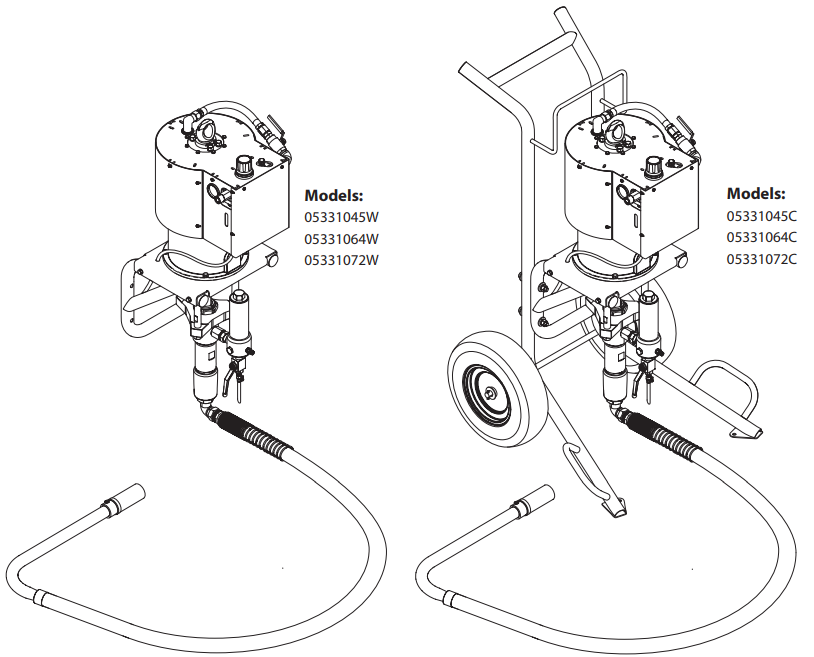

| PowrCoat 1072 | 72:1 | 7,200 PSI | 05331072C | 05331072W |
Functions Supported by the Assembly
Model-First Parts Navigation
Directs buyers to the correct PowrCoat machine before selecting assemblies or components.
Configuration Verification
Separates cart and wall-mount numbers to reduce structural and mounting-part errors.
Service-System Identification
Supports navigation toward pumps, filters, AirCare systems, bleed components, manifolds, and accessories.
Commercial Parts Selection
Connects technical identification and diagnosis with active products and model-specific purchasing paths.
Service Applications
Use this PowrCoat family hub for maintenance planning, model identification, repair-shop estimating, fleet parts sourcing, assembly research, breakdown diagnosis, configuration confirmation, and access to model-specific replacement parts for industrial and protective coating equipment.
High-Value Replacement Parts
These four products are active listings displayed on the supplied PowrCoat Series page. Their presence on a family hub does not establish universal PowrCoat compatibility.
Active product shown
View Titan 704-598Titan 704-598 Set Screw
A live product displayed on the supplied PowrCoat family page. Confirm the exact model, assembly, mating component, and diagram position before ordering.
Active product shown
View Titan 541-009Titan 541-009 Hex Bushing
A live product displayed on the supplied PowrCoat family page. Confirm the exact model, assembly, mating component, and diagram position before ordering.
Active product shown
View Titan 0509845Titan 0509845 Serrated Washer Head Screw
A live product displayed on the supplied PowrCoat family page. Confirm the exact model, assembly, mating component, and diagram position before ordering.
Active product shown
View Titan 433-021Titan 433-021 Engine Mounting Pad
A live product displayed on the supplied PowrCoat family page. Confirm the exact model, assembly, mating component, and diagram position before ordering.
Buying Guide
1. Identify the model
Confirm whether the machine is a 630, 730, 745, 940, 960, 975, 1045, 1064, or 1072.
2. Confirm the configuration
Distinguish the documented cart and wall-mount configuration before selecting structural parts.
3. Locate the assembly
Use the model page to find the exact pump, filter, manifold, bleed, mount, or accessory section.
4. Match and diagnose
Compare the part number and diagram position, then confirm the component caused the symptom.
Maintenance
Follow the operating and service instructions for the exact PowrCoat model. Relieve fluid pressure and isolate compressed air before inspection, maintain clean regulated air through the AirCare system, inspect outlet filtration, check mounts and fasteners, and document replaced components.
Repair Planning
A family category is the starting point, not the final compatibility check. Record the exact model, cart or wall-mount configuration, assembly name, diagram callout, installed part number, symptom, coating, and photographs before disassembly.
Fast Navigation
PowrCoat Series Parts FAQs
What type of page is PowrCoat Series Sprayer Parts?
It is a machine-family category hub that routes buyers to nine model-specific PowrCoat replacement-parts categories. It is not one exploded assembly diagram.
Which PowrCoat models are included?
The live page lists PowrCoat 630, 730, 745, 940, 960, 975, 1045, 1064, and 1072.
Do parts shown on the family page fit every PowrCoat model?
No. Family-page placement does not establish universal compatibility. Open the exact model page and verify the assembly, part number, and diagram position.
What pressure ratios are represented?
Titan documents 30:1, 40:1, 45:1, 60:1, 64:1, 72:1, and 75:1 ratios across the nine models.
What is the maximum operating-pressure range?
Titan documents 3,000 PSI for the PowrCoat 730 through 7,500 PSI for the PowrCoat 975.
What systems are documented across PowrCoat models?
Titan documents Severe Service fluid sections, high-capacity outlet filters, AirCare filter-regulator-lubricator equipment, and heavy-duty cart or wall-mount configurations.
How should the correct replacement part be identified?
Start with the full model number, open its model page, identify the affected assembly, and compare the exact part number and diagram callout.
Why should diagnosis precede fastener or fitting replacement?
Looseness or leakage may originate from worn mating threads, misalignment, vibration, contamination, or another connected component.
Which active products are shown on the family page?
The page displays Titan 704-598, 541-009, 0509845, and 433-021 as active product listings.
How do cart and wall-mount configurations differ?
Titan assigns separate cart and wall-mount part numbers to each PowrCoat model. Verify the complete configuration before ordering structural components.
What maintenance supports PowrCoat service life?
Use clean regulated air, maintain the AirCare system, inspect outlet filtration, follow pressure-relief procedures, and keep mounts and fasteners secure.
What should a repair shop record before disassembly?
Record the model, configuration, assembly, part number, diagram position, symptom, pressure setting, coating, and installation photographs.
Move From Model Identification to the Correct Parts Page
Select the exact PowrCoat model, confirm the configuration, identify the affected assembly, and diagnose the symptom before choosing a replacement.
Search using:
- Exact Titan part number
- Complete PowrCoat model and configuration
- Assembly or component name
- Operating symptom or diagram item
