Assembly Overview
The PowrCoat 745 page is a machine-model category hub rather than one exploded diagram. It organizes the verified service routes below for the machine’s main structure, pneumatic motor, fluid-delivery system and high-pressure filtration. The documented maximum operating pressure is 4,500 PSI, and the maximum air input used for this model family is 100 PSI.
| Verified item | PowrCoat 745 data | Ordering relevance |
|---|---|---|
| Configurations | 0533745C cart / 0533745W wall | Determines mounting and configuration-specific components. |
| Pressure ratio | 45:1 | Supports correct air-to-fluid pressure diagnosis. |
| Maximum pressure | 4,500 PSI | Connected equipment must meet required pressure ratings. |
| Fluid-pump route | 155-559 | Use the exact fluid-pump diagram before internal service. |
Functions Supported by the Assembly
Pneumatic Drive
Regulated compressed air operates the reciprocating air motor.
Fluid Pressurization
The model-specific fluid pump converts motor motion into high-pressure coating delivery.
Air Conditioning
Filtration, regulation and lubrication protect pneumatic operation where fitted.
Outlet Filtration
The high-pressure filter reduces downstream contamination and tip plugging.
Service Applications
Use this model hub for industrial protective-coating equipment service, corrosion-control work, structural-steel and fabrication projects, high-build coating operations, repair-shop diagnosis, planned maintenance, parts identification and purchasing control.
High-Value Replacement Parts Routes
These cards contain only live, verified PowrCoat 745 category destinations from the supplied model page. Unconfirmed and discontinued rotating products are excluded.
Verified live category
Open Verified DiagramPowrCoat 745 Main Assembly Parts
Use this confirmed model-specific diagram to identify the affected assembly, match the numbered callout, and verify the complete Titan part number before ordering.
Verified live category
Open Verified DiagramPowrCoat 745 Air Motor Assembly Parts
Use this confirmed model-specific diagram to identify the affected assembly, match the numbered callout, and verify the complete Titan part number before ordering.
Verified live category
Open Verified DiagramPowrCoat 745 Fluid Pump Assembly (155-559) Parts
Use this confirmed model-specific diagram to identify the affected assembly, match the numbered callout, and verify the complete Titan part number before ordering.
Verified live category

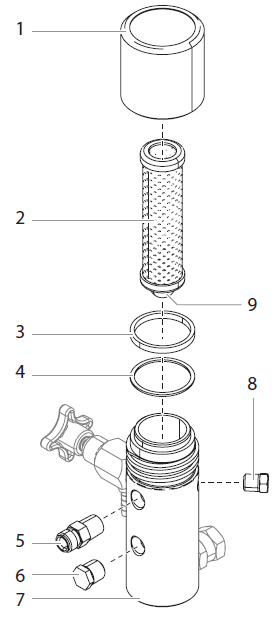

Open Verified DiagramPowrCoat 745 High Pressure Filter Parts
Use this confirmed model-specific diagram to identify the affected assembly, match the numbered callout, and verify the complete Titan part number before ordering.
Buying Guide
1. Confirm configuration
Identify cart 0533745C or wall 0533745W.
2. Select the diagram
Choose the confirmed main, air-motor, fluid-pump or filter route.
3. Match the callout
Compare the numbered item with every digit of the Titan part number.
4. Inspect the group
Check adjoining seals, fittings, fasteners, filters and mating surfaces.
Maintenance
Relieve fluid pressure, engage the trigger safety, shut off and vent compressed air, and stabilize the equipment before service. Maintain clean, dry, regulated and lubricated air; clean intake and outlet filters; inspect suction connections, mounts, hoses and visible fluid fittings.
Repair Planning
Photograph the installed configuration and record the symptom, model, cart or wall number, affected assembly, diagram callout and visible part number. Build the repair list only after connected seals, fittings, fasteners, filters, valve surfaces, supports and mating components are inspected.
Fast Navigation
PowrCoat 745 Parts FAQs
What type of page is the PowrCoat 745 page?
It is a machine-model category hub that directs users to separate PowrCoat 745 assembly and exploded-parts pages.
What is the verified PowrCoat 745 pressure ratio?
The verified pressure ratio is 45:1.
What is the verified maximum operating pressure?
The verified maximum operating pressure is 4,500 PSI.
Which machine configurations should be checked?
Confirm cart model 0533745C or wall-mount model 0533745W before selecting structural or configuration-specific components.
Which fluid-pump route should be used?
Use the model-specific fluid-pump page associated with 155-559 and verify the diagram callout before ordering.
Why should the high-pressure filter be inspected during pressure-loss diagnosis?
Filter restriction can reduce downstream flow and contribute to pressure instability or tip plugging. Clean and test the filter before assuming pump wear.
What should be inspected when the air motor cycles irregularly?
Check air supply, filtration, regulation, lubrication, tubing, fittings, valve-trip components and fluid-pump binding before rebuilding the motor.
How should a replacement part be ordered accurately?
Confirm the model configuration, open the correct assembly diagram, match the numbered callout and verify every digit of the Titan part number.
Why should diagnosis come before replacement?
A visible symptom can originate from an upstream restriction, air leak, loose connection, contaminated filter, damaged mating surface or another connected component.
What should a repair shop document before disassembly?
Record the model, configuration, assembly, callout, visible part number, symptom, coating, pressure setting and installation photographs.
Are cart and wall-mount parts automatically interchangeable?
No. Configuration-specific structures, supports and intake arrangements must be verified against the exact model page.
What output information is confirmed for this page?
114 cc per cycle; 2.8 GPM maximum recommended delivery. Verify the installed configuration and official service information before using output data for setup decisions.
