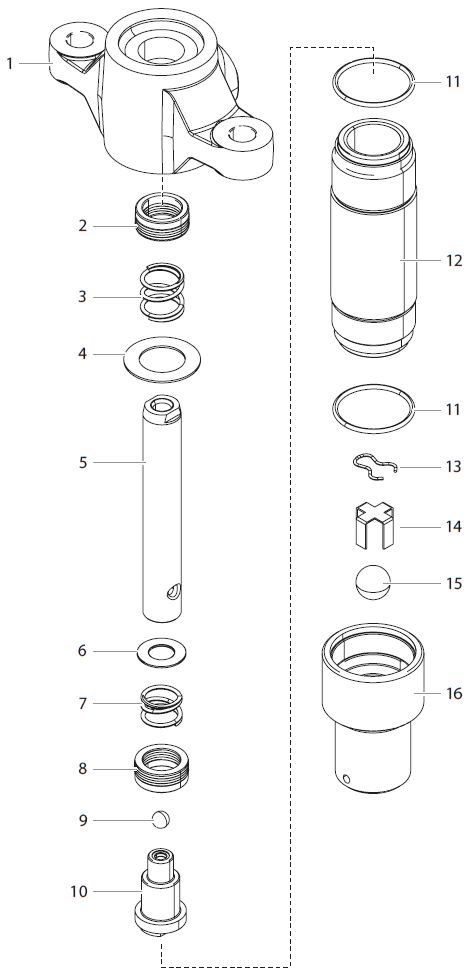

PowrCoat 745 High-Pressure Fluid Section · Pump 155-559
Shop diagram-matched components for the PowrCoat 745 Fluid Pump Assembly 155-559, including the lower pump block, packing sets, washers, displacement rod, piston check components, cylinder seals, hard-chrome cylinder, inlet ball hardware, and complete foot valve. Each retained part appears on the supplied category and agrees with Titan’s official 155-559 parts table.
This page is an exploded fluid-pump replacement-parts category for PowrCoat 745 models 0533745C and 0533745W. Titan also documents the same pump on PowrCoat 960 models. On the 745, the motor-pump ratio is 45:1.
Air-motor motion drives the 155-982 displacement rod through upper and lower packing sets. The piston ball and seat control internal transfer during alternating strokes, while the foot-valve ball, cage, stop, and housing admit coating and prevent reverse flow.
Relieve pressure first. Check coating viscosity, container level, siphon condition, bleed valve, filters, gun, tip, hose, and air supply before opening the pump.
Only parts listed on the supplied page and confirmed in Titan’s 155-559 table are included.
The official position-1 lower pump block supports the upper packing cavity, cylinder connection, displacement rod alignment, and fluid routing.

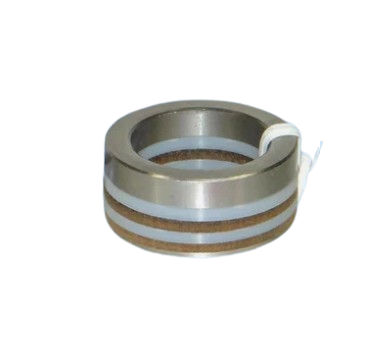

Titan lists 155-053A as the leather/polyethylene packing option at both the upper and lower packing positions in the 155-559 pump.
The official position-4 washer supports the upper packing and spring stack inside the pump block.

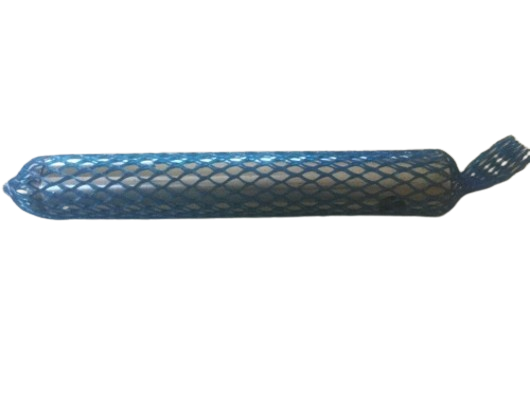

The hard-chrome displacement rod travels through the packing sets and transfers air-motor motion into fluid displacement.

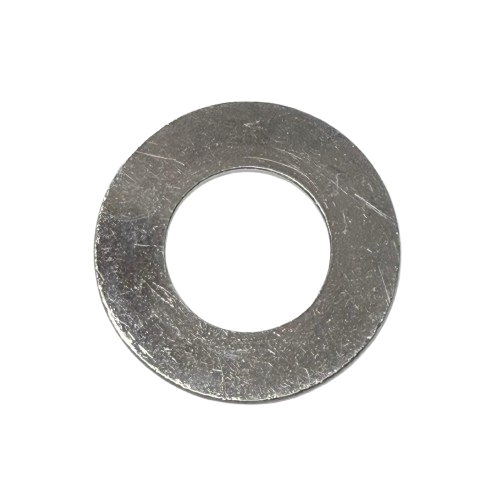

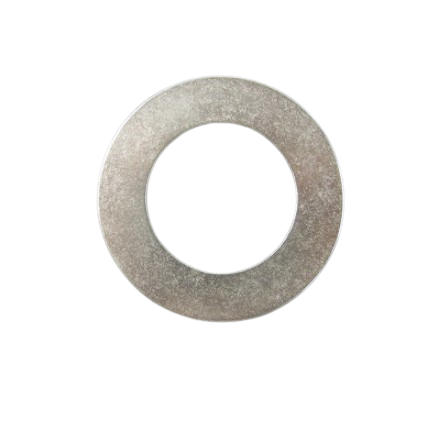

The official position-6 washer supports the lower packing spring and piston-side sealing stack.

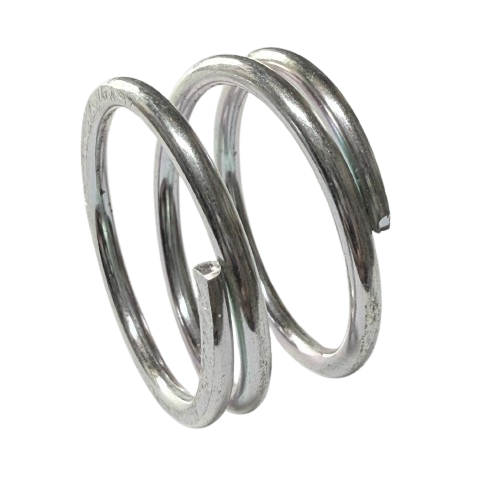

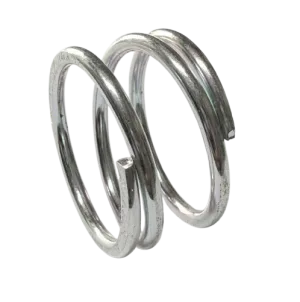

Maintains controlled loading on the lower packing assembly as the displacement rod cycles.
The position-9 piston ball opens and reseats during alternating strokes to control material movement through the piston valve.
Provides the seating surface for the 155-225 ball and threads to the lower end of the displacement rod.

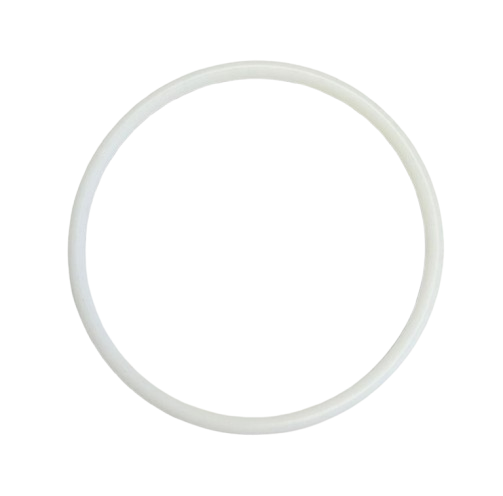

Two documented O-rings seal the cylinder and foot-valve interfaces without requiring excessive tightening.

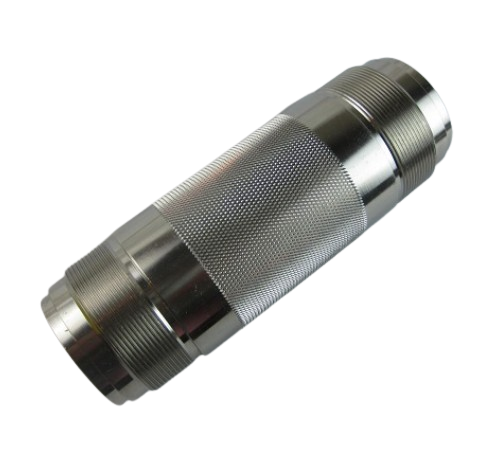

Provides the hard-chrome operating bore for the displacement rod, packing sets, and pressure-generating stroke.

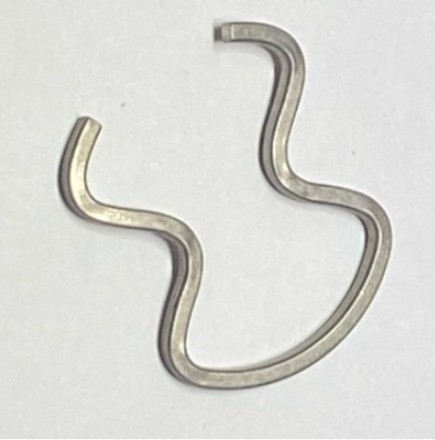

Limits inlet-ball travel inside the foot-valve assembly so the ball can open and reseat predictably.
Guides the foot-valve ball and maintains its relationship to the inlet seat during pump cycling.
The documented position-15 inlet ball controls material entry and prevents reverse flow during the pressure stroke.
The complete position-16 foot-valve housing supports the inlet ball, cage, stop, seal, and siphon-hose connection.
Verify PowrCoat 745 or 960 and the exact exploded diagram.
Use upstroke, downstroke, priming, leakage, and pressure behavior.
Check rod, cylinder, seats, block bores, and threaded interfaces together.
Confirm upper or lower packing, exact material option, quantity, and callout.
For sealing problems, inspect the pump block, packing sets, spring and washer stacks, displacement rod, cylinder, O-rings, and lubricant condition as a complete dynamic sealing system.
For stroke or priming problems, inspect the 155-225 piston ball and 155-921 seat, then the 0509707 inlet ball, 174-102 cage, 174-112 stop, 155-991 foot valve, siphon hose, and coating condition. Diagnose both check-valve stages before replacing parts.
