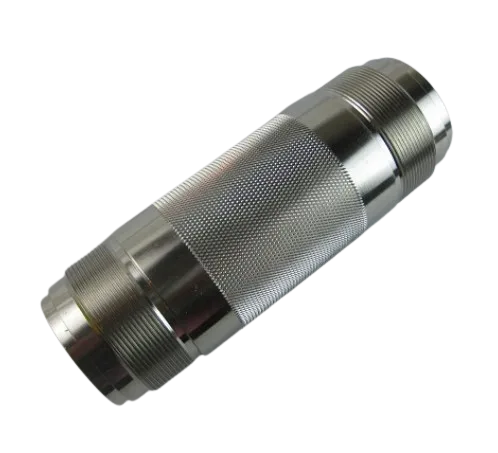

Titan 155-932 Pump Cylinder
OEM Titan Fluid Section Component
Titan 155-932 Pump Cylinder is an OEM precision cylinder bore that guides displacement rod movement and allows packings to create an effective pressure seal in compatible Commander, Admiral 155-559, PowrCoat 745, and PowrCoat 960 spray systems, restoring smooth piston travel and reliable fluid transfer.
Compatibility Overview
Replacement pump cylinder restores smooth piston travel, improves sealing efficiency, extends packing life, and maintains dependable spray pressure. For related components, see the Titan Air Powered Airless Sprayer Parts collection.
Titan Fluid Section Component Replacement
Titan 155-932 Pump Cylinder for Commander, Admiral, and PowrCoat Systems
Titan 155-932 is an OEM pump cylinder engineered to provide the precision internal bore through which the displacement rod travels in compatible Commander, Admiral 155-559, PowrCoat 745, and PowrCoat 960 spray systems. This component allows the packing assemblies to seal correctly while maintaining efficient fluid transfer. The official Titan service manual specifies that the cylinder should be inspected and rejected if the hard chrome is grooved or worn through to gray metal. Replacing a worn or scored cylinder restores pressure consistency, improves sealing performance, extends packing life, and helps keep the sprayer operating at peak efficiency.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | OEM Titan / Speeflo pump cylinder manufactured for Commander Air Powered Airless Sprayer fluid section rebuilding. Provides the precision cylinder bore that guides displacement rod movement and allows packings to create an effective pressure seal. |
| Function | Houses the displacement rod and provides the precision bore surface against which the packings seal. The cylinder is unthreaded and removed during service to access the internal valve and packing components. A smooth, hard-chrome bore is essential for effective sealing and efficient fluid transfer. |
| Compatible Systems | Commander Air Powered Airless Sprayer; Admiral 155-559 Fluid Pump Assembly; PowrCoat 745; PowrCoat 960. Verify fit using the correct parts diagram for your exact model and serial number. |
| Industrial Applications | Professional painting, industrial coatings, protective coatings, manufacturing, commercial maintenance, and heavy-duty airless spraying. |
| Related Parts Commonly Serviced Together | Displacement rod, piston seat assembly, stainless ball, pump block, upper packing set, lower packing kit, O-rings, major pump service kit, and minor pump service kit. |
| Common Problems Solved | Scored cylinder walls, pressure loss, excessive packing wear, internal leakage, inconsistent spray pressure, poor pump efficiency, and difficult priming. |
| Signs Replacement Is Needed | Scored cylinder walls, hard chrome grooved or worn through to gray metal, pressure loss, excessive packing wear, internal leakage, and inconsistent spray pressure. |
| Installation & Maintenance | During reassembly, lubricate the threaded ends of the cylinder including the new O-rings to protect them, then thread the cylinder into the pump block. Do not overtighten the cylinder or foot valve into the pump block. Inspect the cylinder chrome for grooves, dents, or worn areas and replace if hard chrome is damaged. |
| Commercial Benefits | Restores pump efficiency, protects new packings, minimizes downtime, extends fluid section service life, and helps contractors maintain maximum spraying productivity. |
The 155-932 Pump Cylinder is a critical component in the fluid section of Commander, Admiral, and PowrCoat sprayers. Because the pump cylinder forms the primary working surface inside the fluid section, replacing it whenever scoring or excessive wear is present helps prevent premature packing failure and restores reliable spraying performance. The official service manual specifies that the cylinder should be rejected if the hard chrome is grooved or worn through to gray metal. During reassembly, lubricate the threaded ends of the cylinder and new O-rings before threading the cylinder into the pump block, and do not apply excessive force when tightening the cylinder or foot valve. Use genuine Titan components to ensure proper fit, correct material specifications, and reliable long-term operation. For related Titan air-powered sprayer components, see the Titan Air Powered Airless Sprayer Parts and Air Powered Airless Sprayer Parts collection.
Frequently Asked Questions
Quick contractor-focused answers for confirming fitment, function, and service value.
