Assembly Overview

How the PowrCoat 745 Air Motor Produces Reciprocating Pump Motion

This page is an exploded replacement-parts category for the 700-series pneumatic motor used on PowrCoat 745 cart model 0533745C and wall model 0533745W. Titan lists the same 36 component positions for PowrCoat 730 and 745.

Compressed air enters through the adapter and air tube, passes through the cylinder-head valve system, and acts on the 738-997 piston. The trip mechanism reverses the 740-925 air valve near each stroke end, while the piston rod transfers reciprocating movement to the fluid pump.

Main Functions

Functions Supported by the Air Motor Assembly

Converts compressed air into reciprocating piston movement.
Reverses airflow at the upper and lower stroke limits.
Transfers motor motion through the piston rod to the fluid pump.
Contains and seals operating air within the head and cylinder.
Provides grounded pneumatic drive support for continuous spraying.

Service Applications

When Contractors Use This Air-Motor Diagram

Motor stalls or fails to reverse at a stroke end.
Continuous air leaks occur from the head or cylinder interfaces.
Motor cycles slowly despite adequate regulated air pressure.
Piston movement is rough, inconsistent, or mechanically noisy.
Scheduled seal service or a complete valve-train inspection is required.

Troubleshooting

PowrCoat 745 Air-Motor Symptoms and Inspection Priorities

Verify air supply, regulator setting, lubricator operation, moisture condition, fluid-pump load, and pressure relief before internal disassembly. Replace parts only after the fault is isolated.

Operating symptom	Inspection points	Recommended action
Motor stalls at one stroke end	743-012 assembly, 743-011 rod, 743-227 collar, 740-925 valve, 742-913 sleeve, keepers, springs, balls, and contamination	Clean and inspect the complete valve-reversal train before replacing the rod assembly or air valve.
Continuous air leakage at motor head	0533323A head, 742-913 sleeve, 742-223 O-rings, 742-001 O-rings, tube, adapter, valve surfaces, and bores	Identify the leak path and inspect hard-part bores before installing Titan 742-051 Air Motor Minor Service Kit.
Motor loses power or cycles slowly	regulated pressure, air restriction, lubricator, piston O-ring, 738-997 piston, 738-952 cylinder, wear ring, pump load, and coating pressure	Confirm adequate air volume and disconnect excessive pump load before replacing piston or seal components.

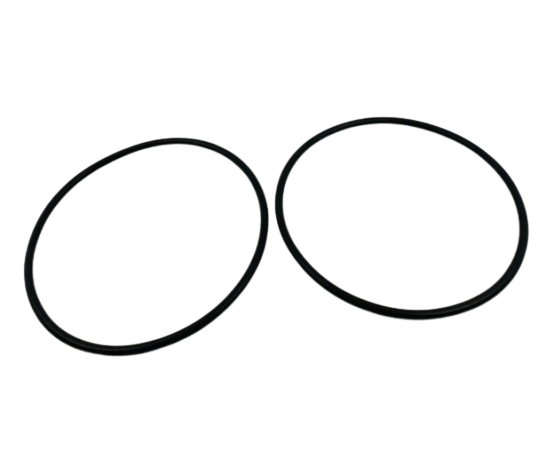

Rough or jerky piston movement	738-997 piston, 426-016 O-ring, 738-952 cylinder bore, 742-224 wear ring, piston rod, lubrication, scoring, and contamination	Inspect the piston and cylinder together; do not install a new seal against a scored operating surface.
Air leaks at inlet tubing	9885635 adapter, 0533334 tube, 9885634 elbow, threads, tube seating, cracks, and upstream fittings	Locate the exact leaking connection and inspect the tube end before replacing Titan 9885635 Tube Adapter.
Motor or pump movement is mechanically noisy	738-985 piston nut, 742-005 washer, 743-011 rod, 738-937 piston rod, piston, cylinder, retainers, and connected fluid pump	Stop operation and inspect fastening and alignment before replacing any moving component.

Verified Replacement Components

High-Value PowrCoat 745 Air-Motor Parts

Each card represents a genuine component or service assembly listed on the supplied page and confirmed in Titan’s official 730/745 air-motor documentation.

Minor Motor Service Kit

Titan 742-051 Air Motor Minor Service Kit

Includes the official wear and sealing positions 5–7, 11–12, 15, 18–19, 25, 28, and 30–31 for routine 700-series air-motor rebuilding.

View Titan 742-051

Valve Reversal Assembly

Titan 743-012 Valve Rod and Spring Assembly

Includes items 12, 23, and 27 and restores the linkage that helps reverse air-valve direction at the end of each motor stroke.

View Titan 743-012

Cylinder Head

Titan 0533323A Air Motor Head

Forms the upper 700-series motor structure and houses the trip, valve-sleeve, air-valve, and sealing components.

View Titan 0533323A

Valve Sleeve

Titan 742-913 Brass Valve Sleeve

Guides the air valve and works with three 742-223 sleeve O-rings to control directional airflow through the motor head.

View Titan 742-913

Air Valve

Titan 740-925 Valve Spool

The official item 14 air valve that redirects compressed air to reverse piston travel and maintain continuous pump cycling.

View Titan 740-925

Valve Rod

Titan 743-011 Valve Rod Assembly

Transfers trip movement through the air-motor valve mechanism and is also included in the complete 743-012 assembly.

View Titan 743-011

Air Piston

Titan 738-997 Piston

Converts compressed-air force into reciprocating motion inside the 738-952 cylinder to drive the connected fluid pump.

View Titan 738-997

Piston Rod

Titan 738-937 Piston Rod

Transfers motor-piston movement toward the fluid pump and forms part of the 743-012 valve rod and spring assembly relationship.

View Titan 738-937

Motor Cylinder

Titan 738-952 Air Cylinder

Provides the precision bore in which the air piston travels; inspect its surface before replacing piston seals or wear components.

View Titan 738-952

Piston Guidance

Titan 742-224 Wear Ring

Supports piston alignment and limits metal contact at the lower motor interface; included in the official minor service kit.

View Titan 742-224

Grounding Component

Titan 730-165 Ground Wire Assembly

Provides the documented equipment-grounding connection at air-motor position 35 and should remain secure during operation.

View Titan 730-165

Air Inlet Adapter

Titan 9885635 Tube Adapter

The official item 36 adapter connecting the 700-series motor air path to the external pneumatic tubing.

View Titan 9885635

Buying Guide

How to Select the Correct Air-Motor Repair Part

STEP 1

Confirm the 700-series diagram

Use PowrCoat 745 model 0533745C or 0533745W and the 730/745 table.

STEP 2

Identify the failure zone

Separate air-supply, valve-reversal, piston-seal, cylinder, rod, and grounding faults.

STEP 3

Match the exact callout

Confirm position, quantity, part number, and kit inclusion before purchasing.

STEP 4

Inspect hard parts with seals

A service kit cannot repair scored bores, damaged rods, cracked heads, or worn valve surfaces.

Maintenance

Maintenance Practices That Protect the 700-Series Air Motor

Maintain clean, dry, regulated, and properly lubricated compressed air.
Investigate new air leakage before it damages mating surfaces.
Keep the valve sleeve, air valve, trip mechanism, and head passages clean.
Inspect piston, cylinder, rod, O-rings, gaskets, and wear ring together.
Verify the grounding wire remains attached and undamaged.
Relieve all air and fluid pressure before loosening motor components.

Repair Planning

Plan a Complete PowrCoat 745 Air-Motor Repair

For valve-reversal faults, inspect the trip retainers, O-rings, springs, balls, 0533323A head, 742-913 sleeve, 740-925 air valve, upper and lower keepers, 743-011 rod, 743-227 collar, and 738-937 piston rod before deciding between individual components and assembly 743-012.

For leakage or reduced power, inspect the piston O-ring, 738-997 piston, two 738-004 gaskets, 738-952 cylinder, 738-021 O-ring, 742-224 wear ring, motor base, air tube, elbow, adapter, and upstream AirCare components. Replace only the confirmed wear or damaged parts.

Fast Navigation

Shop Major PowrCoat 745 Air-Motor Components

Titan 742-051 Air Motor Minor Service Kit Titan 743-012 Valve Rod and Spring Assembly Titan 0533323A Air Motor Head Titan 742-913 Brass Valve Sleeve Titan 740-925 Valve Spool Titan 743-011 Valve Rod Assembly Titan 738-997 Piston Titan 738-937 Piston Rod Titan 738-952 Air Cylinder Titan 742-224 Wear Ring Titan 730-165 Ground Wire Assembly Titan 9885635 Tube Adapter

FAQ Section

PowrCoat 745 Air Motor Assembly FAQs

Verified answers covering model fitment, kit contents, valve reversal, leakage diagnosis, piston service, grounding, and safe repair procedures.

What type of page is the PowrCoat 745 air-motor page?+

It is an exploded replacement-parts category for the 700-series pneumatic air motor used on PowrCoat 730 and 745 cart and wall configurations.

Which PowrCoat 745 models use this diagram?+

Titan identifies cart model 0533745C and wall model 0533745W on the official 700-series air-motor illustration.

Does the PowrCoat 745 use the same air-motor parts as the 730?+

Yes. Titan’s official table lists the same part number in both the 730 and 745 columns for all 36 numbered positions.

What is included in service kit 742-051?+

Titan lists items 5–7, 11–12, 15, 18–19, 25, 28, and 30–31, covering balls, springs, O-rings, gaskets, and the wear ring.

What is included in assembly 743-012?+

Titan states that it includes stop nut item 12, valve rod assembly item 23, and piston rod item 27.

What does the air valve do?+

The 740-925 air valve redirects compressed air so the piston reverses direction at the ends of its stroke.

Why can a PowrCoat air motor stall at one end of the stroke?+

Possible causes include valve-sleeve contamination, damaged O-rings, worn keepers, a sticking air valve, damaged trip components, or a faulty valve rod and spring assembly. Diagnose the valve train before replacement.

What can cause continuous air leakage from the motor head?+

Inspect the 742-913 sleeve, 742-223 O-rings, 742-001 O-rings, valve components, head bores, tube connections, and adapter before selecting replacement parts.

Why should the piston and cylinder be inspected together?+

The 738-997 piston runs inside the 738-952 cylinder. A worn seal may not correct leakage if the piston surface or cylinder bore is scored.

When is the minor motor service kit appropriate?+

Use it when diagnosis confirms worn seals, O-rings, gaskets, balls, springs, piston O-ring, or wear ring without damage requiring major hard parts.

Why is the grounding wire important?+

The 730-165 grounding wire is the documented motor grounding component and must remain securely connected to reduce static-discharge risk.

What safety steps are required before air-motor service?+

Shut off and bleed the compressed-air supply, complete the fluid-pressure relief procedure, disconnect power sources, and verify zero stored pressure before disassembly.
