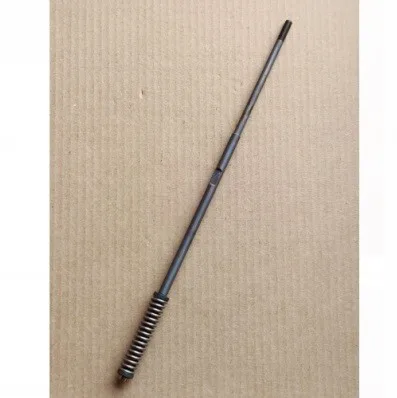

Titan 743-011 Valve Rod Assembly
OEM Titan Air Motor Trip Mechanism Component
Titan 743-011 Valve Rod Assembly is an OEM precision component that forms the central shaft of the air motor trip mechanism on compatible PowrTex, PowrCoat, Commander, and Admiral spray systems, mounting the air valve assembly and enabling proper stroke reversal and reliable reciprocating operation.
Compatibility Overview
Replacement valve rod assembly restores proper trip mechanism function, ensures correct air valve alignment, and prevents motor stalling at stroke reversal. For related components, see the Titan Air Powered Airless Sprayer Parts collection.
Titan Air Motor Trip Mechanism Component Replacement
Titan 743-011 Valve Rod Assembly for PowrTex, PowrCoat, Commander, and Admiral Systems
Titan 743-011 is an OEM valve rod assembly that forms the central shaft of the air motor trip mechanism on compatible PowrTex, PowrCoat, Commander, and Admiral spray systems. This precision component is listed in the Titan PowrCoat product manual as the "Valve rod assembly" and in the Commander air motor diagram as the component onto which the air valve assembly, valve keepers, and stop nut are mounted. The valve rod works in conjunction with the trip collar and trip springs to sense piston position and trigger stroke reversal, making it essential for smooth, continuous reciprocating operation.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | OEM Titan valve rod assembly that forms the central shaft of the air motor trip mechanism on compatible PowrTex, PowrCoat, Commander, and Admiral spray systems. Referenced in the PowrCoat product manual and Commander air motor diagram as the component onto which the air valve assembly is mounted. |
| Function | Acts as the central shaft of the trip mechanism, carrying the air valve, valve keepers, and stop nut. The valve rod moves with the piston and interacts with the trip collar and trip springs to trigger stroke reversal at the correct moment. During reassembly, the air valve assembly is mounted onto the valve rod, the upper valve keeper is threaded down and locked with the stop nut, and the valve rod is held with a wrench to prevent turning. |
| Compatible Systems | PowrTex 15:1; PowrCoat 730, 745, 940, 960, 975; Commander 742-555/742-557; Admiral 850-555/850-557. Also referenced in Speeflo Admiral cross-reference tables as a Valve Rod Assembly (Trip Rod). Verify fit using the correct parts diagram for your exact model and serial number. |
| Related Parts Commonly Serviced Together | Air valve, upper valve keeper (738-218), lower valve keeper (740-985), stop nut (858-812), O-rings, trip collar, trip springs, and valve sleeve (742-913). The valve rod assembly is included in the 850-500 major service kit along with the valve sleeve, valve keepers, air valve, and valve-trip collar. |
| Common Problems Solved | Motor stalling or hesitating at stroke reversal, incomplete stroke changes, erratic air motor operation, valve sticking or oil motor trip rod shifter assembly separation, and broken spring retainer or valve rod. |
| Signs Replacement Is Needed | Visible thread damage, bending or deformation of the rod, corrosion, worn flats that prevent proper wrench engagement, and motor stalling or hesitation at stroke reversal. A broken or separated valve rod assembly will prevent the motor from reversing. |
| Installation & Maintenance | During reassembly, mount the air valve assembly onto the valve rod by placing the bushing over the rod, followed by the lower valve keeper, air valve, and upper valve keeper. Thread the upper valve keeper down hand tight, then loosen approximately 1/4 turn (or to .009" gap). Place a wrench on the flats of the valve rod to prevent turning, then thread the stop nut down to lock the upper valve keeper in position. Inspect the valve rod for wear or damage before installation. |
| Commercial Benefits | Restores proper trip mechanism function, ensures correct air valve alignment, prevents motor stalling and downtime, and extends equipment service life. |
The 743-011 Valve Rod Assembly is a critical component in the air motor trip mechanism of PowrTex, PowrCoat, Commander, and Admiral sprayers. It is listed in the PowrCoat product manual and the Commander air motor diagram as the central shaft onto which the air valve assembly is mounted. During disassembly, the valve rod assembly and valve trip collar are removed after the cylinder head components. During reassembly, the air valve assembly is mounted onto the valve rod, the upper valve keeper is threaded down and locked with the stop nut, and the valve rod is held with a wrench to prevent turning. This component is subjected to continuous reciprocating motion, pressure cycling, and potential corrosion. Failure modes include thread damage, bending, corrosion, and separation of the trip rod shifter assembly. Symptoms of a worn or damaged valve rod include motor stalling, hesitation at stroke reversal, and inability to reverse cleanly. Use genuine Titan components to ensure proper fit, correct material specifications, and reliable long-term operation. For related Titan air-powered sprayer components, see the Titan Air Powered Airless Sprayer Parts and Air Powered Airless Sprayer Parts collection.
