Find PowrCoat 630 Automatic Filter, Lubricator and Regulator Parts

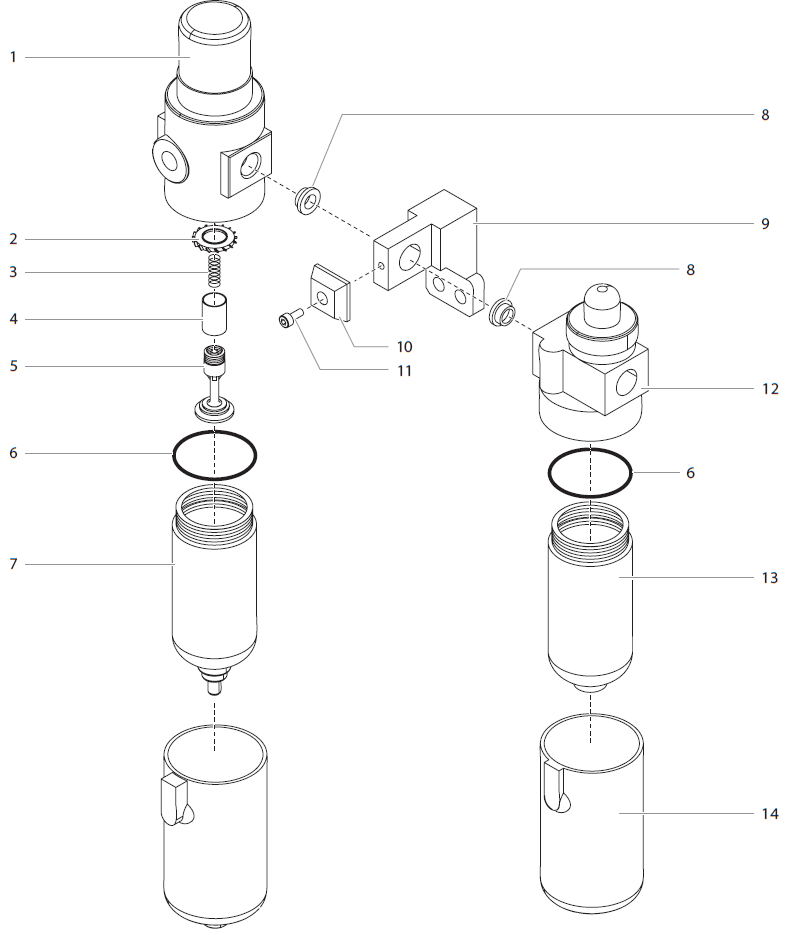

Shop diagram-matched components for the PowrCoat 630 Automatic Filter, Lubricator and Regulator Assembly, including the regulator relieving kit, regulator cap, spring, air-filter element, regulator stem, O-rings, filter bowl, seals, body connector assembly, lubricator body, lubricator bowl, and protective bowl shrouds. Match the exploded drawing, item number, machine configuration, and exact Titan part number before ordering.
01
Diagram-Based Selection
Match filter, regulator, connector, lubricator, seal, and bowl parts to the exact callout.
02
Clean, Dry Air
Service particulate filtration and condensate separation before contamination reaches the motor.
03
Stable Air Pressure
Identify regulator parts that control air pressure and therefore influence fluid pressure.
04
Automatic Lubrication
Restore the lubricator body, reservoir, connector, and protective bowl components.
Assembly Overview
How the PowrCoat 630 FLR Assembly Conditions Compressed Air
This exploded category covers the compressed-air preparation assembly identified for PowrCoat 630 cart model 0533630C and wall model 0533630W. The incoming air first passes through the filter and moisture-separator section, where Titan 0533569 removes particulate contamination and Titan 0533572 forms the collection bowl for separated condensate.
The regulator section uses the cap, spring, stem, O-rings, seals, and air-regulator body to control downstream pressure. Titan 0533130 connects the regulator body to Titan 0533575 Lubricator Body, while Titan 0533576 stores lubricant that is metered into the air stream before compressed air reaches the pneumatic motor. Titan 0533585 bowl shrouds protect both bowls from external impact.
Main Functions
Functions Supported by the FLR Assembly
Filters particulate contamination from incoming compressed air.
Separates and collects condensed moisture before it reaches downstream components.
Regulates air pressure supplied to the PowrCoat 630 pneumatic system.
Meters lubricant into the outgoing air stream for air-motor protection.
Connects, seals, contains, and shields the filter and lubricator sections.
Service Applications
When Contractors Use This Parts Diagram
Air pressure will not adjust, drifts, or falls excessively under load.
The air motor runs dry, sticks, cycles slowly, or shows accelerated wear.
Water, rust, scale, or compressor debris appears in the air system.
Air leaks from a bowl, body connector, regulator seal, stem, or cap area.
Filter or lubricator bowls are cracked, cloudy, leaking, or missing their shrouds.
Troubleshooting & Maintenance
Common PowrCoat 630 FLR Assembly Symptoms
Vent the air system and complete the sprayer pressure-relief procedure before service. Confirm compressor output, hose capacity, and downstream demand before replacing FLR components.
Operating symptom
Areas to inspect
Recommended action
Air pressure drops under load
Compressor capacity, air hose, shutoff valve, 0533569 element, moisture level, regulator, connector, and downstream leakage
0533572 or 0533576 bowl, 0533571 O-rings, 0533573 seals, threads, contamination, cracking, and overtightening
Depressurize and inspect the affected bowl and seal independently; replace a cracked or damaged Titan 0533576 Lubricator Bowl rather than tightening further.
Drain collected condensate, service upstream compressor moisture controls, and inspect the filter bowl and element before replacing downstream air-motor parts.
Major Replacement Components
High-Value PowrCoat 630 FLR Assembly Parts
These genuine listed products cover the principal regulator-service, compressed-air filtration, connection, lubrication, and reservoir positions.
Regulator Service Kit
Titan 0533929 Regulator Relieving Kit
Services the relieving-style air regulator when pressure adjustment, pressure stability, air sealing, or relieving performance has deteriorated.
Determine whether the concern involves filtration, moisture separation, pressure regulation, connection sealing, lubrication, or bowl protection.
STEP 2
Confirm the machine
Verify PowrCoat 630 cart model 0533630C or wall model 0533630W and record available revision information.
STEP 3
Match the callout
Use the separate automatic filter, regulator, and lubricator drawing to match the item number and part number.
STEP 4
Inspect connected items
Check bowls, O-rings, seals, connector passages, body ports, gauge, hose, and downstream air demand before ordering.
Preventive Care
Maintenance Practices That Protect the FLR Assembly
Inspect the air filter and lubricator before operating the sprayer each day.
Drain accumulated condensate from the moisture-separator bowl as required.
Keep the automatic lubricator filled and adjusted to provide the specified oil delivery.
Replace a contaminated or restricted air-filter element rather than compensating with excessive pressure.
Inspect transparent bowls for cracks, crazing, chemical damage, clouding, and thread damage.
Keep both Titan 0533585 bowl shrouds installed to reduce impact damage.
Complete Repair Planning
Build a More Complete PowrCoat 630 Air-Preparation Repair
Regulator repairs should include inspection of the cap, spring, stem, two regulator O-rings, two seals, regulator body, relieving components, pressure gauge, external shutoff valve, and downstream demand. A new spring or seal will not correct inadequate compressor volume or a blocked air-filter element.
Filter and lubricator repairs should include the element, filter bowl, body connector, connector O-rings, lubricator body, lubricator bowl, oil passage, bowl shrouds, upstream moisture controls, and downstream tubing. Clean the assembly thoroughly and replace only components with confirmed restriction, leakage, cracking, contamination, or wear.
Fast Parts Navigation
Shop Major PowrCoat 630 FLR Components
Open the product listing and confirm its diagram callout before ordering.
PowrCoat 630 Filter, Lubricator and Regulator FAQs
Practical answers for maintaining clean, regulated, lubricated compressed air.
What type of page is this PowrCoat 630 FLR page?+
It is an exploded-parts-diagram category for the automatic compressed-air filter, moisture separator, regulator, and lubricator assembly used on PowrCoat 630 cart and wall machines.
Which PowrCoat 630 models use this assembly?+
The official PowrCoat 630 parts list identifies the assembly for cart model 0533630C and wall model 0533630W.
What does the air filter element remove?+
Titan 0533569 removes particulate contamination from the incoming compressed-air stream. The filter and moisture-separator section also helps keep condensed water from reaching the regulator, lubricator, and air motor.
What does the air regulator control?+
The regulator controls the pressure admitted to the air-powered sprayer. On the PowrCoat 630, air pressure is directly related to the fluid pressure produced by the 30:1 pump.
When should the regulator relieving kit be considered?+
Consider Titan 0533929 after confirming the air supply, gauge, downstream restriction, and external fittings when pressure drifts, will not adjust correctly, leaks, or does not relieve as expected.
Why must the lubricator contain oil?+
The lubricator meters pneumatic lubricant into the air stream to reduce friction, sticking, corrosion, and wear inside the air motor.
What oil level should the lubricator have?+
Check the level before operation and keep the lubricator adequately filled with the lubricant specified for the equipment. Do not operate the air motor with an empty lubricator.
Why can the filter bowl collect water?+
Compressed air can contain moisture that condenses as it cools. The filter and moisture-separator section collects this condensate so it can be drained before reaching downstream components.
What should be checked when air pressure drops under load?+
Inspect compressor capacity, inlet hose size, shutoff valve, filter element, moisture accumulation, regulator condition, body connector, lubricator restriction, downstream tubing, and the air motor before replacing parts.
What safety steps are required before servicing the FLR assembly?+
Close and vent the compressed-air supply, perform the pressure-relief procedure for the spray system, verify that gauges read zero, and never remove a bowl, cap, connector, or regulator component while pressurized.
