Exploded parts diagram · 21 parts

PowrCoat 630 Fluid Pump Assembly Parts

Genuine Titan OEM parts for PowrCoat 630 Fluid Pump Assembly Parts, matched to the official factory parts diagram. Search a part number, or call us and we'll confirm the fit before you order.

Exploded view
Parts diagram

Click a numbered marker on the drawing to see that part, its price and Add to Cart.

PowrCoat 630 Fluid Pump Assembly Parts
Numbered to the diagram

Shop all 21 parts

21 parts
View:
1
Item
Titan 0533600 Pump Block
Titan 0533600 Pump Block
Part #: 0533600
UPC: 024964230884
OEM Titan Fluid Pump Component Titan 0533600 Pump Block is a core OEM component for the PowrC...
$362.69
$424.70Save 15%
QTY:
Buy Now
1
Titan 0533600 Pump Block −15%
Titan
Titan 0533600 Pump Block
Part #: 0533600
$362.69 $424.70 Save $62.01
Buy Now
2
Item
Titan 0533601 Female Gland
Titan 0533601 Female Gland
Part #: 0533601
UPC: 024964229833
OEM Titan Fluid Section Packing Component Titan 0533601 Female Gland is a precision OEM compo...
$17.50
QTY:
Buy Now
2
Titan 0533601 Female Gland Genuine OEM
Titan
Titan 0533601 Female Gland
Part #: 0533601
$17.50
Buy Now
3
Item

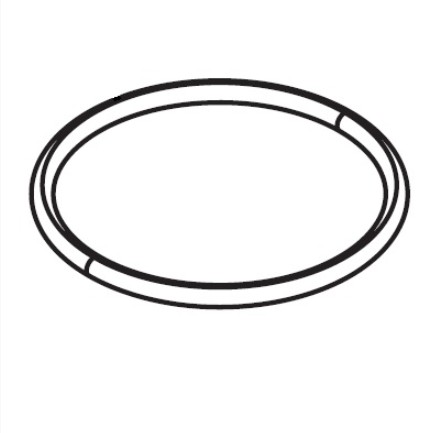

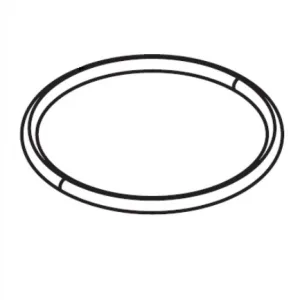

Titan 0533602 V-Packing, Leather
Titan 0533602 V-Packing, Leather
Part #: 0533602
UPC: 024964229840
OEM Titan Fluid Section Packing Titan 0533602 V-Packing, Leather is a genuine replacement upp...
$12.50
QTY:
Buy Now
3
Titan 0533602 V-Packing, Leather Genuine OEM
Titan
Titan 0533602 V-Packing, Leather
Part #: 0533602
$12.50
Buy Now
3A
Item
Titan 0533603 Upper Packing, PTFE
Titan 0533603 Upper Packing, PTFE
Part #: 0533603
UPC: 024964229857
OEM Titan Fluid Section Packing Titan 0533603 Upper Packing, PTFE is an OEM sealing component...
$14.70
QTY:
Buy Now
3A
Genuine OEM
Titan
Titan 0533603 Upper Packing, PTFE
Part #: 0533603
$14.70
Buy Now
4
Item
Titan 0533604 Male Gland, Powrcoat
Titan 0533604 Male Gland, Powrcoat
Part #: 0533604
UPC: 024964229864
OEM Titan Fluid Pump Packing Component Titan 0533604 Male Gland, Powrcoat is an OEM packing s...
$17.50
QTY:
Buy Now
4
Titan 0533604 Male Gland, Powrcoat Genuine OEM
Titan
Titan 0533604 Male Gland, Powrcoat
Part #: 0533604
$17.50
Buy Now
5
Item
Titan 0533605 Upper Packing Spring
Titan 0533605 Upper Packing Spring
Part #: 0533605
UPC: 024964230891
OEM Titan Fluid Pump Packing Component Titan 0533605 Upper Packing Spring is an OEM spring fo...
$41.76
$45.20Save 8%
QTY:
Buy Now
5
Titan 0533605 Upper Packing Spring −8%
Titan
Titan 0533605 Upper Packing Spring
Part #: 0533605
$41.76 $45.20 Save $3.44
Buy Now
6
Item
Titan 0533606 Gasket
Titan 0533606 Gasket
Part #: 0533606
UPC: 024964230907
OEM Titan Fluid Pump Sealing Component Titan 0533606 Gasket is an OEM static sealing componen...
$14.60
QTY:
Buy Now
6
Titan 0533606 Gasket Genuine OEM
Titan
Titan 0533606 Gasket
Part #: 0533606
$14.60
Buy Now
7
Item
Titan 0533408 PTFE O-Ring
Titan 0533408 PTFE O-Ring
Part #: 0533408
UPC: 024964226955
Genuine Titan Seal Ring Titan 0533408 PTFE O-Ring is an OEM chemical-resistant seal used in t...
$8.60
QTY:
Buy Now
7
Titan 0533408 PTFE O-Ring Genuine OEM
Titan
Titan 0533408 PTFE O-Ring
Part #: 0533408
$8.60
Buy Now
8
Item
Titan 0533608 Cylinder
Titan 0533608 Cylinder
Part #: 0533608
UPC: 024964230914
OEM Titan Fluid Pump Component Titan 0533608 Cylinder is an OEM replacement cylinder for the ...
$494.93
$589.20Save 16%
QTY:
Buy Now
8
Titan 0533608 Cylinder −16%
Titan
Titan 0533608 Cylinder
Part #: 0533608
$494.93 $589.20 Save $94.27
Buy Now
9
Item
Titan 0533609 Piston Rod
Titan 0533609 Piston Rod
Part #: 0533609
UPC: 024964230921
OEM Titan Air Motor Component Titan 0533609 Piston Rod is an OEM reciprocating component for ...
$249.60
$289.90Save 14%
QTY:
Buy Now
9
Titan 0533609 Piston Rod −14%
Titan
Titan 0533609 Piston Rod
Part #: 0533609
$249.60 $289.90 Save $40.30
Buy Now
10
Item
Titan 569-016 Ball
Titan 569-016 Ball
Part #: 569-016
UPC: 612560100825
OEM Titan Stainless Steel Ball Titan 569-016 Ball is a genuine OEM stainless steel ball used ...
$6.50
QTY:
Buy Now
10
Titan 569-016 Ball Genuine OEM
Titan
Titan 569-016 Ball
Part #: 569-016
$6.50
Buy Now
11
Item
Titan 0533610 Retainer
Titan 0533610 Retainer
Part #: 0533610
UPC: 024964230938
OEM Titan Fluid Pump Component Titan 0533610 Retainer is an OEM securing component for the Po...
$7.60
QTY:
Buy Now
11
Titan 0533610 Retainer Genuine OEM
Titan
Titan 0533610 Retainer
Part #: 0533610
$7.60
Buy Now
12
Item
Titan 0533602 V-Packing, Leather
Titan 0533602 V-Packing, Leather
Part #: 0533602
UPC: 024964229840
OEM Titan Fluid Section Packing Titan 0533602 V-Packing, Leather is a genuine replacement upp...
$12.50
QTY:
Buy Now
12
Titan 0533602 V-Packing, Leather Genuine OEM
Titan
Titan 0533602 V-Packing, Leather
Part #: 0533602
$12.50
Buy Now
12A
Item
Titan 0533603 Upper Packing, PTFE
Titan 0533603 Upper Packing, PTFE
Part #: 0533603
UPC: 024964229857
OEM Titan Fluid Section Packing Titan 0533603 Upper Packing, PTFE is an OEM sealing component...
$14.70
QTY:
Buy Now
12A
Genuine OEM
Titan
Titan 0533603 Upper Packing, PTFE
Part #: 0533603
$14.70
Buy Now
13
Item
Titan 0533611 Piston Seat Assembly
Titan 0533611 Piston Seat Assembly
Part #: 0533611
UPC: 024964230945
OEM Titan Fluid Pump Component Titan 0533611 Piston Seat Assembly is an OEM component for the...
$173.41
$201.40Save 14%
QTY:
Buy Now
13
Titan 0533611 Piston Seat Assembly −14%
Titan
Titan 0533611 Piston Seat Assembly
Part #: 0533611
$173.41 $201.40 Save $27.99
Buy Now
14
Item
Titan 0533612 Ball Cage
Titan 0533612 Ball Cage
Part #: 0533612
UPC: 024964230952
OEM Titan Fluid Pump Component Titan 0533612 Ball Cage is an OEM component for the PowrCoat 6...
$86.47
$94.30Save 8%
QTY:
Buy Now
14
Titan 0533612 Ball Cage −8%
Titan
Titan 0533612 Ball Cage
Part #: 0533612
$86.47 $94.30 Save $7.83
Buy Now
15
Item
Titan 0533613 Ball Pin
Titan 0533613 Ball Pin
Part #: 0533613
UPC: 024964230969
OEM Titan Fluid Pump Component Titan 0533613 Ball Pin is an OEM component for the PowrCoat 63...
$5.60
QTY:
Buy Now
15
Titan 0533613 Ball Pin Genuine OEM
Titan
Titan 0533613 Ball Pin
Part #: 0533613
$5.60
Buy Now
16
Item
Titan 211-129 Stainless Ball
Titan 211-129 Stainless Ball
Part #: 211-129
UPC: 612560130969
OEM Titan Check Valve Component Titan 211-129 Stainless Ball is an OEM 7/8" stainless steel c...
$38.25
$41.40Save 8%
QTY:
Buy Now
16
Titan 211-129 Stainless Ball −8%
Titan
Titan 211-129 Stainless Ball
Part #: 211-129
$38.25 $41.40 Save $3.15
Buy Now
17
Item

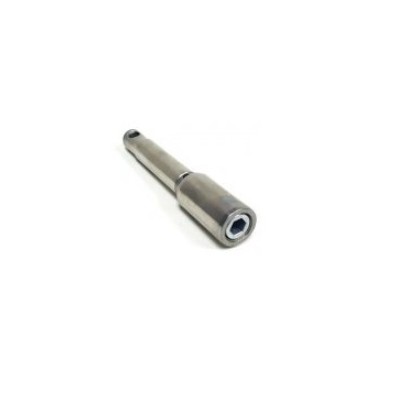

Titan 0533614 Ball Seat assembly
Titan 0533614 Ball Seat assembly
Part #: 0533614
UPC: 024964230976
OEM Titan Fluid Pump Component Titan 0533614 Ball Seat Assembly is an OEM component for the P...
$206.55
$239.90Save 14%
QTY:
Buy Now
17
Titan 0533614 Ball Seat assembly −14%
Titan
Titan 0533614 Ball Seat assembly
Part #: 0533614
$206.55 $239.90 Save $33.35
Buy Now
18
Item

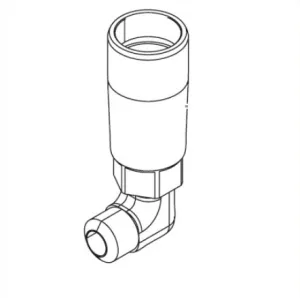

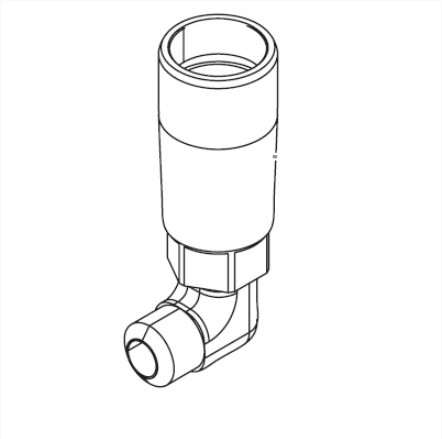

Titan 0533615 Foot Valve Assembly
Titan 0533615 Foot Valve Assembly
Part #: 0533615
UPC: 024964230983
OEM Titan Fluid Pump Component Titan 0533615 Foot Valve Assembly is an OEM inlet valve compon...
$188.90
$219.40Save 14%
QTY:
Buy Now
18
Titan 0533615 Foot Valve Assembly −14%
Titan
Titan 0533615 Foot Valve Assembly
Part #: 0533615
$188.90 $219.40 Save $30.50
Buy Now
19
Item
Titan 0533441 Cotter Pin
Titan 0533441 Cotter Pin
Part #: 0533441
UPC: 024964226887
Genuine Titan Sprayer Hardware Titan 0533441 Cotter Pin is an OEM locking pin used to secure ...
$2.60
QTY:
Buy Now
19
Titan 0533441 Cotter Pin Genuine OEM
Titan
Titan 0533441 Cotter Pin
Part #: 0533441
$2.60
Buy Now
Buying guide

PowrCoat 630 Fluid Pump Assembly Parts: what to know before you buy

Titan Air-Powered Airless Sprayer Parts · PowrCoat 630

Find Diagram-Matched PowrCoat 630 Fluid Pump Assembly Parts

Shop internal replacement parts for the PowrCoat 630 Fluid Pump Assembly, including the pump block, female and male glands, leather and PTFE V-packings, upper packing spring, gasket, PTFE O-ring, cylinder, piston rod, check balls, retainer, piston seat, ball cage, ball pin, inlet ball seat, foot valve, and cotter pin. Match the exploded illustration, item number, machine configuration, and exact Titan part number before ordering.

01
Exploded Pump Diagram
Match every internal component to the correct callout and exact Titan part number.
02
Packing-System Service
Locate the glands, leather and PTFE packings, spring, gasket, and sealing components.
03
Check-Valve Repair
Identify piston and inlet balls, seats, cage, pin, retainer, and foot-valve components.
04
Complete Pump Diagnosis
Inspect the rod, cylinder, packings, valve seats, balls, intake path, and outlet system together.
Assembly Overview

How the PowrCoat 630 Fluid Pump Builds Pressure

The PowrCoat 630 fluid pump uses reciprocating piston movement to draw coating through the foot valve and force it toward the high-pressure outlet. Titan 0533609 Piston Rod travels through Titan 0533608 Cylinder, while the upper and lower packing stacks seal against the moving rod to separate the pressurized coating path from the surrounding pump structure.

Titan 0533600 Pump Block supports the packing and cylinder system. The piston-side and inlet-side check balls, seats, cage, retainer, pin, and foot valve open and close in sequence so material enters on one stroke and is displaced under pressure on the next. Wear or contamination anywhere in this path can cause leakage, poor priming, rapid cycling, or unstable pressure.

Main Functions

Functions Supported by the Fluid Pump Assembly

  • Draws coating material through the lower foot-valve assembly.
  • Displaces material through reciprocating piston-rod movement.
  • Seals the moving rod with leather and PTFE packing components.
  • Controls one-way material flow through piston and inlet check valves.
  • Maintains pressure through correctly seated balls, seats, seals, and cylinder surfaces.
Service Applications

When Contractors Use This Parts Diagram

  • Fluid leakage from the upper packing area.
  • Slow priming, loss of prime, or inability to draw coating.
  • Rapid cycling, pressure loss, or unequal upstroke and downstroke speed.
  • Scored piston rod, damaged cylinder bore, or worn packing glands.
  • Contaminated, worn, chipped, or leaking ball-and-seat components.
Troubleshooting & Maintenance

Common PowrCoat 630 Fluid Pump Symptoms

Perform the full pressure-relief procedure before inspection. Diagnose intake restrictions, coating condition, filters, hose, and spray tip before opening the pump.

Operating symptom Areas to inspect Recommended action
Fluid leaks from the top packing 0533601, 0533602, 0533603, 0533604, 0533605, piston rod, cylinder, and lubricant condition Inspect packing wear and the surface of the Titan 0533609 Piston Rod before installing new packing components.
Pump will not prime 0533615 foot valve, 0533612 cage, 211-129 ball, 0533614 seat, ball pin, suction filter, siphon tube, and material level Clean the intake path and inspect the Titan 0533615 Foot Valve Assembly only after external restrictions are eliminated.
Pump runs faster on the upstroke Lower inlet ball, ball seat, cage, pin, foot valve, debris, wear, and sealing condition Inspect the inlet check-valve components and Titan 0533614 Ball Seat Assembly for contamination or wear.
Pump runs faster on the downstroke 569-016 piston ball, 0533611 piston seat, 0533610 retainer, lower packings, and piston-rod condition Inspect the piston check valve and Titan 0533611 Piston Seat Assembly before replacement.
Pressure is weak or unstable 0533608 cylinder, piston rod, upper and lower packings, both check valves, filters, hose, and spray tip Inspect the Titan 0533608 Cylinder for grooves or wear after confirming that filters and external flow paths are clear.
Pump binds, scrapes, or damages new packings Piston rod straightness, cylinder bore, packing orientation, glands, spring, block alignment, contamination, and tightening Stop operation and inspect the rod, cylinder, glands, and Titan 0533600 Pump Block for alignment or surface damage.
Major Replacement Components

High-Value PowrCoat 630 Fluid Pump Assembly Parts

These genuine listed components cover the pump housing, moving surfaces, pressure-sealing system, and inlet and piston check valves.

Pump Housing

Titan 0533600 Pump Block

The main fluid-section block that supports the cylinder, packing stack, valve components, and threaded pump connections.

View Titan 0533600
Working Cylinder

Titan 0533608 Cylinder

Provides the precision bore for piston-rod travel and packing contact during each pressure-producing stroke.

View Titan 0533608
Reciprocating Rod

Titan 0533609 Piston Rod

Moves through the cylinder and packing sets to displace coating material and develop spray pressure.

View Titan 0533609
Outlet Check Seat

Titan 0533611 Piston Seat Assembly

Supports the piston-side check ball and sealing action needed to control material during pump reversal.

View Titan 0533611
Inlet Valve Seat

Titan 0533614 Ball Seat Assembly

Provides the sealing surface for the lower inlet check ball and helps maintain dependable material intake.

View Titan 0533614
Pump Inlet Housing

Titan 0533615 Foot Valve Assembly

Forms the lower inlet-valve housing and retains the ball cage, ball, seat, pin, and sealing components.

View Titan 0533615
Parts Selection Guide

How to Order the Correct Fluid Pump Part

STEP 1

Document the symptom

Record leakage, poor priming, pressure loss, unequal stroke speed, binding, or visible internal damage.

STEP 2

Confirm the machine

Verify PowrCoat 630 cart model 0533630C or wall model 0533630W and record available revision information.

STEP 3

Match the callout

Use the fluid-pump exploded drawing to match the item number with the exact part number.

STEP 4

Plan a complete repair

Inspect mating packings, balls, seats, rod, cylinder, O-rings, glands, and retainers before ordering.

Preventive Care

Maintenance Practices That Protect the Fluid Pump

  • Keep the suction filter and coating supply clean to reduce valve and cylinder damage.
  • Flush the pump with a cleaning fluid compatible with the sprayed coating.
  • Use Titan Piston Lube 314-480 at the upper packing area; do not substitute water, oil, or solvent.
  • Inspect the exposed piston-rod surface for coating buildup, scratches, and corrosion.
  • Investigate unequal stroke speed before continued operation damages valve components.
  • Lubricate O-rings during assembly and install packing lips in the required orientation.
Complete Repair Planning

Build a More Complete PowrCoat 630 Pump Rebuild

Packing repairs should include inspection of the female gland, leather and PTFE V-packings, male gland, upper spring, gasket, PTFE O-rings, cylinder, piston rod, and pump block. Determine whether leakage originated from soft-part wear or from damage to the rod and cylinder surfaces.

Valve repairs should include both check balls, the piston seat, retainer, ball cage, ball pin, inlet ball seat, foot valve, cotter pin, and every sealing surface disturbed during disassembly. Clean and inspect all components before deciding which items can be safely reused.

Fast Parts Navigation

Shop Major PowrCoat 630 Fluid Pump Components

Open the product listing and confirm its diagram callout before ordering.

FAQ Section

PowrCoat 630 Fluid Pump Assembly FAQs

Practical answers for diagnosing and rebuilding the PowrCoat 630 fluid section.

What type of page is the PowrCoat 630 fluid pump page?+
It is an exploded-parts-diagram category for the internal fluid-section components used in the Titan PowrCoat 630 pump.
Which PowrCoat 630 models use these fluid-pump parts?+
The listed pump parts are associated with the PowrCoat 630 cart model 0533630C and wall model 0533630W. Always confirm the exact machine and diagram callout.
What components form the upper packing stack?+
The upper packing area includes Titan 0533601 Female Gland, Titan 0533602 leather V-packings, Titan 0533603 PTFE packings, Titan 0533604 Male Gland, Titan 0533605 Upper Packing Spring, and related sealing parts.
What can cause fluid to leak from the top of the pump?+
Common causes include worn upper packings, a scored piston rod, a damaged cylinder, incorrect packing installation, insufficient piston lubricant, or damage to the glands and spring.
Why does the pump move faster on one stroke?+
Unequal stroke speed can indicate leakage through an inlet or piston check valve. Inspect the check balls, piston seat, lower ball seat, cage, foot valve, retainers, and sealing surfaces.
Should the cylinder be replaced when installing new packings?+
Not automatically. Inspect the cylinder bore for grooves, dents, corrosion, and wear. Replace it when surface damage would prevent the new packings from sealing correctly.
What should be inspected with the piston rod?+
Inspect its hard surface for scoring, wear, bending, corrosion, or coating buildup, and check the cylinder, packings, piston seat, retainer, and connecting hardware.
What is the purpose of the foot valve assembly?+
Titan 0533615 houses the lower inlet check-valve components that open during material intake and close during the pressure stroke.
Can contaminated coating damage the pump valves?+
Yes. Debris can prevent check balls from seating, abrade the packing sets, scratch the cylinder and rod, or damage valve seats. Clean intake filtration and proper flushing are essential.
What safety steps are required before fluid-pump service?+
Lock the gun, close and vent the air supply, perform the full pressure-relief procedure, disconnect the spray hose where required, and never place hands near a suspected high-pressure leak.
Find the Correct Replacement Part

Restore PowrCoat 630 Pump Sealing, Priming, and Pressure

Browse diagram-matched pump blocks, cylinders, rods, packing components, check balls, seats, retainers, cages, seals, springs, and foot-valve parts.

Search using:
  • Titan part number
  • Fluid-pump callout
  • Packing or valve position
  • Cart or wall model
  • Operating symptom

Added to cart

Your Cart
No items in cart.
Add more items
Total 0
Checkout Modify Cart
