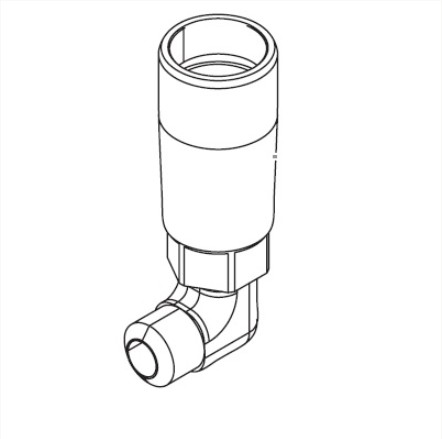

Powr part 0533615 is a foot valve assembly – a critical component that sits at the inlet of the pump on the PowrLiner 630. This assembly allows fluid to enter the pump while preventing backflow, ensuring consistent priming and maintaining suction. Replacing a worn, leaking, or clogged foot valve assembly restores prime, eliminates pressure loss, and ensures reliable pump operation.
| Part Number | 0533615 |
|---|---|
| Part Description | Foot Valve Assembly |
| Brand | Powr |
| Fits | PowrLiner 630 |
| Condition | New |
The Titan 0533615 Foot Valve Assembly is a critical component mounted at the fluid intake of PowrLiner sprayers. It combines a check valve to maintain pump prime and a screen to prevent debris from entering the fluid section. The foot valve ensures that coating material flows in only one direction, allowing the pump to draw material reliably and hold prime when the sprayer is idle.
Over time, the foot valve seat or ball can wear, the screen can become clogged, or the assembly may develop leaks. A failing foot valve can cause loss of prime, erratic pressure, or pump cavitation, leading to poor spray performance and downtime. Replacing the assembly with an authentic Titan part restores proper priming and protects the pump from debris damage.
| Maintains prime | Prevents backflow so the pump stays primed between cycles |
|---|---|
| Filters debris | Built‑in screen stops particles that could damage pump seals or valves |
| Ensures steady flow | Provides consistent material supply for stable pressure |
| Loss of prime | System fails to draw or loses prime quickly |
|---|---|
| Clogged / damaged screen | Screen is torn, crushed, or blocked with debris |
| Leak‑back | Fluid drains back when pump is off, indicating faulty check valve |
| During service | Replace when rebuilding fluid section or if priming issues persist |
Titan part 0533615 is designed for use with the following PowrLiner models. Always confirm fitment using the parts diagram for your specific unit.
| Model | Component |
|---|---|
| PowrLiner 4000 | Foot Valve Assembly |
| PowrLiner 4900 XLT | Foot Valve Assembly |
| PowrLiner 4950 | Foot Valve Assembly |
| PowrLiner 4900 | Foot Valve Assembly |
| PowrLiner 5000 | Foot Valve Assembly |
| PowrLiner 6950 | Foot Valve Assembly |
| PowrLiner 4955 | Foot Valve Assembly |
| PowrLiner 6955 | Foot Valve Assembly |
| PowrLiner 8955 | Foot Valve Assembly |
When replacing the foot valve assembly, it is often wise to inspect or replace these associated components to ensure a complete repair.
Check for cracks, leaks, or loose connections that could affect prime.
If the foot valve failed, inspect the pump seals for debris damage.
If the foot valve screen is damaged, ensure no debris entered the fluid section.
