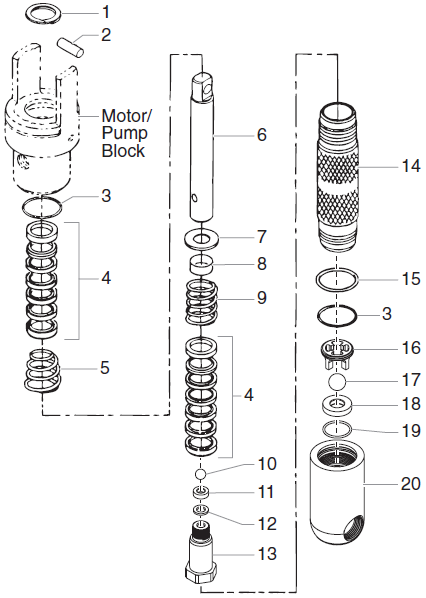

PowrTwin 4900XLT Fluid Section Parts

Titan 107-015A Foot Valve Housing

Item No: -

Part #: 107-015A

Part 107-015A is a foot valve housing used in the fluid intake system of compatible Po...

Retail Price: $246.10

You save: $34.21 (13.90%)

Our Price: $211.89

QTY:

Titan 107-016 Outlet Valve Assembly

Item No: --

Part #: 107-016

Powr part 107-016 is an outlet valve assembly – a critical component that controls the dis...

Retail Price: $250.90

You save: $34.88 (13.90%)

Our Price: $216.02

QTY:

Titan 107-051 Fluid Section Service Kit

Item No: ---

Part #: 107-051

107-051 Fluid Section Service Kit contains the essential wear components needed to rebuild the fluid...

Retail Price: $158.70

You save: $19.84 (12.50%)

Our Price: $138.86

QTY:

Titan 107-501 Major Fluid Section Service Kit

Item No: ----

Part #: 107-501

Titan part 107-501 is a major fluid section service kit used to completely rebuild the l...

Retail Price: $558.90

You save: $89.42 (16.00%)

Our Price: $469.48

QTY:

Titan 143-019 Retaining Ring

Item No: 1

Part #: 143-019

PowrBeast / PowrLiner / PowrTwin part 143-019 is a retaining ring designed to secure c...

$18.70

QTY:

Titan 107-003 Connecting Pin

Item No: 2

Part #: 107-003

Titan part 107-003 is a connecting pin used to link critical mechanical components in ...

$18.50

QTY:

Titan 106-015 O-Ring PTFE

Item No: 3

Part #: 106-015

Titan part 106-015 is a PTFE O‑ring engineered for high‑performance sealing in cri...

$15.60

QTY:

Titan 106-002A Repacking Set

Item No: 4

Part #: 106-002A

Titan part 106-002A is a repacking set designed to rebuild the pump fluid section on compa...

Retail Price: $89.30

You save: $7.41 (8.30%)

Our Price: $81.89

QTY:

Titan 106-005 Upper Packing Spring

Item No: 5

Part #: 106-005

Titan part 106-005 is an upper packing spring designed to maintain proper tension on t...

$15.60

QTY:

Titan 107-029 Displacement Rod

Item No: 6

Part #: 107-029

Part 107-029 is a displacement rod designed for high‑performance airless paint spray...

Retail Price: $189.30

You save: $23.66 (12.50%)

Our Price: $165.64

QTY:

Titan 106-001 Spring Retainer

Item No: 7

Part #: 106-001

Titan part 106-001 is a spring retainer designed to securely position and retain the s...

$20.40

QTY:

Titan 106-116 Sleeve Spring

Item No: 8

Part #: 106-116

Titan part 106-116 is a sleeve spring used in the pump or valve assembly of compatible...

$25.50

QTY:

Titan 106-016 Lower Packing Spring

Item No: 9

Part #: 106-016

Titan part 106-016 is a lower packing spring used in the pump manifold of compatible Pow...

Retail Price: $30.90

You save: $1.7 (5.50%)

Our Price: $29.20

QTY:

Titan 569-021 Ball Outlet Valve

Item No: 10

Part #: 569-021

AirCoat / PowrBeast / PowrLiner / PowrTwin part 569-021 is a ball outlet valve designe...

$5.90

QTY:

Titan 107-058 Outlet Valve Seat

Item No: 11

Part #: 107-058

Powr part 107-058 is an outlet valve seat – a precision sealing surface that works with th...

Retail Price: $44.00

You save: $3.34 (7.59%)

Our Price: $40.66

QTY:

Titan 107-060 Seal Washer

Item No: 12

Part #: 107-060

Powr part 107-060 is a seal washer used in the pump assembly of compatible PowrTwin, PowrLin...

$9.60

QTY:

Titan 107-055 Outlet Valve Housing

Item No: 13

Part #: 107-055

Part 107-029 is a displacement rod designed for high‑performance airless paint sprayer...

Retail Price: $93.60

You save: $7.77 (8.30%)

Our Price: $85.83

QTY:

Titan 106-014 O-Ring

Item No: 15

Part #: 106-014

Titan part 106-014 is a replacement O‑ring designed to create a reliable fluid seal ...

$4.80

QTY:

Titan 107-056 Foot Valve Cage

Item No: 16

Part #: 107-056

Titan part 107-056 is a foot valve cage designed to house the foot valve assembly in c...

$26.90

QTY:

Titan 138-340 Foot Valve Ball

Item No: 17

Part #: 138-340

PowrLiner / PowrTex / PowrTwin / PowrBeast / Admiral / Commander part 138-340 is a foo...

$12.20

QTY:

Titan 762-137 Foot Valve Seat

Item No: 18

Part #: 762-137

Part 762-137 is a replacement foot valve seat for a wide range of compatible spray equipment. Th...

Retail Price: $55.40

You save: $4.6 (8.30%)

Our Price: $50.80

QTY:

Titan 762-058 Seat O-Ring

Item No: 19

Part #: 762-058

Part 762-058 is a replacement seat o-ring used in fluid systems across an extensive range of com...

$7.40

QTY:

Titan 107-057 Foot Valve Housing

Item No: 20

Part #: 107-057

Titan part 107-057 is a foot valve housing used in the fluid intake system of compatib...

Retail Price: $117.60

You save: $12.23 (10.40%)

Our Price: $105.37

QTY:

Shop OEM PowrTwin 4900XLT Fluid Section Parts

The PowrTwin 4900XLT Fluid Section Parts are designed to manage material intake, pressure generation, and fluid transfer within the Titan PowrTwin 4900XLT airless sprayer. These components play a critical role in delivering consistent spray pressure and smooth coating flow during demanding commercial and industrial painting applications.

The fluid section assembly includes essential parts such as the displacement rod, foot valve housing, outlet valve assembly, repacking set, outlet valve ball, outlet valve seat, foot valve ball, foot valve seat, PTFE O-rings, and the major fluid section service kit. Working together, these components help maintain efficient pump cycling, reduce pressure loss, and support reliable spraying performance.

Built for high-production environments, the fluid section is engineered for durability and long service life under continuous operation. Routine maintenance and replacement of worn packings, valves, and sealing components help improve spray consistency, reduce downtime, and extend the lifespan of the entire sprayer system.

FAQs

Loss of prime is often caused by worn foot valve ball or foot valve seat components, debris preventing proper valve seating, or small air leaks within the fluid intake system. Inspecting the foot valve housing and replacing the seat O-ring helps restore a reliable prime hold.

Continuous cycling may indicate internal fluid bypass caused by worn packings, a damaged outlet valve assembly, or pressure leakage within the fluid section. Using the fluid section service kit to replace all wear components simultaneously helps resolve bypass-related cycling issues more reliably than replacing individual parts.

Leaks near the lower fluid section are commonly linked to worn packings, a damaged seal washer, or excessive wear on the displacement rod and piston components. Replacing the PTFE O-ring and lower O-ring at the same time helps ensure all sealing surfaces are restored during the repair.

Yes. A damaged outlet valve seat or worn outlet valve ball may prevent proper pressure retention, resulting in pressure fluctuations, poor atomization, and inconsistent spray patterns. The outlet valve housing should also be inspected for damage whenever valve seat or ball replacement is performed.

Reduced output can occur when valve assemblies become restricted, packings wear excessively, or internal pump components lose efficiency due to prolonged use. Performing a comprehensive rebuild using the major fluid section service kit — which includes the upper and lower packing springs, retaining ring, connecting pin, and spring retainer — restores full pump output and efficiency.

PowrTwin 4900XLT Fluid Section Parts

Shop OEM PowrTwin 4900XLT Fluid Section Parts

FAQs

1. Why is the fluid section losing prime after sitting idle for a short period?

2. What causes the pump to cycle continuously even when the spray gun is not being used?

3. Why is paint leaking from the lower portion of the fluid section?

4. Can worn outlet valve components affect spray pressure stability?

5. Why is the fluid section producing reduced material output during operation?
