Titan PowrTwin 4900 XLT Hydraulic Motor Parts

The PowrTwin 4900XLT Hydraulic Motor Parts are designed to convert hydraulic energy into the mechanical motion required to drive the fluid section of the Titan PowrTwin 4900XLT sprayer. These components help maintain smooth pump cycling, stable pressure output, and reliable spraying performance during demanding commercial and industrial coating applications.

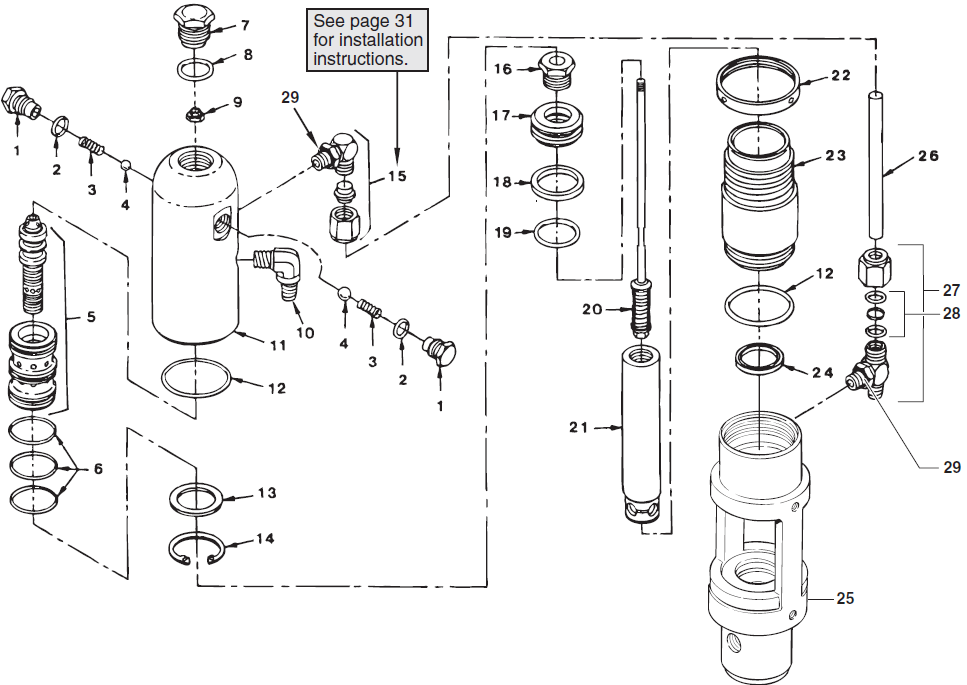

The hydraulic motor assembly includes critical components such as the hydraulic cylinder, spool valve with sleeve, valve rod assembly, trip spring, piston assembly, piston seals, rod seals, retainer rings, motor/pump block, and cylinder head. Together, these components regulate hydraulic fluid movement and control the reciprocating action needed for consistent material delivery and high-pressure spraying operation.

Built for heavy-duty production environments, the hydraulic motor system supports applications involving elastomerics, waterproofing materials, primers, roof coatings, and industrial protective coatings. Regular inspection and maintenance of hydraulic motor components help reduce wear, improve efficiency, and extend overall equipment service life.

FAQs

A short pause between strokes may indicate wear in the spool valve with sleeve, restricted hydraulic fluid flow, or internal valve components that are no longer shifting smoothly. Inspecting the trip retainer and trip spring for wear or fatigue helps identify whether the valve switching mechanism is causing the stroke delay.

Loss of power can result from hydraulic pressure loss, worn piston seals, fluid contamination, or excessive strain placed on the hydraulic system during operation. Replacing the O-ring/backup ring set and inspecting the piston and piston rod for wear helps restore full motor power output.

Leaks near the rod section are commonly caused by worn rod seals, damaged O-rings, or excessive pressure that accelerates seal wear over time. Inspecting the cylinder head plug and sleeve retainer for proper seating also helps identify whether additional leak points exist beyond the rod seal itself.

Yes. Dirt, moisture, or metal particles inside the hydraulic system can accelerate wear on the spool valve, hydraulic cylinder, synthetic rubber O-rings, and other precision hydraulic components. The motor tube and tee fitting should also be inspected for debris blockages during any contamination-related service procedure.

Irregular pump movement may occur when the spool valve sticks, the trip spring or trip retainer wears out, or internal fluid flow becomes restricted within the valve rod assembly. Replacing the valve O-rings and verifying the lock ring is properly secured also helps eliminate sources of inconsistent motor movement.

PowrTwin 4900 XLT Hydraulic Motor Parts

Genuine PowrTwin 4900XLT Hydraulic Motor Replacement Parts

FAQs

1. Why does the hydraulic motor pause briefly between strokes?

2. What causes the hydraulic motor to lose power under heavy spraying loads?

3. Why is hydraulic fluid leaking around the motor rod area?

4. Can internal hydraulic contamination damage motor components?

5. Why does the hydraulic motor create inconsistent pump movement during spraying?
