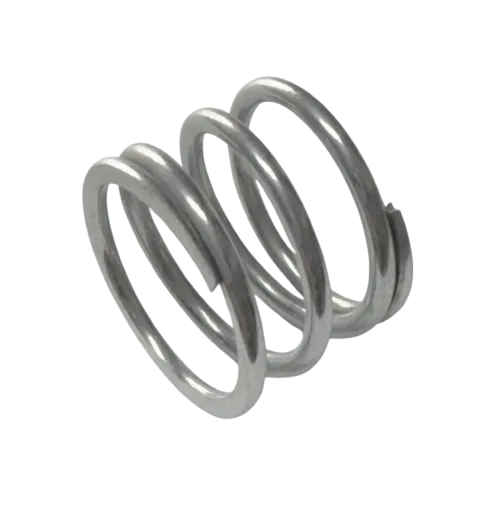

Titan 106-016 Lower Packing Spring
OEM Titan Replacement Components
Titan 106-016 Lower Packing Spring maintains constant pressure on the packing stack in PowrBeast, PowrLiner, and PowrTwin fluid pumps, while Titan 0533610 Retainer secures internal valve components in the PowrCoat 630 fluid pump assembly.
Compatibility Overview
A weakened lower packing spring causes pressure drop, manifold weeping, and fluid bypass. A worn retainer allows internal valve components to shift, causing unstable pump operation. Genuine OEM replacements restore proper tension and secure retention.
Titan OEM Component Replacement
Titan 106-016 Lower Packing Spring and 0533610 Retainer
Titan 106-016 is an OEM lower packing spring used in the pump manifold of compatible PowrBeast, PowrLiner, and PowrTwin sprayers. This spring sits beneath the packing stack and applies constant upward force, ensuring the packings maintain intimate contact with the reciprocating piston. It is essential for preventing fluid bypass, maintaining rated pressure, and stopping external leaks. Over time, the spring can fatigue, take a set, or break due to repeated compression cycles and chemical exposure. A weakened spring leads to poor sealing, erratic pressure, or leakage from the weep hole or manifold. The 106-016 is documented in the official PowrTex 6900SF/12000SV service manual as part of the lower packing assembly.
Titan 0533610 is an OEM retainer designed for the PowrCoat 630 fluid pump assembly. This retainer helps secure internal pump and valve components, supporting proper alignment and stable pressure performance. It is installed at item position 11 in the fluid pump assembly and is commonly serviced with the check ball, piston rod, piston seat assembly, and cylinder. A worn retainer can allow valve-related components to shift, affecting pump performance and pressure consistency.
| Detail | Technical / Commercial Information |
|---|---|
| 106-016 Overview | OEM Titan lower packing spring used in the pump manifold to maintain constant pressure on the packing stack and ensure a proper seal. |
| 106-016 Function | Applies upward force on the packing stack, compensating for wear and preventing fluid bypass, pressure loss, and external leaks. |
| 106-016 Compatible Models | PowrBeast 4700, 7700, 9700; PowrLiner 4000, 4900 XLT, 4950, 4900, 5000, 6950, 4955, 6955, 8955; PowrTwin 4900, 6900, 8900, 12000 Plus, 3500 50th Anniversary, 3500, 4500, 4900 GH, 4900 XLT. Verify your exact model against the service manual. |
| 106-016 Replacement Indicators | Broken or collapsed spring, persistent weeping after new packings, pressure drop, or during any packing replacement. |
| 0533610 Overview | OEM Titan retainer for the PowrCoat 630 fluid pump assembly, securing internal valve components and supporting stable pump operation. |
| 0533610 Function | Holds valve-related pump components in position, supporting proper alignment and pressure consistency during coating work. |
| 0533610 Compatible Models | Titan PowrCoat 630 Cart (0533630C) and PowrCoat 630 Wall (0533630W). |
| 0533610 Replacement Indicators | Loose valve components, unstable pump operation, pressure fluctuation, or during fluid pump service. |
| OEM Part Numbers | 106-016 Lower Packing Spring (alternate 0106-016); 0533610 Retainer (alternate 533610). |
| Installation Notes | 106-016: Install beneath the packing stack; always replace when installing new packings. 0533610: Install in the fluid pump assembly at item position 11; inspect related valve components during service. |
The 106-016 Lower Packing Spring is essential for proper packing stack loading. Inspect and replace it whenever the pump is rebuilt or shows pressure loss and weeping. The 0533610 Retainer secures internal components in the PowrCoat 630 pump. Replace it during fluid pump service to maintain stable valve alignment and pressure consistency. Verify model compatibility against your Titan service manual, as configurations vary across sprayer platforms.
