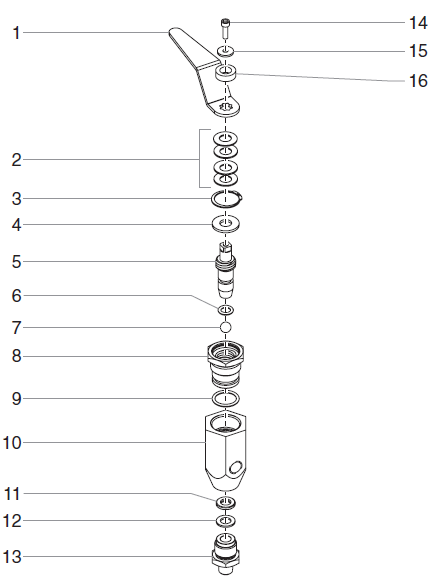

PowrTwin 4900XLT Bleed Valve Assembly Parts

The PowrTwin 4900XLT Bleed Valve Assembly Parts are designed to control fluid recirculation, pressure release, and priming functions within the Titan PowrTwin 4900XLT airless sprayer system. These components help operators safely transition between priming and spraying modes while maintaining proper material flow and pressure control throughout the fluid system.

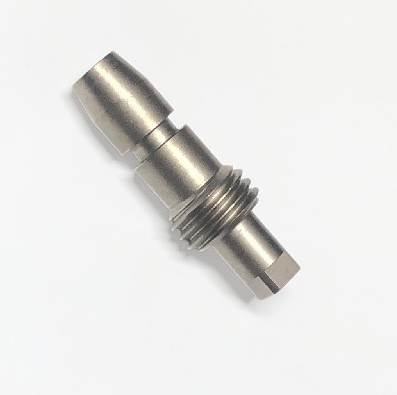

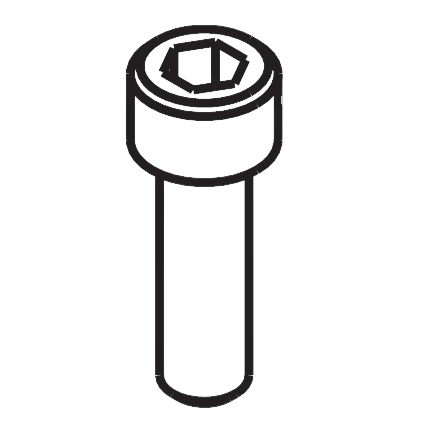

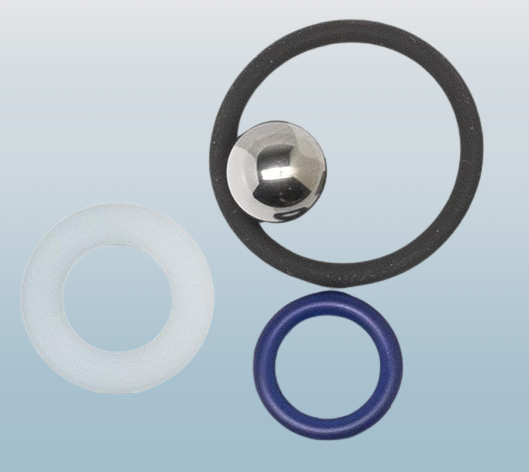

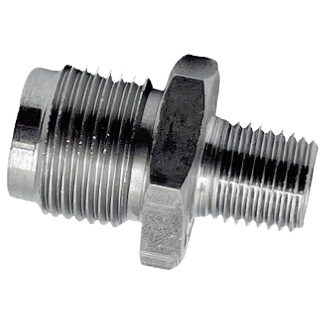

The bleed valve assembly includes important components such as the valve stem, valve seal kit, outlet valve ball, outlet valve seat, valve seat retainer, O-rings, flat washers, and hex screws. Together, these components help direct coating material during startup, pressure relief, system flushing, and circulation processes, supporting smoother sprayer operation and improved pressure management.

Built for demanding commercial and industrial applications, the bleed valve system is commonly used with primers, paints, elastomerics, waterproofing materials, and protective coatings. Routine inspection and maintenance of valve components help reduce leakage, improve priming efficiency, and maintain reliable spraying performance during extended production use.

FAQs

A hissing sound may indicate fluid bypass through worn internal seals in the valve seal kit, partial valve opening, or pressure escaping through a damaged outlet valve seat. Replacing the O-ring and inspecting the valve seat retainer for proper seating helps eliminate pressure bypass hissing.

Dried coating material, internal corrosion, or residue buildup inside the valve body can restrict movement and cause the valve to stick. Cleaning around the valve stem and replacing the O-ring with a fresh component helps restore smooth valve movement after periods of inactivity.

This often happens when the bleed valve remains partially open or the outlet valve ball fails to seat properly against the outlet valve seat during spraying mode. Using the valve seal kit to replace all internal sealing components at once helps ensure the valve closes fully and maintains consistent spray pressure.

Yes. A faulty bleed valve — particularly a worn outlet valve seat or damaged valve seat retainer — can prevent the system from maintaining proper pressure, causing the pump to cycle more frequently and work harder than normal. Replacing the complete valve seal kit restores proper pressure retention and reduces unnecessary pump strain.

Difficulty closing the valve may result from internal wear on the valve stem, a damaged O-ring, or coating material buildup around the flat washer and hex screw mounting area. Flushing the valve thoroughly after each use and replacing worn internal components prevents recurrence of difficult valve closure.

Call Diagrams Best Sellers Cart

Added to cart

PowrTwin 4900XLT Bleed Valve Assembly Parts

Order PowrTwin 4900XLT Bleed Valve Assembly Parts

FAQs

1. Why does the bleed valve make a hissing sound while the sprayer is operating?

2. What causes the bleed valve to stick after long periods of inactivity?

3. Why is material returning to the siphon system instead of building spray pressure?

4. Can a worn bleed valve increase pump workload?

5. Why is the bleed valve difficult to fully close during operation?
