Titan PowrTwin 4500 Hydraulic Motor Parts
Shop Titan PowrTwin 4500 Hydraulic Motor Parts for servicing the hydraulic motor that drives the reciprocating fluid pump on the PowrTwin 4500 airless sprayer. Use the applicable exploded parts diagram to identify motor components, seals, connections, hardware and genuine Titan OEM replacement parts before ordering.
Find PowrTwin 4500 Hydraulic Motor Replacement Parts
The hydraulic motor is a critical part of the PowrTwin 4500 drive system. Hydraulic energy supplied by the sprayer's hydraulic circuit is converted into the reciprocating mechanical motion required to operate the fluid pump.
When servicing the hydraulic motor, use the applicable PowrTwin 4500 exploded diagram to identify the exact component required. Match the numbered callout with the corresponding parts-list entry and verify the Titan OEM part number and quantity before purchasing.
How to Find PowrTwin 4500 Hydraulic Motor Parts
Confirm PowrTwin 4500
Verify the exact Titan PowrTwin model and machine configuration before selecting hydraulic motor parts.

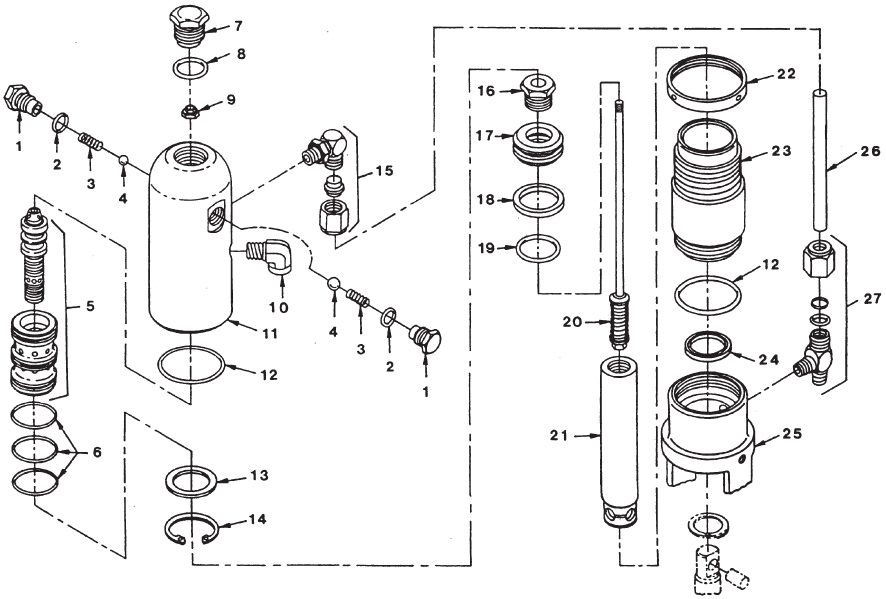

Open the Motor Diagram
Use the applicable PowrTwin 4500 hydraulic motor exploded view to locate the component requiring service.
Match the Callout
Match the numbered diagram reference with its description and required quantity in the parts listing.
Verify the OEM Number
Confirm the genuine Titan OEM part number before adding the replacement component to your order.
What Does the PowrTwin 4500 Hydraulic Motor Do?
The hydraulic motor receives pressurized hydraulic fluid from the sprayer's hydraulic circuit and converts that hydraulic energy into mechanical movement. The resulting reciprocating motion drives the fluid pump connected to the motor.
This relationship allows the fluid section to repeatedly draw coating material into the pump and discharge it under pressure. Proper hydraulic motor operation is therefore essential to consistent pump cycling and normal airless sprayer performance.
How the Hydraulic Motor Fits Into the PowrTwin 4500
Understanding the relationship between the hydraulic and fluid systems can help identify the correct repair area before parts are ordered.
Power Source
Supplies the mechanical input used by the applicable hydraulic drive system.
Hydraulic System
Transfers energy through hydraulic fluid and associated drive components.
Hydraulic Motor
Converts hydraulic energy into reciprocating mechanical movement.
Fluid Pump
Uses the reciprocating motion to draw in and pressurize coating material for airless spraying.
PowrTwin 4500 Hydraulic Motor Component Areas
Use the applicable exploded diagram to determine which motor components are separately serviceable. Component availability and configuration should always be confirmed against the Titan parts listing.
Hydraulic Motor Components
Locate the complete motor assembly and separately identified service components shown in the applicable diagram.
Moving Motor Components
Identify documented internal components associated with hydraulic motor movement and power transfer.
Seals & Related Parts
Locate separately serviced seals and related components identified in the hydraulic motor parts listing.
Hydraulic Connections
Find applicable fittings and connections that route hydraulic fluid to and from the motor.
Motor-to-Pump Components
Identify documented components associated with the mechanical connection between the hydraulic motor and fluid pump.
Mounting & Service Hardware
Locate applicable fasteners, retainers and related hardware shown in the motor assembly diagram.
When to Inspect the PowrTwin 4500 Hydraulic Motor
A hydraulic motor symptom can originate elsewhere in the hydraulic or fluid system. Diagnose the complete system using the applicable Titan service procedure before replacing internal motor components.
| Condition | Inspect | Verification Focus |
|---|---|---|
| Motor Does Not Cycle | Hydraulic system and motor | Verify hydraulic operation and isolate the affected system before disassembly |
| Slow Cycling | Hydraulic motor, drive and fluid pump | Determine whether resistance or reduced performance originates in the hydraulic or fluid system |
| Irregular Cycling | Motor and hydraulic circuit | Follow the documented troubleshooting procedure to isolate the cause |
| Hydraulic Fluid Leakage | Motor, seals and connections | Safely identify the exact leak source before selecting replacement parts |
| Reduced Pump Output | Motor and fluid pump | Determine whether the performance loss originates in the drive system or fluid section |
| Abnormal Operation | Complete drive system | Inspect related hydraulic components before assuming an internal motor failure |
Verify PowrTwin 4500 Hydraulic Motor Parts Before Ordering
Do not select hydraulic motor components solely by appearance. Similar parts used on different PowrTwin models or production configurations can differ in dimensions, specification, connection or application.
Confirm the PowrTwin 4500 model, applicable hydraulic motor diagram, numbered callout, component description, required quantity and genuine Titan OEM part number before purchasing.
Inspect Related Components During Hydraulic Motor Service
Hydraulic motor performance depends on the condition of the surrounding hydraulic circuit and the fluid pump it drives. Inspect related components before completing the repair.
Identify whether leakage originates from the motor, a hydraulic connection, hose or another nearby component.
Verify the hydraulic system and fluid pump condition before assuming the motor itself requires internal repair.
Use the exact motor exploded view to identify seals, internal parts, retainers and other separately serviced components.
Inspect both the hydraulic drive and fluid section to determine which system is responsible for the performance loss.
Before Buying PowrTwin 4500 Hydraulic Motor Parts
Verify the exact sprayer model and applicable configuration.
Confirm that the hydraulic motor is the correct repair area before ordering components.
Locate the component on the applicable hydraulic motor exploded view.
Match the numbered reference with the corresponding parts-list entry.
Confirm the genuine Titan part number and required quantity.
Shop Related PowrTwin 4500 Parts
Use these related PowrTwin 4500 sections when your repair involves the surrounding hydraulic system, fluid system, chassis or other major assemblies.
Hydraulic Motor Service Safety
Shut down the PowrTwin 4500, isolate the applicable power source and follow Titan's complete pressure-relief procedure before disconnecting, removing or servicing hydraulic motor components. Hydraulic pressure can remain in the system after the machine is switched off.
Never use your hand or body to search for a hydraulic leak. High-pressure fluid can penetrate skin and cause serious injury. Follow the applicable Titan service instructions for disassembly, inspection, reassembly and testing.
Shop PowrTwin 4500 Hydraulic Motor Parts
Use the PowrTwin 4500 hydraulic motor diagram to locate the component you need, match its numbered callout and verify the genuine Titan OEM part number before ordering.
Shop Hydraulic Motor PartsTitan PowrTwin 4500 Hydraulic Motor Parts FAQ
What does the PowrTwin 4500 hydraulic motor do?
The hydraulic motor converts hydraulic energy into reciprocating mechanical motion used to drive the sprayer's fluid pump.
How do I identify the correct PowrTwin 4500 hydraulic motor part?
Use the applicable hydraulic motor exploded diagram, locate the numbered callout and match it with the corresponding Titan OEM part number in the parts listing.
Is the hydraulic motor the same as the fluid pump?
No. The hydraulic motor supplies reciprocating mechanical movement, while the fluid pump uses that movement to draw in and pressurize coating material.
Can hydraulic motor problems cause the fluid pump to stop cycling?
A hydraulic motor problem can affect pump cycling, but hydraulic-system and fluid-pump problems can produce similar symptoms. Diagnose the complete drive system before replacing motor components.
What should I check if hydraulic fluid is leaking around the motor?
Safely relieve system pressure and determine whether the leak originates from the motor, a seal, fitting, hose or connection before selecting replacement parts.
Can PowrTwin 3500 hydraulic motor parts fit a PowrTwin 4500?
Do not assume interchangeability between models. Confirm each component using the PowrTwin 4500 diagram and exact Titan OEM part number.
Can individual hydraulic motor components be replaced?
Components individually identified with service part numbers in the applicable Titan parts listing may be available separately. Use the diagram to determine the correct service part.
Why should I have my PowrTwin 4500 serial number available?
Model and serial information can help distinguish machine configurations or production variations when verifying replacement components.
Need Help Finding a PowrTwin 4500 Hydraulic Motor Part?
Have your PowrTwin 4500 model information, serial number, existing part number and diagram callout ready. These details can help identify the correct genuine Titan OEM hydraulic motor component.
Parts & Fitment Help: 713-931-0006
