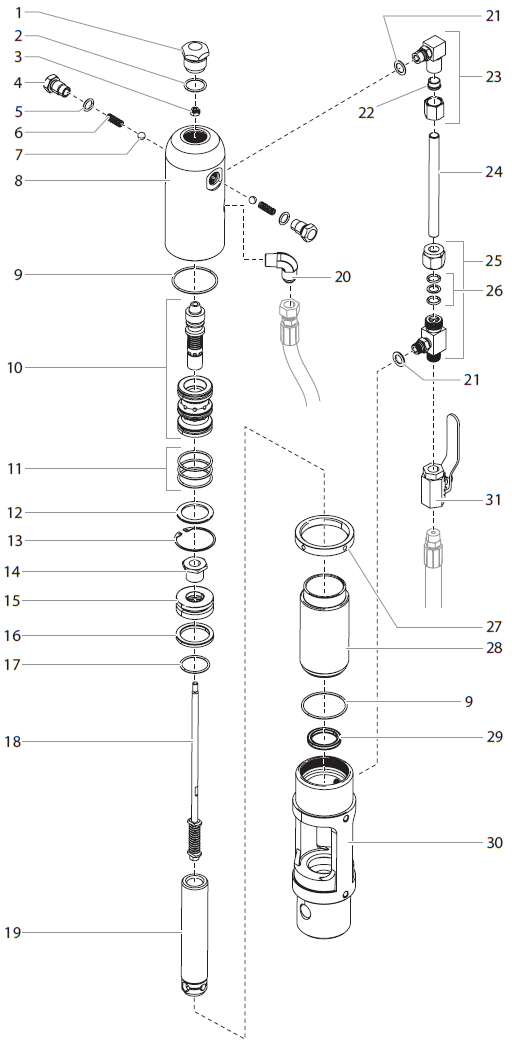

PowrTwin 12000 Plus DI Hydraulic Motor Parts

PowrTwin 12000 Plus DI Hydraulic Motor Parts
Titan Speeflo 235-050 Hydraulic Service Motor Kit
Titan Speeflo 235-050 Hydraulic Service Motor Kit

Item No: -

Part #: 235-050

Speeflo part 235-050 is a hydraulic service motor kit containing all necessary components to reb...

Retail Price: $84.10
You save: $6.98 (8.30%)
Our Price: $77.12
QTY:
Titan 0537926 Motor Tube Kit
Titan 0537926 Motor Tube Kit

Item No: --

Part #: 0537926

Titan 0537926 Motor Tube kit Includes:  O-Ring (2),  elbow, motor tube, tee and Fitting   Fi...

Retail Price: $105.10
You save: $10.93 (10.40%)
Our Price: $94.17
QTY:
Titan 235-030 Cylinder Head Plug
Titan 235-030 Cylinder Head Plug

Item No: 1

Part #: 235-030

  Titan part 235-030 is a cylinder head plug designed to seal access ports or threaded opening...

Retail Price: $81.80
You save: $6.79 (8.30%)
Our Price: $75.01
QTY:
Titan 441-217 Synthetic Rubber O-Ring
Titan 441-217 Synthetic Rubber O-Ring

Item No: 2

Part #: 441-217

PowrTwin part 441-217 is a Synthetic rubber O-Ring used to create fluid-tight seals between mating c...

$3.70
QTY:
Titan 858-811 Flex Lock Nut
Titan 858-811 Flex Lock Nut

Item No: 3

Part #: 858-811

PowrTwin part 858-811 is a Flex Lock Nut used to secure threaded fasteners while resisting loosening...

$4.80
QTY:
Titan 235-018 Trip Retainer
Titan 235-018 Trip Retainer

Item No: 4

Part #: 235-018

  Titan part 235-018 is a trip retainer designed to secure or position a mechanical trip...

Retail Price: $38.00
You save: $2.09 (5.50%)
Our Price: $35.91
QTY:
Titan 141-007 O-Ring Synthetic Rubber
Titan 141-007 O-Ring Synthetic Rubber

Item No: 5

Part #: 141-007

  Titan part 141-007 is a synthetic rubber O‑ring used as a fluid seal in sprayer pump...

$2.10
QTY:
Titan 325-005 Trip Spring
Titan 325-005 Trip Spring

Item No: 6

Part #: 325-005

PowrTwin part 325-005 is a Trip Spring used to provide return force or actuation tension within a me...

$6.60
QTY:
Titan 569-016 Ball
Titan 569-016 Ball

Item No: 7

Part #: 569-016

Titan 569-016 Ball is an OEM stainless steel check valve ball used in the fluid pump section of ...

$6.50
QTY:
Titan 235-112FZ Cylinder Head Red
Titan 235-112FZ Cylinder Head Red

Item No: 8

Part #: 235-112FZ

  Part number 235-112FZ is a genuine cylinder head (red) used in PowrLiner, PowrTex, and...

Retail Price: $612.60
You save: $89.44 (14.60%)
Our Price: $523.16
QTY:
Titan 431-032 O-Ring
Titan 431-032 O-Ring

Item No: 9

Part #: 431-032

  Titan part 431-032 is a replacement O‑ring used in fluid pump sections, valve assemb...

$7.30
QTY:
Titan 441-908 Spool Valve with Sleeve
Titan 441-908 Spool Valve with Sleeve

Item No: 10

Part #: 441-908

Titan 441-908 Spool Valve with Sleeve is designed for use on various Titan paint sprayers. It is rep...

Retail Price: $839.60
You save: $134.34 (16.00%)
Our Price: $705.26
QTY:
Titan 441-152 Synthetic Rubber O-Ring
Titan 441-152 Synthetic Rubber O-Ring

Item No: 11

Part #: 441-152

PowrTwin part 441-152 is a Synthetic Rubber O-Ring used to create fluid-tight seals between mating c...

$6.70
QTY:
Titan 431-053 Sleeve Retainer
Titan 431-053 Sleeve Retainer

Item No: 12

Part #: 431-053

  Titan part 431-053 is a sleeve retainer designed to secure a sleeve, bushing, or bearing wit...

$28.30
QTY:
Titan 431-054 Retainer Ring or Snap Ring
Titan 431-054 Retainer Ring or Snap Ring

Item No: 13

Part #: 431-054

  PowrBeast / PowrTwin / PowrLiner / PowrTex part 431-054 is a retainer ring or snap rin...

$6.70
QTY:
Titan 235-022 Piston Retainer Screw
Titan 235-022 Piston Retainer Screw

Item No: 14

Part #: 235-022

  Titan part 235-022 is a piston retainer screw used to secure the piston assembly withi...

Retail Price: $52.00
You save: $4.32 (8.31%)
Our Price: $47.68
QTY:
Titan 235-014 Piston
Titan 235-014 Piston

Item No: 15

Part #: 235-014

  Titan part 235-014 is a piston used in the fluid section of compatible PowrLiner, Powr...

Retail Price: $110.40
You save: $11.48 (10.40%)
Our Price: $98.92
QTY:
Titan 235-027 Piston Seal or Seal, Piston
Titan 235-027 Piston Seal or Seal, Piston

Item No: 16

Part #: 235-027

  Titan part 235-027 is a piston seal designed to provide a dynamic seal between the pis...

$29.10
QTY:
Titan 235-026 O-Ring
Titan 235-026 O-Ring

Item No: 17

Part #: 235-026

  Titan part 235-026 is a replacement O‑ring designed for fluid or air sealing applica...

$5.70
QTY:
Titan 235-021A Valve Rod Assembly
Titan 235-021A Valve Rod Assembly

Item No: 18

Part #: 235-021A

Part 235-021A is a replacement valve rod assembly used in hydraulic systems on compatible PowrLi...

Retail Price: $110.20
You save: $11.46 (10.40%)
Our Price: $98.74
QTY:
Titan 236-948A Long Piston Rod
Titan 236-948A Long Piston Rod

Item No: 19

Part #: 236-948A

  Titan part 236-948A is a long piston rod used in the pump section of compatible Titan ...

Retail Price: $383.00
You save: $55.92 (14.60%)
Our Price: $327.08
QTY:
Titan 451-121 Elbow
Titan 451-121 Elbow

Item No: 20

Part #: 451-121

PowrTwin part 451-121 is an Elbow used to redirect fluid flow at critical junctions within the pump ...

$24.10
QTY:
Titan/Speeflo 700-499 O-ring
Titan/Speeflo 700-499 O-ring

Item No: 21

Part #: 700-499

Part number 700-499 is an O-ring used to create a leak-proof seal between components in compatib...

$3.20
QTY:
Titan 192-051 Elbow
Titan 192-051 Elbow

Item No: 22

Part #: 192-051

  PowrBeast / PowrDrive / PowrLiner / PowrTex / PowrTwin / Hydra X part 192-051 is an el...

$23.70
QTY:
Titan 0537531 Hydraulic Tube
Titan 0537531 Hydraulic Tube

Item No: 23

Part #: 0537531

Titan 0537531 Hydraulic Tube

Retail Price: $65.50
You save: $5.44 (8.31%)
Our Price: $60.06
QTY:
Titan 0537564 Tee
Titan 0537564 Tee

Item No: 24

Part #: 0537564

Titan 0537564 or 0537-564 TEE fitting, 3/8 male, sae (Includes: O-ring)     Fits: PowrT...

$24.10
QTY:
Titan 0537565 Swivel Adaptor
Titan 0537565 Swivel Adaptor

Item No: 25

Part #: 0537565

Titan 0537565 Swivel Adaptor  is a 3/8" x 9/16" JIC configuration designed for hydraulic systems in...

$22.30
QTY:
Titan 941-555 Ball Valve
Titan 941-555 Ball Valve

Item No: 26

Part #: 941-555

  OEM Titan Fluid Control Component Titan 941-555 Ball Valve is an OEM flow control compone...

Retail Price: $157.90
You save: $19.74 (12.50%)
Our Price: $138.16
QTY:
Titan 235-001 Lock Ring
Titan 235-001 Lock Ring

Item No: 27

Part #: 235-001

  Titan part 235-001 is a lock ring used to secure components such as packings, seals, o...

Retail Price: $60.70
You save: $5.04 (8.30%)
Our Price: $55.66
QTY:
Titan 236-007 Hydraulic Cylinder
Titan 236-007 Hydraulic Cylinder

Item No: 28

Part #: 236-007

Titan 236-007 Hydraulic Cylinder OEM hydraulic cylinder for approved Titan hydraulic sprayer se...

Retail Price: $475.20
You save: $69.38 (14.60%)
Our Price: $405.82
QTY:
Titan 235-028 Rod Seal
Titan 235-028 Rod Seal

Item No: 29

Part #: 235-028

  Titan part 235-028 is a rod seal designed to provide a dynamic seal around a reciproca...

Retail Price: $34.70
You save: $1.91 (5.50%)
Our Price: $32.79
QTY:
Titan 236-829 Motor Pump Block
Titan 236-829 Motor Pump Block

Item No: 30

Part #: 236-829

  Titan part 236-829 is a motor pump block – the central hydraulic or mechanical housi...

Retail Price: $978.90
You save: $156.62 (16.00%)
Our Price: $822.28
QTY:

Genuine PowrTwin 12000 Plus DI Hydraulic Motor Parts

The PowrTwin 12000 Plus DI Hydraulic Motor Parts are designed to manage hydraulic power conversion and support smooth pump operation within the Titan PowrTwin 12000 Plus DI sprayer system. These components help maintain steady hydraulic cycling, balanced pressure output, and reliable spraying performance for demanding industrial and commercial coating applications.

The hydraulic motor assembly includes important parts such as the hydraulic cylinder, spool valve assemblies, piston rods, trip springs, seals, retainers, valve rods, and internal hydraulic fittings. Working together, these components control directional fluid movement and maintain the continuous reciprocating action required for high-output spraying systems.

Built for heavy-duty operation, the hydraulic motor system is commonly used in applications involving elastomerics, block fillers, roof coatings, waterproofing materials, and industrial protective coatings. Routine inspection and replacement of worn seals, valves, and moving components help minimize downtime, improve hydraulic efficiency, and extend equipment service life.

FAQs

Intermittent stalling can occur when hydraulic valves stick, internal seals wear excessively, or contamination restricts smooth hydraulic fluid movement inside the motor assembly.

Uneven motor speed is often linked to inconsistent hydraulic pressure, partially blocked fluid passages, or wear inside the spool valve and piston assemblies.

Leaks around the cylinder housing are commonly caused by damaged O-rings, worn rod seals, or excessive pressure stressing the sealing surfaces.

Yes. Worn hydraulic motor components can reduce fluid control accuracy, lower operating efficiency, and create inconsistent pump cycling during high-demand spraying jobs.

Rough directional movement may result from worn trip mechanisms, damaged valve rods, or internal scoring inside hydraulic cylinder components that interfere with smooth cycling.
