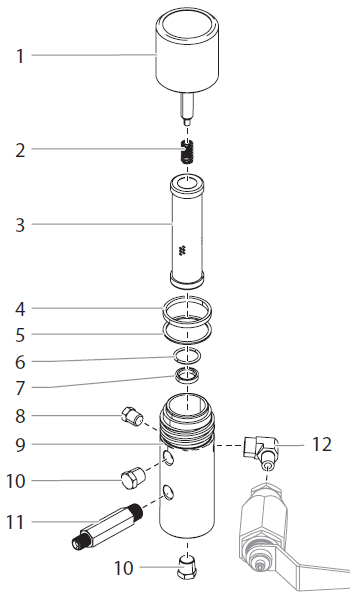

PowrTwin 12000 Plus DI High Pressure Filter Parts

Titan 930-050 Filter Service Kit

Item No: -

Part #: 930-050

930-050 Filter Service Kit contains replacement filter elements and seals needed to service the flui...

Retail Price: $56.60

You save: $4.7 (8.30%)

Our Price: $51.90

QTY:

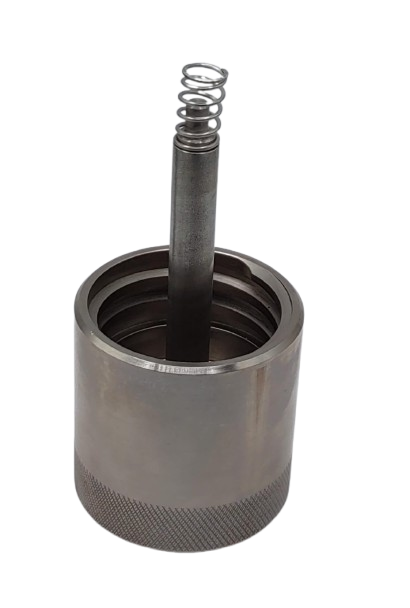

Titan 0290443A Filter Cap Assembly With Spring Support

Item No: 1

Part #: 0290443A

Titan part 0290443A is a filter cap assembly with spring support used in the fluid fil...

Retail Price: $172.00

You save: $21.5 (12.50%)

Our Price: $150.50

QTY:

Titan 930-020 Compression Spring

Item No: 2

Part #: 930-020

Titan part 930-020 is a compression spring used in the pump valve assembly of compatible...

$8.60

QTY:

Titan 930-006 Manifold Filter

Item No: 3

Part #: 930-006

Titan part 930-006 is a manifold filter designed to remove debris and contaminants from coat...

Retail Price: $52.20

You save: $4.33 (8.30%)

Our Price: $47.87

QTY:

Titan 930-005 Manifold Filter

Item No: 3A

Part #: 930-005

Titan part 930-005 is a manifold filter designed to remove debris and contaminants from coat...

Retail Price: $52.20

You save: $4.33 (8.30%)

Our Price: $47.87

QTY:

Titan 930-007 Manifold Filter

Item No: 3B

Part #: 930-007

Titan part 930-007 is a manifold filter used in the fluid inlet or outlet manifold of ...

Retail Price: $50.30

You save: $4.17 (8.29%)

Our Price: $46.13

QTY:

Titan 920-006 Gasket

Item No: 4

Part #: 920-006

Part 920-006 is a replacement gasket for a wide range of compatible spray equipment. This precis...

$15.30

QTY:

Titan 920-070 Gasket, Ptfe (Thin)

Item No: 5

Part #: 920-070

Part 920-070 is a replacement thin PTFE gasket for a wide range of compatible spray equipment. T...

$14.10

QTY:

Titan 891-193 O-Ring, PTFE

Item No: 6

Part #: 891-193

Titan part 891-193 is a PTFE O‑ring used as a high‑performance seal on compatible ...

$6.70

QTY:

Titan 180-909 Tungsten Carbide Seat

Item No: 7

Part #: 180-909

Titan part 180-909 is a tungsten carbide seat designed for use in the fluid section ...

Retail Price: $59.50

You save: $4.94 (8.30%)

Our Price: $54.56

QTY:

Titan 227-027 Pipe Plug

Item No: 8

Part #: 227-027

Part 227-027 is a replacement pipe plug for a wide range of compatible spray equipment. This plu...

$3.50

QTY:

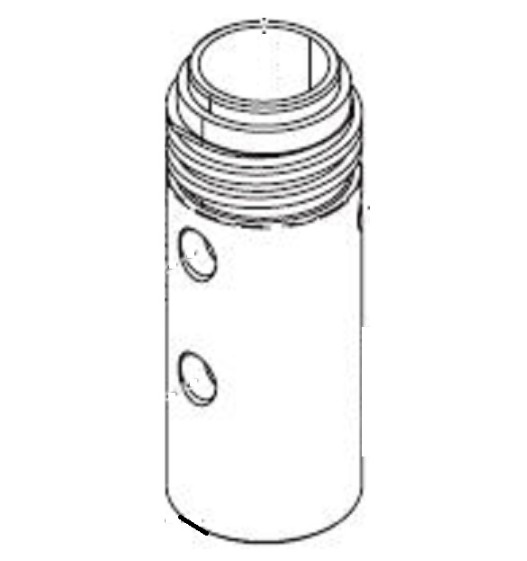

Titan 0290424A Filter Body

Item No: 9

Part #: 0290424A

Titan part 0290424A is a filter body (filter housing) used in the fluid filtration sys...

Retail Price: $225.10

You save: $31.29 (13.90%)

Our Price: $193.81

QTY:

Titan 227-033 Pipe Plug

Item No: 10

Part #: 227-033

Part 227-033 is a replacement pipe plug for a wide range of compatible spray equipment. This plu...

$5.40

QTY:

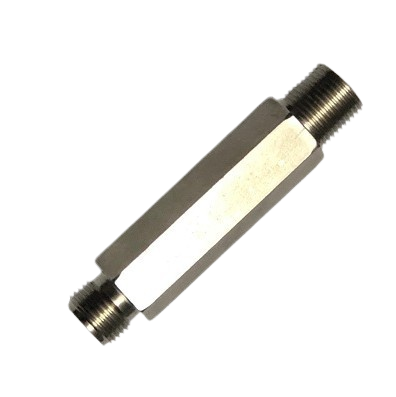

Titan 808-550 Outlet Fitting

Item No: 11

Part #: 808-550

SprayTech part 808-550 is a outlet fitting used to provide a secure fluid connection on compatible s...

Retail Price: $52.50

You save: $4.36 (8.30%)

Our Price: $48.14

QTY:

Titan 810-555 Elbow

Item No: 12

Part #: 810-555

Titan 810-555 Elbow / 810-555 or 810555 90DEG, 1/4"(F)X1/4"(M)-OEM

$16.90

QTY:

Buy Online PowrTwin 12000 Plus DI High Pressure Filter Parts

The PowrTwin 12000 Plus DI High Pressure Filter Parts are designed to maintain clean fluid flow and protect critical spraying components within the Titan PowrTwin 12000 Plus DI system. These high-pressure filtration components help remove debris, coating contaminants, and material buildup before they reach the spray gun, reducing tip clogging and improving overall spray consistency during demanding industrial coating applications.

Key components include the Titan 0290443A Filter Cap Assembly with Spring Support, Titan 930-006 Manifold Filter, Titan 930-020 Compression Spring, Titan 920-006 Gasket, Titan 0290424A Filter Body, and related outlet fittings and sealing components. Together, these parts help maintain balanced fluid pressure, support proper filtration, and protect downstream pump and spray gun components from premature wear.

Built for high-output spraying environments, the filter assembly is commonly used with elastomerics, block fillers, roof coatings, waterproofing systems, and other heavy industrial materials. Regular filter maintenance helps extend equipment life, improve coating quality, and reduce costly downtime caused by contamination-related issues.

FAQs

An inconsistent spray pattern may indicate a partially clogged Titan 930-006 Manifold Filter that is restricting material flow and creating uneven pressure delivery through the system.

Repeated vibration, pressure cycling, or worn sealing surfaces inside the Titan 0290443A Filter Cap Assembly can gradually reduce proper engagement and cause loosening over time.

Heavy coatings can gradually collect inside the filter housing and around the manifold filter, restricting flow and reducing overall spraying efficiency if not cleaned regularly.

Yes. A worn or damaged Titan 920-006 Gasket may compromise the filter housing seal, potentially allowing pressure loss, fluid leakage, or air intrusion into the system.

Industrial coatings often contain heavier solids and thicker materials that place greater demand on the filtration system, causing faster debris accumulation inside the high-pressure filter assembly.

PowrTwin 12000 Plus DI High Pressure Filter Parts

Buy Online PowrTwin 12000 Plus DI High Pressure Filter Parts

FAQs

1. Why is the spray pattern becoming inconsistent even after changing the spray tip?

2. What causes the filter cap assembly to loosen during operation?

3. Why is material flow reduced after spraying thick coatings for long periods?

4. Can a damaged Titan 920-006 Gasket allow air into the fluid system?

5. Why does the filter assembly require more frequent cleaning during industrial coating jobs?
