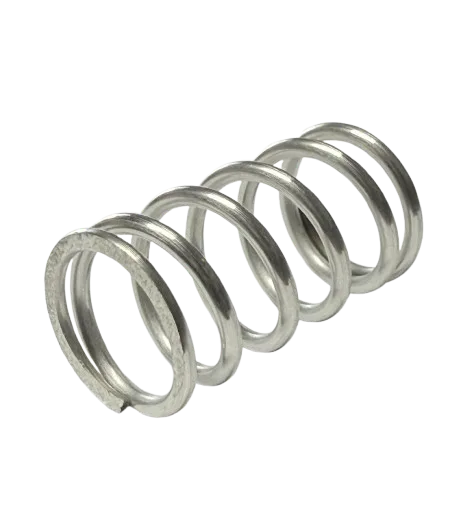

Titan part 930-020 is a compression spring used in the pump valve assembly of compatible PowrTwin, PowrTex, PowrLiner, and PowrBeast airless sprayers. This spring provides the necessary force to keep the valve ball seated during the pump cycle, ensuring proper sealing and consistent pressure. Replacing a worn or weakened compression spring restores correct valve timing and prevents pressure loss.
| Part Number | 930-020 |
|---|---|
| Part Description | Compression Spring |
| Brand | Titan |
| Fits |
|
| Condition | New |
The Titan 930-020 Compression Spring is a precision‑wound spring that provides the necessary closing force for the valve ball in the pump assembly. On compatible airless sprayers, this spring ensures the valve ball returns to its seat during the intake stroke, preventing backflow and maintaining system pressure.
Over time, compression springs can lose tension, weaken, or even break due to metal fatigue and repeated cycling. A weak spring can cause poor valve seating, leading to pressure loss, erratic spray, loss of prime, or complete pump failure. Replacing the spring restores proper valve dynamics and extends pump life.
| Function | Description |
|---|---|
| Valve seating force | Pushes the valve ball firmly against its seat during intake stroke |
| Backflow prevention | Ensures a tight seal, preventing paint from flowing backward |
| Pressure consistency | Maintains stable output pressure by controlling valve timing |
| Symptom | Indication |
|---|---|
| Loss of prime | Sprayer struggles to pull fluid or loses prime easily |
| Pressure drop under load | Pressure falls off when spraying, even with good ball and seat |
| Weak or broken spring | Spring feels soft, has no resistance, or is visibly broken |
| Intermittent surging | Pressure fluctuates due to inconsistent valve sealing |
Titan part 930-020 is compatible with the following models. Always verify fitment using the correct parts diagram for your exact revision.
| Brand / Model | Component |
|---|---|
| PowrTwin TM 8900 XLT | Compression Spring |
| PowrTwin 12000GHD | Compression Spring |
| PowrTwin 12000GH | Compression Spring |
| PowrTwin 12000XLT | Compression Spring |
| PowrTwin 12000XLT DI | Compression Spring |
| PowrTwin 12000 Plus DI | Compression Spring |
| PowrTwin 8900GH | Compression Spring |
| PowrTwin 6900GH | Compression Spring |
| PowrTwin 6900XLT | Compression Spring |
| PowrTwin 6900XLT DI | Compression Spring |
| PowrTwin 4900XLT | Compression Spring |
| PowrTwin 6900 | Compression Spring |
| PowrTwin 8900 | Compression Spring |
| PowrTwin 12000 Plus | Compression Spring |
| PowrTex 6900SF | Compression Spring |
| PowrTex 12000SV | Compression Spring |
| PowrLiner 8900 | Compression Spring |
| PowrLiner 8900XLT | Compression Spring |
| PowrLiner 8900XLT SP | Compression Spring |
| PowrLiner 6950 | Compression Spring |
| PowrLiner 6900XLT | Compression Spring |
| PowrLiner 6900XLT SP | Compression Spring |
| PowrLiner 6000 | Compression Spring |
| PowrLiner 5000 | Compression Spring |
| PowrLiner 4950 | Compression Spring |
| PowrLiner 4900 | Compression Spring |
| PowrLiner 4900XLT | Compression Spring |
| PowrLiner 4000 | Compression Spring |
| PowrLiner 4955 | Compression Spring |
| PowrLiner 6955 | Compression Spring |
| PowrLiner 8955 | Compression Spring |
| PowrBeast 4700 | Compression Spring |
| PowrBeast 7700 | Compression Spring |
| PowrBeast 9700 | Compression Spring |
| PowrBeast 4700T | Compression Spring |
Valve spring issues often involve other pump components. When replacing the compression spring, these parts are commonly inspected or replaced at the same time.
A worn or pitted ball will not seal properly, even with a new spring – inspect and replace as needed.
The seat can become grooved or eroded, preventing a tight seal – replace with the spring and ball.
Inspect the retainer for cracks or deformation that could affect spring alignment.
