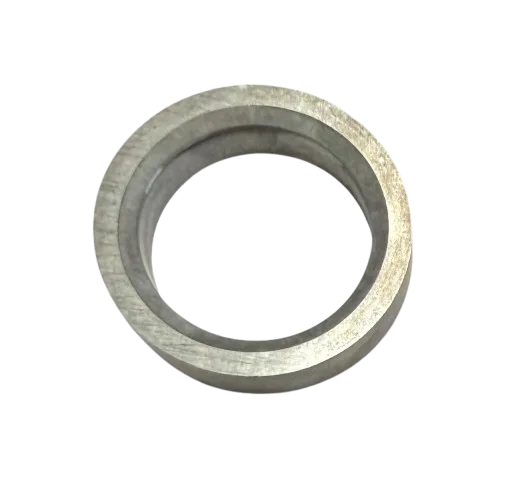

Titan 180-909 Tungsten Carbide Seat
OEM Titan Filter Seat Component
Titan 180-909 Tungsten Carbide Seat is an OEM wear-resistant seat that provides the sealing surface for the check ball inside the high-pressure filter assembly on compatible PowrTwin, PowrLiner, PowrBeast, and PowrTex sprayers.
Compatibility Table
Replacing a nicked or worn carbide seat restores proper check ball sealing, eliminates filter bypass, and maintains consistent filtration and pressure.
Titan High-Pressure Filter Replacement Component
Titan 180-909 Tungsten Carbide Seat for PowrTwin, PowrLiner and PowrBeast Sprayers
Titan 180-909 is an OEM tungsten carbide seat that provides the precision sealing surface for the check ball inside the high-pressure filter assembly of compatible Titan and Speeflo sprayers. Official Titan service documentation specifies the 180-909 as item 7 in the filter assembly diagram, positioned in the filter body with the beveled side facing up. The tungsten carbide construction offers exceptional wear resistance against abrasive coating materials and repeated ball impact, ensuring a reliable seal that maintains filtration integrity and prevents material bypass. Over time, the carbide seat can develop nicks, grooves, or pressure cuts from debris and normal use. A damaged seat prevents the check ball from sealing properly, leading to filter bypass, inconsistent pressure, and potential contamination reaching the spray tip. Titan service manuals explicitly instruct to inspect the seat for nicks or grooves and replace it if damaged. The 180-909 is verified as compatible with an extensive range of models, including the PowrTwin 12000 Plus, 12000GH, 12000GHD, 12000XLT, 12000XLTDI, 4900XLT, 5500, 6900GH, and 8900GH; PowrLiner 4000, 4900, 4900XLT, 4950, 4955, 5000, 6000, 6900XLT, 6950, 6955, 8900, 8900XLT, 8900XLTSP, 8950, and 8955; PowrBeast 4700, 7700, and 9700; and PowrTex 1200SV, 6900SF, and 12000SV. It is commonly serviced alongside the filter element (930-005, 930-006, or 930-007), PTFE O-ring (891-193), filter cap (930-937A), and spring (930-020). Always verify fitment against your specific model's parts diagram before ordering.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | OEM Titan tungsten carbide seat for the high-pressure filter assembly on compatible sprayer models. |
| Function | Provides a wear-resistant sealing surface for the check ball; prevents filter bypass; maintains consistent pressure and filtration integrity. |
| Compatible Models | PowrTwin 12000 Plus, 12000GH, 12000GHD, 12000XLT, 12000XLTDI, 4900XLT, 5500, 6900GH, 8900GH; PowrLiner 4000, 4900, 4900XLT, 4950, 4955, 5000, 6000, 6900XLT, 6950, 6955, 8900, 8900XLT, 8900XLTSP, 8950, 8955; PowrBeast 4700, 7700, 9700; PowrTex 1200SV, 6900SF, 12000SV. |
| OEM Part Number | 180-909 Tungsten Carbide Seat (alternate: 349435). |
| Common Problems Solved | Nicked or grooved seat surface, poor check ball sealing, filter bypass, inconsistent pressure, and contamination reaching the spray tip. |
| Target Users / Markets | Painting contractors, rental fleets, maintenance crews, and repair shops running compatible Titan or Speeflo sprayers. |
| Commercial Benefits | Restores proper check ball seating, eliminates filter bypass, ensures consistent pressure, and maintains reliable sprayer performance. |
When servicing the 180-909 Tungsten Carbide Seat, remove the PTFE O-ring using an O-ring pick and extract the carbide seat. Inspect for nicks or grooves and replace if damaged. During reassembly, place the carbide seat into the filter body with the beveled side facing up, then install the PTFE O-ring into the groove on the outer diameter. Always verify fitment against your specific model's parts diagram before ordering.
