Titan 930-005 Manifold Filter
OEM Titan Manifold Filter Element

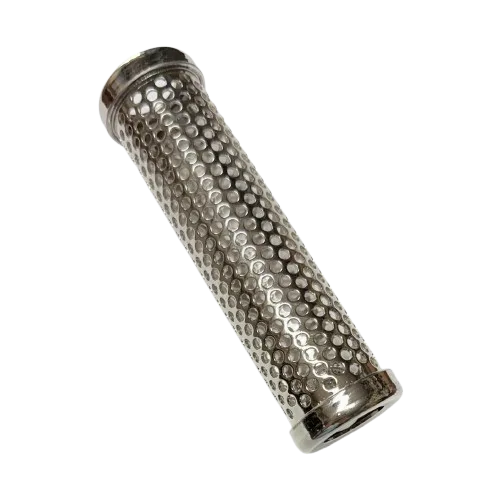

Titan 930-005 Manifold Filter is an OEM 5 mesh filter element with integrated check ball, designed for heavy viscosity and mastic materials on compatible PowrTwin, PowrLiner, PowrBeast, PowrCoat, and PowrTex sprayers.
Compatibility Table
Replacing a clogged or damaged filter element restores proper filtration, protects the spray tip from debris, and ensures consistent material flow.
Titan High-Pressure Filter Replacement Component
Titan 930-005 Manifold Filter 5 Mesh w/ Ball for PowrTwin and PowrLiner Sprayers
Titan 930-005 is an OEM 5 mesh manifold filter element with an integrated check ball, specifically designed for filtering heavy viscosity materials, mastics, and multicolor coatings in professional Titan airless sprayers. This filter element installs inside the high-pressure filter body and traps large particles before they can reach the spray tip, while the integrated check ball works with the spring and carbide seat to control flow and reduce hydraulic shock at stroke changeover. The 5 mesh designation indicates a coarser filtration media suited for thick materials that would quickly clog finer 50 or 100 mesh elements. Official Titan documentation specifies the 930-005 as the filter element for heavy materials, while 930-006 (50 mesh) is standard for latex and architectural coatings, and 930-007 (100 mesh) is for stains and lacquers. Over time, filter elements can become clogged with dried material, or the integrated check ball can become damaged or worn, leading to restricted flow, poor spray patterns, and pressure loss. The 930-005 is verified as compatible with an extensive range of models, including the PowrTwin 4500, 5500, 6900, 6900GH, 6900XLT, 8900GH, 12000, 12000GH, 12000GHD, and 12000XLT; PowrLiner 4000, 4900, 4900XLT, 4950, 4955, 5000, 6000, 6950, 6955, 8900, 8900XLT, 8900XLTSP, and 8950; PowrBeast 4700 and 7700; PowrCoat 730; and PowrTex 1200SV, 6900SF, and 12000SV. It is commonly serviced alongside the filter cap (930-937A), spring (930-020), PTFE gaskets, and O-ring, which are available in Filter Service Kit 930-050. Always verify fitment against your specific model's parts diagram before ordering.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | OEM Titan 5 mesh manifold filter element with integrated check ball for heavy viscosity materials. |
| Function | Traps large particles from heavy/mastic coatings; integrated check ball controls flow and reduces hydraulic shock at stroke changeover. |
| Compatible Models | PowrTwin 4500, 5500, 6900, 6900GH, 6900XLT, 8900GH, 12000, 12000GH, 12000GHD, 12000XLT; PowrLiner 4000, 4900, 4900XLT, 4950, 4955, 5000, 6000, 6950, 6955, 8900, 8900XLT, 8900XLTSP, 8950; PowrBeast 4700, 7700; PowrCoat 730; PowrTex 1200SV, 6900SF, 12000SV. |
| OEM Part Number | 930-005 Manifold Filter Element, 5 Mesh, w/ Ball. |
| Common Problems Solved | Clogged filter restricting flow, debris reaching spray tip, poor spray patterns, pressure loss, and worn check ball. |
| Target Users / Markets | Painting contractors, rental fleets, maintenance crews, and repair shops running compatible Titan sprayers with heavy/mastic materials. |
| Commercial Benefits | Restores proper filtration, protects spray tips from debris, ensures consistent material flow, and maintains reliable sprayer performance. |
When servicing the 930-005 Manifold Filter, inspect the integrated check ball for pressure cuts or scratches. If damaged, replace the entire filter element. Clean the screen element thoroughly on the inside by soaking in solvent to loosen hardened paint. The 930 Series filter elements filter from the inside out. Inspect the carbide seat and PTFE O-ring during service, as removal of the O-ring for seat inspection will damage it and require replacement. Always verify fitment against your specific model's parts diagram before ordering.
