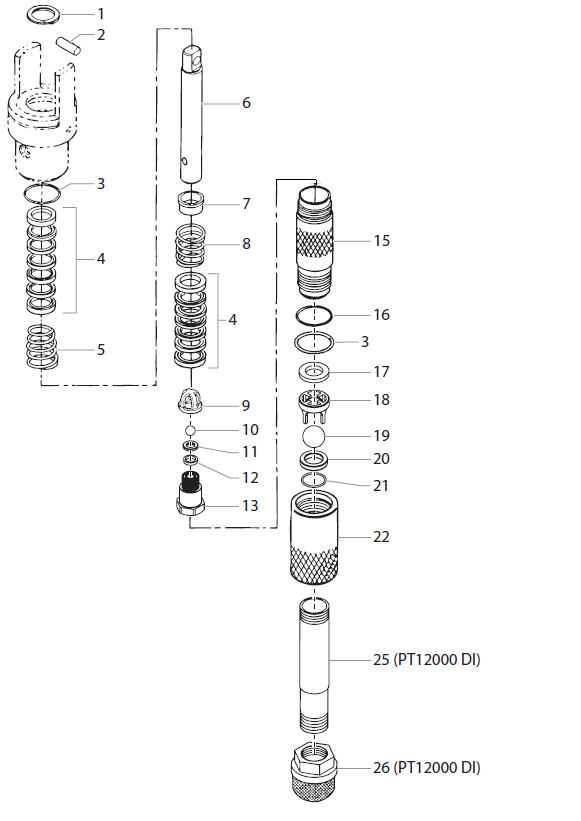

PowrTwin 12000 Plus DI Fluid Section Parts

PowrTwin 12000 Plus DI Fluid Section Parts
Titan 144-500 Major Fluid Section Service Kit
Titan 144-500 Major Fluid Section Service Kit

Item No: -

Part #: 144-500

PowrTwin part 144-500 is a major fluid section service kit containing all necessary seals, packings,...

Retail Price: $558.90
You save: $89.42 (16.00%)
Our Price: $469.48
QTY:
Titan 144-050 Fluid Section Minor Service Kit
Titan 144-050 Fluid Section Minor Service Kit

Item No: --

Part #: 144-050

144-050 Fluid Section Minor Service Kit contains the essential wear components needed to perform rou...

Retail Price: $142.40
You save: $14.81 (10.40%)
Our Price: $127.59
QTY:
Titan 459-021A Foot Valve Assembly
Titan 459-021A Foot Valve Assembly

Item No: ---

Part #: 459-021A

  PowrTwin part 459-021A is the foot valve assembly used in the fluid intake system of c...

Retail Price: $517.20
You save: $82.75 (16.00%)
Our Price: $434.45
QTY:
Titan 236-050 Outlet Valve Assembly
Titan 236-050 Outlet Valve Assembly

Item No: ----

Part #: 236-050

  PowrBeast / PowrLiner / PowrTwin part 236-050 is an outlet valve assembly designed to ...

Retail Price: $147.10
You save: $15.3 (10.40%)
Our Price: $131.80
QTY:
Titan 143-019 Retaining Ring
Titan 143-019 Retaining Ring

Item No: 1

Part #: 143-019

  PowrBeast / PowrLiner / PowrTwin part 143-019 is a retaining ring designed to secure c...

$18.70
QTY:
Titan 143-120 Connecting Pin
Titan 143-120 Connecting Pin

Item No: 2

Part #: 143-120

  PowrLiner / PowrTex / PowrTwin part -120 is a connecting pin designed to link mechanic...

$17.10
QTY:
Titan 145-031 O-ring
Titan 145-031 O-ring

Item No: 3A

Part #: 145-031

  PowrBeast / PowrLiner / PowrTex / PowrTwin part 145-031 is an O-ring designed to creat...

$24.90
QTY:
Titan 138-153A Repacking Kit
Titan 138-153A Repacking Kit

Item No: 4

Part #: 138-153A

  PowrLiner / PowrTwin / PowrBeast part 138-153A is a repacking kit designed to rebuild ...

Retail Price: $104.50
You save: $10.87 (10.40%)
Our Price: $93.63
QTY:
Titan 142-004 Upper Packing Spring
Titan 142-004 Upper Packing Spring

Item No: 5

Part #: 142-004

  Commander / PowrBeast / PowrLiner / PowrTex / PowrTwin part 142-004 is an upper packin...

Retail Price: $34.70
You save: $1.91 (5.50%)
Our Price: $32.79
QTY:
Titan 144-117 Displacement Rod
Titan 144-117 Displacement Rod

Item No: 6

Part #: 144-117

PowrTwin part 144-117 is a displacement rod used to convert rotational pump motion into linear recip...

Retail Price: $189.30
You save: $23.66 (12.50%)
Our Price: $165.64
QTY:
Titan 142-003 Lower Packing Spring
Titan 142-003 Lower Packing Spring

Item No: 7

Part #: 142-003

  Commander / PowrBeast / PowrLiner / PowrTex / PowrTwin part 142-003 is a lower packing...

$25.00
QTY:
Titan 451-085 cage ball
Titan 451-085 cage ball

Item No: 8

Part #: 451-085

The Titan 451-085 Cage Ball is a precision check-valve component used in the fluid section of sele...

Retail Price: $51.20
You save: $4.25 (8.30%)
Our Price: $46.95
QTY:
Titan 0509710 Outlet Valve Ball
Titan 0509710 Outlet Valve Ball

Item No: 9

Part #: 0509710

  Titan part 0509710 is an outlet valve ball designed to work with the valve seat to cre...

$6.00
QTY:
Titan 236-012 Outlet Valve Seat
Titan 236-012 Outlet Valve Seat

Item No: 10

Part #: 236-012

    PowrLiner / PowrTex / PowrTwin part 236-012 is an outlet valve seat designed to prov...

Retail Price: $39.00
You save: $2.14 (5.49%)
Our Price: $36.86
QTY:
Titan 236-032 Seal Washer
Titan 236-032 Seal Washer

Item No: 11

Part #: 236-032

  PowrBeast / PowrLiner / PowrTex / PowrTwin part 236-032 is a seal washer designed to c...

$13.30
QTY:
Titan 236-031A Outlet Valve Housing
Titan 236-031A Outlet Valve Housing

Item No: 12

Part #: 236-031A

  PowrLiner / PowrTwin part 236-031A is an outlet valve housing designed to contain the ...

Retail Price: $76.80
You save: $6.37 (8.29%)
Our Price: $70.43
QTY:
Titan 144-832 Pump Cylinder
Titan 144-832 Pump Cylinder

Item No: 14

Part #: 144-832

  PowrBeast / PowrLiner / PowrTwin / PowrTex part 144-832 is a pump cylinder designed to...

Retail Price: $222.90
You save: $30.98 (13.90%)
Our Price: $191.92
QTY:
Titan 140-009 O-Ring
Titan 140-009 O-Ring

Item No: 15

Part #: 140-009

  PowrTwin / PowrLiner / PowrTex part 140-009 is an O-ring designed to create a leak-pro...

$2.90
QTY:
Titan 236-030 Washer
Titan 236-030 Washer

Item No: 16

Part #: 236-030

  PowrLiner / PowrTex / PowrTwin part 236-030 is a washer designed to distribute load, p...

$17.60
QTY:
Titan 236-141 Foot Valve Cage
Titan 236-141 Foot Valve Cage

Item No: 17

Part #: 236-141

  PowrBeast / PowrLiner / PowrTwin / PowrTex part 236-141 is a foot valve cage designed ...

Retail Price: $30.60
You save: $1.68 (5.49%)
Our Price: $28.92
QTY:
Titan 0509707 Foot Valve Ball (Replaces  Titan 178-700 and Titan 0349477)
Titan 0509707 Foot Valve Ball (Replaces  Titan 178-700 and Titan 0349477)

Item No: 18

Part #: 0509707

  PowrBeast / PowrLiner / SprayTech part 0509707 is a foot valve ball designed to create...

Retail Price: $46.50
You save: $3.53 (7.59%)
Our Price: $42.97
QTY:
Titan 0509623 Inlet Valve Seat
Titan 0509623 Inlet Valve Seat

Item No: 19

Part #: 0509623

  PowrBeast / Advantage GPX / PowrLiner / SprayTech part 0509623 is an inlet valve seat ...

Retail Price: $67.50
You save: $5.6 (8.30%)
Our Price: $61.90
QTY:
Titan 0509708 Seat O-Ring
Titan 0509708 Seat O-Ring

Item No: 20

Part #: 0509708

  Titan part 0509708 is a seat o‑ring designed to provide a leak‑tight seal between ...

$3.20
QTY:
Titan 459-019A Foot Valve Housing, PKGD
Titan 459-019A Foot Valve Housing, PKGD

Item No: 21

Part #: 459-019A

  PowrTwin part 459-019A is a foot valve housing, packaged (PKGD), designed for PowrTwin...

Retail Price: $312.90
You save: $45.68 (14.60%)
Our Price: $267.22
QTY:
Titan 761-153 Down Tube
Titan 761-153 Down Tube

Item No: 24

Part #: 761-153

  Airless Sprayer / Elite / Epic / PowrTwin part 761-153 is a down tube designed to rout...

Retail Price: $102.10
You save: $10.62 (10.40%)
Our Price: $91.48
QTY:
Titan 710-046 Inlet Screen
Titan 710-046 Inlet Screen

Item No: 25

Part #: 710-046

Part number 710-046 is an inlet screen. This is a fine mesh filter installed at the fluid inlet ...

Retail Price: $37.80
You save: $4.48 (11.85%)
Our Price: $33.32
QTY:
Titan 0528296 Lock Ring Or Nut
Titan 0528296 Lock Ring Or Nut

Item No: 26

Part #: 0528296

  PowrBeast part 0528296 is a lock ring or nut used to secure components in the pump or ...

Retail Price: $34.00
You save: $1.87 (5.50%)
Our Price: $32.13
QTY:

Genuine PowrTwin 12000 Plus DI Fluid Section Parts

The PowrTwin 12000 Plus DI Fluid Section Parts are engineered to handle the demanding fluid transfer and pressure-generation requirements of the Titan PowrTwin 12000 Plus DI sprayer. These components are responsible for drawing material into the system, pressurizing heavy coatings, and delivering consistent flow through the spray hose and gun during large-scale industrial and commercial applications.

Key fluid section components include the Titan 144-117 Displacement Rod, Titan 144-832 Pump Cylinder, Titan 236-050 Outlet Valve Assembly, Titan 459-021A Foot Valve Assembly, Titan 138-153A Repacking Kit, Titan 144-500 Major Fluid Section Service Kit, and related seals, springs, valve seats, and packing components. Together, these parts help maintain pressure stability, reduce material bypass, and support efficient spraying of elastomerics, block fillers, waterproofing materials, and industrial protective coatings.

Built for high-production environments, the fluid section is designed for durability, serviceability, and long operating cycles. Regular replacement of packings, valve components, and sealing parts helps reduce downtime, improve spray consistency, and extend overall pump life. Titan recommends routine fluid section servicing after extended operating hours to maintain optimal performance.

FAQs

An unusually fast stroke often indicates internal packing wear or fluid bypass inside the fluid section, preventing the system from maintaining balanced pressure during operation. Inspecting the repacking kit components and checking the outlet valve assembly and foot valve assembly for wear or improper seating helps identify the source of pressure bypass.

Pump cylinder wear can result from abrasive coating materials, contaminated fluid, insufficient lubrication, or extended operation with worn packings that allow metal-to-metal contact. Pairing cylinder replacement with a new displacement rod and fresh O-rings during service helps restore full fluid section efficiency.

Knocking noises may occur when the outlet valve assembly components become loose, outlet valve balls or foot valve balls fail to seat properly against the valve seat, or internal fluid flow becomes disrupted by debris buildup in the foot valve cage.

Yes. A worn or contaminated Titan 459-021A Foot Valve Assembly can reduce suction efficiency, make priming difficult, and allow material to flow backward inside the pump system. Replacing the foot valve ball, inlet valve seat, and foot valve housing together during service helps restore full intake performance.

Frequent repacking may be caused by spraying abrasive coatings, operating with contaminated materials, excessive pressure settings, or a worn displacement rod surface accelerating packing wear. Using the major fluid section service kit during comprehensive rebuilds ensures all wear components — including the upper and lower packing springs, retaining ring, and seal washer — are replaced together for lasting results.
