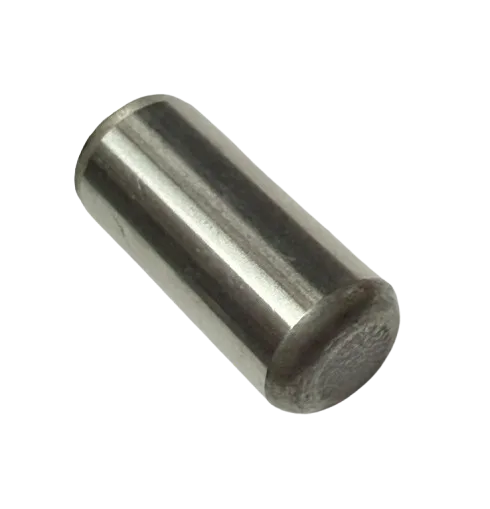

Titan 143-120 Connecting Pin

Titan Mechanical Replacement Component

Titan 143-120 Connecting Pin for PowrTwin, PowrLiner and PowrBeast Sprayers

Titan 143-120 is an OEM 1/2-inch connecting pin that serves a critical role in the fluid pump assembly of professional Titan sprayers. This pin connects the displacement rod to the hydraulic piston rod, transmitting the reciprocating motion that drives the pump and pressurizes coating material. Official Titan service manuals specify the connecting pin as the component that must be removed to separate the displacement rod from the hydraulic piston rod during fluid section service, and reinserted to reassemble the pump linkage. The 143-120 replaces the older 143-118 pin and is secured in place by the 143-019 retaining ring. Over time, connecting pins can become worn, bent, or damaged from the high reciprocating forces and vibration of pump operation. A compromised pin can allow the rods to separate, causing loss of pump drive, unusual noise, or complete sprayer failure. The 143-120 is verified as compatible with an extensive range of models, including the PowrTwin 12000 Plus DI, 12000GH, 5500, 6900GH, 6900GHD, 6900XLT, 8900 Plus, and 8900GH; PowrLiner 6000, 6900, 6950, 8900XLT, 8900XLTSP, 8950, and 8955; PowrBeast 7700 and 9700; and PowrTex 1200SV, 6900SF, and 12000SV. During fluid section service, always inspect the connecting pin for wear or damage and replace if necessary. Always verify fitment against your specific model's parts diagram before ordering.

When servicing the 143-120 Connecting Pin, slide the retaining ring (143-019) up with a small screwdriver to access the pin. Push out the connecting pin to separate the displacement rod from the hydraulic piston rod. During reassembly, align the holes in both rods and insert the pin, then replace the retaining ring over the pin. Always inspect the pin for wear or damage before reuse. Always verify fitment against your specific model's parts diagram before ordering.
