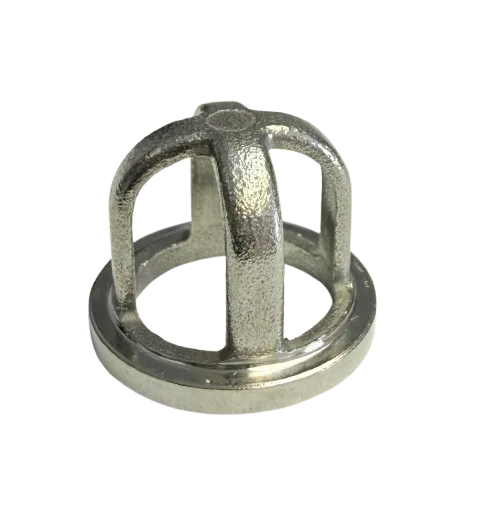

Titan 451-085 cage ball
The Titan 451-085 Cage Ball is a precision check-valve component used in the fluid section of select Titan airless sprayers. The cage ball controls one-way fluid flow within the pump, helping maintain prime, stable pressure, and consistent material delivery during operation.
| Part Number | 451-085 |
|---|---|
| Product Type | Cage Ball / Check Valve Component |
| Condition | New OEM |
| Fits | PowrTex 6900SF, 12000SV PowrBeast 4700, 4700T, 7700, 9700 PowrTwin 4900, 6900, 8900, 12000 Plus, 12000 Plus DI, 12000 GH, 12000 XLT, 6900 XLT, 6900 XLT DI, 8900 XLT, 8900 GH PowrLiner 4950, 4955, 6950, 6950 XLT, 6950 XLT SP, 8955, 8900 XLT |
Cage Ball Check Valve for Titan High-Output Airless Sprayers
The 451-085 Cage Ball is an OEM internal check-valve part used in the pump fluid section of multiple Titan PowrTex, PowrTwin, and PowrLiner airless sprayers. It works with the valve cage and seat to regulate one-way fluid movement through the pump.
Proper cage ball operation is essential for maintaining prime, preventing pressure drop, and ensuring consistent pump cycling. A worn or damaged cage ball can cause surging, poor prime retention, or reduced spray performance.
What it does and when to replace it
| Check valve action | Allows fluid to flow in one direction while preventing backflow |
|---|---|
| Prime retention | Helps the pump maintain prime between cycles |
| Pressure stability | Supports consistent pressure output during spraying |
| Loss of prime | Pump fails to hold prime after shutdown |
|---|---|
| Surging | Pressure fluctuations during spraying |
| Wear or pitting | Visible damage to the ball surface |
| Routine rebuild | Part replaced during scheduled pump service |
Compatibility
Part 451-085 is compatible with the following Titan airless sprayer models. Always confirm fitment using the correct parts diagram for your exact unit and revision.
| Sprayer Model | Component |
|---|---|
| PowrTex 6900SF | Cage Ball (451-085) |
| PowrTex 12000SV | Cage Ball (451-085) |
| PowrBeast 4700 | Cage Ball (451-085) |
| PowrBeast 4700T | Cage Ball (451-085) |
| PowrBeast 7700 | Cage Ball (451-085) |
| PowrBeast 9700 | Cage Ball (451-085) |
| PowrTwin 4900 | Cage Ball (451-085) |
| PowrTwin 6900 | Cage Ball (451-085) |
| PowrTwin 8900 | Cage Ball (451-085) |
| PowrTwin 12000 Plus | Cage Ball (451-085) |
| PowrTwin 12000 Plus DI | Cage Ball (451-085) |
| PowrTwin 12000 GH | Cage Ball (451-085) |
| PowrTwin 12000 XLT | Cage Ball (451-085) |
| PowrTwin 6900 XLT | Cage Ball (451-085) |
| PowrTwin 6900 XLT DI | Cage Ball (451-085) |
| PowrTwin 8900 XLT | Cage Ball (451-085) |
| PowrTwin 8900 GH | Cage Ball (451-085) |
| PowrLiner 4950 | Cage Ball (451-085) |
| PowrLiner 4955 | Cage Ball (451-085) |
| PowrLiner 6950 | Cage Ball (451-085) |
| PowrLiner 6950 XLT | Cage Ball (451-085) |
| PowrLiner 6950 XLT SP | Cage Ball (451-085) |
| PowrLiner 8955 | Cage Ball (451-085) |
| PowrLiner 8900 XLT | Cage Ball (451-085) |
Related parts commonly serviced together
Houses the cage ball and supports proper check-valve operation.
Works with the cage ball to seal against backflow.
Cage balls are commonly replaced during full pump rebuilds.
