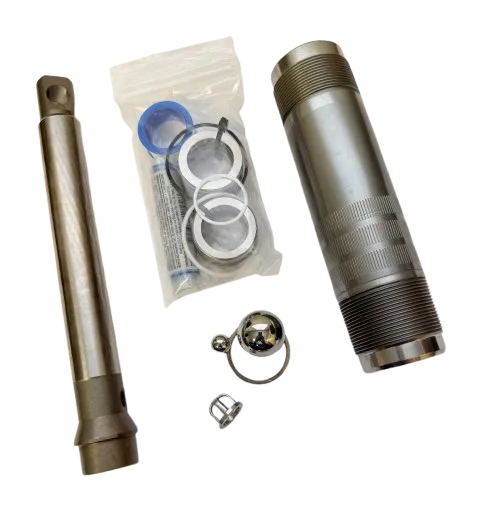

Titan 144-500 Major Fluid Section Service Kit

Major Fluid Section Service Kit for Powerliner, PowrLiner, and PowrTwin Sprayers

The PowrTwin 144-500 major fluid section service kit is a comprehensive rebuild kit that contains all the wear components, seals, packings, and O-rings required to completely overhaul the fluid section on compatible Powerliner, PowrLiner, and PowrTwin airless paint sprayers. The fluid section is the heart of the sprayer, responsible for drawing material from the container, pressurizing it to the required operating pressure, and delivering it to the spray tip for atomization. Within the fluid section, multiple components work together under extreme conditions: the displacement rod slides through throat seals thousands of times per minute, the piston packings expand and contract with each stroke to maintain a seal against the cylinder wall, and the inlet and outlet check valves open and close rapidly to control material flow direction. Over time, each of these components wears at its own rate, but when multiple failures occur simultaneously or when the sprayer has been heavily used without preventive maintenance, a full fluid section rebuild is the most efficient and reliable approach to restoration.

Common symptoms that indicate the need for a major fluid section service include material leaking from the throat area where the displacement rod enters the housing, indicating worn throat seals or a scored rod. Loss of prime when the sprayer sits idle for even short periods suggests worn inlet check valve components or piston packings that can no longer create sufficient suction. The pump running continuously without reaching pressure cutoff points to internal bypass past worn packings or check valves. A pulsating or surging spray pattern that cannot be corrected by adjusting pressure or changing tips indicates inconsistent sealing within the fluid section. Visible material leaking from the fluid section housing itself suggests failed housing seals or cracked components. When these symptoms appear together or when disassembly reveals multiple worn parts, using a major service kit ensures that all potential failure points are addressed in a single repair, rather than replacing components one at a time and chasing persistent problems.

The 144-500 kit typically includes piston packings or V-packings, throat seals, inlet and outlet valve assemblies or their components (balls, seats, and cages), O-rings for housing seals and adapter connections, and any necessary backup rings or spacers. All components are genuine PowrTwin parts manufactured to original factory specifications for material compatibility, dimensional accuracy, and service life. Using this kit rather than individual parts saves time and ensures that all wear items are replaced at once, restoring the fluid section to like-new condition. Proper installation requires thorough cleaning of all housing components, inspection of the displacement rod and cylinder bore for damage, and correct assembly sequence using the appropriate lubricants. When the displacement rod or cylinder shows significant wear or scoring, those components should be replaced separately alongside this kit for complete restoration.
