Titan PowrCoat 730 Air Motor Assembly Parts

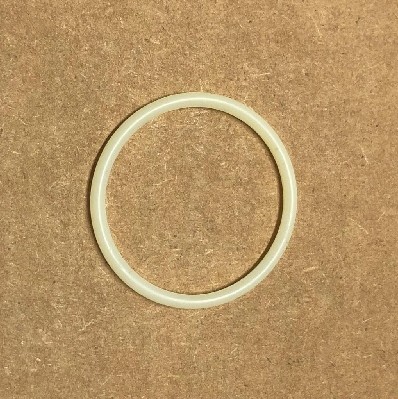

Shop verified replacement components for the PowrCoat 730 Air Motor Assembly, including motor service kits, trip retainers, springs, valve components, O-rings, piston hardware, valve rod, piston, piston rod, cylinder, wear ring, motor base, elbow, grounding wire, and air adapter. Match the 730 diagram column, item number, and exact Titan part number before ordering.

Official 730 Diagram

Match every internal motor component to the numbered Titan illustration.

Minor and Major Kits

Choose repair scope from the documented kit contents, not symptom alone.

Pneumatic Power Transfer

Restore air-valve cycling, piston movement, sealing, and rod travel.

Diagnosis Before Rebuild

Check air supply, lubrication, icing, trip action, seals, and binding first.

Assembly Overview

How the PowrCoat 730 Air Motor Produces Pump Movement

This page is an exploded replacement-parts category for the 7-inch pneumatic air motor used on PowrCoat 730 cart model 0533730C and wall model 0533730W. The same official diagram also covers PowrCoat 745, but technicians must use the correct model column where model-specific parts differ.

Compressed air enters through the listed adapter and elbow, flows through the air tube and cylinder-head valve system, and alternately drives the piston through the air cylinder. The valve rod, trip collar, retainers, springs, ball components, keepers, valve sleeve, air valve, and seals control reversal. The piston rod transfers reciprocating motion toward the fluid pump.

Main Functions

Functions Supported by the Air Motor Assembly

Converts compressed-air energy into reciprocating piston movement.
Directs alternating airflow through the valve sleeve and air valve.
Reverses stroke direction through the trip, keeper, and valve-rod system.
Seals pressure across the piston, valve, head, and cylinder interfaces.
Transfers motor motion through the piston rod toward the fluid pump.

Service Applications

When Repair Shops Use This Parts Diagram

Air motor stalls at the top or bottom of its stroke.
Motor cycles unevenly, hesitates, or loses reciprocating force.
Air leaks through valve, head, piston, or cylinder sealing areas.
Internal wear is found during minor or major motor service.
Piston, piston rod, cylinder, head, air tube, base, or connection damage is confirmed.

Troubleshooting

Common PowrCoat 730 Air Motor Symptoms

Vent the air supply and complete the pressure-relief procedure before inspection. Confirm compressor output, air regulation, lubrication, icing, contamination, and connected pump resistance before replacing internal motor components.

Operating symptom	Inspection points	Recommended action
Motor stalls at stroke reversal	742-905 retainers, 738-213 springs, 138-340 balls, 743-227 trip collar, 743-011 valve rod, and contamination	Verify free trip movement and clean the mechanism before replacing Titan 743-011 Valve Rod Assembly.

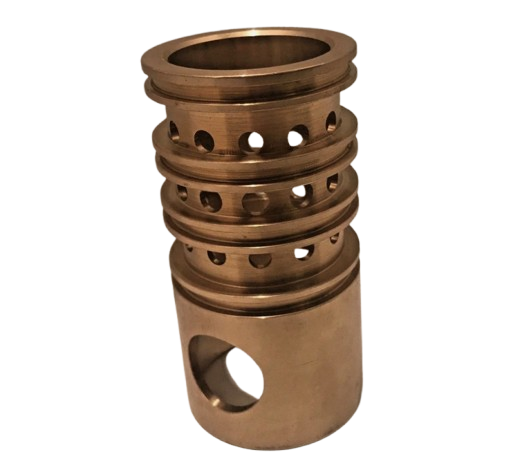

Motor cycles slowly or unevenly	air supply, regulator, lubrication, icing, 740-925 air valve, 742-913 sleeve, keepers, seals, and pump resistance	Correct supply and lubrication conditions before replacing Titan 740-925 Valve Spool.
Air leaks around the piston system	738-997 piston, 426-016 piston O-ring, 742-224 wear ring, 738-021 O-ring, cylinder surface, and gasket interfaces	Inspect seal grooves and the cylinder bore before replacing Titan 738-997 Piston.

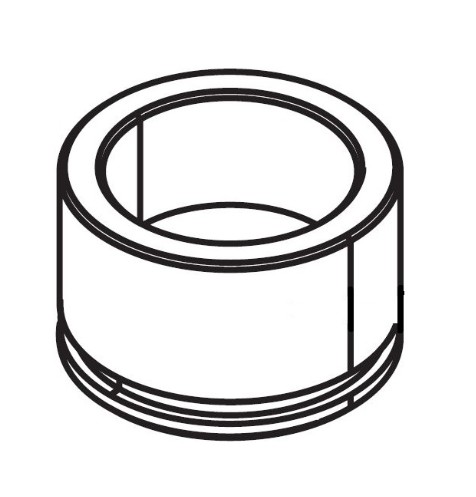

Piston movement binds mechanically	738-952 cylinder, 738-997 piston, 738-937 rod, 742-011 bushing, motor base, alignment, scoring, and bent components	Separate air-motor binding from fluid-pump resistance before replacing Titan 738-952 Air Cylinder.
Motor rod travel is irregular	738-937 piston rod, piston nut, washer, valve rod relationship, bushing, motor base, and connected pump linkage	Check straightness and alignment before replacing Titan 738-937 Piston Rod.
Multiple seals show age or leakage	all documented minor-kit items, valve components, piston and cylinder surfaces, head, tube, base, and service history	Determine whether damage is limited to minor wear items before choosing Titan 742-051 Minor Service Kit or the major kit.

Major Replacement Components

High-Value PowrCoat 730 Air Motor Parts

These verified product pages cover documented service-kit, valve-control, piston, rod, and cylinder positions from the supplied category.

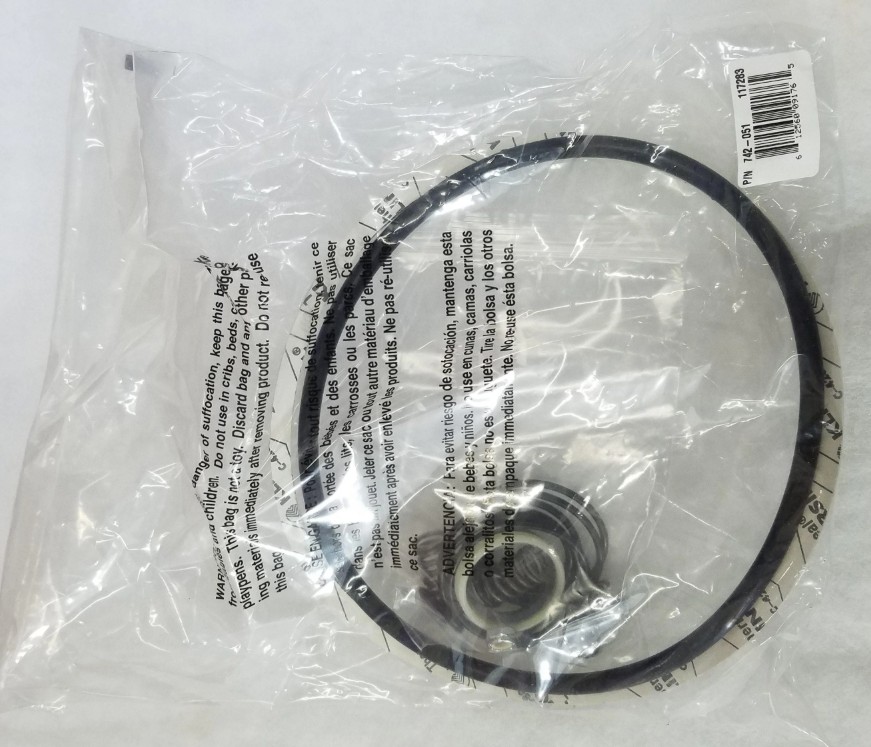

Minor Motor Service

Titan 742-051 Air Motor Minor Service Kit

Includes the documented wear seals, trip components, piston seal, gaskets, and wear ring used for focused PowrCoat 730 air-motor service.

View Titan 742-051

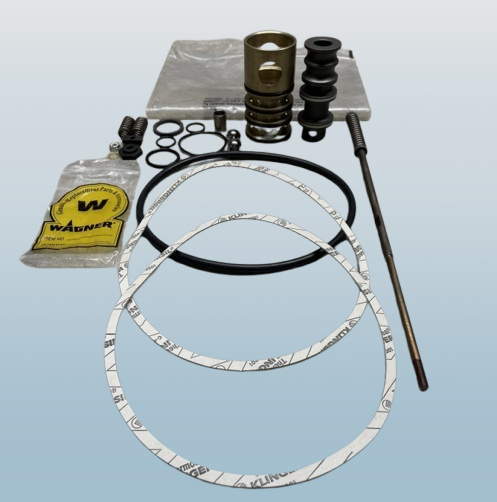

Major Motor Rebuild

Titan 742-501 Motor Service Major Kit

Includes the minor kit plus the documented valve sleeve, valve keepers, air valve, valve rod assembly, and valve trip collar.

View Titan 742-501

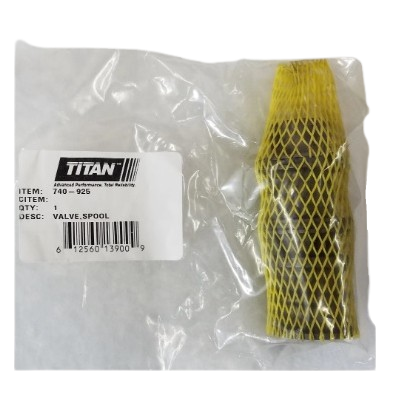

Air-Valve Control

Titan 740-925 Valve Spool

The documented air valve component that directs pneumatic flow during motor cycling.

View Titan 740-925

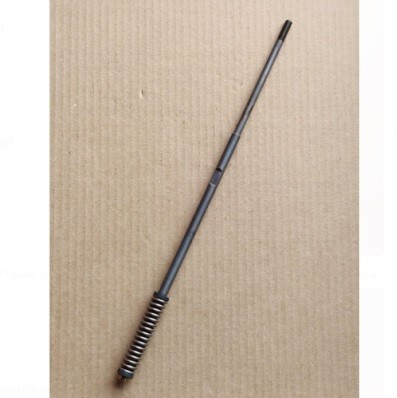

Trip Mechanism

Titan 743-011 Valve Rod Assembly

Transfers valve-trip movement through the air-motor control stack to support correct directional cycling.

View Titan 743-011

Pneumatic Piston

Titan 738-997 Piston

The PowrCoat 730 air-motor piston that converts compressed-air force into reciprocating mechanical movement.

View Titan 738-997

Power Transfer Rod

Titan 738-937 Piston Rod

Transfers the piston’s reciprocating movement through the motor base toward the fluid-pump linkage.

View Titan 738-937

Motor Cylinder

Titan 738-952 Air Cylinder

Forms the documented operating bore around the PowrCoat 730 piston and wear components.

View Titan 738-952

Buying Guide

How to Select the Correct Air Motor Repair Parts

STEP 1

Confirm the motor family

Use the 730/745 air-motor illustration, not the separate 940/960/975 diagram.

STEP 2

Diagnose the system

Rule out air supply, FRL, icing, lubrication, and fluid-pump resistance.

STEP 3

Match the exact callout

Confirm the numbered item and exact Titan part number before ordering.

STEP 4

Choose repair scope

Compare diagnosed wear with the documented minor- and major-kit contents.

Maintenance

Maintenance Practices That Protect the Air Motor

Maintain clean, regulated, lubricated compressed air through the AirCare system.
Check lubricator oil level and drip operation before each use.
Drain accumulated moisture from the air filter and moisture separator.
Inspect tubing, elbow, adapter, and fittings for leakage or restriction.
Watch for icing and do not touch frozen air-motor surfaces during operation.
Keep the motor grounded through the documented grounding wire.

Repair Planning

Build a Complete PowrCoat 730 Air Motor Repair

Trip and valve service should inspect the retainers, springs, balls, cylinder head, air tube, valve sleeve, sleeve O-rings, stop nut, valve keepers, air valve, valve O-rings, bushing, valve rod assembly, and trip collar as one operating system.

Piston-system service should inspect the retaining ring, piston nut, piston washer, piston, piston O-ring, piston rod, cylinder gaskets, air cylinder, lower O-ring, wear ring, motor base, elbow, grounding wire, adapter, and connected pump linkage before selecting individual parts or a service kit.

Fast Navigation

Shop Major PowrCoat 730 Air Motor Components

Titan 742-051 Air Motor Minor Service Kit Titan 742-501 Motor Service Major Kit Titan 740-925 Valve Spool Titan 743-011 Valve Rod Assembly Titan 738-997 Piston Titan 738-937 Piston Rod Titan 738-952 Air Cylinder

FAQ Section

PowrCoat 730 Air Motor Assembly FAQs

Technically verified answers for motor diagnosis, service-kit selection, compatibility, and safe repair planning.

What type of page is the PowrCoat 730 air-motor page?+

It is an exploded-parts-diagram category for the PowrCoat 730 and 745 air-motor assembly, with numbered internal valve, piston, cylinder, sealing, grounding, and connection components.

Which PowrCoat models use this air-motor diagram?+

Titan identifies the diagram for PowrCoat 730 models 0533730C and 0533730W and PowrCoat 745 models 0533745C and 0533745W.

What is the PowrCoat 730 air-motor size?+

Titan specifies a 7-inch air motor for the PowrCoat 730.

What does the air motor do?+

Compressed air drives the air-motor piston and rod through a reciprocating stroke, which moves the connected fluid-pump piston.

What is included in Titan 742-051?+

The official parts list says the minor kit includes items 5–7, 11–12, 15, 18–19, 25, 28, and 30–31.

What is included in Titan 742-501?+

The official parts list says the major kit includes the complete 742-051 minor kit plus items 10, 13–14, 16, 23, and 26.

When is a minor service kit appropriate?+

Use diagnosis to confirm seal, gasket, wear-ring, trip-ball, or related minor-service wear without damage to major valve, piston, rod, cylinder, head, tube, or base components.

When is a major service kit appropriate?+

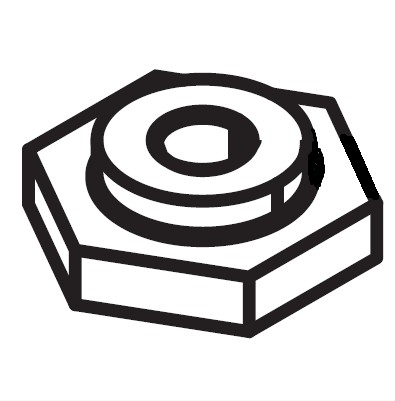

A major kit is used when inspection confirms wear or damage in the valve sleeve, upper or lower valve keeper, air valve, valve rod assembly, or valve trip collar in addition to minor-service components.

What can cause an air motor to stop at the top or bottom of its stroke?+

Possible causes include valve-trip problems, sticking valve components, contamination, damaged seals, incorrect air supply, icing, or mechanical binding. Diagnose the complete trip and valve path before replacement.

What safety steps are required before air-motor service?+

Release pressure from the spray gun and hose, engage the gun safety, shut off and vent the air supply, disconnect the air hose, ground the equipment, and support connected assemblies before disassembly.

Find the Correct Replacement Part

Restore Reliable PowrCoat 730 Pneumatic Cycling

Browse diagram-matched service kits, valve components, trip parts, piston hardware, seals, rods, cylinders, connections, and grounding components.

Search using:

Titan part number
Air-motor diagram callout
Minor or major service kit
Stall, leak, or cycling symptom
Valve, piston, rod, or cylinder

PowrCoat 730 Air Motor Assembly Parts

Find Diagram-Matched PowrCoat 730 Air Motor Assembly Parts
