Titan Pneumatic Airless Sprayer Parts · PowrCoat 730
Find Diagram-Matched PowrCoat 730 Fluid Pump 185-551 Parts
Shop verified replacement components for the PowrCoat 730 Fluid Pump Assembly 185-551, including the lower pump block, three upper-packing choices, upper spring, displacement rod, spring retainer, lower spring, three lower-packing choices, piston ball, piston seat, O-rings, pump cylinder, ball cage, foot-valve ball, and foot-valve assembly. Confirm the exact diagram position, packing material, and Titan part number before ordering.
01
Verified 185-551 Diagram
Match all 15 numbered pump positions to the official Titan illustration.
02

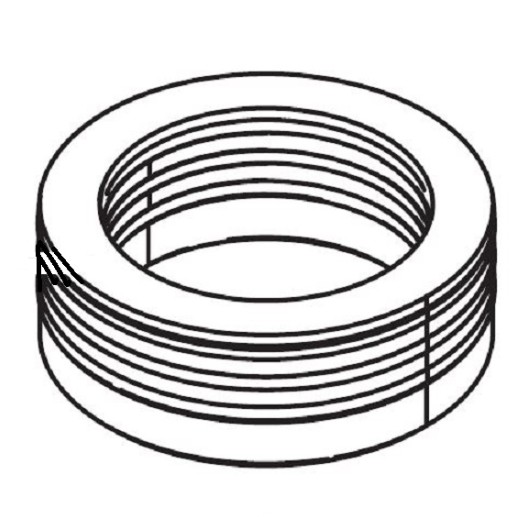

Three Packing Materials
Select leather, leather/polyethylene, or PTFE only after confirming requirements.
03
Pressure and Flow Control
Restore displacement sealing, inlet filling, piston checking, and pressure delivery.
04
Test Before Disassembly
Separate packing, piston-check, foot-valve, intake, and cylinder faults first.
Assembly Overview
How the 185-551 Fluid Pump Develops Material Pressure
This is an exploded replacement-parts category for the 185-551 fluid pump used on PowrCoat 730 cart model 0533730C and wall model 0533730W. Titan also documents the assembly for PowrCoat 940. Titan’s current PowrCoat fluid-section listing identifies the packaged replacement fluid section as 185-551A.
The displacement rod moves through the upper and lower packing groups inside the pump block and cylinder. On alternating strokes, the piston ball and seat and the lower foot-valve ball and housing open or close to admit coating, prevent backflow, and force pressurized material toward the outlet system.
Main Functions
Functions Supported by the Fluid Pump Assembly
Draws coating through the foot-valve assembly during the suction stroke.
Displaces material through the cylinder as the rod reciprocates.
Seals around the rod with selected upper- and lower-packing assemblies.
Controls backflow through the piston ball, piston seat, and inlet ball.
Maintains alignment and pressure containment through the block, cylinder, O-rings, springs, and retainers.
Service Applications
When Contractors Use This Pump Diagram
Excessive coating leakage from the upper packing area.
Pressure loss, backflow, pulsation, or uneven stroke speed.
Poor priming after the external suction path is confirmed clear.
Scored displacement rod, worn cylinder, or damaged valve surfaces.
Planned 185-551 packing, piston-valve, or foot-valve overhaul.
Troubleshooting
Common PowrCoat 730 Fluid Pump Symptoms
Test the complete material system before disassembly. Confirm coating supply, suction connections, inlet screen, hose, filter, gun, tip, air supply, and motor operation before replacing internal pump components.
Operating symptom
Inspection points
Recommended action
Coating leaks from the top packing
selected upper packing, 182-906 spring, 185-984A rod surface, pump block cavity, contamination, and lubrication
Inspect rod scoring and packing-cavity condition before replacing the selected upper packing or Titan 185-984A Displacement Rod.
Pump moves faster on the upstroke
920-103 piston ball, 182-921A piston seat, 182-007 O-rings, lower packing group, and rod condition
Use the PowrCoat 730/940 diagram and verify the machine model.
STEP 2
Diagnose the failed circuit
Separate upper packing, piston check, lower packing, and foot-valve symptoms.
STEP 3
Choose packing material
Confirm leather, leather/polyethylene, or PTFE before ordering positions 2 and 7.
STEP 4
Inspect mating surfaces
Check rod, cylinder, balls, seats, springs, retainers, O-rings, and block condition.
Maintenance
Maintenance Practices That Protect the 185-551 Pump
Keep the upper packing lubricated with Titan Piston Lube 314-480.
Do not substitute oil, water, or solvent for upper-packing lubricant.
Strain coating and clean the inlet screen to limit ball, seat, rod, and cylinder damage.
Inspect for top-packing leakage and unequal stroke speed during operation.
Keep siphon-hose threads sealed to prevent air leakage into the pump inlet.
Plan routine service at approximately 1,000 operating hours or earlier when symptoms appear.
Repair Planning
Build a Complete PowrCoat 730 Fluid Pump Repair
Upper-section service should group the lower pump block, selected upper packing, upper packing spring, displacement rod, spring retainer, lower spring, selected lower packing, piston ball, piston seat, and the two piston-seat O-rings.
Lower-section service should inspect the cylinder, both cylinder O-rings, ball cage, inlet ball, foot-valve O-ring, foot-valve assembly, suction connection, and coating inlet path. Replacing one valve component will not correct debris damage, cylinder wear, air leakage, or an incompatible packing selection.
Verified answers for pump identification, packing selection, diagnosis, maintenance, and repair planning.
What type of page is the PowrCoat 730 fluid-pump page?+
It is an exploded-parts-diagram category for the Titan 185-551 fluid pump assembly used on PowrCoat 730 and 940 systems.
Which PowrCoat 730 models use this pump diagram?+
Titan identifies cart model 0533730C and wall model 0533730W on the official 185-551 fluid-pump diagram.
What is the current packaged fluid-section number?+
Titan’s current PowrCoat fluid-section resource lists 185-551A for PowrCoat 730 and 940. The exploded internal-parts diagram is identified as pump assembly 185-551.
How many numbered component positions are shown?+
The official diagram contains 15 numbered positions, with alternate upper- and lower-packing choices at positions 2 and 7.
What can cause fluid leakage from the top of the pump?+
Likely inspection points include the selected upper packing assembly, 182-906 upper packing spring, 185-984A displacement rod, and 181-906 lower pump block. Inspect the rod surface and packing cavity before replacing packings.
Why can the pump stroke faster in one direction?+
Unequal stroke speed can indicate leakage through a check valve, worn packing, a damaged ball or seat, cylinder wear, or an intake restriction. Test the pump before disassembly.
When should the 185-551 pump receive routine service?+
Titan recommends routine service after approximately 1,000 operating hours, or earlier when top-packing leakage is excessive or one pump stroke becomes faster than the other.
What lubricant should be used at the upper packing?+
Titan recommends Piston Lube part 314-480 and states that oil, water, or solvent should not be substituted for upper-packing lubricant.
Should a packing set be selected by appearance?+
No. Confirm the required packing material, diagram position, exact part number, coating compatibility, and existing pump configuration before ordering.
What safety procedure is required before pump service?+
Perform the pressure-relief procedure, vent the air supply, disconnect the air hose, remove pressure from the gun and hose, support the pump, and avoid gripping the chrome rod surface with pipe wrenches or pliers.
Find the Correct Replacement Part
Restore PowrCoat 730 Priming, Sealing and Pressure Delivery
Browse diagram-matched pump blocks, packing assemblies, springs, displacement rods, balls, piston seats, O-rings, cylinders, cages, and foot-valve components.
OEM Authenticity Note:
Products are genuine OEM manufacturer-supplied parts. Part numbers and compatibility information are provided to help ensure accurate product identification and fitment.
