Find Diagram-Matched PowrCoat 730 Automatic Lubricator Parts
Shop verified components for the PowrCoat 730 Automatic Lubricator Assembly, including the panel-mount nut, FRL body connector, five-micron filter element, filter bowl, automatic drain kit, drip-control assembly, fill plug, lubricator bowl, regulator relieving repair kit, and body-connector O-ring kit. Match the official diagram position and exact Titan part number before ordering.
How the PowrCoat 730 AirCare Assembly Conditions Compressed Air
This is an exploded replacement-parts category for the filter, regulator, and automatic lubricator system used with the PowrCoat 730. Titan’s official diagram lists identical component numbers for PowrCoat 730, 745, 940, 960, and 975.
Incoming compressed air passes through the five-micron filter element and filter bowl, where particulate and moisture contamination are separated. The automatic drain removes collected liquid, the regulator controls system pressure, and the drip-control and lubricator bowl meter AirCare lubricant into the outgoing air stream.
Functions Supported by the Automatic Lubricator Assembly
- Filters particulate contamination from incoming compressed air.
- Collects and automatically drains separated moisture.
- Regulates the air pressure delivered to the pneumatic system.
- Stores and meters AirCare lubricant into the outgoing air stream.
- Seals and joins the filter, regulator, and lubricator bodies.
When Technicians Use This FRL Parts Diagram
- Air-motor lubrication is low, excessive, or inconsistent.
- Moisture remains in the air system or the drain does not operate.
- Regulated pressure fluctuates after compressor and gauge checks.
- Air leaks between filter, regulator, and lubricator bodies.
- A bowl, fill plug, connector, filter element, or mounting component is damaged.
Common PowrCoat 730 Automatic Lubricator Symptoms
Vent the compressed-air system and complete the sprayer pressure-relief procedure before service. Diagnose the compressor, shutoff valve, pressure gauge, tubing, fittings, AirCare level, and operating environment before replacing FRL components.
High-Value PowrCoat 730 Lubricator and FRL Parts
These verified product pages cover the regulator, body sealing, mounting, connection, filtration, moisture-drain, lubricant-metering, refill, and reservoir positions listed on the supplied category.
Titan 0533917 Regulator Relieving Repair Kit
Rebuilds the relieving-style air regulator when diagnosis confirms internal regulator wear, leakage, or unstable pressure control.

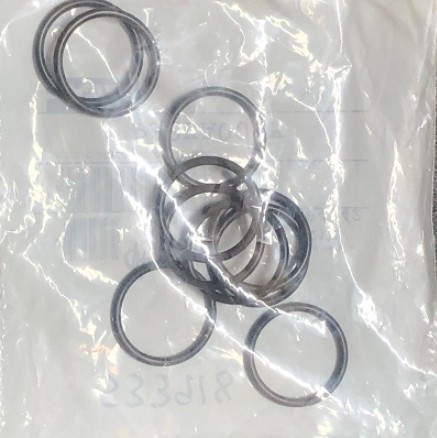

Titan 0533918 Body Connector O-Ring Kit
Ten-piece O-ring service kit for the FRL body connectors, supporting sealed joints between the filter, regulator, and lubricator bodies.
Titan 0533910 Panel Mount Nut
Secures the documented panel-mounted FRL component position and helps maintain correct alignment during operation and service.
Titan 0533909 Body Connector
Joins adjacent FRL bodies and maintains the documented compressed-air passage between assembly sections.
Titan 0533911 Standard 5-Micron Filter
Five-micron filter element that removes particulate contamination from incoming compressed air before it reaches downstream controls.
Titan 0533912 Automatic Drain Kit
Automatic drain component for the filter bowl, helping discharge collected moisture from the compressed-air preparation system.

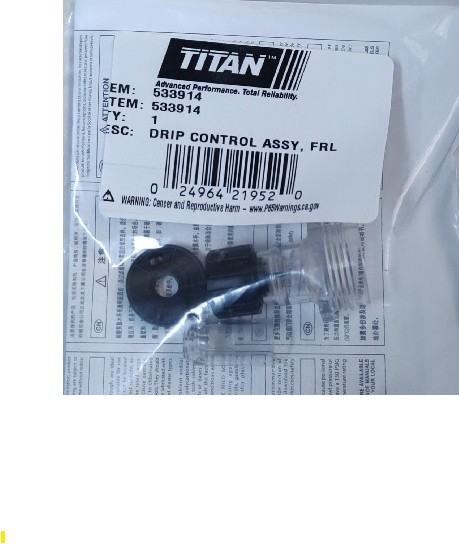

Titan 0533914 Drip Control Assembly
Controls and displays the AirCare lubricant feed used to supply a measured oil mist to the PowrCoat pneumatic system.

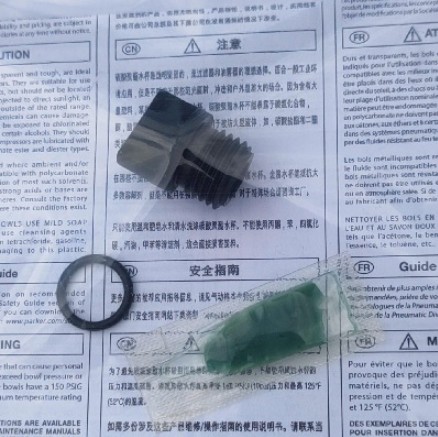

Titan 0533913 Lubricator Fill Plug
Seals the documented lubricator fill opening used when replenishing the AirCare lubricant reservoir.

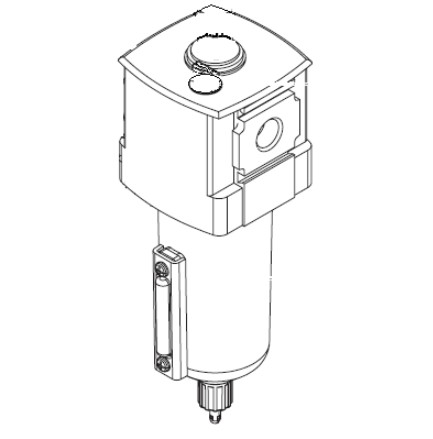

Titan 0533916 Lubricator Bowl
Forms the documented lubricant reservoir below the drip-control section and allows lubricant level monitoring during maintenance.
How to Select the Correct Automatic Lubricator Part
Identify the FRL function
Separate filtration, moisture drainage, regulation, lubrication, connection, and mounting symptoms.
Match the numbered callout
Use positions 1 through 8 or the two unnumbered service-kit listings.
Inspect connected components
Check body faces, O-rings, connectors, bowls, mountings, fittings, and air tubing together.
Confirm the operating cause
Verify compressor air quality, moisture load, AirCare level, and one-drop-per-minute setting.
Maintenance Practices That Protect the AirCare System
- Check the AirCare reservoir level through the air-motor shroud openings.
- Maintain a normal injection rate of one drop per minute.
- Increase the rate only when cold-weather icing conditions require it.
- Inspect and service the five-micron filter when air flow becomes restricted.
- Confirm collected moisture drains from the filter bowl.
- Keep body connectors aligned and replace damaged sealing O-rings.
Build a Complete PowrCoat 730 FRL Repair
Filter-side service should inspect the 0533910 panel nut, 0533909 connector, 0533911 filter element, 0533915 filter bowl, 0533912 automatic drain kit, connector O-rings, body faces, upstream supply hose, and downstream tubing.
Lubricator and regulator service should inspect the regulator setting and body, 0533914 drip control, 0533913 fill plug, 0533916 bowl, AirCare condition, connectors, seals, mountings, and visible drip rate. Replace only the parts confirmed faulty after the system is vented and cleaned.
Shop Major PowrCoat 730 Automatic Lubricator Components
PowrCoat 730 Automatic Lubricator FAQs
Verified answers for AirCare adjustment, FRL diagnosis, moisture control, pressure regulation, parts identification, and safe service.
