Titan Epic 660HPX | Filter Block Assembly
Shop Titan Epic 660HPX Filter Block Parts and Replacement Components
Find Titan Epic 660HPX Filter Block Parts at AllTitanParts. Browse the designated filter block assembly category to identify manufacturer-listed filter components, filter housings, sealing parts, fittings, plugs, and related service hardware where specified. Whether you are addressing restricted coating flow, filter blockage, damaged sealing surfaces, or leakage around the filter assembly, use the applicable Titan Epic 660HPX filter block parts diagram to locate the correct replacement component before ordering.
Filter Block Overview
Buy Titan Epic 660HPX Filter Block Replacement Parts Online
The Epic 660HPX Filter Block is associated with the fluid filtration system of the Titan Epic 660HPX airless paint sprayer. The filter block provides a designated location for manufacturer-specified filtration components and fluid connections within the sprayer's pressurized coating delivery system.
During spraying, coating material may contain particles, dried paint fragments, or other contaminants that can contribute to restricted fluid passages and spray tip blockage. A properly maintained filtration system helps capture debris according to the installed filter's design and supports consistent fluid delivery.
Filter block components operate in a high-pressure fluid environment. Damaged seals, incorrectly installed filter elements, worn sealing surfaces, blocked passages, or unsuitable fittings may affect filtration performance and create leakage hazards.
Routine inspection and correct replacement of serviceable filter components can help reduce avoidable downtime. However, poor spray performance is not always caused by the filter block. Pump wear, restricted suction flow, blocked hoses, and spray tip condition may produce similar symptoms.
At AllTitanParts, browse Titan Epic 660HPX Filter Block Parts to review available components and their manufacturer references. Confirm the applicable parts diagram, filter specifications, pressure ratings, and model compatibility before purchasing.
Fluid Filtration System
How the Titan Epic 660HPX Filter Block Works
The filter block forms part of the coating delivery path. Its precise construction and fluid connections must be confirmed from the applicable Titan assembly diagram.
Pressurized Fluid Entry
Coating material reaches the designated filter block connection from the sprayer's fluid delivery system.
Particle Filtration
The installed filter element captures particles according to its construction and mesh specification.
Filtered Fluid Passage
The filter block routes coating material through its designated internal passages and connections.
Fluid Delivery
Filtered coating material continues through the connected fluid delivery components toward the spray gun.

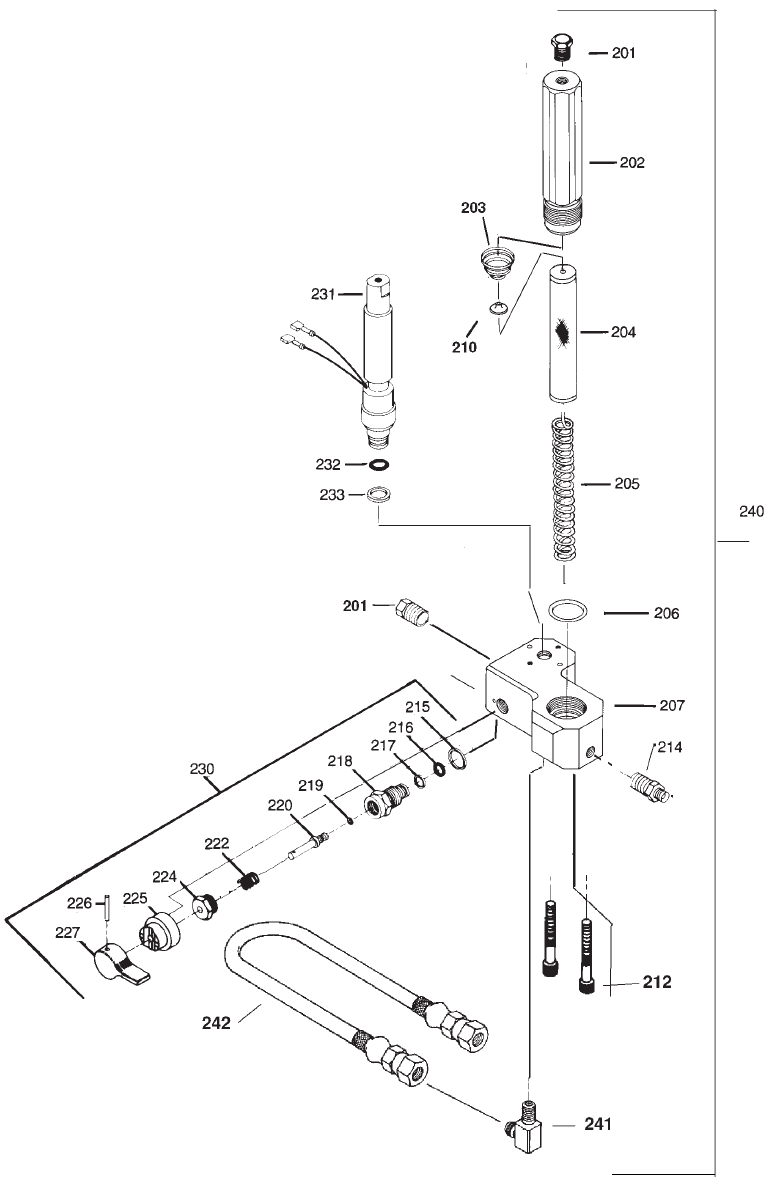

Filter Block Parts Identification
Titan Epic 660HPX Filter Block Assembly Components
The following sections describe common filter block service areas. They are not a verified inventory of the Titan Epic 660HPX Filter Block diagram. Confirm which components are included and separately serviceable using the applicable manufacturer parts list.
Filter Block Housing
The filter block housing contains designated fluid passages and supports the installed filtration components. Inspect for damage to threaded connections and sealing surfaces.
Filter Element
The filter element captures particles from coating material. Match the manufacturer-approved filter design and mesh specification.
Filter Support Components
Where included, supports or retainers help position the filter element within the designated housing.
Filter Cap or Cover
Where fitted, a removable cap or cover provides access to the filter element. Verify the correct thread and sealing arrangement.
O-Rings
Manufacturer-specified O-rings seal designated connections and interfaces. Use the approved material and dimensions.
Filter Seals and Gaskets
Where specified, seals and gaskets help maintain pressure containment at the designated filter block interfaces.
Fluid Outlet Fittings
The designated outlet fittings connect the filter block to downstream fluid delivery components. Confirm pressure rating and thread specification.
Fluid Inlet Connections
The inlet connection provides the designated path for pressurized fluid entering the filter block.
Threaded Plugs
Where included, threaded plugs close designated housing ports. Use only the manufacturer-specified component and sealing arrangement.
Filter Block Mounting Hardware
Specified screws, bolts, washers, and brackets secure the filter block to its designated mounting arrangement.
Pressure-Related Connections
Where shown on the applicable diagram, pressure-related fittings or connections must match the manufacturer's fluid system specifications.
Complete Filter Block Assembly
Where offered, a complete filter block assembly may be appropriate when the housing or multiple internal components require replacement.
Filter Selection Guide
Choosing the Correct Epic 660HPX Filter Element
Filter selection depends on the approved filter design, mesh specification, coating material, and manufacturer recommendations.
| Selection Factor | What to Verify | Why It Matters |
|---|---|---|
| Filter Part Number | Manufacturer-listed replacement reference. | Helps establish compatibility with the designated filter block. |
| Mesh Specification | Approved filtration rating for the coating and equipment. | Affects particle retention and potential flow restriction. |
| Filter Dimensions | Correct length, diameter, and mounting arrangement. | Supports proper installation and sealing. |
| Coating Compatibility | Approved filter material and coating requirements. | Helps prevent unsuitable material selection. |
| Pressure Rating | Manufacturer-approved fluid system specification. | Supports safe use in the pressurized assembly. |
Do not select a filter solely by its appearance or assume a particular mesh size is appropriate for every coating. Follow the applicable Titan and coating manufacturer recommendations.
Filter Block Troubleshooting
Common Titan Epic 660HPX Filter Block Problems
Filtration problems may affect coating flow, spray quality, and fluid system performance. The following symptoms indicate possible inspection areas, not confirmed component failures.
| Observed Problem | Possible Causes | Recommended Inspection |
|---|---|---|
| Reduced coating flow | Clogged filter element, restricted fluid passages, other fluid system blockage | Inspect the approved filter and connected fluid path after pressure relief. |
| Frequent spray tip blockage | Contaminated coating, unsuitable filtration, damaged filter | Check the filter element, coating condition, and downstream components. |
| Leakage around filter housing | Damaged seal, incorrect assembly, worn sealing surface | Stop operation and inspect the approved sealing components. |
| Leakage at fluid fitting | Damaged fitting, incorrect connection, worn threads | Inspect the connection and verify the correct pressure-rated replacement. |
| Filter repeatedly clogs | Excessive debris, incompatible mesh, coating contamination | Review coating preparation and manufacturer filter recommendations. |
| Filter cap is damaged | Thread damage, impact, incorrect installation | Replace the cap or affected assembly with the specified part. |
| Irregular spray pattern | Restricted filter, worn spray tip, inconsistent fluid pressure | Inspect filtration and other relevant fluid delivery components. |
| Visible filter element damage | Physical wear, unsuitable cleaning, incorrect component | Replace the damaged filter with the approved part. |
Repair Diagnosis
Filter Block Problems vs. Pump and Spray Tip Problems
Several parts of an airless sprayer can produce similar fluid delivery symptoms. Identifying the correct repair area helps avoid unnecessary purchases.
- Restricted flow through the filter: Inspect the filter element and designated fluid passages.
- Sprayer fails to prime: Investigate the suction assembly, inlet valve, fluid section, and related priming components.
- Sprayer loses pressure: Check the fluid section, valve condition, pressure-control system, and possible leaks.
- Spray tip frequently clogs: Inspect filtration, coating contamination, and spray tip condition.
- Fluid leaks at the filter block: Inspect the housing, seals, fittings, and specified connections.
- Motor operates but no fluid is delivered: Evaluate the mechanical drive and fluid system rather than assuming the filter block is responsible.
Repair Options
Replace Individual Epic 660HPX Filter Block Parts or the Complete Assembly?
Replace the Filter Element
Replace a damaged or unserviceable filter with the manufacturer-approved element and mesh specification.
Replace Worn Seals
Use the correct O-rings, gaskets, or other sealing components when wear or damage is confirmed.
Replace Damaged Fittings
Use the specified pressure-rated fitting when a fluid connection is damaged or unsuitable for continued service.
Replace the Filter Block
A complete replacement assembly may be appropriate when the housing is damaged or multiple components require replacement.
Parts Diagram Ordering Guide
How to Identify the Correct Titan Epic 660HPX Filter Block Part Number
Confirm the Model
Verify Titan Epic 660HPX and the applicable filter block configuration.
Review the Filter Diagram
Locate the required component in the manufacturer filter block assembly illustration.
Match the Part Number
Compare the diagram reference with the manufacturer parts list and product listing.
Verify Specifications
Confirm filter mesh, seal material, thread dimensions, pressure rating, and assembly revision.
Compatibility Checklist
Titan Epic 660HPX Filter Block Parts Compatibility
Filter block components must match the manufacturer's designated fluid system configuration. Before ordering, verify:
- Sprayer model: Titan Epic 660HPX.
- Filter block assembly: Correct manufacturer assembly reference.
- Part number: Exact listed replacement component.
- Filter specification: Correct element dimensions and approved mesh rating.
- Seal dimensions: Correct O-ring, gasket, or sealing component.
- Seal material: Compatibility with the intended coating and cleaning materials.
- Fitting specifications: Correct thread type, dimensions, and connection arrangement.
- Pressure rating: Approved rating for the sprayer's fluid system.
- Housing configuration: Matching fluid ports and mounting points.
- Assembly revision: Applicable manufacturer diagram and equipment configuration.
Do not assume Titan Epic 660HPX filter block parts fit Epic 660EX, Epic 447HPX, or other Titan sprayer models without documented manufacturer compatibility.
Preventive Maintenance
Titan Epic 660HPX Filter Block Maintenance Tips
Inspect the Filter Element
Check the approved filter element for blockage, deformation, or damage during scheduled maintenance.
Clean According to Instructions
Follow the manufacturer's cleaning procedure and coating material recommendations.
Check Sealing Components
Inspect specified O-rings and gaskets for cuts, swelling, flattening, or other deterioration.
Inspect Fluid Fittings
Check designated fluid connections for damage or leakage after following safe inspection procedures.
Prevent Coating Contamination
Prepare and handle coating materials according to their manufacturer's recommendations.
Follow Pressure-Relief Procedures
Always relieve pressure according to Titan instructions before opening the filter block or servicing fluid connections.
Related Titan Epic 660HPX Assemblies
Shop Titan Epic 660HPX Filter Block and Related Parts
Epic 660HPX Filter Block Parts
Browse the designated filter block category for listed filtration components, seals, and fluid connections.
Epic 660HPX Gear Box Parts
Explore the separate gearbox category for mechanical drive components.
Epic 660HPX Unitec Motor Parts
Review the designated motor assembly category for motor-related replacement components.
Titan Epic 660HPX Parts
Browse the main Epic 660HPX model category for additional replacement assemblies.
Titan Epic 660HPX Filter Block Repair Safety
The filter block is part of a pressurized fluid system. High-pressure fluid can penetrate skin and cause severe injury, even when an opening appears small.
Before removing the filter element, opening the filter housing, loosening a fitting, or replacing a seal, switch off the sprayer, disconnect its power supply, and complete the manufacturer's pressure-relief procedure.
Never use your hand to locate a fluid leak. Do not operate the sprayer with damaged housings, leaking connections, incorrect fittings, or missing seals.
Use only components approved for the applicable equipment pressure and coating materials. Follow manufacturer instructions when installing and tightening filter block components.
Titan Epic 660HPX Filtration Replacement Parts
Order Titan Epic 660HPX Filter Block Parts
Browse Titan Epic 660HPX Filter Block Parts at AllTitanParts. Review the applicable filter block assembly diagram, confirm the manufacturer part number, and identify the replacement filter, seal, fitting, or housing component required for your repair.
Shop Epic 660HPX Filter Block PartsFrequently Asked Questions
Titan Epic 660HPX Filter Block Parts FAQ
What does the Titan Epic 660HPX Filter Block do?
The filter block provides the designated housing and fluid connections for the filtration components used in the sprayer's coating delivery system.
Where can I buy Titan Epic 660HPX Filter Block Parts?
Browse the Titan Epic 660HPX Filter Block Parts category at AllTitanParts.
What components are included in the Epic 660HPX Filter Block?
The exact components depend on the manufacturer diagram. Common filter block components include a housing, filter element, sealing parts, fittings, and retaining hardware.
How do I identify the correct Epic 660HPX filter element?
Match the manufacturer part number, approved mesh specification, dimensions, and applicable coating requirements.
Why does my Titan Epic 660HPX filter keep clogging?
Possible causes include coating contamination, dried material, unsuitable filtration, or excessive debris entering the fluid system.
Can a clogged filter block reduce spray pressure?
A restricted filter can reduce downstream fluid flow and affect spray performance. Other pump and fluid system faults may produce similar symptoms.
Why is paint leaking around my filter housing?
Possible causes include a damaged seal, worn sealing surface, incorrect assembly, or damaged housing components.
Can I replace the O-rings in my Epic 660HPX Filter Block?
Yes, where the manufacturer lists serviceable O-rings. Use the specified dimensions and compatible sealing material.
Can I purchase a complete Titan Epic 660HPX Filter Block?
A complete assembly may be available where listed for the applicable equipment configuration. Check the product listing for exact contents and availability.
How often should I clean the Epic 660HPX filter?
Follow Titan's maintenance instructions and adjust inspection frequency according to coating material, operating conditions, and filter contamination.
Are Titan Epic 660HPX and Epic 660EX filter block parts interchangeable?
Do not assume interchangeability. Verify manufacturer part numbers, pressure specifications, and documented compatibility.
What should I do before opening the filter block?
Switch off the sprayer, disconnect power, and complete the manufacturer's pressure-relief procedure before opening any pressurized fluid component.
How can I get help identifying Epic 660HPX Filter Block Parts?
Contact AllTitanParts at 713-931-0006 with your sprayer model, filter block diagram reference, and manufacturer part number.
