Skid Frame Overview
Buy Titan Epic 660HPX Skid Frame Replacement Parts Online
The Epic 660HPX Skid Frame Assembly provides the designated structural support for the skid-mounted configuration of the Titan Epic 660HPX airless paint sprayer. Unlike wheeled cart arrangements, a skid frame is designed around a stationary support structure that allows the sprayer to be positioned on an appropriate working surface.
The skid frame supports the equipment through manufacturer-specified mounting points and helps maintain the intended relationship between the pump, drive components, and surrounding structural supports.
Depending on the manufacturer assembly design, the skid configuration may incorporate a main frame, support feet, mounting brackets, handles, protective supports, and fastening hardware.
Although the skid frame does not directly generate spraying pressure, its structural condition is important for safe equipment positioning. Damaged supports, loose mounting bolts, bent frame members, or missing hardware can contribute to instability and unwanted equipment movement.
Repeated handling, transportation, jobsite impacts, vibration, and exposure to moisture may gradually affect the frame and its mounting connections.
At AllTitanParts, browse Titan Epic 660HPX Skid Frame Assembly Parts to review listed replacement components. Confirm the applicable skid frame diagram, manufacturer part number, and equipment configuration before purchasing.
Structural Support System
How the Titan Epic 660HPX Skid Frame Assembly Supports the Sprayer
The skid frame provides a designated base for supporting and positioning the sprayer. Its precise design and mounting arrangement must be confirmed from the applicable manufacturer diagram.
Equipment Mounting
The frame provides the designated mounting locations for the supported sprayer assemblies.
Stable Support
The base structure and support points help maintain the sprayer's intended operating position.
Component Protection
The frame arrangement provides structural separation between supported equipment and the working surface.
Handling and Positioning
Where fitted, designated handles or lifting points support appropriate equipment movement according to manufacturer instructions.
Skid Frame Parts Identification
Titan Epic 660HPX Skid Frame Assembly Components
The following sections describe common skid frame service areas. They are not a verified inventory of the Epic 660HPX Skid Frame Assembly diagram. Confirm the exact components, individual serviceability, and manufacturer part numbers using the applicable parts list.
Main Skid Frame
The primary structural frame provides the designated support base. Inspect for bending, cracks, corrosion, and damaged mounting areas.
Skid Support Feet
Where fitted, support feet provide contact points between the frame and the working surface. Replace damaged or missing feet with specified components.
Frame Mounting Brackets
Designated brackets secure supported assemblies to the skid frame and help maintain the intended mounting arrangement.
Skid Frame Handles
Where included, handles provide designated gripping points for handling and positioning the equipment.
Handle Grips
Where fitted, grips provide the intended contact surface for the operator. Inspect for deterioration, looseness, or damage.
Frame Mounting Bolts
Manufacturer-specified bolts secure frame members, brackets, and mounted assemblies. Verify the correct thread, length, and installation requirements.
Mounting Nuts
Designated nuts secure the specified frame connections. Use the correct locking arrangement where required.
Frame Washers
Washers support the manufacturer's intended fastening arrangement at designated mounting points.
Support Crossmembers
Where included, crossmembers connect designated frame sections and contribute to structural support.
Equipment Mounting Supports
Designated supports provide attachment locations for compatible sprayer assemblies.
Hose or Cord Holders
Where listed, holders provide designated storage or routing points for equipment accessories.
Complete Skid Frame Assembly
Where offered, a complete skid frame assembly may be appropriate when significant structural damage makes individual component replacement impractical.
Frame Configuration Guide
Epic 660HPX Skid Frame vs. High Rider and Low Rider Frames
The Titan Epic 660HPX parts documentation may distinguish between skid-mounted and wheeled frame configurations. Each configuration should be identified separately before ordering replacement components.
| Feature | Skid Frame | High Rider Frame | Low Rider Frame |
|---|---|---|---|
| General Design | Stationary skid-style base. | Raised cart-style arrangement. | Lower-profile cart arrangement. |
| Transport Arrangement | Positioned or carried using approved handling methods. | Uses designated wheeled transport components. | Uses its designated transport arrangement. |
| Primary Support | Skid base and support points. | High rider frame and supports. | Low rider frame and supports. |
| Replacement Parts | Use the skid frame diagram. | Use the high rider diagram. | Use the low rider diagram. |
| Interchangeability | Requires manufacturer confirmation. | Requires manufacturer confirmation. | Requires manufacturer confirmation. |
Do not assume skid frame mounting hardware, handles, or structural supports are interchangeable with high rider or low rider frame components.
Frame Wear and Damage
Common Causes of Titan Epic 660HPX Skid Frame Damage
Skid frame components are exposed to mechanical loading, handling, and jobsite conditions. Common sources of damage include:
- Impact during transport: Dropping or striking the sprayer may bend frame members or damage mounting brackets.
- Repeated vibration: Operating vibration may contribute to loosening of mounting hardware.
- Corrosion: Moisture exposure can affect metal frame components and fasteners.
- Damaged support feet: Worn or missing feet may affect equipment stability.
- Improper lifting: Using unapproved lifting points may place excessive stress on frame members.
- Loose mounting brackets: Damaged or improperly secured brackets may allow unwanted component movement.
- Structural fatigue: Repeated mechanical stress may contribute to cracking at vulnerable frame areas.
- Incorrect replacement hardware: Unsuitable fasteners or brackets may compromise the intended support arrangement.
Skid Frame Troubleshooting
Titan Epic 660HPX Skid Frame Problems and Possible Replacement Parts
The following symptoms identify potential inspection areas. Confirm the cause of damage and the required replacement component before ordering.
| Observed Problem | Possible Causes | Components to Inspect |
|---|---|---|
| Sprayer rocks on a flat surface | Bent frame, damaged support feet, uneven mounting | Skid base, support feet, frame geometry |
| Mounted components feel loose | Loose bolts, damaged brackets, worn mounting holes | Mounting bolts, nuts, washers, brackets |
| Frame has visible cracks | Impact damage, structural fatigue, excessive loading | Main skid frame, crossmembers, mounting areas |
| Unusual vibration during operation | Loose mounting hardware, damaged support components | Mounting brackets, bolts, frame supports |
| Handle is loose or damaged | Bent handle, loose fasteners, damaged mounting point | Handle, brackets, mounting hardware |
| Support foot is missing | Wear, impact, lost retaining hardware | Support feet and their designated fasteners |
| Corrosion around frame joints | Moisture exposure, coating damage, unsuitable storage | Frame joints, brackets, bolts, washers |
Frame Repair Options
Replace Individual Epic 660HPX Skid Frame Parts or the Complete Assembly?
Replace Support Feet
Individual replacement may be appropriate when a support foot is damaged and the main frame remains structurally sound.
Replace Mounting Hardware
Use manufacturer-specified bolts, nuts, and washers when fasteners are damaged, missing, or unsuitable for reuse.
Replace Handles or Brackets
Replace damaged handles or support brackets where the manufacturer lists them as separately serviceable components.
Replace the Complete Skid Frame
A complete replacement may be appropriate when the main frame is cracked, severely bent, or otherwise unsafe.
Parts Diagram Ordering Guide
How to Identify the Correct Titan Epic 660HPX Skid Frame Part Number
Confirm the Model
Verify Titan Epic 660HPX and confirm that the sprayer uses the skid frame configuration.

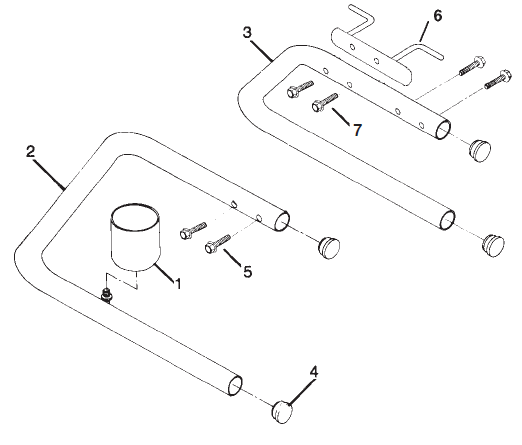

Review the Skid Diagram
Locate the required component in the manufacturer skid frame assembly illustration.
Match the Part Number
Compare the diagram reference with the manufacturer parts list and any documented supersession.
Verify Specifications
Confirm mounting dimensions, fastener specifications, frame geometry, and equipment revision.
Compatibility Checklist
Titan Epic 660HPX Skid Frame Assembly Parts Compatibility
Before ordering replacement skid frame components, verify the following:
- Sprayer model: Titan Epic 660HPX.
- Frame configuration: Skid frame rather than high rider or low rider.
- Assembly reference: Correct manufacturer skid frame parts diagram.
- Part number: Exact listed replacement component.
- Frame geometry: Correct structural dimensions and mounting arrangement.
- Support feet: Matching size, attachment method, and manufacturer specification.
- Mounting brackets: Correct shape, hole spacing, and attachment points.
- Handles: Correct dimensions and mounting configuration.
- Fasteners: Manufacturer-specified thread, length, and fastening arrangement.
- Equipment revision: Applicable manufacturer diagram and installed configuration.
Do not assume Titan Epic 660HPX skid frame components are interchangeable with Titan Epic 660EX, Epic 447HPX, or other sprayer configurations without documented manufacturer compatibility.
Preventive Maintenance
Titan Epic 660HPX Skid Frame Maintenance Tips
Inspect Structural Components
Check frame members and crossmembers for bending, cracking, or corrosion.
Check Mounting Hardware
Inspect designated bolts, nuts, and washers for looseness or damage.
Inspect Support Feet
Confirm support feet are present, correctly attached, and suitable for continued service.
Keep the Frame Clean
Remove coating residue and debris using cleaning methods approved for the equipment.
Use Proper Handling Methods
Move or lift the sprayer only according to the manufacturer's handling instructions.
Store on a Suitable Surface
Position the sprayer on a stable surface and protect the frame from unnecessary moisture exposure.
Related Titan Epic 660HPX Assemblies
Shop Titan Epic 660HPX Skid Frame and Related Parts
Epic 660HPX Skid Frame Parts
Browse the designated skid frame category for listed structural components, supports, and mounting hardware.
Epic 660HPX High Rider Frame Parts
Review the separate raised cart configuration and its designated replacement components.
Epic 660HPX Low Rider Frame Parts
Explore the lower-profile frame configuration and its listed support components.
Titan Epic 660HPX Parts
Browse the main model category for additional Titan Epic 660HPX replacement assemblies.
Titan Epic 660HPX Skid Frame Repair Safety
Before inspecting, removing, or replacing skid frame components, switch off the sprayer, disconnect the power supply, and complete the manufacturer's pressure-relief procedure.
Support the equipment and its mounted assemblies before loosening structural mounting bolts or removing frame components. Unsupported equipment may shift or fall during disassembly.
Do not operate the sprayer with a cracked frame, damaged support feet, loose mounting brackets, or missing structural fasteners.
Use manufacturer-specified replacement hardware and follow the applicable assembly and tightening instructions. Do not rely on unapproved structural modifications or repairs.
After completing repairs, inspect the frame for stability and verify that all mounted components are secured before returning the sprayer to service.
Titan Epic 660HPX Structural Replacement Parts
Order Titan Epic 660HPX Skid Frame Assembly Parts
Browse Titan Epic 660HPX Skid Frame Assembly Parts at AllTitanParts. Review the applicable exploded frame diagram, confirm the manufacturer part number, and identify the support foot, mounting bracket, handle, fastener, or structural component required for your repair.
Shop Epic 660HPX Skid Frame PartsFrequently Asked Questions
Titan Epic 660HPX Skid Frame Assembly Parts FAQ
What is the Titan Epic 660HPX Skid Frame Assembly?
It is the designated structural base that supports the skid-mounted configuration of the Titan Epic 660HPX airless paint sprayer.
Where can I buy Titan Epic 660HPX Skid Frame Assembly Parts?
Browse the Titan Epic 660HPX Skid Frame Assembly Parts category at AllTitanParts.
What components are included in the Epic 660HPX skid frame?
The exact components depend on the manufacturer diagram. Common skid frame components include structural members, support feet, mounting brackets, handles, bolts, nuts, and washers.
What is the difference between a skid frame and a high rider frame?
A skid frame uses a stationary support base, while a high rider frame generally uses a raised cart-style arrangement. Replacement components must match the applicable manufacturer diagram.
Can I replace individual skid frame support feet?
Yes, where the manufacturer lists the support feet as separately serviceable components. Confirm the correct part number and attachment arrangement.
Why is my Titan Epic 660HPX skid frame unstable?
Possible causes include damaged support feet, bent frame members, loose mounting hardware, or an unsuitable supporting surface.
Can I replace damaged skid frame mounting bolts?
Yes. Use the manufacturer-specified replacement bolts and follow the applicable fastening instructions.
Can a damaged skid frame cause excessive vibration?
Loose or damaged structural mounting components may contribute to unwanted equipment movement or vibration. Mechanical drive faults may also cause vibration.
Can I buy a complete Titan Epic 660HPX Skid Frame Assembly?
A complete assembly may be available where listed for the applicable equipment configuration. Verify the manufacturer part number, contents, and availability.
Are Titan Epic 660HPX skid frame parts compatible with high rider parts?
Do not assume interchangeability. The configurations may use different mounting geometry and structural components.
What should I do if the skid frame is cracked?
Stop using the affected frame and follow the manufacturer's repair or replacement guidance. Do not rely on an unapproved structural repair.
How do I identify the correct Epic 660HPX skid frame part number?
Use the applicable manufacturer exploded diagram and match the component reference with the parts list.
How can I get help finding Titan Epic 660HPX Skid Frame Parts?
Contact AllTitanParts at 713-931-0006 with your sprayer model, skid frame assembly reference, and manufacturer part number.
